Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jumbo Drilling Rig
Name: Underground Jumbo Drilling Rig
Application: Tunnel Drilling ,Rock Drilling, Mining Quarry
Feature: High Drilling Efficiency,Hydraulic Controlling
Drilling Diameter: 32-64mm
Drilling Depth: 2.46m
Boom Propelling Compensation:: 410mm
Hydraulic Oil Tank Capacity: 180L
Max System Pressure: 220bar
Chassis Rated Power: 56.5KW
Chassis Fuel Tank Capacity: 60L
Chassis Battery: 120Ah
Dimension Turning Radiu:: 2232/5232mm
Boom Extension: 1200mm
Traveling Speed: 9Km/h
Dimension Ground Clearance: 265mm
Dimension(L*W*H): 9400*1600*2780mm
Weight: 12500kg
High Light:

Underground Jumbo Drilling Rig

,

Hydraulic Jumbo Drilling Rig

,

Underground Jumbo Rock Bolting Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRUB2S
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig

SRUB2S rock bolting rig with long boom design is developed for using in various drift sizes from small to medium. It can install most common rock nolts like split set or resin bolts from 1.5m to 2.5m length. The suitable cross-sections(w*h) is from minimum 3m*2.8m to maximum 5.6*5.1m.

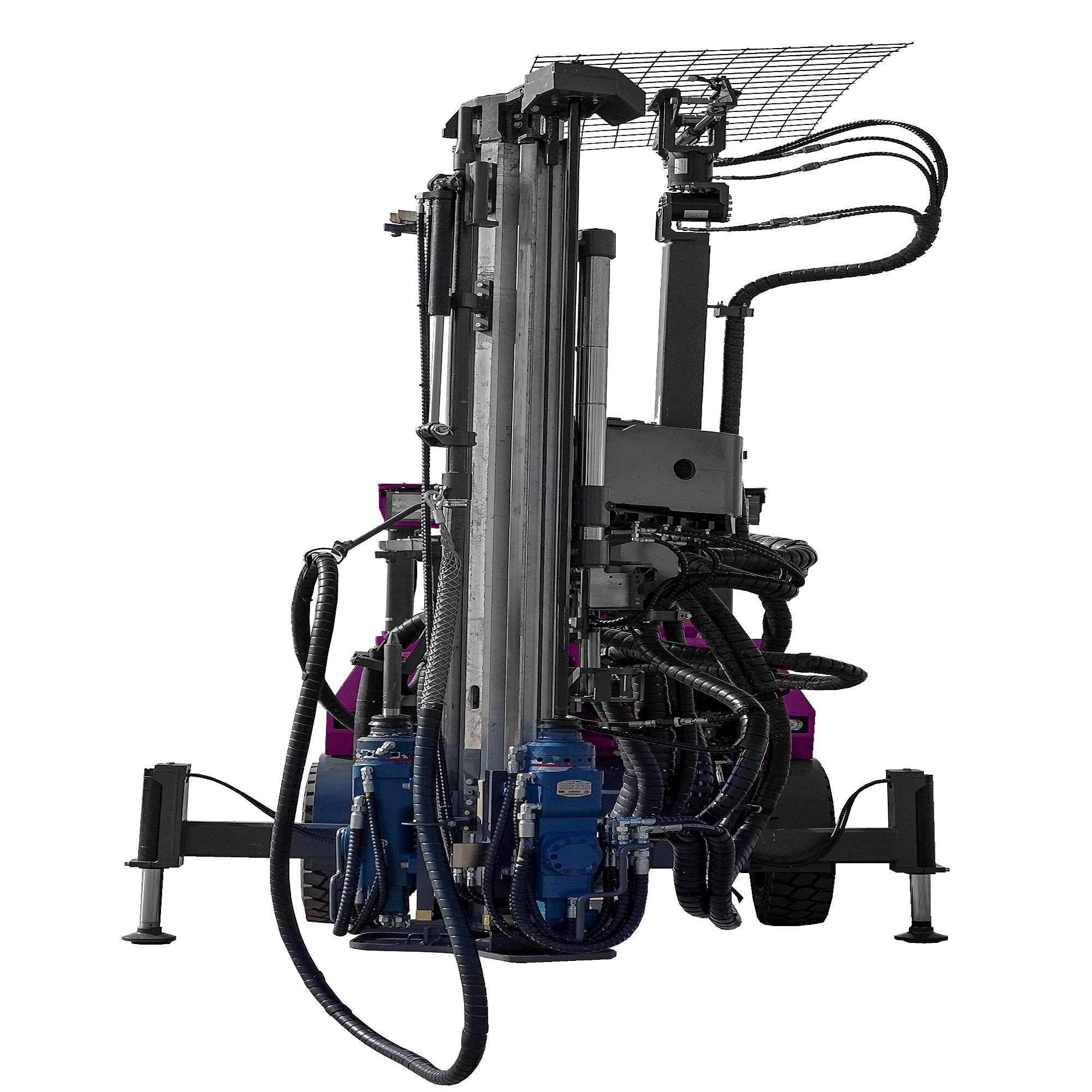

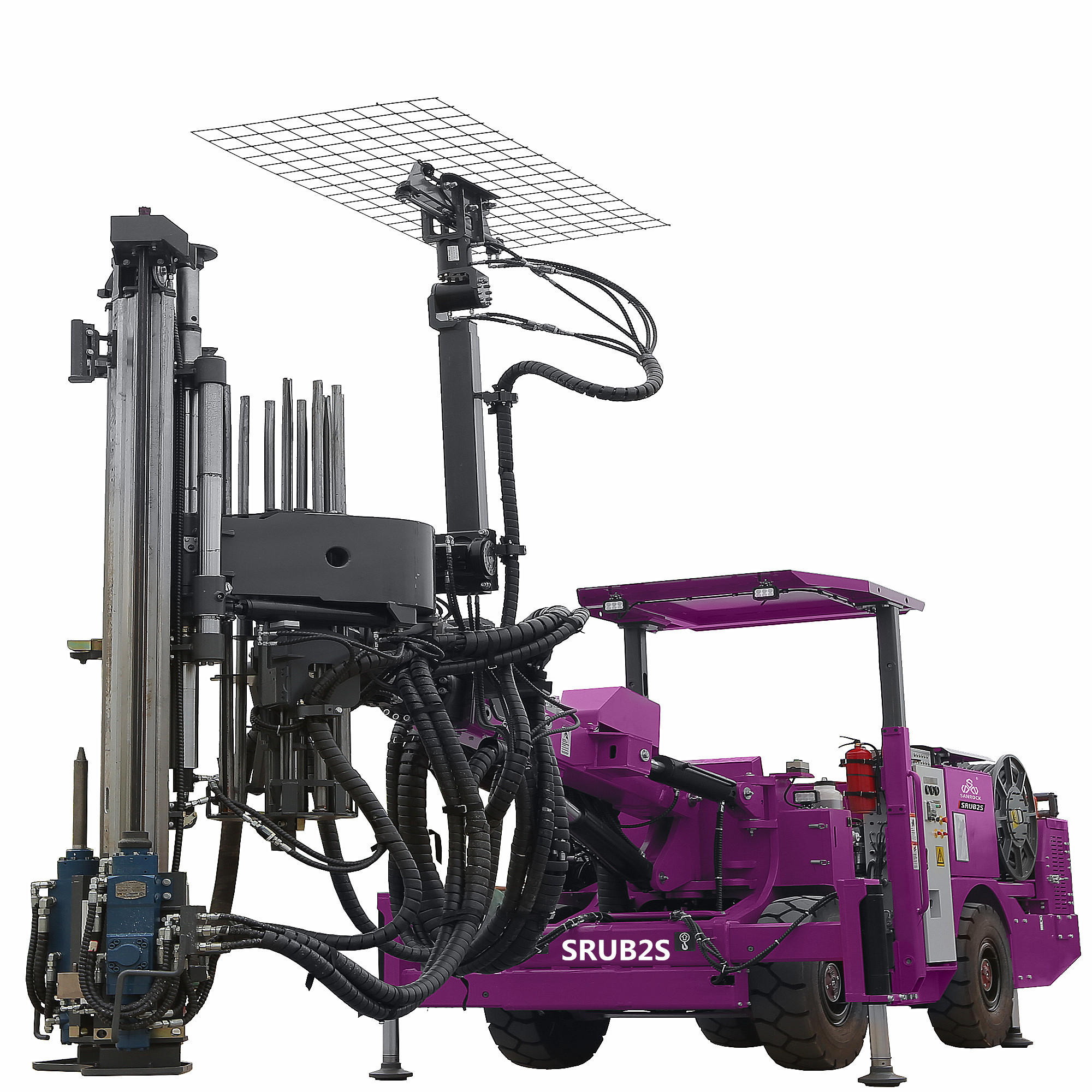

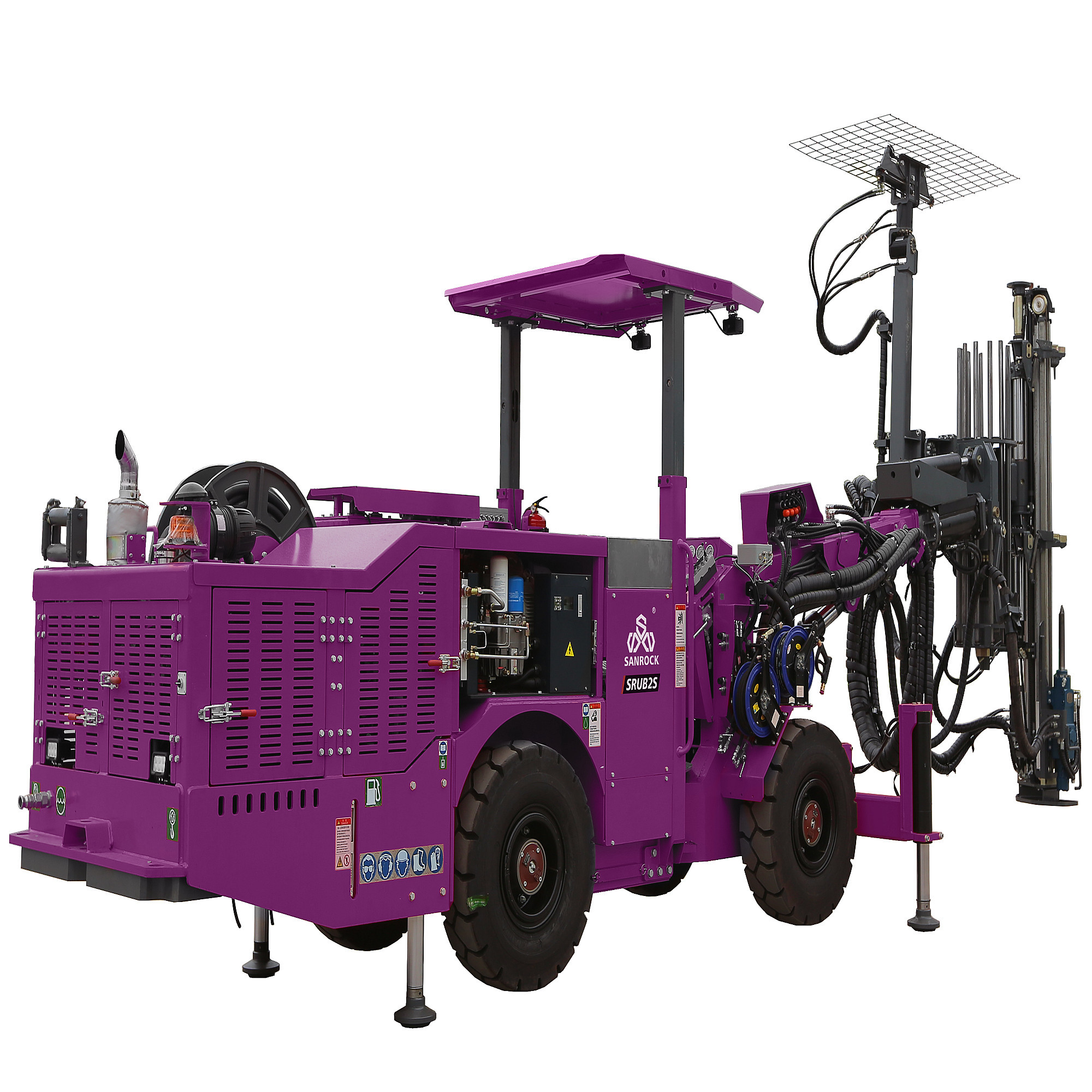

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 0Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 1Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 2

Versatile bolting head

SRUB2S bolting head can be customized for using split set bolts only, or resin bolts only, or combined both bolts. The bolts handler capacity for split set in 10 pcs, resin is 10 pcs, and combined both is 6 pcs split set +6pcs resin at the same time. Also resin conveying system and mesh handling arm are quipped on bolting head, by working together they can complete the meshing, drilling and bolting processes consistently and quickly.

Specialized rock drill for bolting is designed in short length, big power and high stability. 8kw rock drill is starndard, and higher power 10 kw rock drill is optional. SRUB2S boom is specially designed for bolting. It can rotate by 360°, and the upward and downward holes can be drilled. The direct positioning control can meet the operating if any angle of the top and side of the drifts.

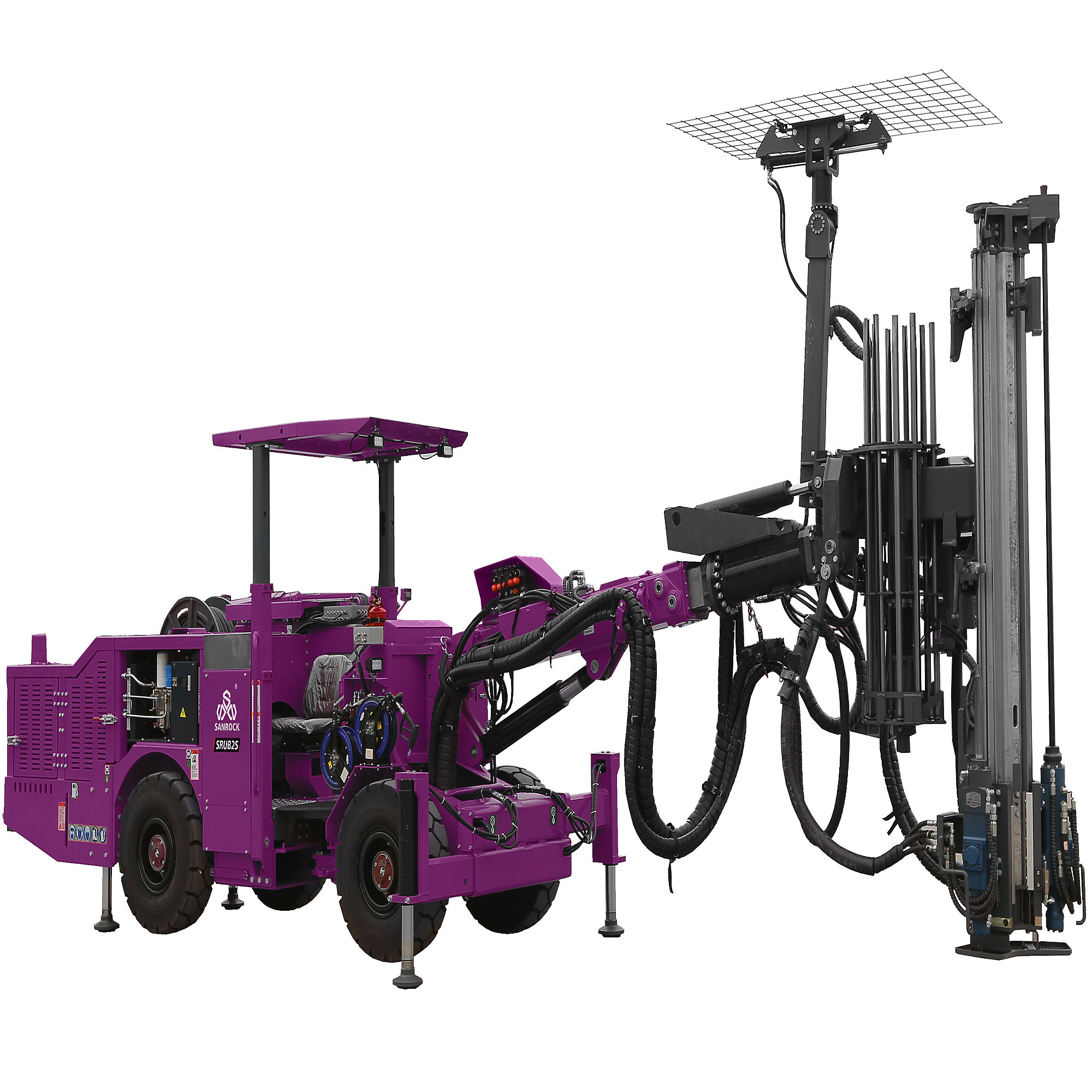

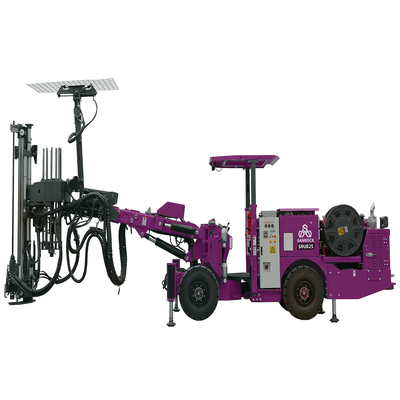

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 3Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 4

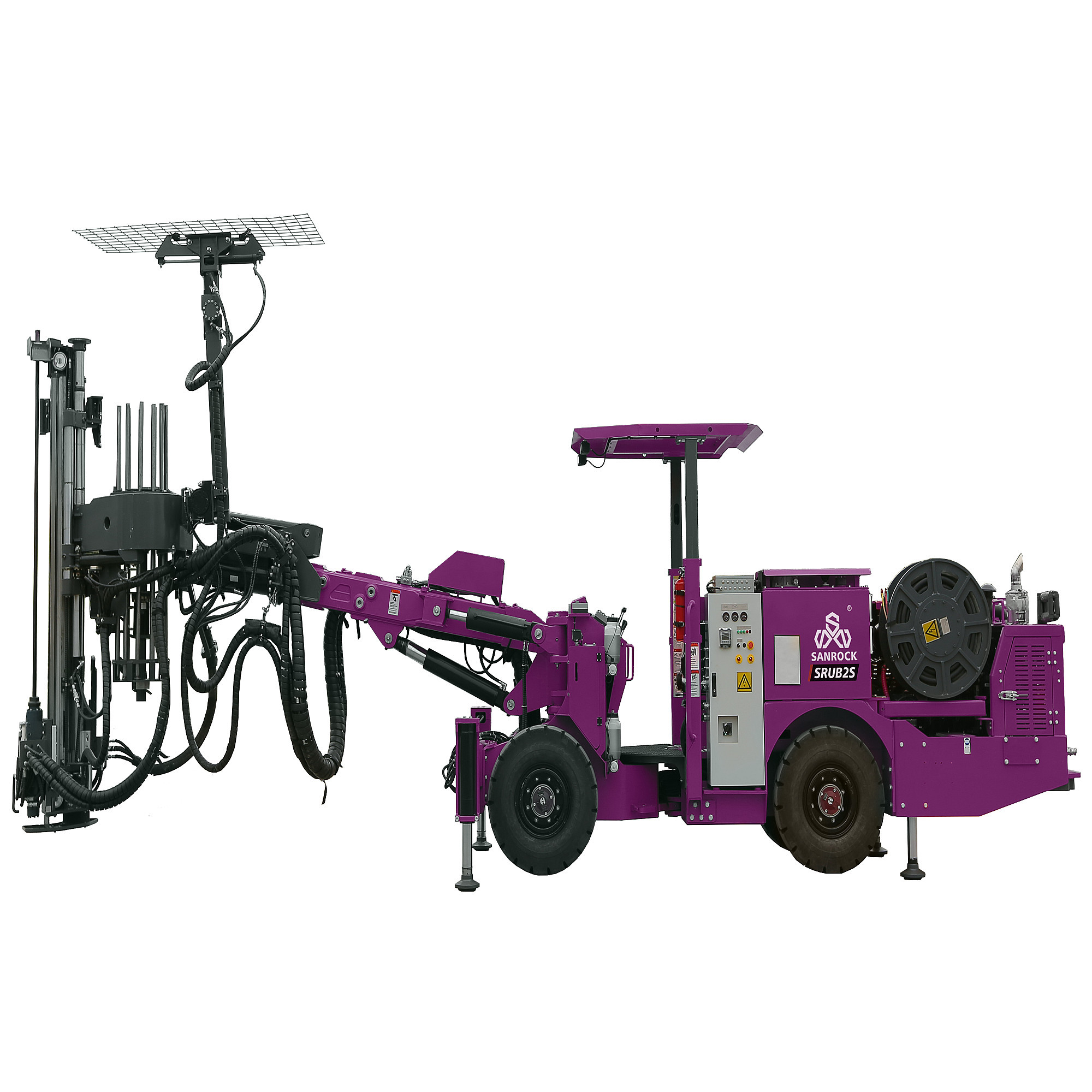

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 5

Products Description

Sanrock Underground Bolting Rig Technical Parameters
Model
SRUB2S
Mesh handling system
Extension stroke
mm
1000
Drive method
/
Hydraulic
Handling method
/
Hydraulic cylinder
Boom
Propelling compensation
mm
410
Boom extension
mm
1200
Feed roll-over
°
±180
Hydraulic system
Max system pressure
bar
220
Hydraulic oil tank capacity
L
180
Air compressor system
Motor power
kw
5.5
Max.displacement
L/min
11.6
Working pressure
bar
8
Water system
Motor power
kw
1.5
Max.flow
L/min
50
Max.working pressure
bar
25
Electrical system
Total installer power
W
62
Main motor power
kw
55
Voltage
V
380
Frequency
HZ
50
Transformer
VA
300
Electrical cable volume
m
85
Chassis
Engine
/
Yanmar
Rated power
kw
56.5
Departure angle
°
15
Approach angle
°
20
Fuel tank capacity
L
60
Electrical system voltage
V
12
Battery
Ah
120
Max.working gradient
°
14
Traveling speed
km/h
9
Dimension
L*W*H
mm
9400*1600*2080/2780
Ground clearance
mm
265
Weight
kg
12500
Turning radiu
mm
2232/5232

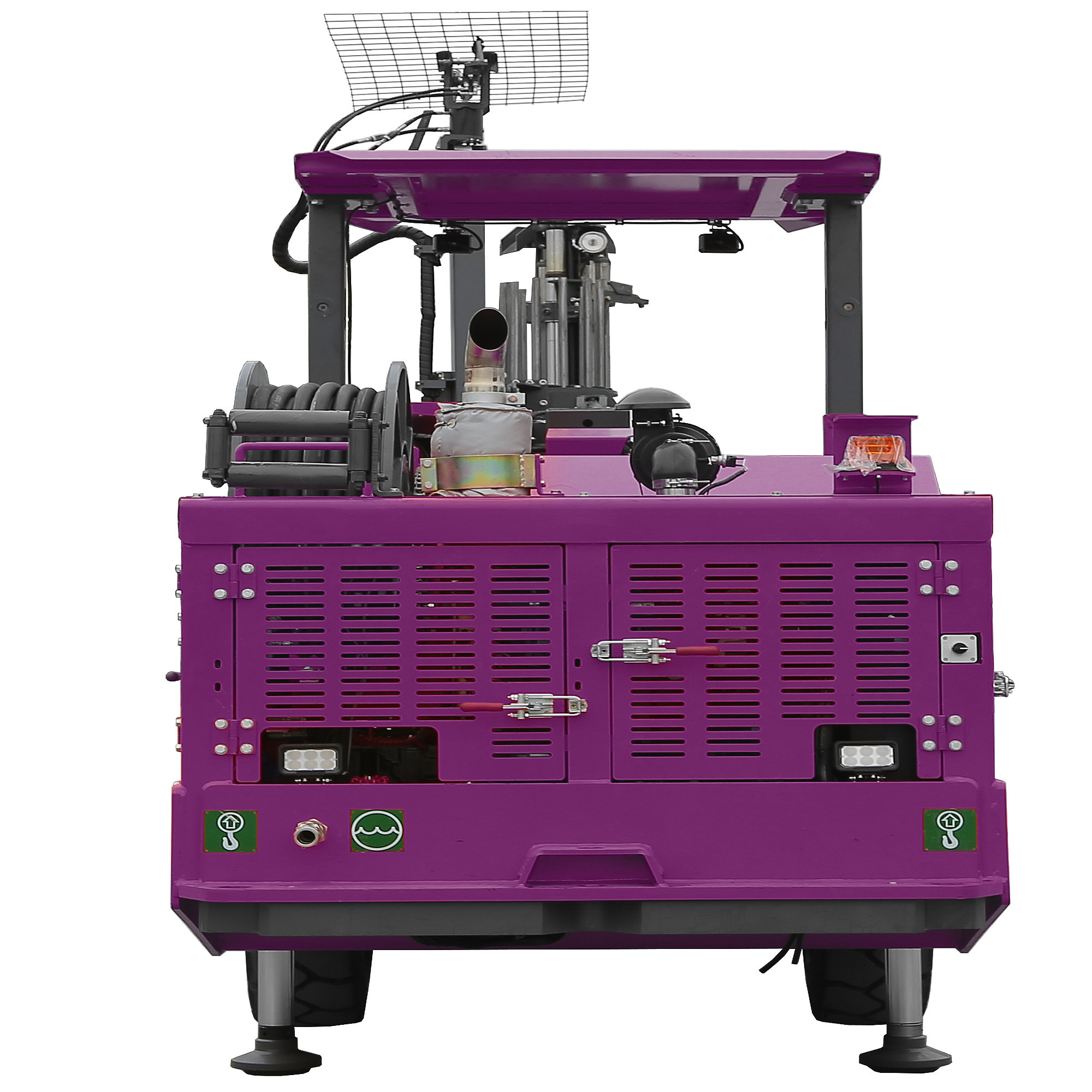

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 6

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 7Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 8

Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 9Tunneling Drilling Machine Underground Jumbo Rock Bolting Rig Hydraulic Drilling Rig 10
