Mining Drilling Rig Underground Jumbo Drill Rig Hydraulic Borehole Drilling Equipment

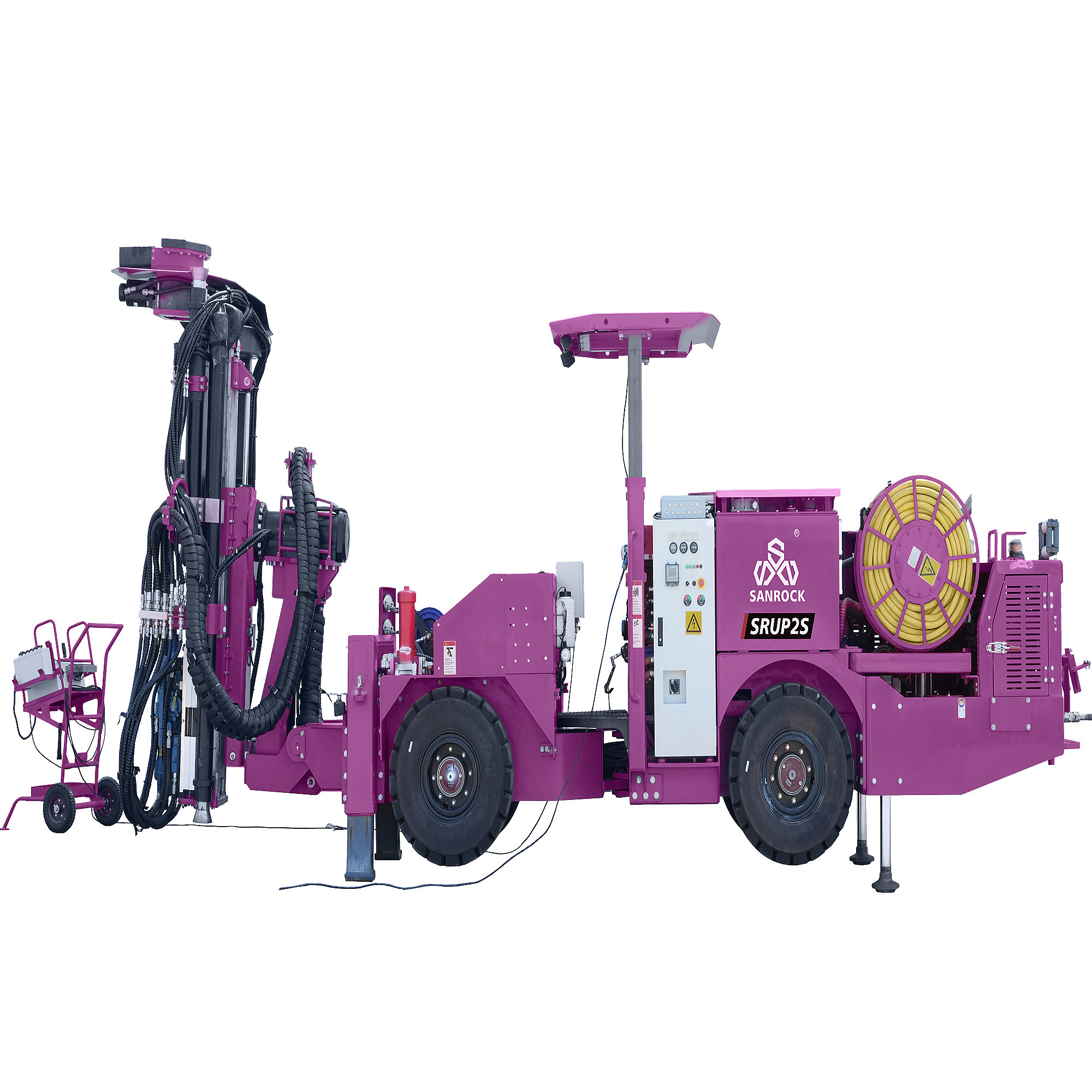

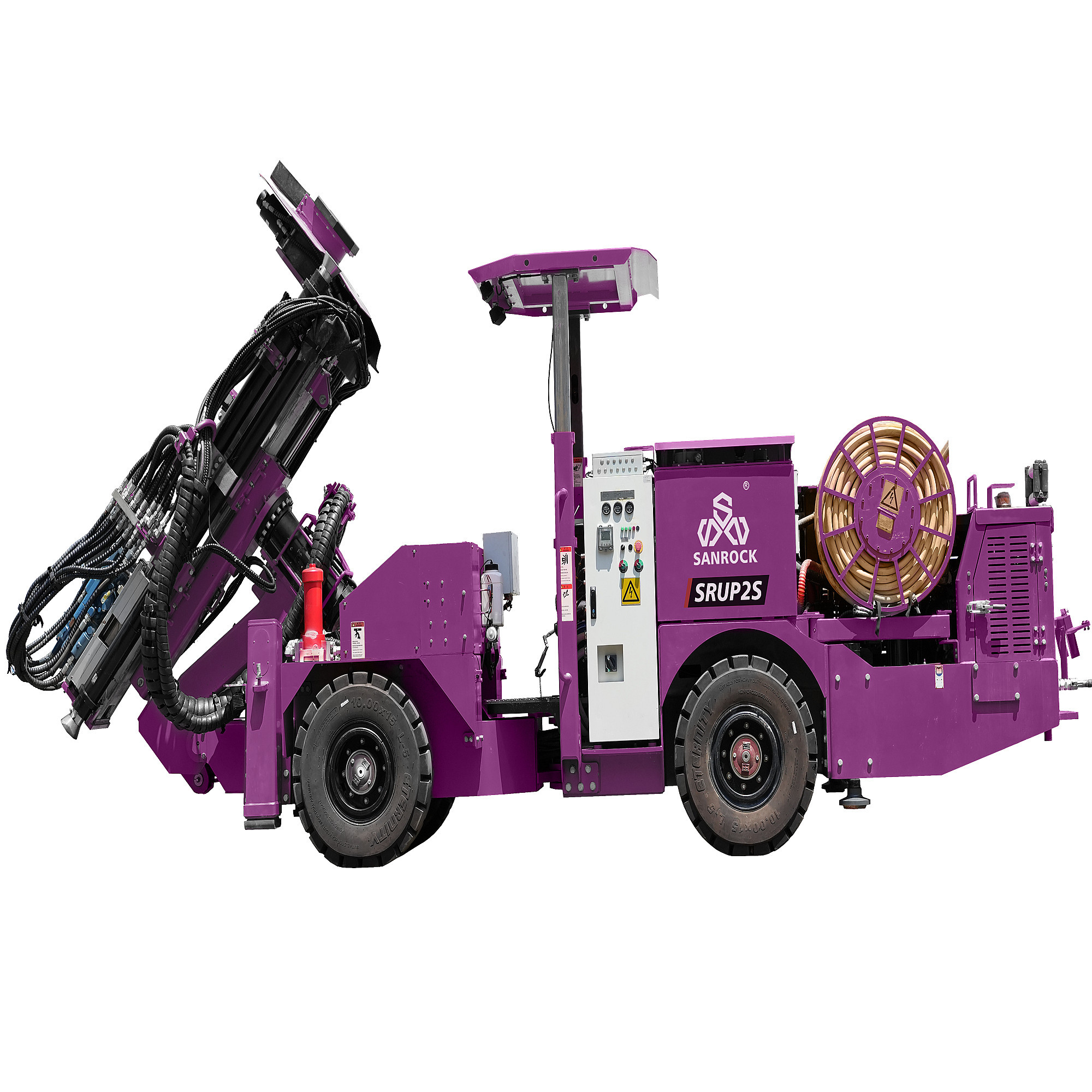

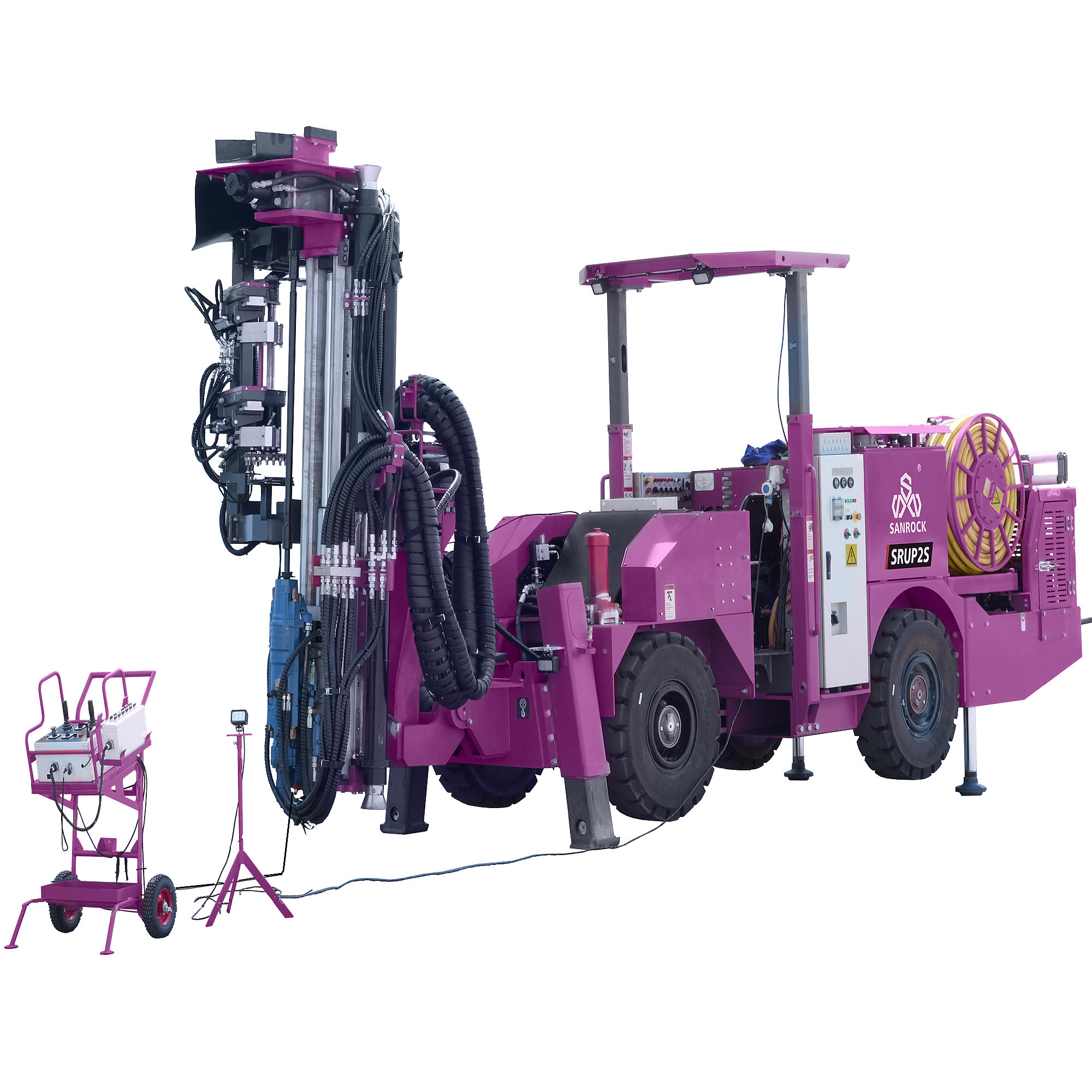

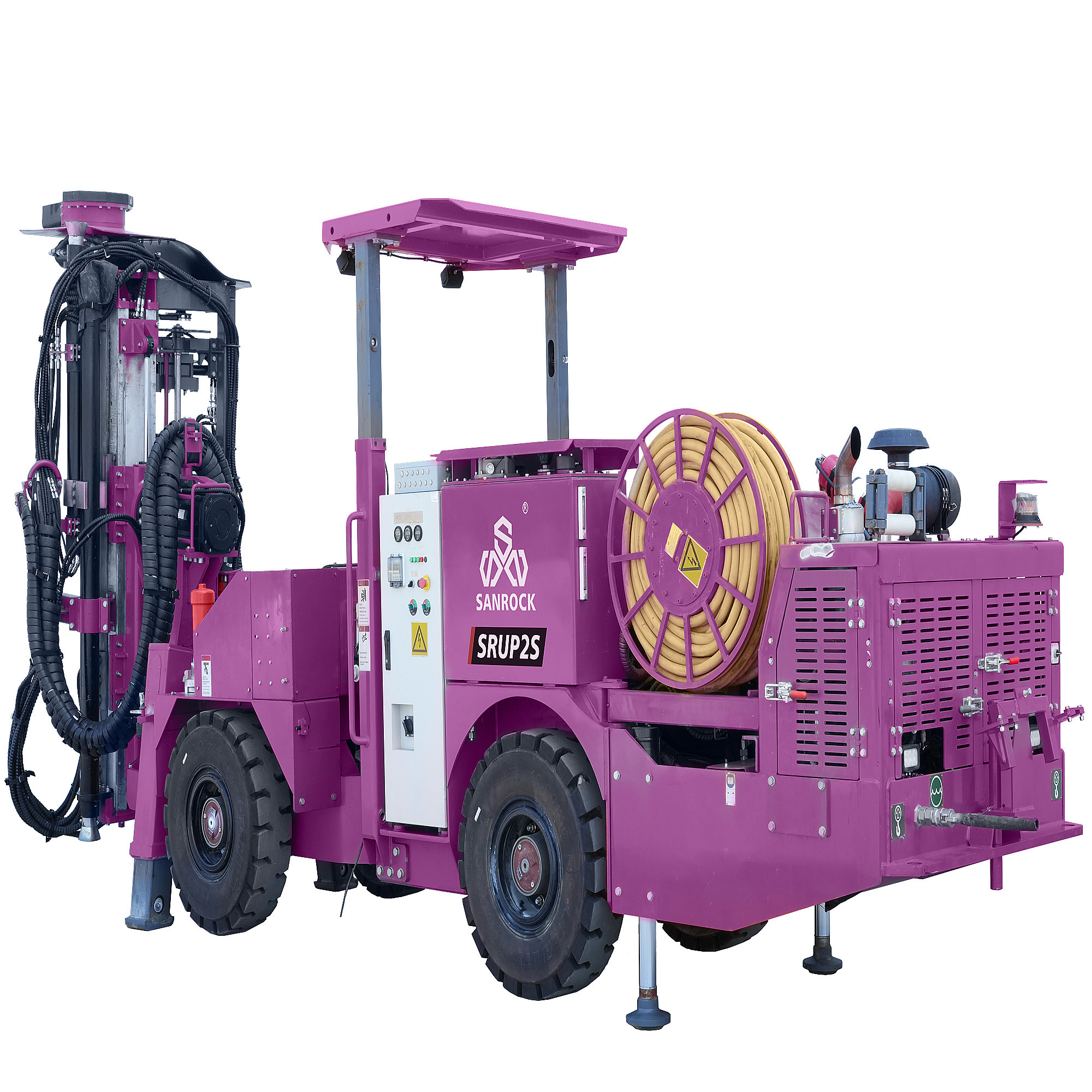

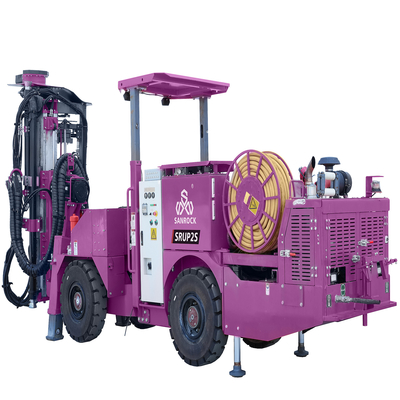

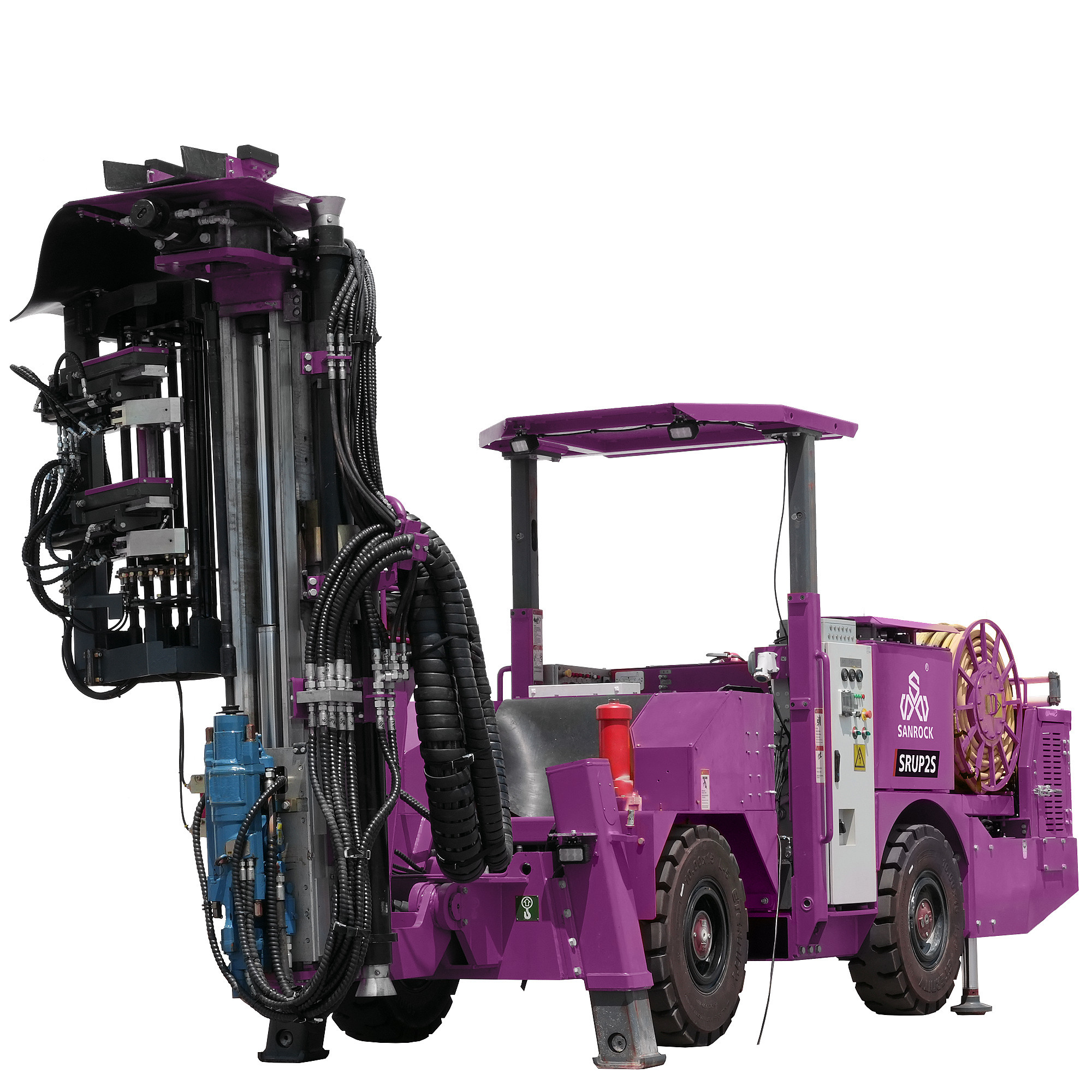

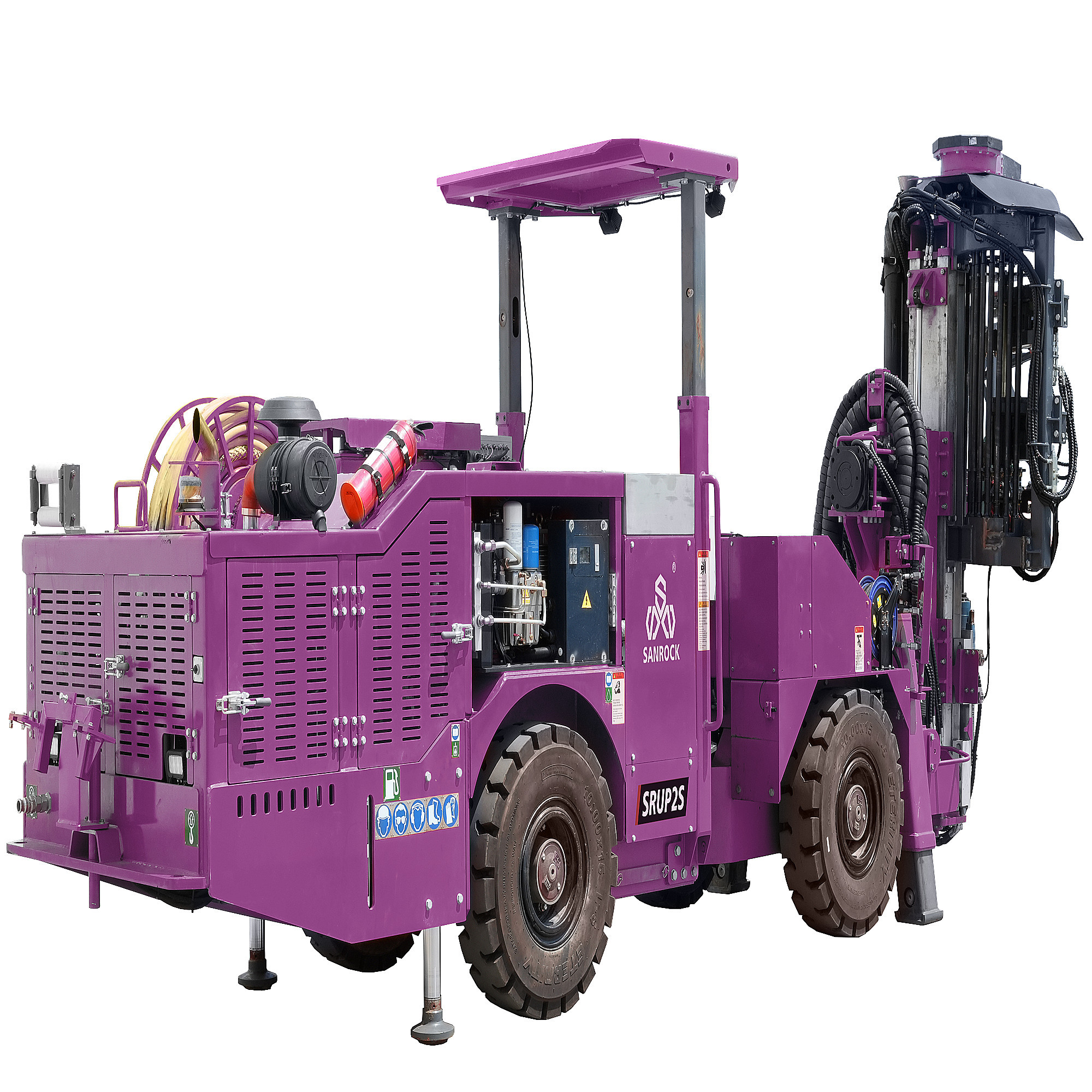

Sanrock production drilling rig is a radial arm electro-hydraulic deep hole drilling rig,used for medium-deep drilling operations in underground mine production and developed for long hole mining.It can drill holes with diameter from 64mm to 89mm and maximum 30m deep.The suitable cross-sections (width x height) is from minimum 3mx3m to maximum 4.5mx4.3m.
Diesel engine four-wheel drive tire chassis travels,climbs 14°,and can be equipped with a pole library function according to working conditions to achieve automatic pole connecting and unloading,and remote control.
Comprehensive Configuration
Minimum Adaption 3×3 tunnel medium and deep hole operation.
Suitable for deep hole operations of 30m and ?64-89mm,with optional rod library for automatic rod receiving and unloading.
Comes with angle display.
Four-wheel drive,articulated chassis.
Diesel engine travel,electric operation,coming with 80m cable drum.
Comprehensive rock drilling speed 0.6m/min.
Equipped with a cleaning system to clean and push the beam upward to drill the magma.
Special Heavy-duty Traveling System For Underground Engineering
It adopts a narrow body and short drill arm design,mainly considering the adaptability to operations with various specifications and cross-section sizes.
Two Brake Combinations
①Hydraulic closed brake.
②Reducer spring brake.
Rock drill
High-power rock drills can provide a variety of rock drilling solutions according to the surrounding rock conditions and rock drilling needs.The standard configuration is 18KW,and the optional 22KW or 25KW is available.
Electronic Control System
The electronic control components mainly adopt the international brand Schneider,ensuring the safety and reliability of the electronic control system.
Products Description
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
