Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jumbo Drilling Rig
Name: Scaling Drilling Rig
Application: Tunnel
Feature: High Drilling Efficiency,Hydraulic Controlling
Engine: Yanmar
Power: 54.3kw
Drilling Diameter: 53mm
Drilling Depth: Random
Traveling Speed: 15Km/h
Max. Stretching Length F: 5200mm
Max. Scaling Height: 6000/8000mm
Climbing Ability: 14°
Fuel Tank Capacity: 110L
Impact Frequency: 600-1100bpm
Dimension(L*W*H): 7260*1720*2390mm
Weight: 9500 KG
High Light:

Hydraulic Breaker Scaling Drilling Rig

,

Hydraulic Breaker Mining Drill Rig

,

Underground Construction Machine Scaling Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRUS1S,SRUS1LS
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig

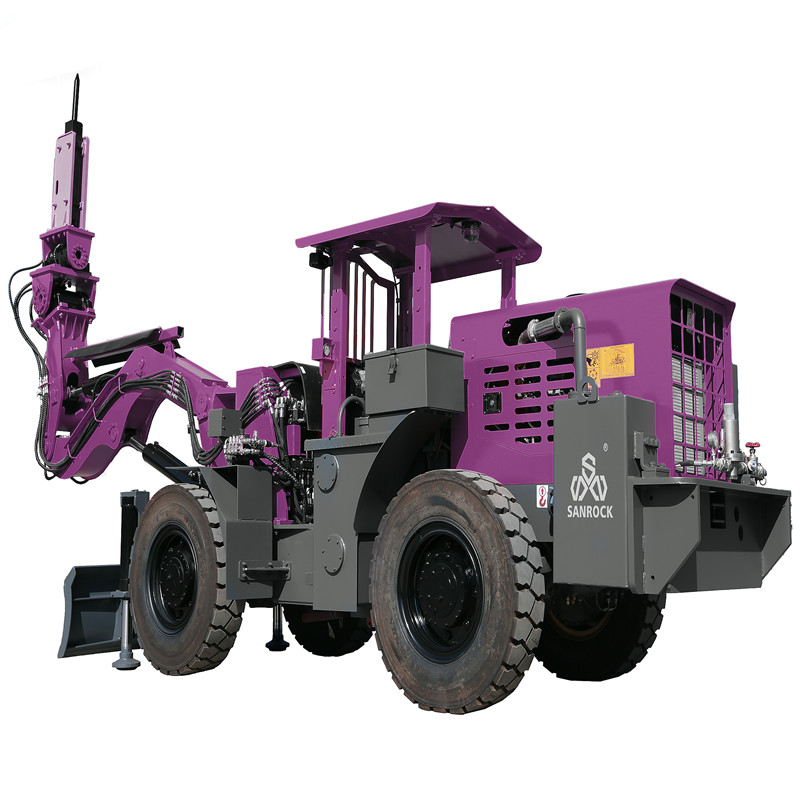

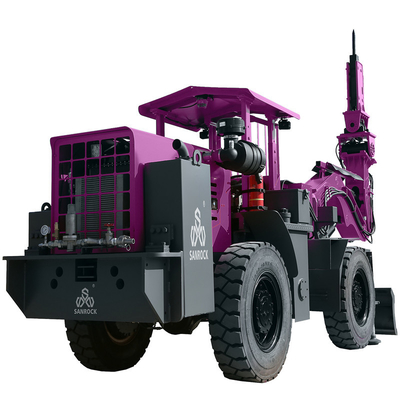

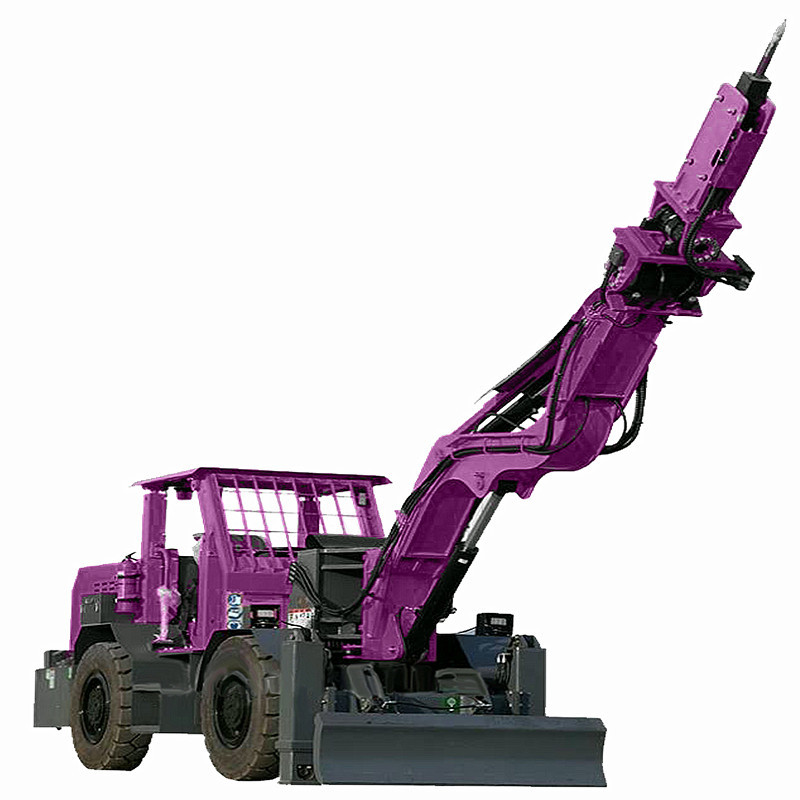

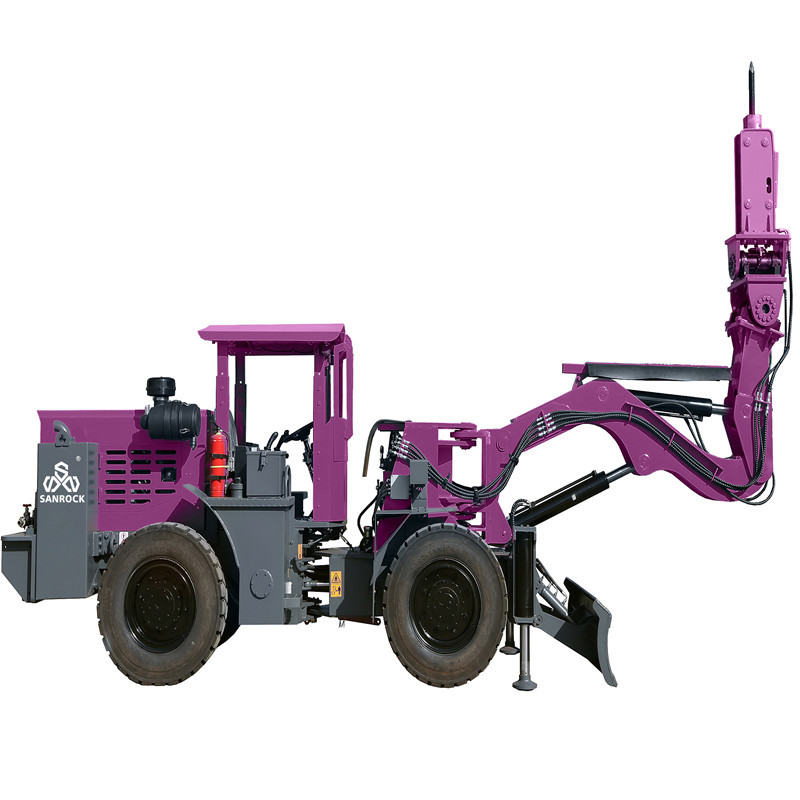

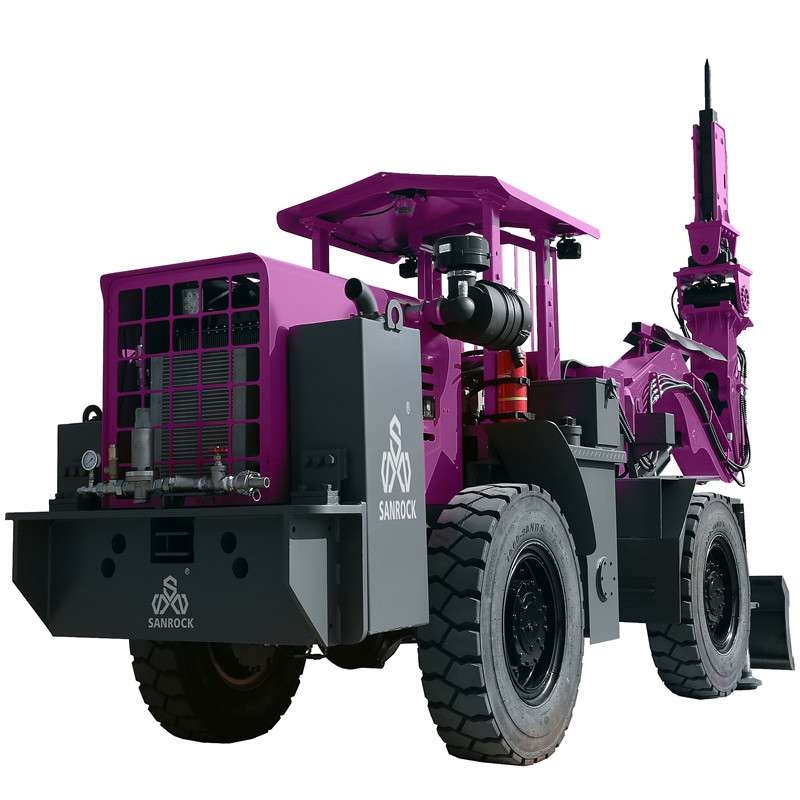

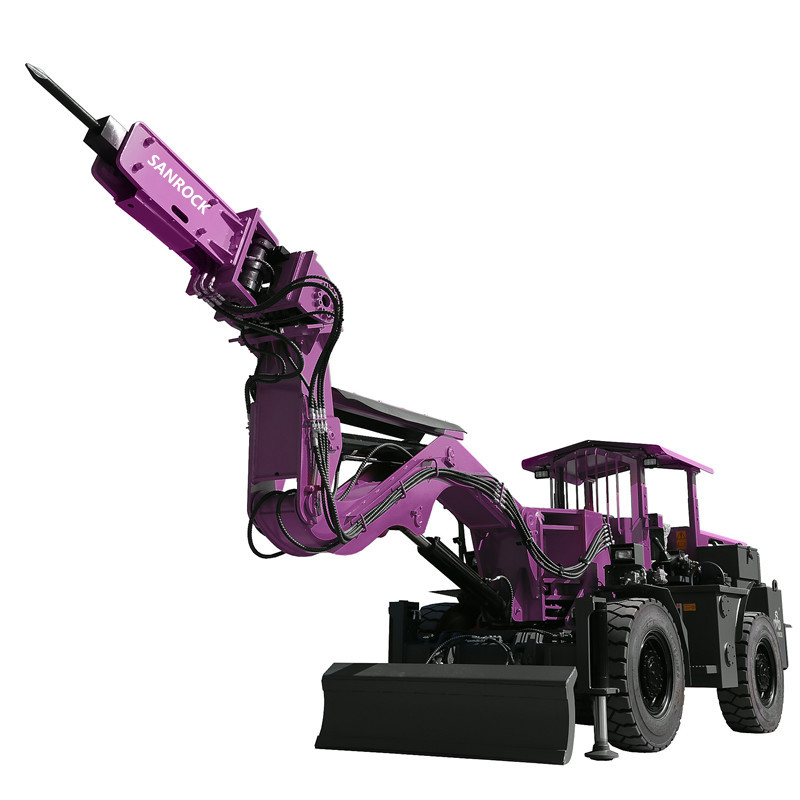

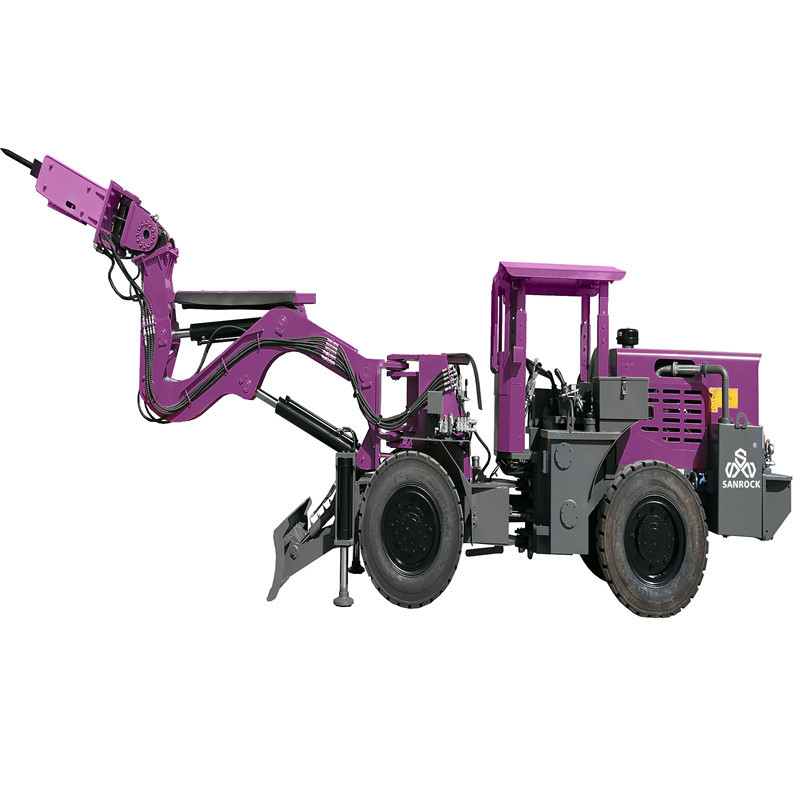

SRUS1S scaling rig is a special equipment designed for mechanized scaling in samll and medium size drifts and tunnels.
It can quickly and effectively remove the unstable rocks on roof and two sides to ensure the safty of operators and machines.

Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 0Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 1

Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 2

Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 3

Breaking hammer:
The breaking hammer's impact frequency is 600-1100 bmp,and the impact power is 362J. This hammer is specially designed for scaling rig.
The fastest impact frequency is 1100bpm, which can remove the unstable rocks and protect the original tunnel roof from damage as much as possible.
Boom:
The boom of SRUS1 has a compact structure with more concentrated force and more stability. Near the breaking hammer there are two helical swing cylinders, which can deliver 360° pitching and swinging without dead angle.
Dust off:
Exhaust gas purification uses water filtration to improve the working environment. Also, there is a water pump to remove the dust when scaling.
If you have other custom requirements, you can contact us at any time.

Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 4Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 5

Products Description


Item
Unit
SRUS1S
SRUS1LS
Working device
Impact Energy
J
362
362
Impact Frequency
bpm
600-1100
600-1100
Drill Rod Diameter
mm
Ф53
Ф53
Max.stretching length F
mm
5200
5200
Max.scaling height
mm
6000
8000
Chassis
Steering system
/
Articulated
Articulated
Inner Turning Radius
mm
≤2800
≤3250
Outer Turning Radius
mm
≤5000
≤5250
Climbing Ability
°
≤14
≤14
Min.ground Clearance
mm
≥280
≥280
Frame Swing Angle
°
8
8
Body Steering Angle
°
±35
±35
Fuel Tank Capacity
L
110
110
Traveling speed/Forward
km/h
4-15
4-15
Traveling speed/Backward
km/h
4-15
4-15
Disel Engine
KW
Yanmar 54.3
Whole machine
Dimension
mm
7260*1720*2390
7760*1720*2390
Weight
kg
9500
10500
Control method
/
Electro-hydraulic proportional control


Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 6Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 7Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 8Scaling Drilling Rig Underground Construction Machine Hydraulic Breaker Mining Drill Rig 9
