Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Concrete Shotcrete Machine
Application: Spraying Concrete,Tunnel Engineering Construction
Name: Jumbo Drilling Rig
Electrical Motor Power 37/45KW(High Altitude): 37/45KW(High Altitude)
Diesel Engine Power: 59KW
Min.Outer Turning Radius: 6200mm
Min.Inner Turning Radius: 3800mm
Max. Spraying Vertical Height: 8m
Max. Spraying Horizontal Width: 2×6.5m
Spraying Depth: 2.5m
Boom Telescopic Scope: 2900mm
Nozzle Rotating Angle: 360°
Nozzle Swing Angle: 240°
Theoretical Pumping Capacity: 20m³/h
Pumping Output Pressure: <7.5Mpa
Pumping Cylinder Inner Dia×Stroke: Φl60X800mm
Pumping Pipe Diameter: Φ125-Φ80mm
Nozzle Diameter: Φ50mm
External Power Supply: 380V/5OHZ
Air Compressor Displacement: 8m³/min
Air Compressor Working Pressure: 0.5Mpa
Dosing Max. Output: 500L/h
Dimension(L*W*H): 10467×2165×2500mm
Weight: 13500kg
High Light:

Jumbo Drilling Rig Concrete Shotcrete Machine

,

Automatic Concrete Shotcrete Machine

,

Underground Tunnel Concrete Shotcrete Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRSS20S
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig

Sanrock Mining Shotcrete Sprayer is developed for wet spraying support of mines,also known as Wet Spray Trolley.Depending on the size of the roadway and tunnel,the machinery is available in narrow and wide versions.Applicable cross-section (width x height) from minimum 3.5m x 3.5m to maximum 8m x 8m.
The use of high-pressure close-range spraying operations brings the spraying quality and production efficiency to a new level,and is widely used in wet spraying support concrete spraying operations in underground mines or small and medium-sized underground projects.It adopts diesel engine four-wheel drive tire articulated chassis to travel,making it flexible and fast.

Products Features
High Efficiency:Piston type pumping system,Max.pumping capacity 20m3/h.
Wide Coverage:Spraying width 2x6.5m,height 8m,depth 2.5m.
Plateau Type:37kw motor is standard,and 45kw motor is optional for plateau environment.
Wireless Control:Using wireless control panel,all boom and nozzle movements and rotations are easy and accurate.Also it can adjust the accelerator dosing and control the concrete pump.
Automatic Additives Dosage Control:The PLC will control the adding dosage of the additives according to the concrete spraying volume to get the lower spraying rebound rate.
Adaptable to a wide range of environmental working conditions:Four-wheel drive,articulated steering and lateral cab;the whole machine has a compact structure and a small turning radius,and is specially designed for driving in small tunnels such as underground mines.

Hydraulic System
Renowned brand hydraulic control system,large flow and pressure,high efficiency and stable quality.
Fully automatic quick-setting agent addition system,efficient and precise saving of materials.
If the fuel level is too low,the water temperature is too high,the hydraulic oil temperature is too high and so on,there will be an alarm prompt.

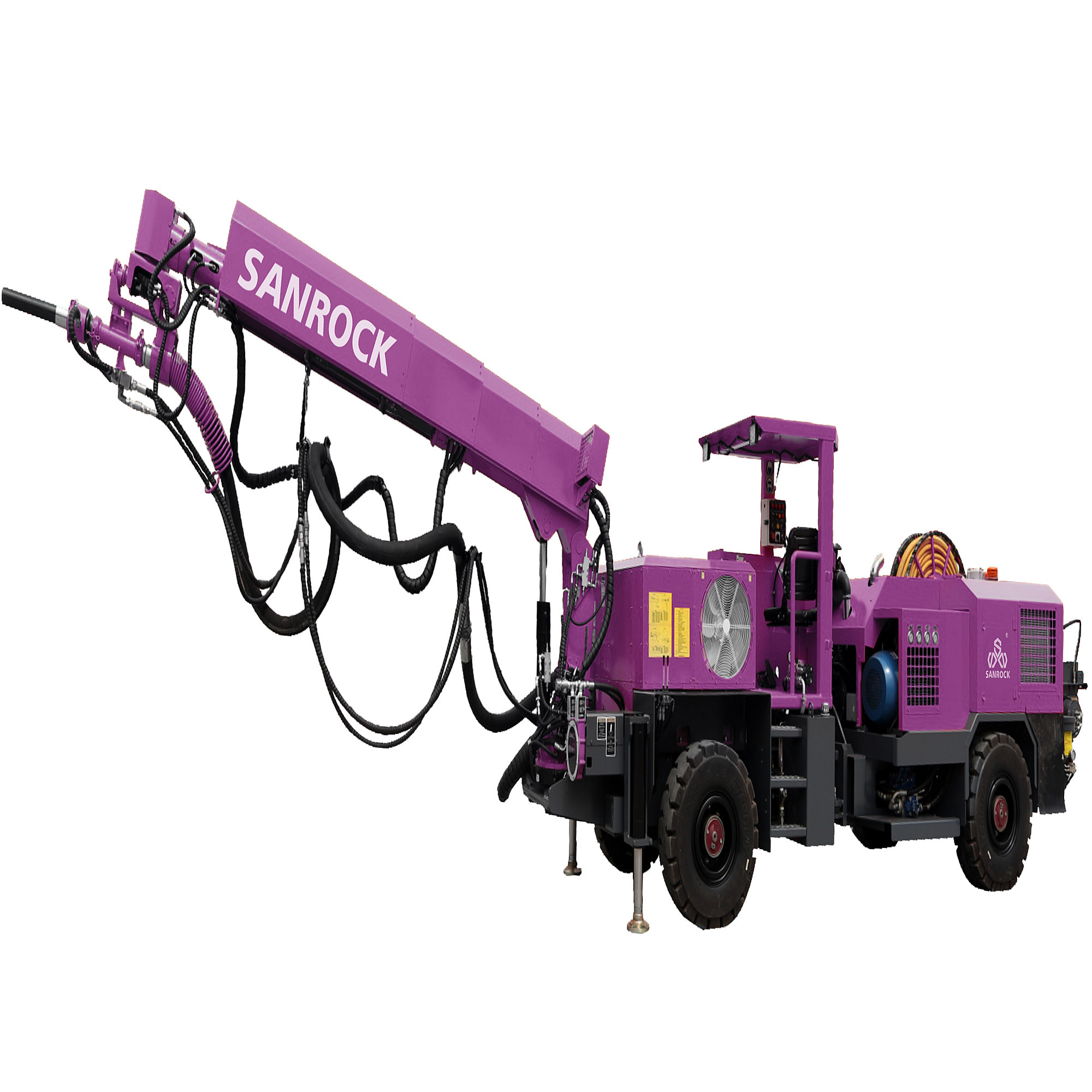

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 0

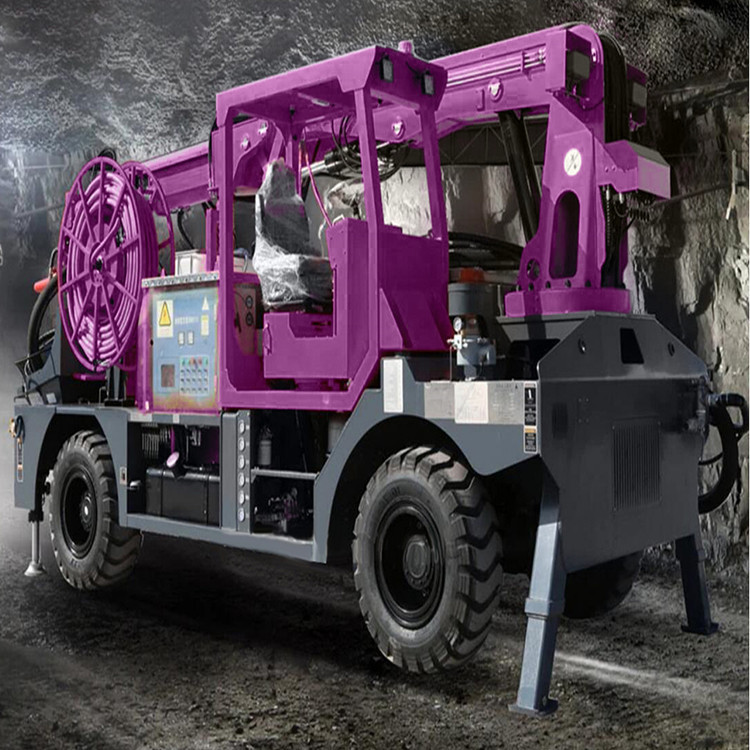

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 1

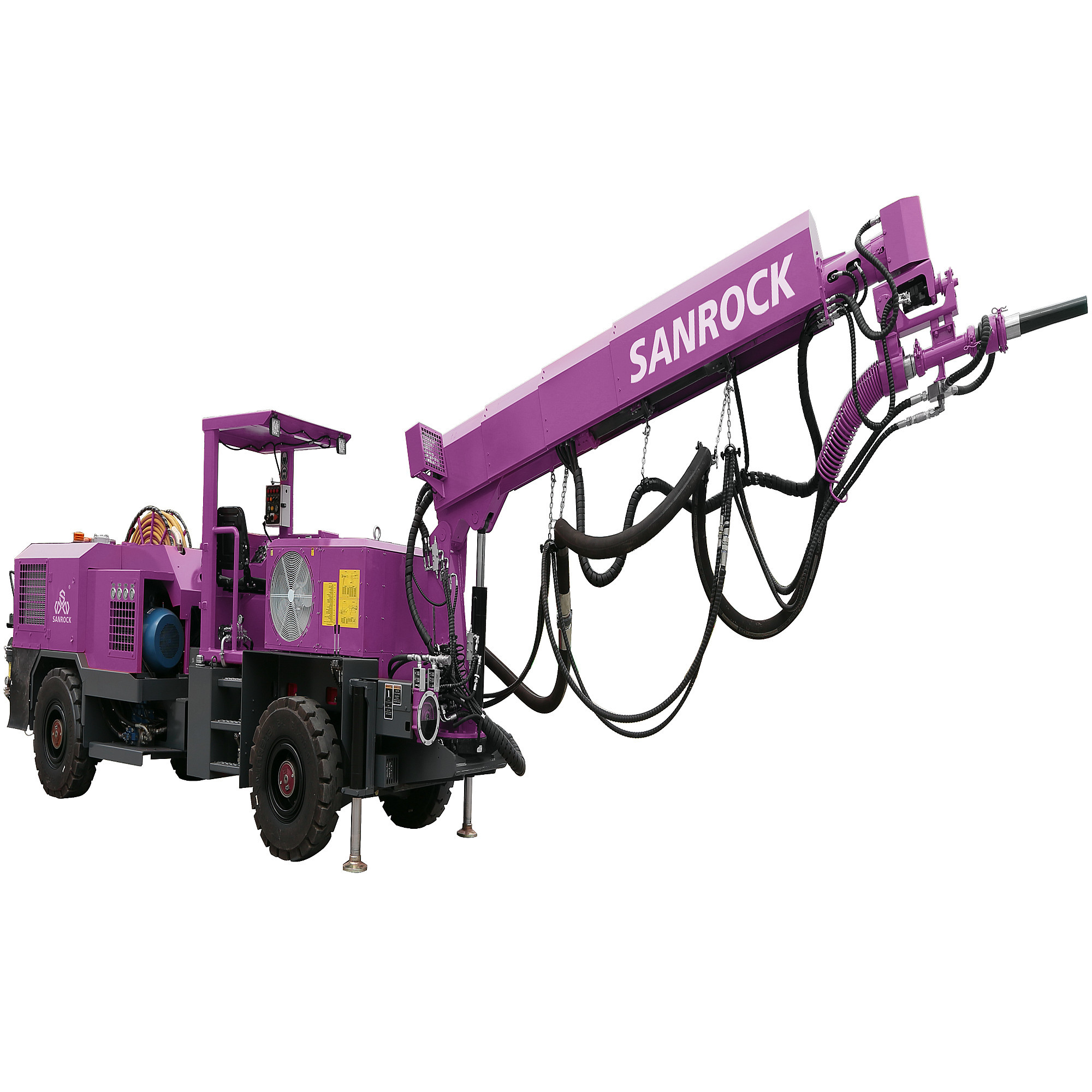

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 2

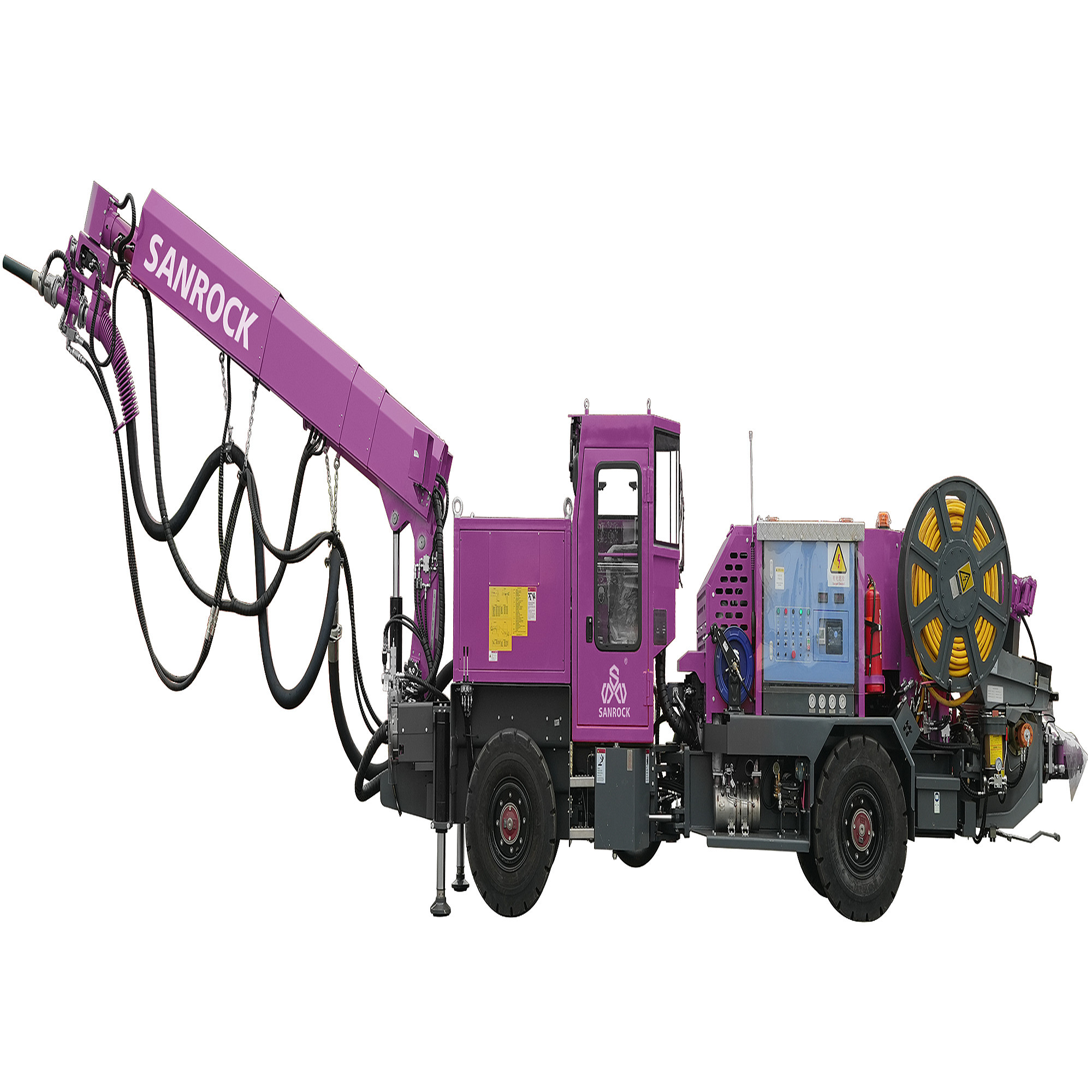

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 3

Chassis System
Safe and reliable international brand chassis,the four-wheel drive articulated chassis is powerful,the closed hydraulic braking effect is reliable and the failure rate is low.
The hydraulically controlled service brake ensures safe braking effect and easy,reliable and direct maintenance.

Pumping System
The concrete pumping system is stable,reliable,continuous output and high performance.
The synchronous lubrication system increases the service life of consumable parts.

Spraying Boom
The boom is designed with a double-rotating and double-telescopic boom structure,which is flexible in remote control operation,easy to control the flatness and rebound rate of the injection,and the injection efficiency is also very high.

PCL Intelligent Control System
PCL automatically controls the automatic addition of accelerating setting agent,using a hose pump equipped with a variable frequency motor drive. Compared with screw pumps,the adding accuracy of accelerating setting agent is higher,it better matches the requirements and saves raw materials.

High Performance Manipulator
The arm frame is made of imported steel,and the middle arm joint is strengthened to avoid defects similar to other manufacturers' breakage.
Under wireless remote control control,the spray manipulator has a large spray range and many degrees of freedom.
The nozzle swing uses a spiral motor,the rotation movement is flexible and has no dead ends,and can be used for axial,longitudinal, brushing and other movements.
The boom of the shotcrete unit adopts telescopic and pitching type.

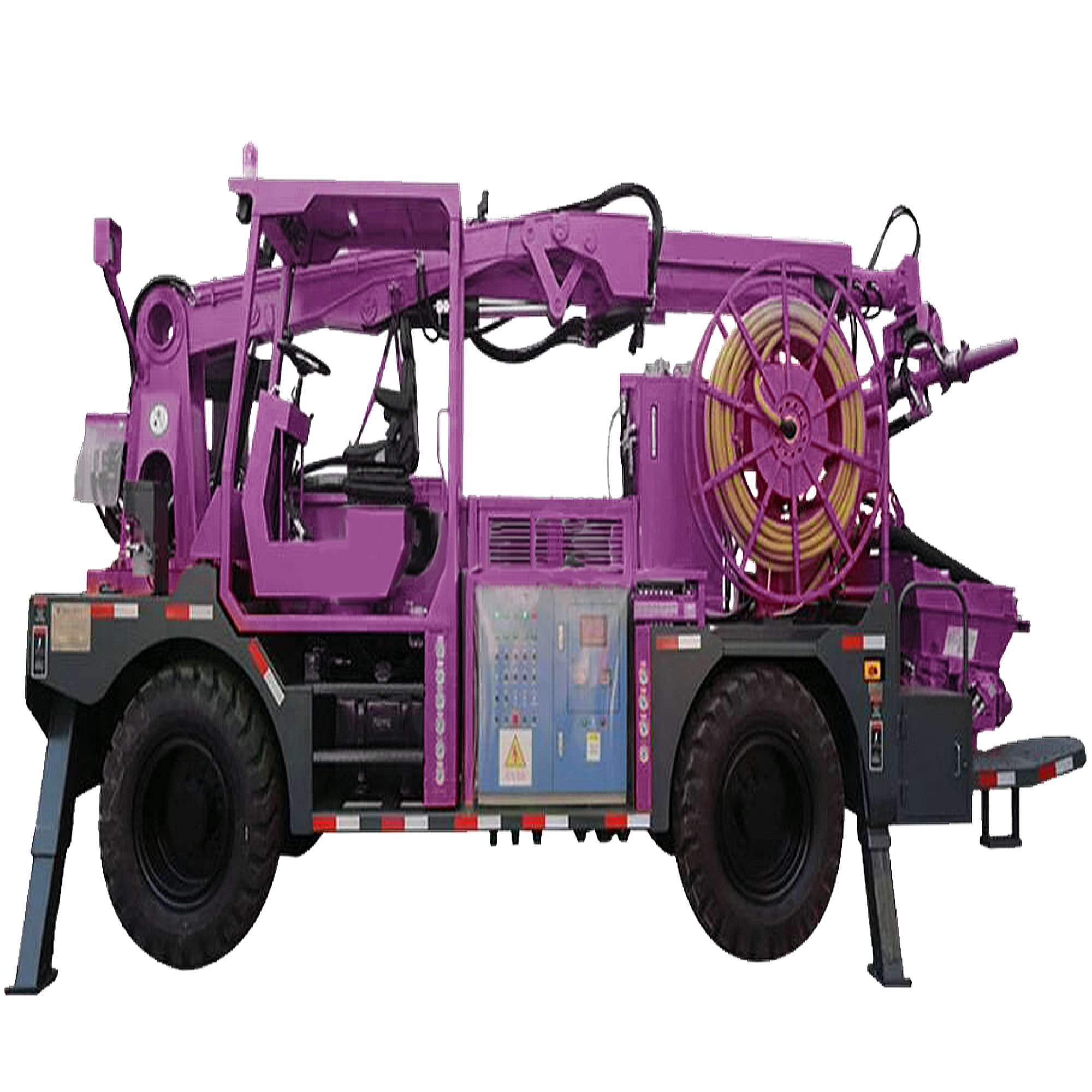

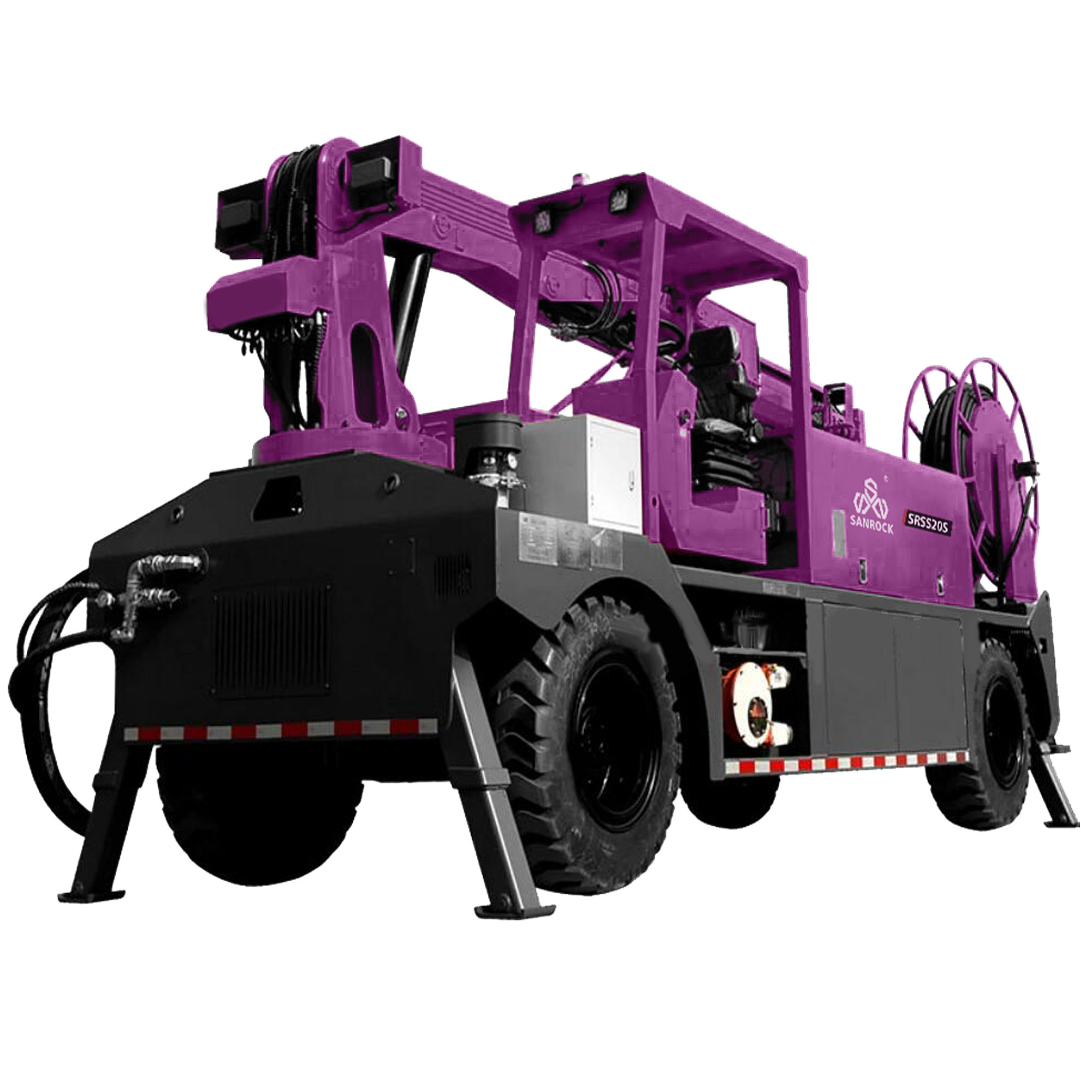

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 4Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 5

Products Description



Unit
SRSS20S(Wide Model)
SRUS20S(Narrow Model)
Whole Machine
(L×W×H)
mm
10467×2165×2500
10419×1750×2355
Weight
Kg
13500
12800
Electrical Motor Power
KW
37/45
(High Altitude)
37/45
(High Altitude)
Diesel Engine Power
KW
59
59
Chassis
Diesel Engine Model
/
YCD4T23T8-80
YCD4T23T8-80
Front And Rear Axle Drive
/
4×4
4×4
Max.Traveling Speed
Km/h
9
9
Max.Climbing Ability
°
20
20
Min.Outer Turning Radius
mm
6200
6200
Min.Inner Turning Radius
mm
3800
3800
Boom Parameters
Boom Structure Mode
/
Telescopic
Telescopic
Max.Spraying Vertical Height
m
8
8
Max.Spraying Horizontal Width
m
2×6.5
2×6.5
Spraying Depth
m
2.5
2.5
Boom Pitching Angle
°
‘-30~+60
‘-30~+60
Boom Telescopic Scope
mm
2900
2900
Nozzle Rotating Angle
°
360
360
Nozzle Swing Angle
°
240
240
Boom System
Theoretical Pumping Capacity
m³/h
20
20
Pumping Output Pressure
Mpa
<7.5
<7.5
Pumping Cylinder Inner Dia×Stroke
mm
Φl60X800
Φl60X800
Pumping Pipe Diameter
mm
Φ125-Φ80
Φ125-Φ80
Nozzle Diameter
mm
Φ50
Φ50
Electrical System
Cable
m
50
50
External Power Supply
/
380V/5OHZ
380V/5OHZ
Operation
/
Wireless Remote Control
Wireless Remote Control
Control
/
Control By Controller
+Touch Screen Display
Control By Controller
+Touch Screen Display
Accelerator System
Air Compressor Displacement
m³/min
8
8
Air Compressor Working Pressure
Mpa
0.5
0.5
Dosing Max.Output
L/h
500
500
Dosing System Pressure
Mpa
0.5
0.5
Additive Tank Capacity
L
200
200
Concrete Filling Height
mm
1350
1350


Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 6Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 7

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 8Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 9

Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 10Underground Tunnel Automatic Concrete Shotcrete Machine Hydraulic Jumbo Drilling Rig 11
