Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment

1Set/Sets per Month
MOQ
negotiable
Price
Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Name: DTH Drilling Machine
Application: Mining, Quarries ,construction Work Sites,foundation Pit Construction
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Drilling Diameter: 115-178mm
Drilling Depth: 60m
Engine: Yuchai
Rated Power: 92(stageⅢ)
Rotate Speed: 1500-1600rpm
Fuel Tank Capacity: 360L
Operating Air Pressure: 1.7-2.5mpa
Pipe Capacity(Piece): 5+1
Drill Pipe Size: 89X3000mm
Drilling Depth Of Automatic Disconnecting Rod: 18m
The Impactor Configuration Is Recommended: 4"/5"/6"
Rotation Rate: 0-80rpm
Max. Rotation Torque: 3300N.m
Horizontal Bore Height: 3600mm
Feeding Force: 20KN
Feed Stroke: 3000mm
Carriage Travel: 4115mm
Compensation Length: 1000mm
Grade Ability: 30 °
Hook Height: 700mm
Dimension (L*W*H): 8610×2210×3410mm
Weight: 9700kg
High Light:

Mining Crawler DTH Drilling Rig

,

Hydraulic Borehole Drilling Rig Machine

,

DTH Drilling Rig Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: R75
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

1.The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change.
2.High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
3.Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes.
4.The advantageous functions such as precise boom positioning,automatic rod handling.
5.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
6.The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

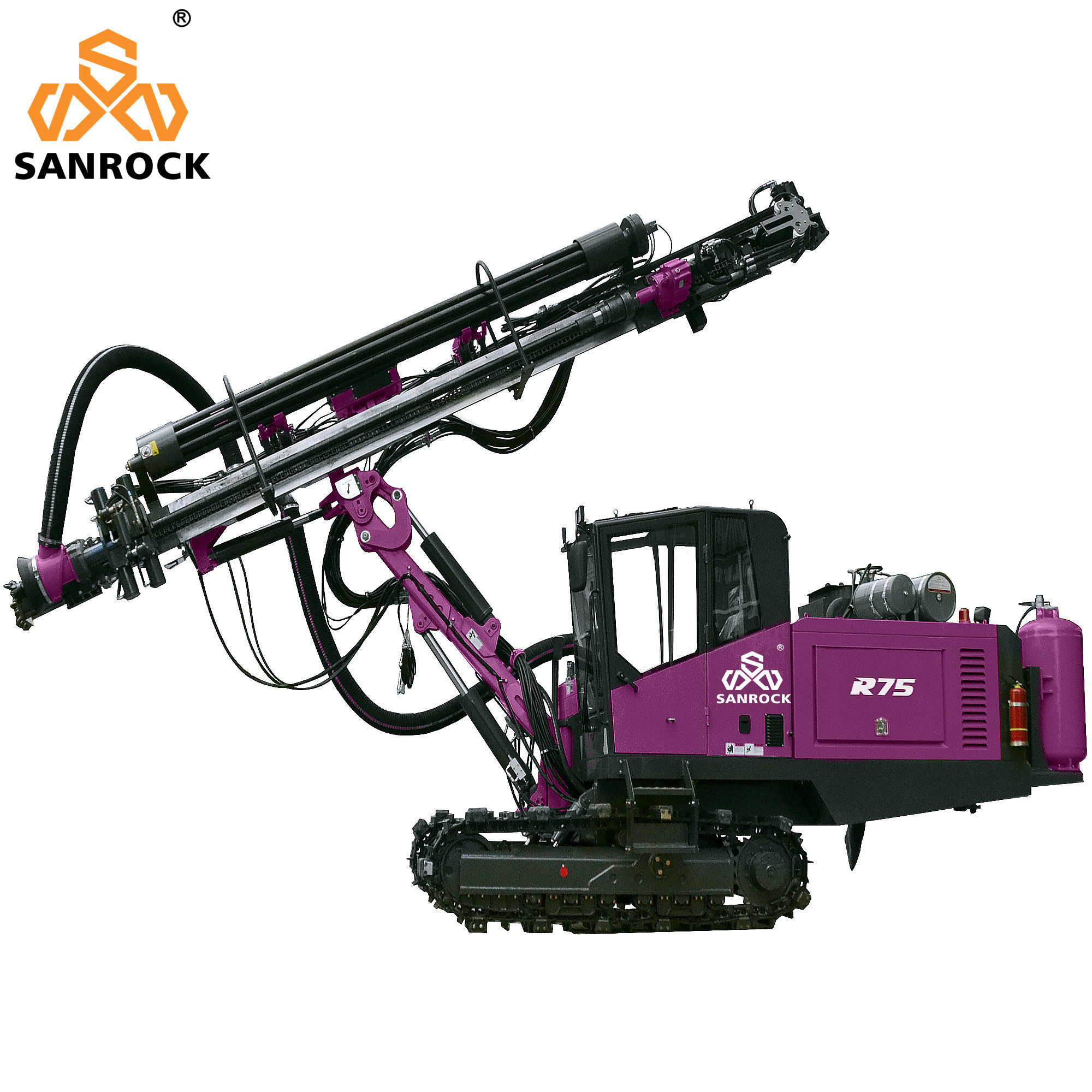

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 0

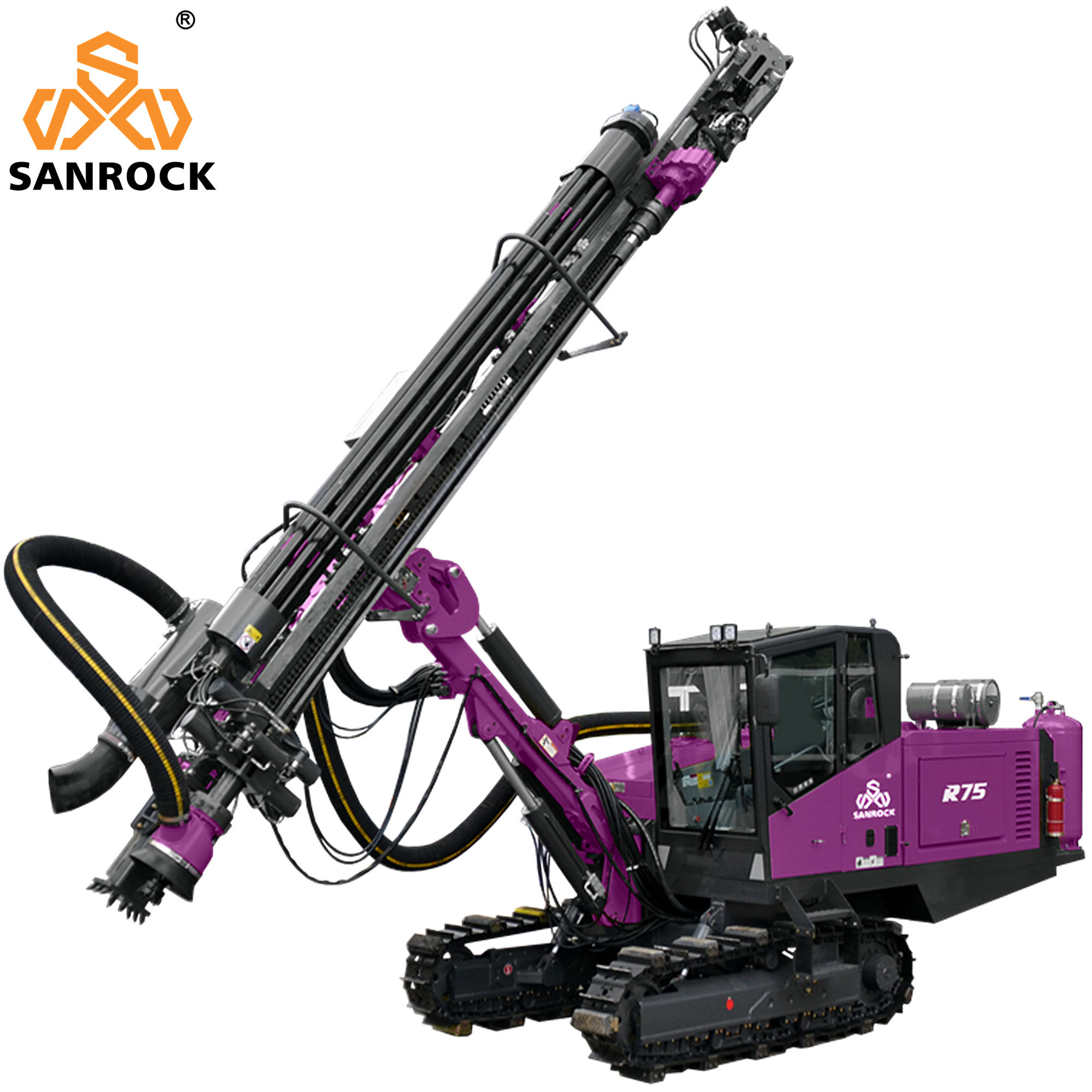

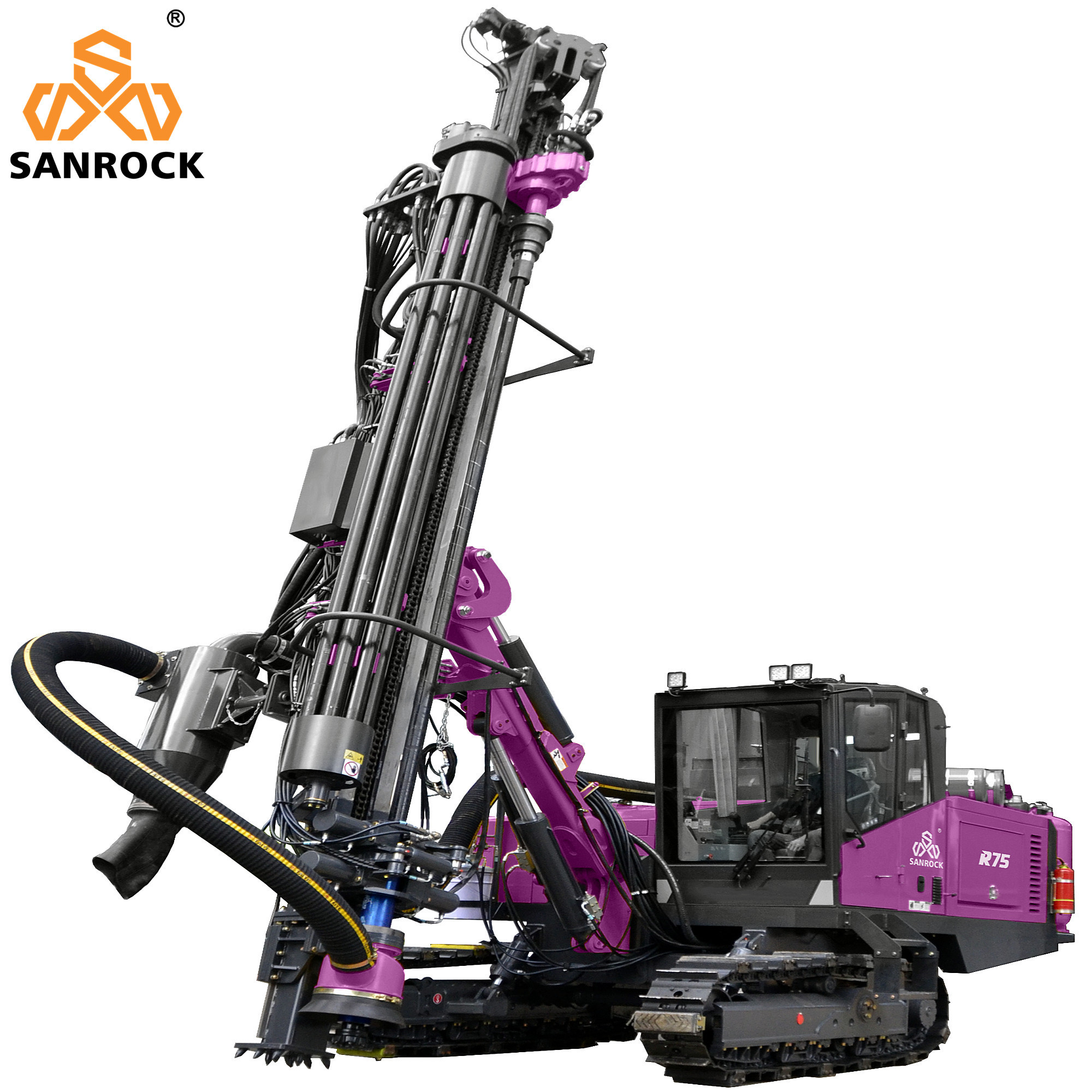

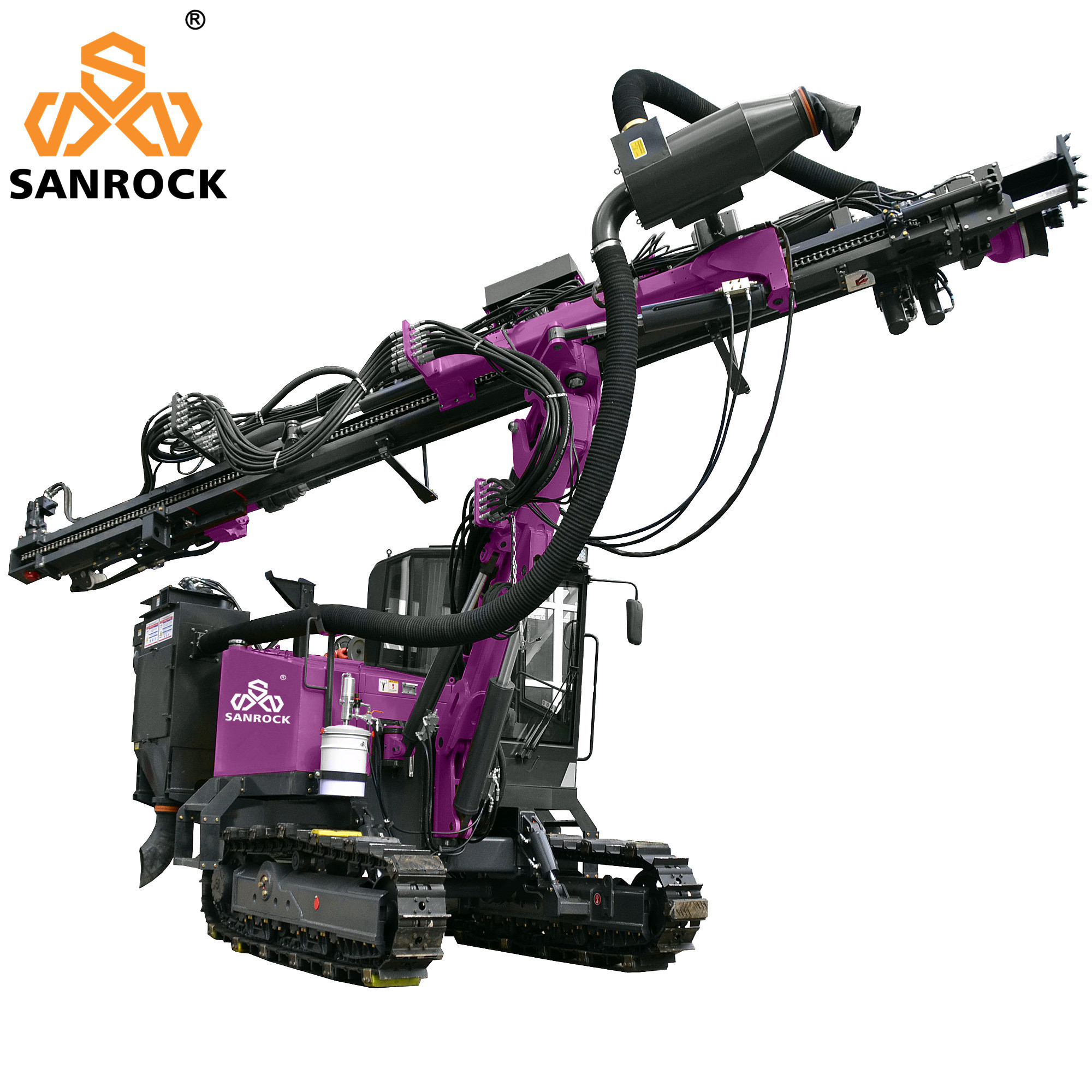

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 1Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 2Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 3

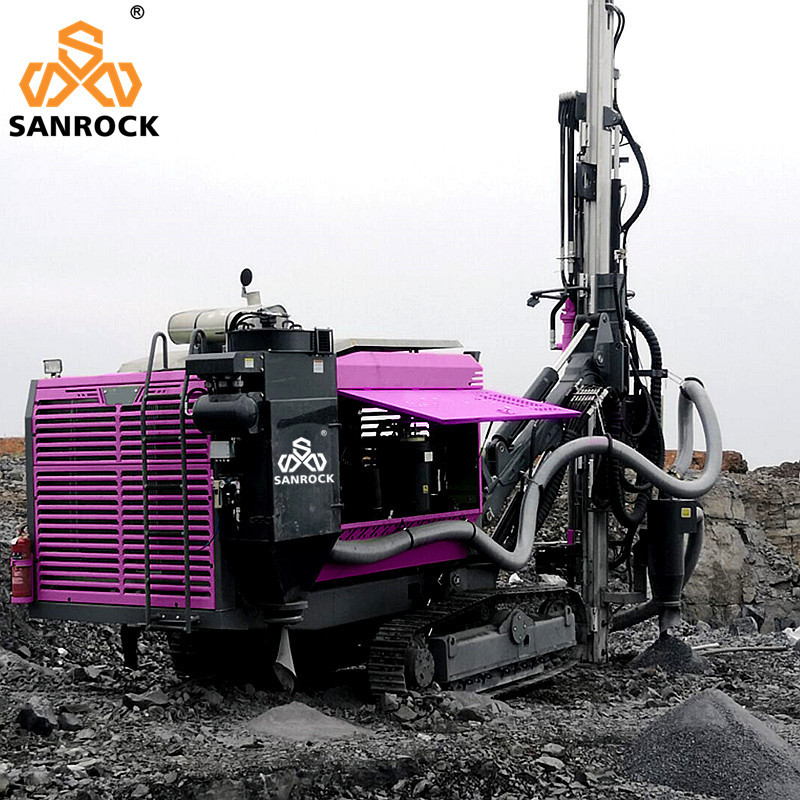

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 4

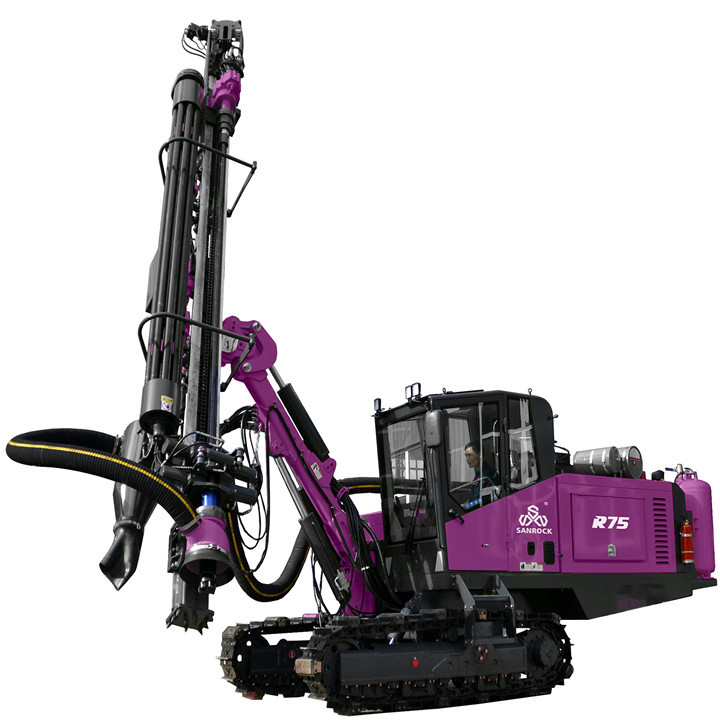

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 5

Products Description

Product name
Product name: DTH drilling rig
Drilling Diameter
115-178mm
Drilling Depth
60m
Operating Air Pressure
1.7-2.5mpa
Pipe Capacity(Piece)
5+1
Drill Pipe Size
89X3000mm
Drilling Depth of Automatic Disconnecting Rod

18m
The Impactor Configuration Is Recommended
4"/5"/6"
Rotation Rate
0-80rpm
Max.Rotation Torque
3300N.m
Horizontal Bore Height
3600mm
Feeding Force
20KN
Feed Stroke
3000mm
Carriage Travel
4115mm
Compensation Length
1000mm
Carriage Swing
Left90 °/Right31 °
Slide Frame Tilt
147 °
Drill Arm Pitching
Left and Right35 °
Horizontal Drill Arm Pitching
23/55 °
Walking Speed
1.5/3km/h
Grade Ability
30 °
Hook Height
700mm
Dusting Method
Option
Engine
Yuchai
Rated Power
92(stageⅢ)
Rotate Speed
1500-1600rpm
Fuel Tank Capacity
360L
Dimension (L*W*H)
8610×2210×3410
Weight
9700kg


Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 6

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 7



Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 8

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 9

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 10

Company Profile

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 11

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 12

Hydraulic Borehole Drilling Rig Machine Mining Crawler DTH Drilling Rig Equipment 13

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
