Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Rig
Name: Core Drilling Machine
Application: Gelogical Prospecting
Feature: Hydraulic Controlling,High Performance
Engine: CUMMINS
Power Type: Diesel
Power: 142KW
Drilling Diameter: NQ HQ PQ
Drilling Depth: NQ:1200 M /HQ:850m /PQ:600m
Drilling Angle: 0-90 Degree
Rotary Torque: 5200N. M
Drill Head Feeding Stroke: 3500mm
Drill Head Max. Thrust Force: 108KN
Drill Head Max. Lifting Capacity: 55KN
Main Hoist Max. Lifting Capacity: 71KN
Main Hoist Lifting Speed: 40m/min
Assist Hoist Max. Lifting Capacity: 12KN
Assist Hoist Lifting Speed: 120m/min
Dimension(L*W*H): 4200*2100*2400mm
Weight: 11500 KG
High Light:

Mud Pump Core Drilling Rig

,

Geological Core Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC1200L
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig

It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc,
Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

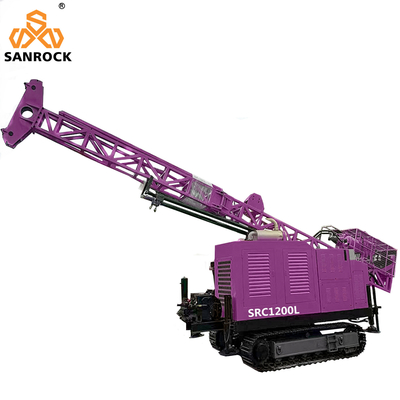

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 0

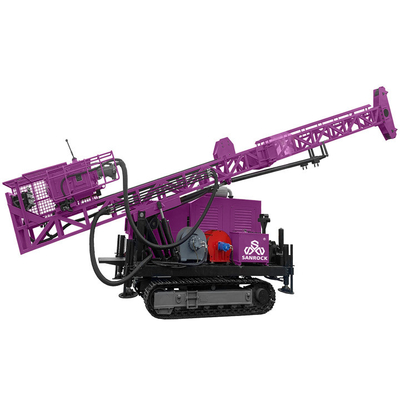

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 1

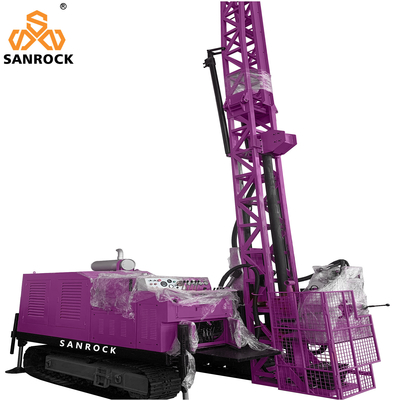

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 2

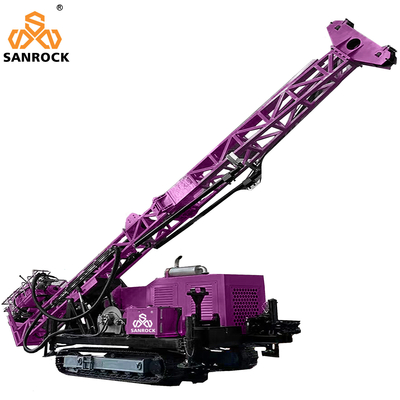

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 3

Features
1.It has long stroke which is helpful to reduce the rod reversion frequency, avoid coring
block, and improve productivity.
2.It has a simple structure, a light weight and is convenient to remove, so as to make the
3.replacement process easily.
4.Its operation is concentrated, simple, convenient, flexible and reliable, so as to reduce
the labor intensity a lot.
5.It needn’t be provided with a special inclined tower when drilling inclined holes. It can
also realize raising two rods at one time.
6.It is convenient and fast to mount and install the rig. No specialized drill tower is needed
to allocate which has cut the preparation time largely.
7.It has several choices of the chassis, such as skid / trailer / crawler mounted(as the
customers’ requests).

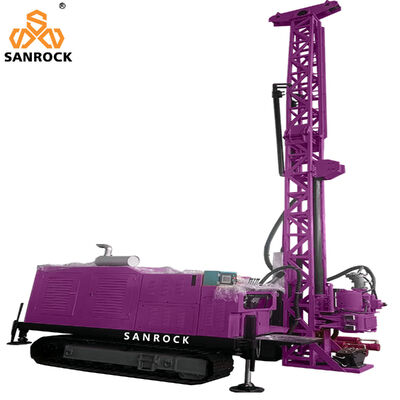

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 4

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 5

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 6



Products Description

Model
SRC800L
SRC1200L
Mud pump model
BW-160
BW-160
Diesel engine
Cummins132kw
Cummins142kw
Borehole diameter/depth
NQ:900 m /HQ:700m /PQ:450m
NQ:1200 m /HQ:850m /PQ:600m
Drilling angle
0--90°
0--90°
Drill head feeding stroke
3500mm
3500mm
Grade I
120- 160RPM
100-140RPM
File II
230-310RPM
210-300 RPM
Grade III
480-650RPM
437-636 RPM
Grade IV
900- 1150RPM
750-1100RPM
Max torque
4000Nm
5200Nm
Drill head Max. Thrust force
108KN
108KN
Drill head Max. Lifting capacity
55KN
55KN
Main hoist Max. Lifting capacity
71KN
71KN
Main hoist Lifting speed
40m/min
40m/min
Assist hoist Max. Lifting capacity
12KN
12KN
Assist hoist Lifting speed
120m/min
120m/min
Dimension
4200*2100*2400mm
4200*2100*2400mm
Weight
10000kg
11500kg


Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 7Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 8Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 9

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 10

Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 11Core Drilling Rig With Mud Pump Hydraulic Exploration Equipment Geological Drilling Rig 12
