Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price

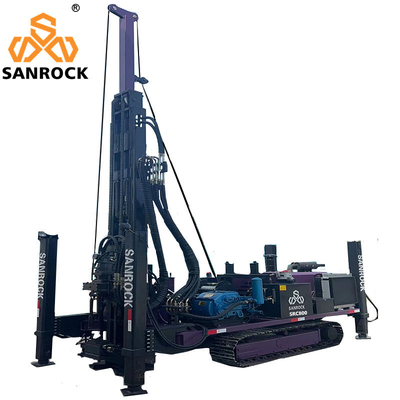

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Diamond Core Drilling Rig,hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,water Well Drilling Machine,Multifunction Hydraulic Drilling Rig,core Drilling Rig
Feature: High Drilling Efficiency,portable,geological Coring Machine
Type: Core Drilling Rig
Usage: Water Well,Coal,water Well.core Sample
Application: Coring Machine,Gelogical Prospecting
Power Type: Diesel
Engine: Yuchai
Power: 92kw Four Cylinder
Drilling Diameter: 75-350mm
Drilling Depth: 600m
Rotate Speed: 500-1600 Rpm
Lifting Force: 13T
Rotational Torque: 1550Nm
Climbing Capacity: 35Max
Drill Pipe Dia: BTW/NTW/HTW/PTW
Drill Rod Length: 1.5m 2.0m
Working Speed: 2.5Km/h
Dimension(l*w*h): 4300*1850*2280mm
Weight: 6500 KG
High Light:

Geological Exploration Core Drill Rig

,

Hydraulic Rotary Core Drill Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC600
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description



Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig

Feature
1.Hydraulic control drill mast can be raised and put down by hydraulic cylinders, which saves time and worker labor.
2.Four hydraulic jacks, can lift the machine be loaded onto and unloaded from truck compartment.
3.Also they can be used for rig leveling and support at work.
4.24V electric-start diesel engine reduces the operator's labor intensity.

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 0

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 1

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 2Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 3

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 4

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 5Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 6Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 7

Products Description

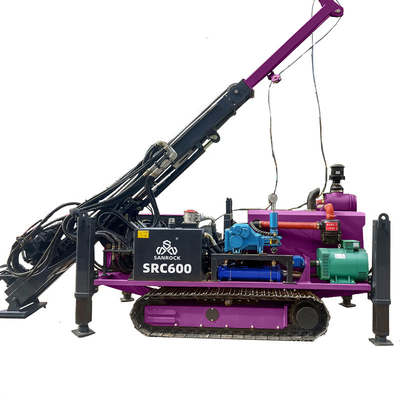

Model :SRC600
Drilling depth:600m
Drill pipe dia:BTW/NTW/HTW/PTW
Drill pipe length:1.5/2m
The maximum stroke of power head:2.4m
Engine brand:Yuchai
Engine power:92kw( four cylinder)
Rotary torque:1550N.m
Rotating speed:500-1600 rpm
Max.hoist capacity:13T
Move mode:Hydraulic crawler/remote control
Working speed:2.5Km/h
Climbing capacity:35Max.
Dimension:4300*1850*2280mm
Weight:6.5T


Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration,blasting hole drilling and so on.
It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.



Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 8
Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 9

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 10

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 11

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 12Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 13Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 14

Company Profile

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 15

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 16

Hydraulic Rotary Core Drill Rig Geological Exploration Equipment Mining Core Drilling Rig 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
