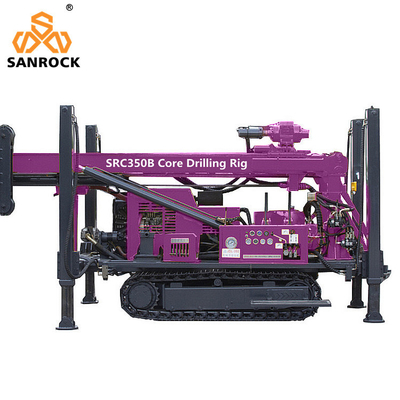

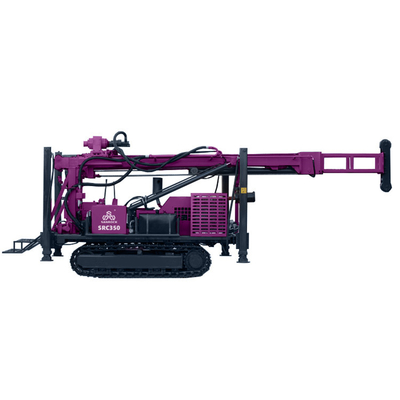

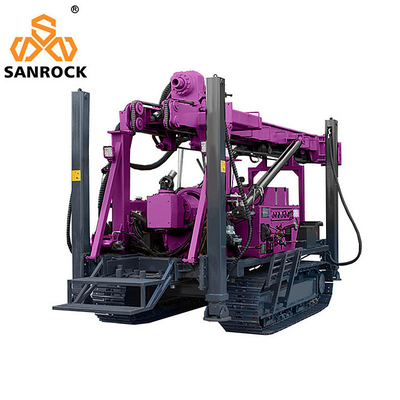

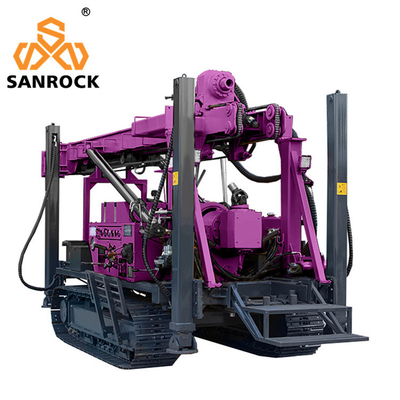

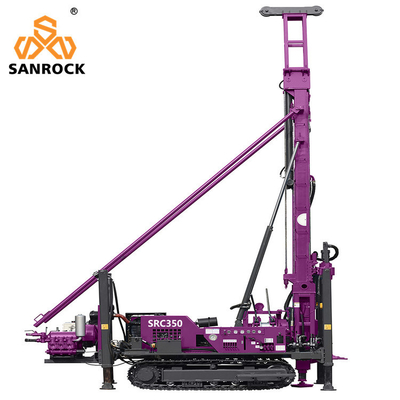

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Machine,diamond Core Drilling Rig,hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,water Well Drilling Machine,Multifunction Hydraulic Drilling Rig,core Drilling Rig
Feature: High Drilling Efficiency,portable,geological Coring Machine
Application: Coring Machine,Gelogical Prospecting
Usage: Water Well,Coal,water Well.core Sample
Type: Core Drilling Rig
Power: 65kw
Power Type: Diesel
Engine: Yunnei
Drilling Diameter: 75-350mm
Drilling Depth: 350m
Working Pressure: 10.5-24.6bar
Air Consumption: 16-35m3/min
Drill Rod Length: 3.0m
Drill Rod Diameter: 50mm,60mm,76mm,89mm NQ/HQ/PQ
Max. Torque: 10500N.m
Thrusting Capacity: 85kn
Walking Speed: 2km/h
Dimension(l*w*h): 3800*2400*7600mm
Weight: 6600 KG
High Light:

Geotechnical Diamond Core Drilling Rig

,

Hydraulic Exploration Diamond Core Drilling Rig

,

HQ Diamond Core Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC350B
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig

Feature
1.Mechanical top-drive drilling rig is a machine that mixes mud drilling rig and air drilling rig in one equipment.
2.It adopts MT or AMT manual automatic transmission, 10 grade forward gears, and 2 grade reverse gears.
3.Positive and negative switching is sensitive and convenient.
4.Main drilling methods: conventional DTH hammer drilling, non-core PDC bit or tricone bit drilling.

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 0HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 1HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 2

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 3



Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration,blasting hole drilling and so on.
It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 4HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 5

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 6

Products Description

Product name :Core Drilling Rig
Name: Core Drilling Machine
Application :Gelogical Prospecting,coring machine
Feature :High Drilling Efficiency,portable,geological coring machine

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 7
HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 8HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 9HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 10HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 11HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 12

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 13HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 14

Company Profile

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 15

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 16

HQ NQ PQ Diamond Core Drilling Rig Hydraulic Exploration Geotechnical Drilling Rig 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
