Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Machine,diamond Core Drilling Rig,hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,water Well Drilling Machine,Multifunction Hydraulic Drilling Rig,core Drilling Rig
Feature: High Drilling Efficiency,portable,geological Coring Machine
Usage: Water Well,Coal,water Well.core Sample
Application: Gelogical Prospecting,coring Machine
Type: Core Drilling Rig
Power Type: Diesel
Power: 85kw Four Cylinder
Engine: Yuchai
Drilling Diameter: 75-300mm
Drilling Depth: 400m
Rotate Speed: 500-1600 Rpm
Drill Rod Diameter: 50mm,60mm,76mm,89mm NQ/HQ/PQ
Rotary Torque: 1000N.m
Walking Speed: 3 Km/h
Lifting Force: 9T
Drill Rod Length: 1.5m/2m
Dimension(l*w*h): 3800*1700*2080mm
Weight: 5000KG
High Light:

Portable Core Drilling Rig

,

Exploration Core Drilling Rig

,

Hydraulic Core Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC400
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

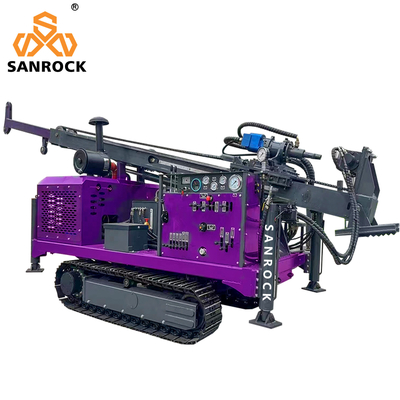

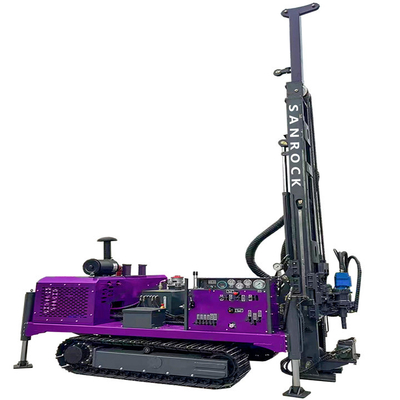

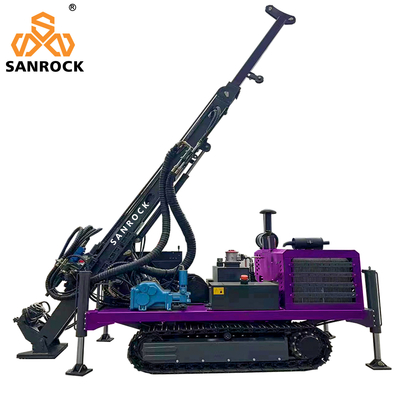

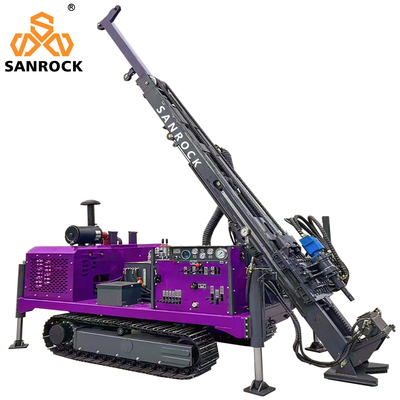

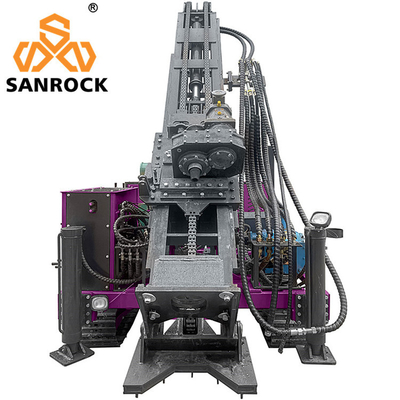

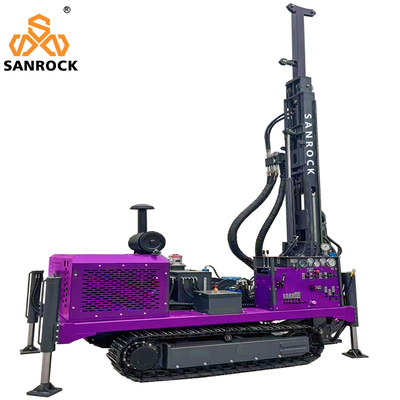

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig

Feature:
1.Hydraulic control drill mast can be raised and put down by hydraulic cylinders, which saves time and worker labor.
2.Four hydraulic jacks, can lift the machine be loaded onto and unloaded from truck compartment.
3.Also they can be used for rig leveling and support at work.24V electric-start diesel engine reduces the operator's labor intensity.

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 0

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 1Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 2Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 3

Hydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,
road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells ,etc.

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 4

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 5Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 6Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 7

Products Description

Type
Core Drilling Rig
Brand Name
SANROCK
Usage
underground pipe and cable laying
Dimension(L*W*H)
3880*1700*2080mm
Weight
5000KG
Key Selling Points
Competitive Price
Drilling Diameter
75-350mm
Drilling Depth
Max.400m
Product name
Core Drilling Rig
Application
Geological Exploration
Key words
Core Drilling Machines Equipment
Feature
High Drilling Efficiency
Rotate speed
500-1600 rpm
Rotary Torque
1000N.m
Walking speed
3 Km/h
Lifting force
9T
Engine
Yuchai Diesel Engine
Drill rod length
1.5m/2m


Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 8Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 9Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 10Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 11Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 12

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 13Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 14Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 15

Company Profile

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 16

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 17

Exploration Core Drilling Rig Equipment Portable Hydraulic Diamond Core Drilling Rig 18

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
