Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers

1Set/Sets per Month
MOQ
negotiable
Price

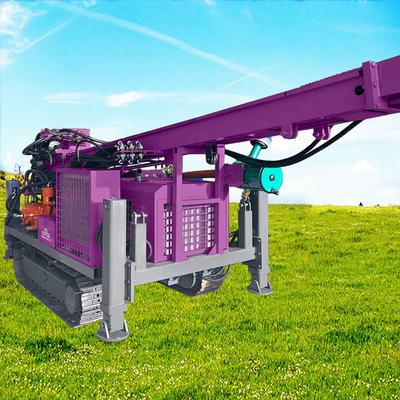

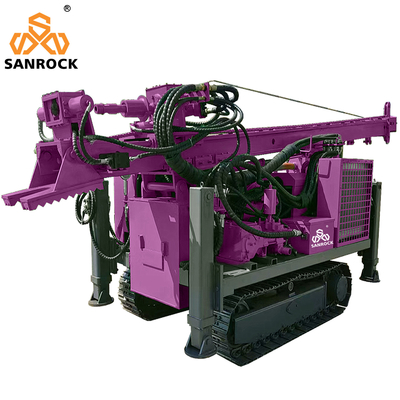

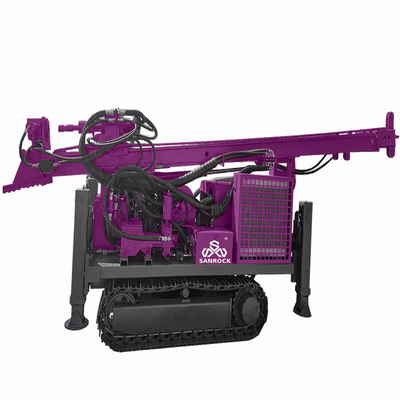

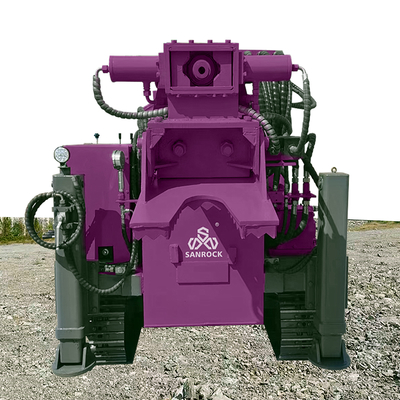

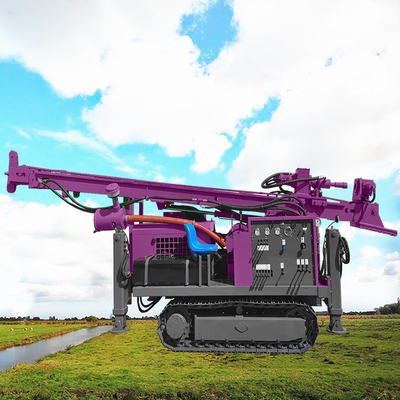

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Machine,diamond Core Drilling Rig,hydraulic Core Drilling Rig
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Application: Gelogical Prospecting,coring Machine
Name: Borehole Drilling Rig,water Well Drilling Machine,Multifunction Hydraulic Drilling Rig,core Drilling Rig
Type: Core Drilling Rig
Usage: Water Well,Coal
Drilling Diameter: 75-300mm
Drilling Depth: 400m
Power Type: Diesel
Power: 85kw Four Cylinder
Engine: Yuchai
Rotate Speed: 500-1600 Rpm
Rotary Torque: 1000N.m
Walking Speed: 3km/h
Lifting Force: 9T
Drill Rod Length: 1.5m/2m
Drill Rod Diameter: 50mm,60mm,76mm,89mm NQ/HQ/PQ
Dimension(L*W*H): 3880*1700*2080mm
Weight: 5000KG
High Light:

Hydraulic Exploration Diamond Core Drilling Rig

,

Hydraulic Exploration Core Drilling Rig Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC400
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers

Hydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells ,etc.

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 0

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 1

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 2

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 3

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 4

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 5



Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 6

Products Description

Type
Core Drilling Rig
Brand Name
SANROCK
Usage
underground pipe and cable laying
Dimension(L*W*H)
3880*1700*2080mm
Weight
5000KG
Key Selling Points
Competitive Price
Drilling Diameter
75-350mm
Drilling Depth
Max.400m
Product name
Core Drilling Rig
Application
Geological Exploration
Key words
Core Drilling Machines Equipment
Feature
High Drilling Efficiency
Rotate speed
500-1600 rpm
Rotary Torque
1000N.m
Walking speed
3 Km/h
Lifting force
9T
Engine
Yuchai Diesel Engine
Drill rod length
1.5m/2m


Feature:
1.Hydraulic control drill mast can be raised and put down by hydraulic cylinders, which saves time and worker labor.
2.Four hydraulic jacks, can lift the machine be loaded onto and unloaded from truck compartment.
3.Also they can be used for rig leveling and support at work.24V electric-start diesel engine reduces the operator's labor intensity.



Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 7Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 8

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 9

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 10Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 11Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 12

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 13

Company Profile

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 14

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 15

Core Drilling Rig Equipment Hydraulic Exploration Diamond Core Drilling Rig Manufacturers 16
