The performance profile of this mobile rig centers on providing a powerful, flexible, and swift core drilling solution that transforms inaccessible underground sites into productive data points, directly supporting real-time decision-making in exploration, geotechnical verification, and hazard assessment.
Its performance is characterized by:
High Penetration Rates: Optimized power transfer ensures efficient cutting and faster sample retrieval.
Superior Core Recovery & Quality: Utilizing precision wireline or conventional core barrel systems, the rig consistently extracts intact, undisturbed core samples crucial for accurate geological analysis.
Depth Capability: Typically designed for medium-depth applications (commonly ranging from 200 to 400 meters, depending on model), providing sufficient reach for most tunnel-side and near-field geological investigations.
3. Operational Agility & Ease of Use: Designed for operation in space-constrained tunnels, it features a compact footprint and often a modular mast with a low headroom requirement. Ergonomic controls, centralized hydraulic functions, and sometimes semi-automated rod handling contribute to smoother, less labor-intensive operation by a small crew, reducing fatigue and enhancing safety.
4. Integrated Support Systems: Its self-contained performance is bolstered by onboard support systems:
Cooling/Circulation System: An integrated water or mud pump maintains proper borehole stability, removes cuttings, and cools the drill bit.
Data Monitoring: A real-time operator console displays critical parameters (depth, pressure, rotation speed), allowing for immediate adjustment to optimize performance and document drilling conditions.
5. Reliability & Environmental Suitability: Built with durable components to withstand the humid, dusty, and often rugged conditions underground. Its design ensures dependable performance with minimal downtime, while features like efficient dust suppression and low-noise operation cater to the stringent health and safety requirements of enclosed workspaces.
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.
Products Description
|

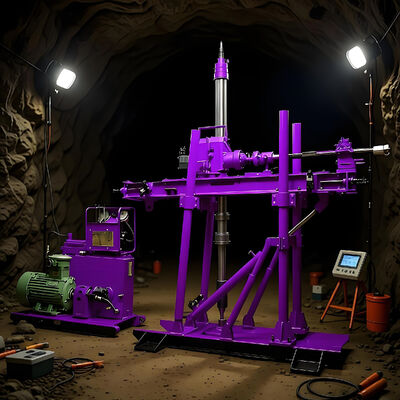

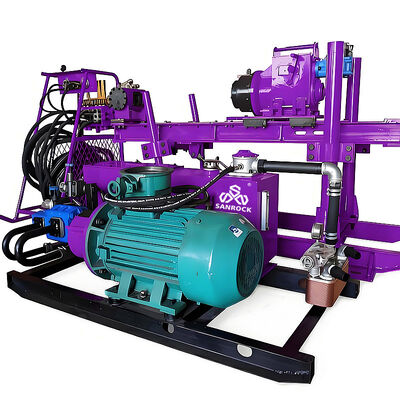

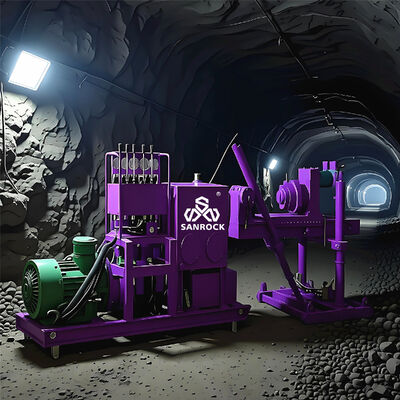

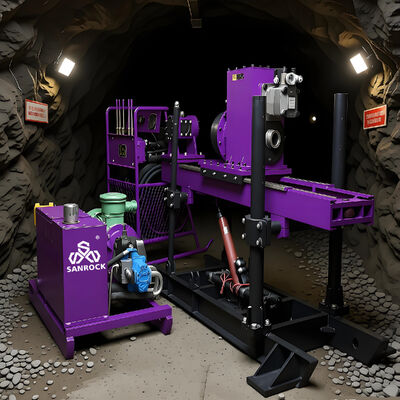

SRC400UG HYDRAULIC UNDERGROUND TUNNEL DRILLING RIG Technical Parameter
|
|
Spindle rotational speed
|
280-1200r/min
|
Spindle torque
|
910Nm
|
|
Axial feeding force
|
≥70KN
|
Axial pulling force
|
≥120KN
|
|
Hydraulic system working pressure
|
20MPa
|
Max pressure
|
25MPa
|
|
Main pump max pressure
|
31.5MPa
|
Auxiliary pump max pressure
|
21MPa
|
|
Power head stroke
|
1600mm
|
Surface drilling angle
|
0-90
|
|
Underground drilling angle
|
0-360
|
Azimuth angle
|
0-360
|
|
Motor Power
|
55Kw
|
Motor rotational speed
|
1480rpm
|
|
Machine body/outer size
|
2800㎜×1020㎜×1550㎜
|
Weight
|
1335Kg
|
|
Power car/size
|
1720㎜×690㎜×1420㎜
|
Weight
|
765Kg
|
|
Console/size
|
500㎜×405㎜×1080㎜
|
Weight
|
80Kg
|
|
Drilling depth of various diameters
|
|
|
Bit
|
Drill Rod
|
Material
|
Drill Depth/m
|
|
Outer Dia. mm
|
Outer Dia. mm
|
Rod Material
|
Down
|
Horizontal
|
UP
|
|
Φ59(BQ)
|
Φ55.6×4.8
|
XJY850
|
550m
|
500m
|
300m
|
|
Φ75(NQ)
|
Φ69.9×4.8
|
XJY850
|
450m
|
400m
|
250m
|
|
Φ95(HQ)
|
Φ88.9×5.5
|
XJY850
|
350m
|
300m
|
200m
|
|
|
