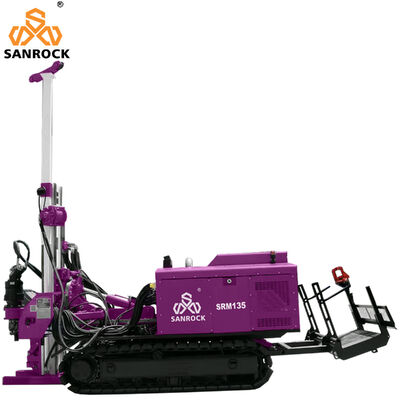

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine

1 Set/Sets
MOQ
negotiable
Price
SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Machine
Type: Core Drilling Rig
Name: Environmental Soil Sampling Drilling Rig
Feature: High Drilling Efficiency,Wireless Remote Control
Power Type: Diesel
Power(w): 93KW
Drilling Depth: 180m
Drilling Diameter: 150-250mm
Impact Frequency: 2100b/min
Impact Power: 480N.m
Torque Of Impact Power Head: 900N.m
Rotating Speed Of Impact Power Head: 234r/min
Spiral Power Head Torque: 6000N.m
Spiral Power Head Speed: 80r/min
Rated Lifting Force: 265kN
Rated Feeding Force: 180kN
Feeding Stroke: 2000mm
Application: Coring Machine,Gelogical Prospecting
Usage: Coal,water Well.core Sample
After-sales Service Provided: Video Technical Support
Dimension(l*w*h): 4200*1850*2400mm
High Light:

SPT Soil Sampling Drilling Rig

,

Geotechnical Exploration Drilling Machine

,

Environmental Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRM135
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

What is environmental drilling?

Environmental Drilling & Sampling Services

Environmental drilling is a way to investigate and delineate subsurface conditions and monitor them over time. The data collected may be used to identify areas of soil or groundwater contamination, log water table depths, or monitor and confirm the efficacy of remediation efforts.

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 0



SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 1











SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 2



SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 3

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 4

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 5

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 6

SPT Soil Sampleing Drilling Rig Environmental Geotechnical Exploration Drilling Rig Machine

Feature:
1.Small volume,the machine is smart, work flexibly in narrow space.high torque and sampling rate.

2.The rig is equipped with a drifter,and its maximum torque is 6600N.M.

3.The impact frequency of max 2100 times per minute ensures low compression ratio and high sampling rate.

4.The configuration of wireless remote control is simple and convenient to operate. The movable operating table is matched with the double rotary table angle changing mechanism, which makes the hole more flexible.

5.Energy conservation and environmental protection.The total power is only 93kw,with low energy consumption,meeting the requirements of sustainable development.

6.Wide crawler. to reduce the grounding specific pressure can ensure the safe construction in the geological loose area. 7.Safety protection mechanism. Built-in accurate hydraulic temperature control module, real-time monitoring of equipment operation,play a role in monitoring and early warning protection.

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 7

Products Description

Model
SRM- 135
Impact Frequency(b/min)
2100
Impact Power(N.m)
480
Torque of Impact Power Head(N.m)
900
Rotating Speed of Impact Power Head(r/min)
234
Spiral Power Head Torque(N.m)
6000
Spiral Power Head Speed(r/min)
80
Rated Lifting Force(kN)
265
Rated Feeding Force(kN)
180
Feeding Stroke(mm)
2000
Sliding Stroke(mm)
600
Platform Slip(mm)
350
Upper Arm Swing Angle(° )
± 15
Tilting of Propulsion Frame(° )
± 15
Starting Angle(° )
20- 100
Rear Hanger Bearing Capacity(kg)
1000
Equipment Weight(kg)
5500
Working Height(mm)
4800
Transportation Dimension(mm)
4200*1850*2400
Ground Specific Pressure(kg/cm)
0.32
Walking Speed(km/h)
5
Rated Power(kW )
93/ 1800
Lifting Capacity of Hydraulic W inch(kN)
1 1
Hydraulic W inch Speed(m/min)
39


SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 8

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 9

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 10

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 11SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 12











SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 13



Customer Photos

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 14

SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 15



SPT Soil Sampling Drilling Rig Environmental Geotechnical Exploration Drilling Machine 16



1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
