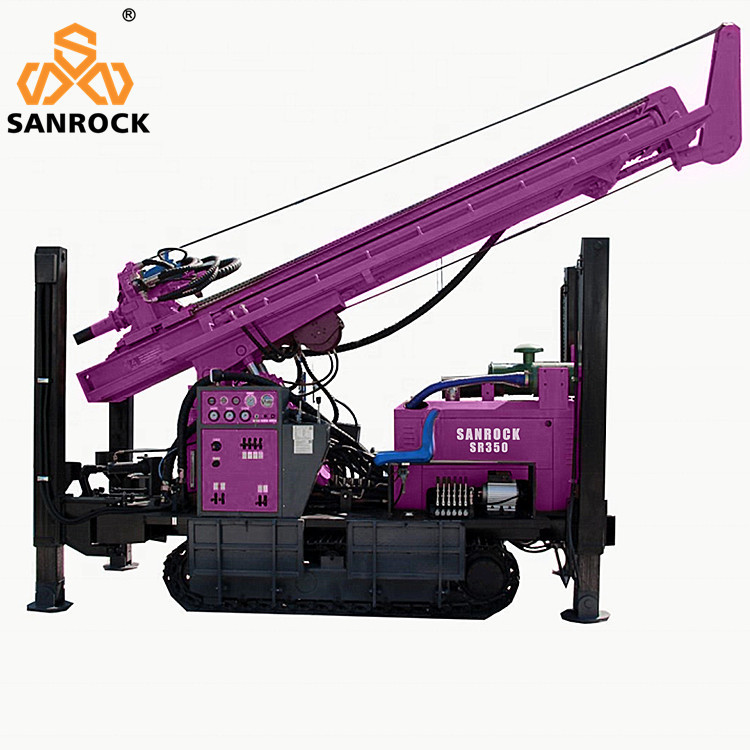

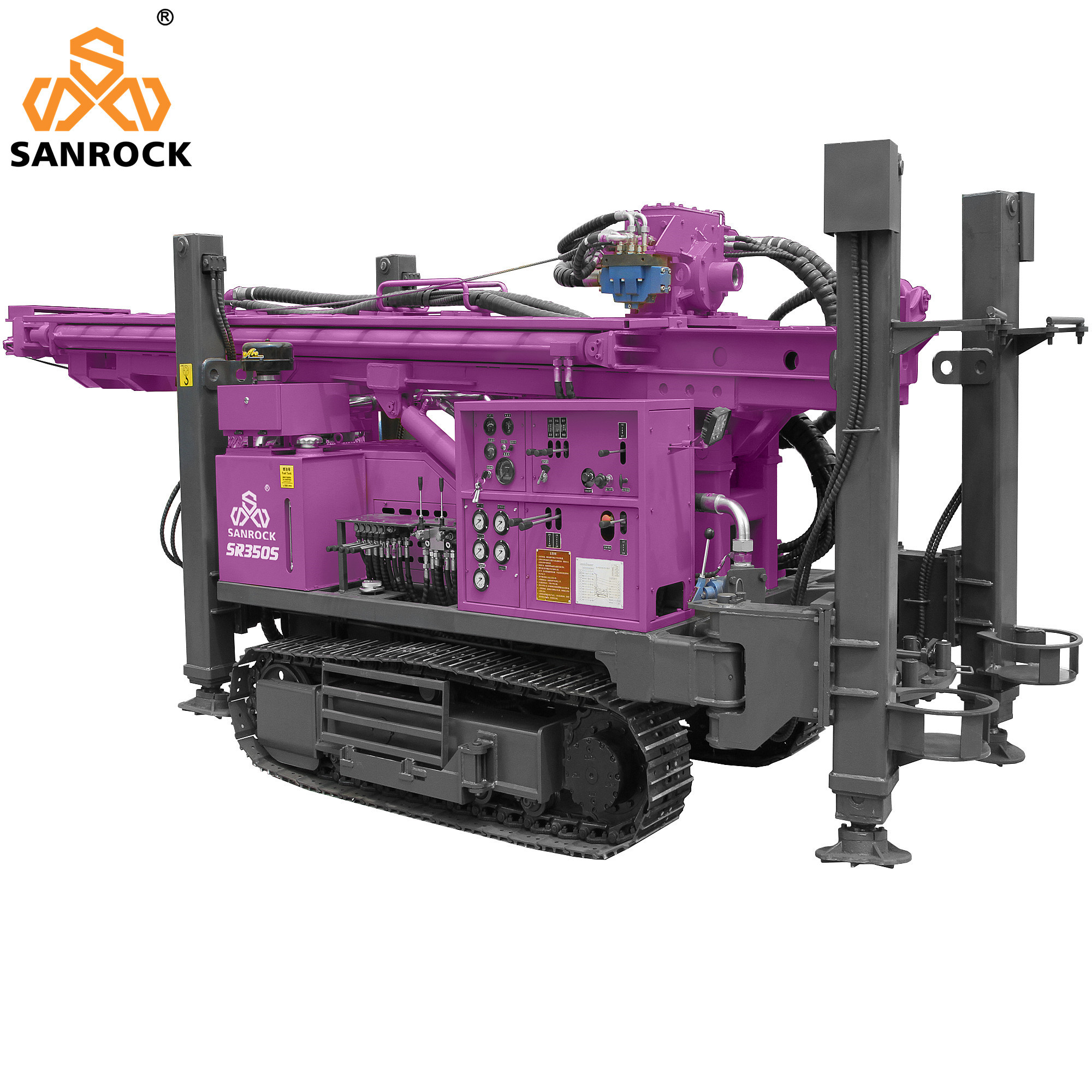

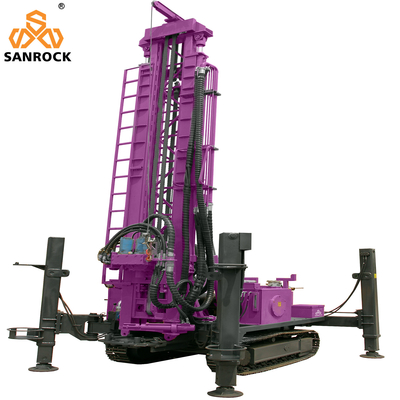

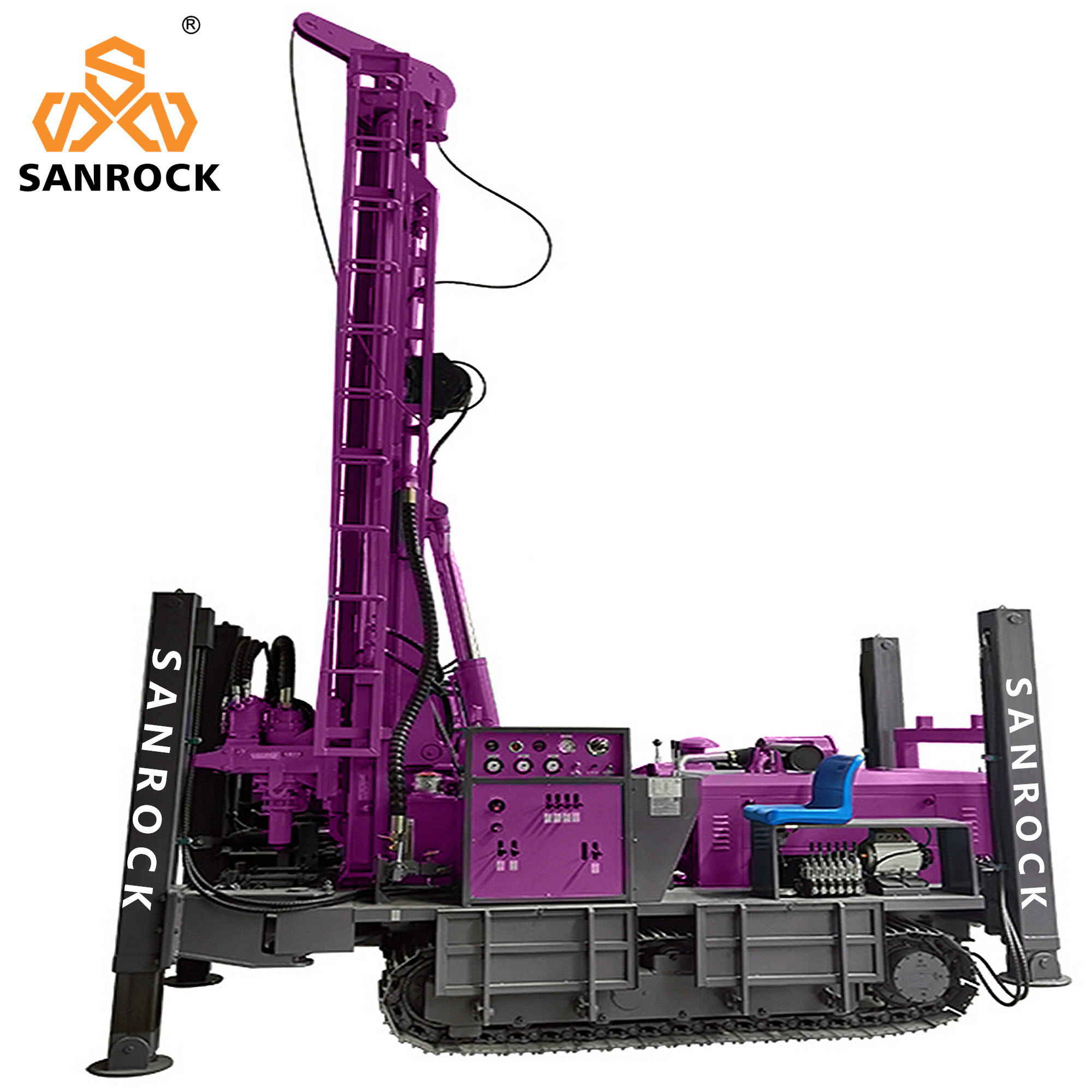

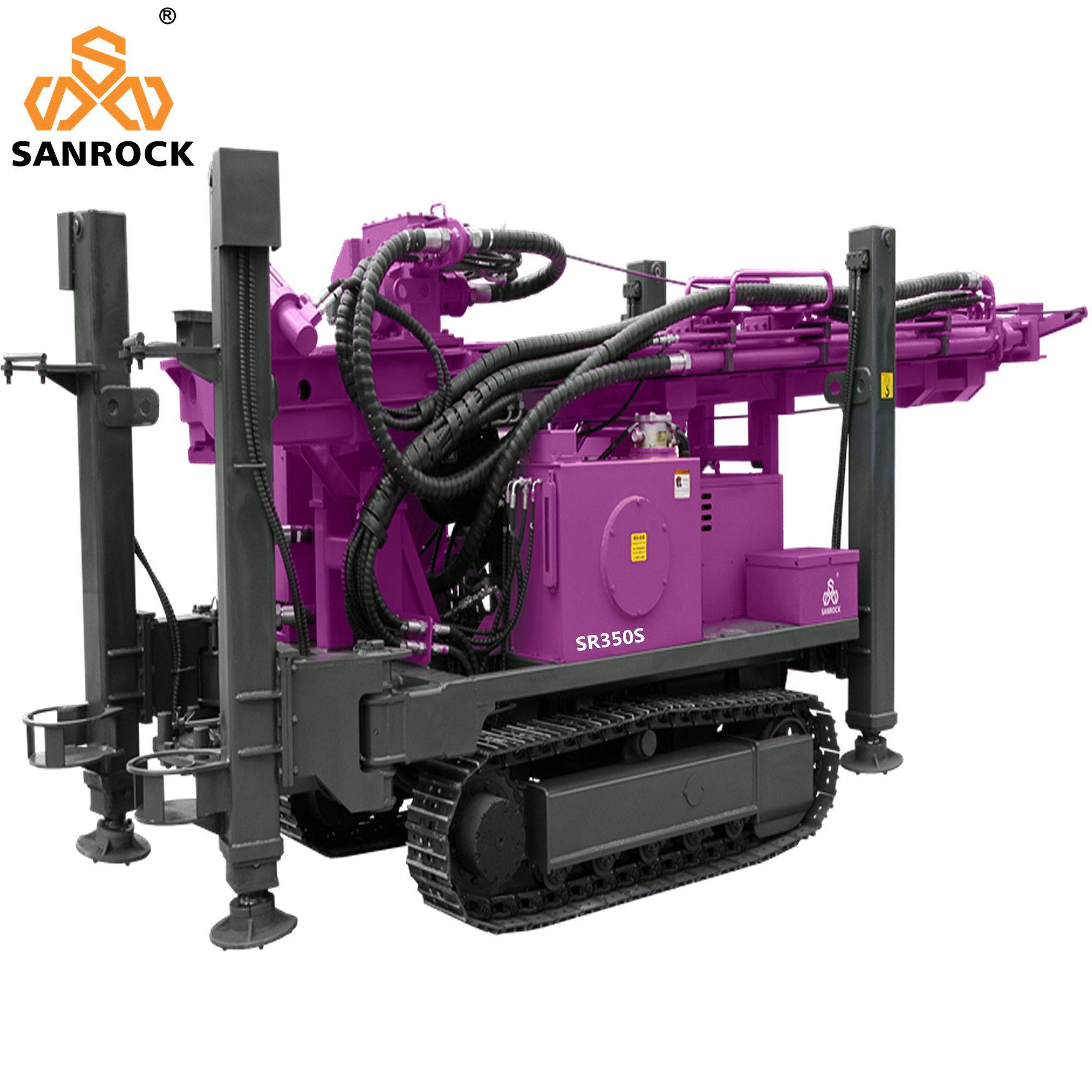

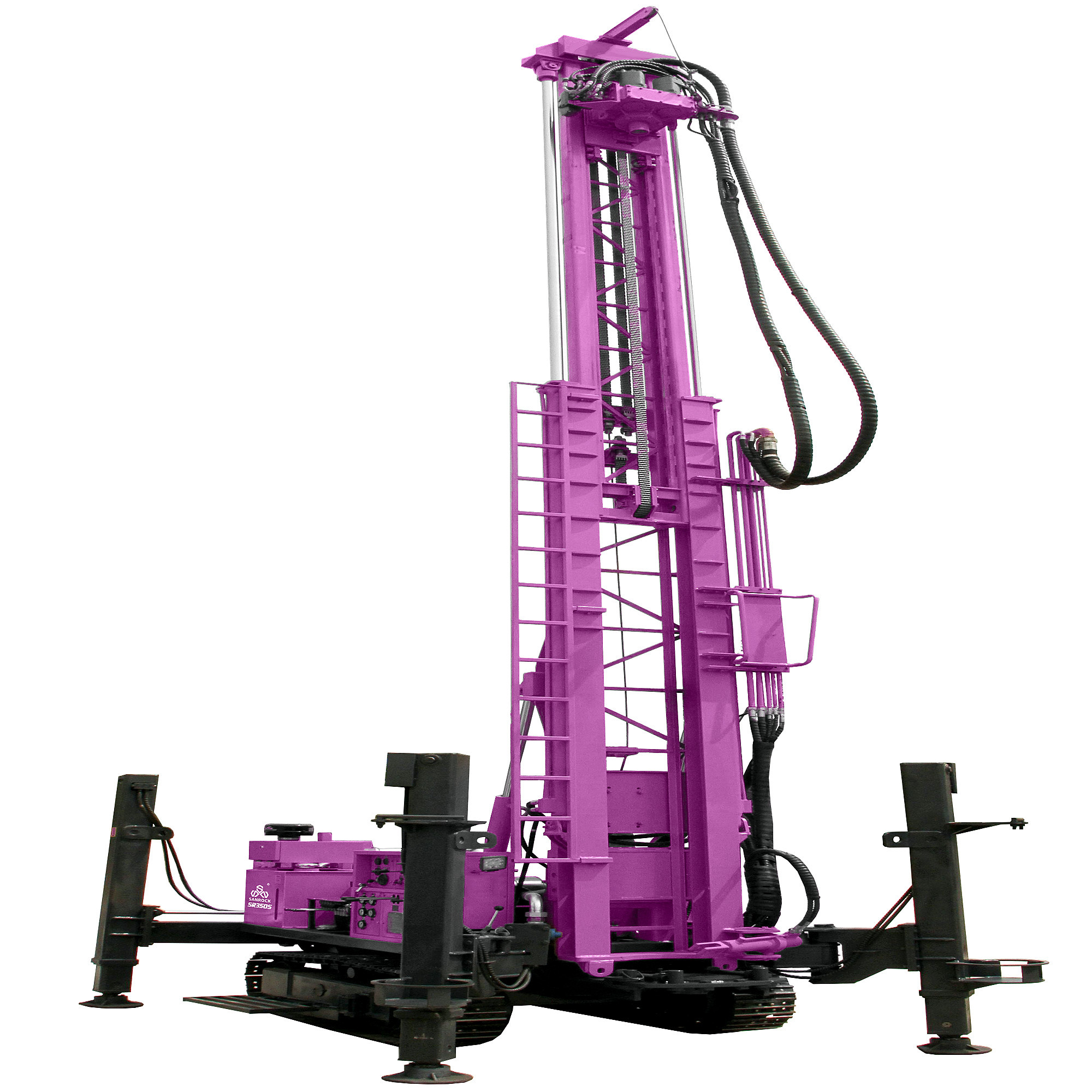

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

1 Set/Sets
MOQ
negotiable
Price
Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig, Water Well Drilling Machine
Name: Water Well Drilling Equipment ,Crawler Water Well Drilling Rig
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Application: Water Well Drilling Rig,agricultural Irrigation Wells
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Power(w): 92KW
Drilling Depth: 100m/200m/300m/350m
Drilling Diameter: 105-305mm
Lifting Force: 18T
Rotary Torque: 4000-8000N.m
Rotary Speed: 60-120r/min
Air Pressure: 1.2-3.5Mpa
Air Consumption: 16-55 M³/min
Axial Pressure: 3T
Walking Speed: 2.5km/h
After-sales Service Provided: Video Technical Support
Dimension(l*w*h): 6000*1700*2200mm
Weight: 7500KG
High Light:

Hydraulic Water Well Drilling Rig

,

Deep Water Well Drilling Rig

,

Crawler Water Well Drilling Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR350S
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description
Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 0Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 1Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 2Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 3
Top-drive type, high-efficiency, multi-functional fully hydraulic drilling rig features advanced technology, easy use, high operating efficiency, reliability and durability. This drilling rig is widely used in drilling water wells, detection wells, dewatering wells, rescue wells, ground source air conditioning holes, coal bed methane, natural gas, oil exploration and other projects.
1.The drilling rig can use with air compressor for DTH drilling in various formations in high-temperature areas, alpine areas and plateau areas, in the range of Plattes hardness f=4-20 drilling holes in the rock has a high drilling speed.
2.Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
3.Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
4.Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 4
Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 5

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

Products Description

Model
Unit
SR350S
Max drilling depth
M
350
Drilling diameter
mm
105-305
Engine brand
/
Cummins
Power
kw
92
Rotary motor brand
/
Eaton
Pump brand
/
Permco
Air pressure
Mpa
1.2-3.5
Air consumption
m³/min
16-55
Drill pipe length
m
6
Drill pipe diameter
mm
89
Axial pressure
T
3
Lifting force
T
18
Fast lifting speed
m/min
30
Fast feeding speed
m/min
60
Max rotary torque
Nm
8000/4000
Max rotary speed
r/min
60/120
Big auxiliary winch lifting force
T
/
Small auxiliary winch lifting force
T
1.5
Jacks stroke
m
1.45
Drilling efficiency
m/h
10-35
Moving speed
Km/h
2.5
Uphill angle
/
21°
Weight
T
7.5
Dimension
mm
6000*1700*2200
Working condition
/
Unconsolidated formation and stone head
Drilling method
/
Top drive hydraul ic rotary and pushing, hammer or mud drilling

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 6

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 7Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 8

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 9



Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 10Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 11

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 12

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 13



Company Profile

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 14

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 15



Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine 16

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
