Features

Specifications

Product Name: Drilling Rig

Name: Borehole Drilling Rig

Power Type: Diesel

Engine: Yuchai

Drilling Depth: 30m

Drilling Diameter: 90-145mm

Air Displacement: 10-24m³/min

Discharge Pressure: 0.8-2.0MPa

Application: Ore Mining Project,Drilling Rock Mining Quarry,Drilling Blast Hole

Feature: High Drilling Efficiency,Competitive Price,High Performance

Climbing Capacity: 30degree

Method Of Feed: Cylinder+Chain

Feed Stroke:: 3200mm

Feed Force: 15kN

Lifting Force: 25kN

Rotary Speed: 0-130rpm

Max. Output Torque: 3500N.m

Min. Ground Clearance: 460mm

Walking Speed: 2.5km/h, 3km/h

Weight: 5800KG

Dimension(l*w*h): 5800×2180×2340mm

Highlight:

Rock Blast Hole Drilling Machine

Hydraulic Drilling Rig Drilling Machine

Mining Drilling Equipment Drilling Machine

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: SANROCK

Certification: IOS9001 CCC

Model Number: R55

Document: Mining Drilling Rig .pdf

Payment & Shipping Terms

Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Delivery Time: 15-25days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 5000Set/Sets per Month

Gallery

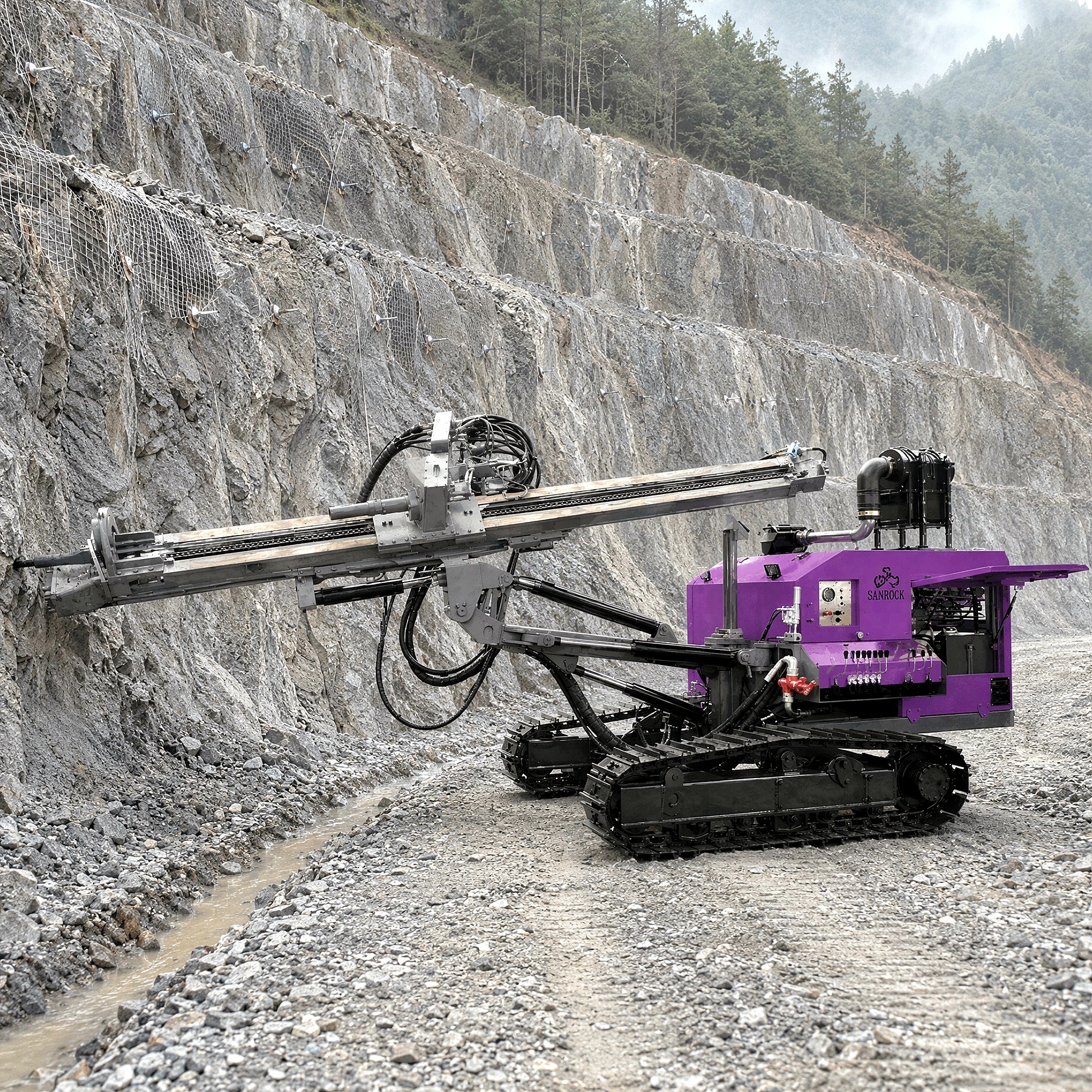

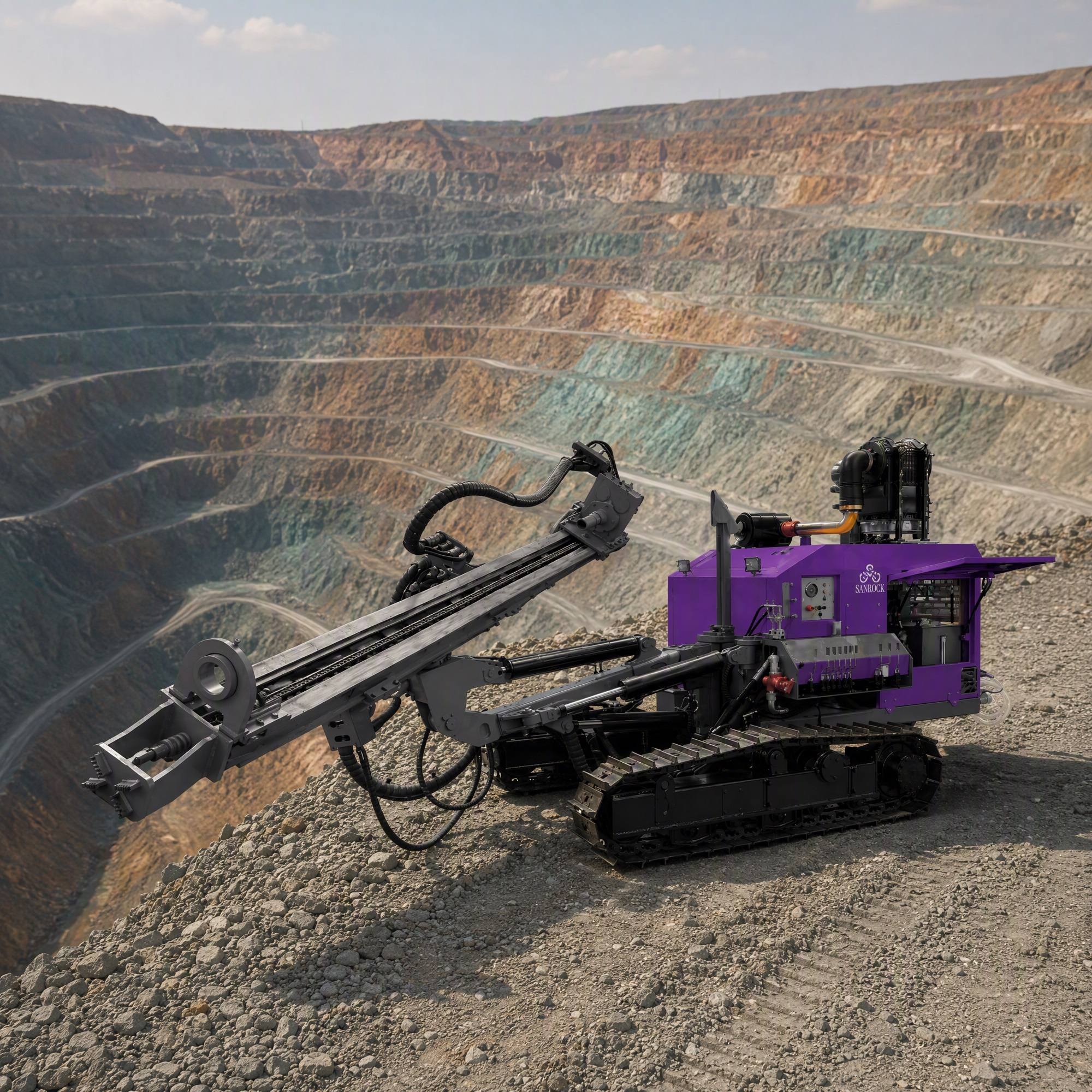

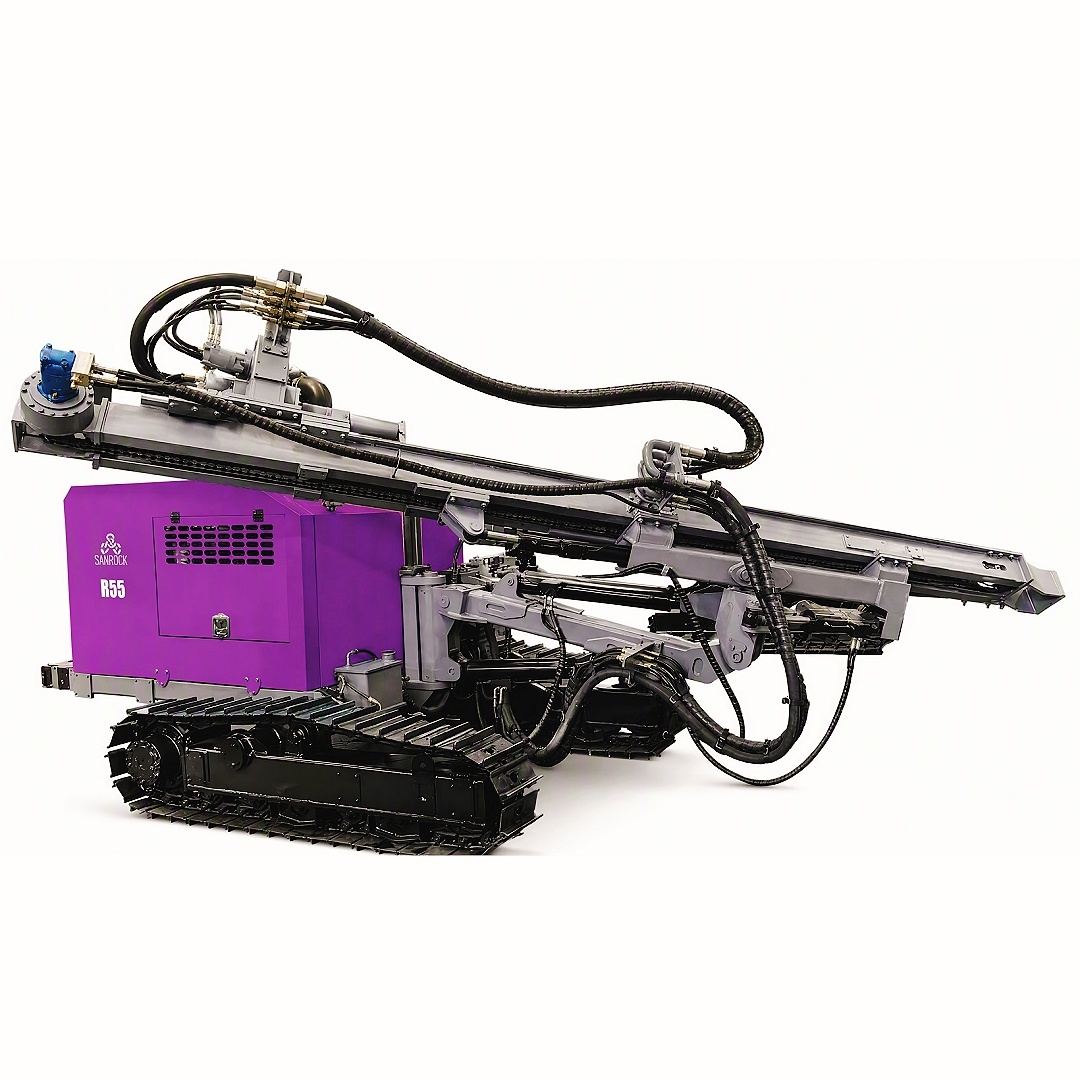

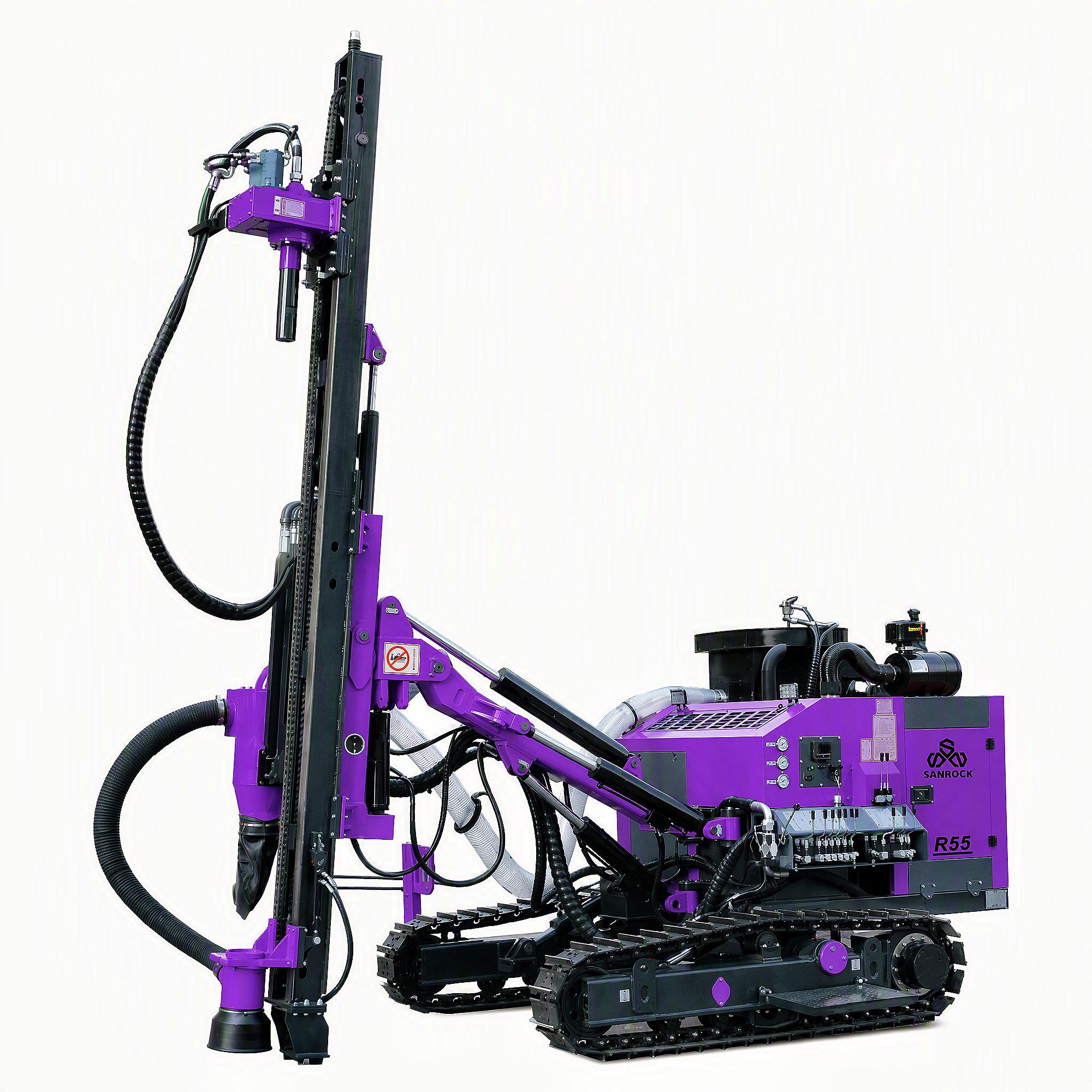

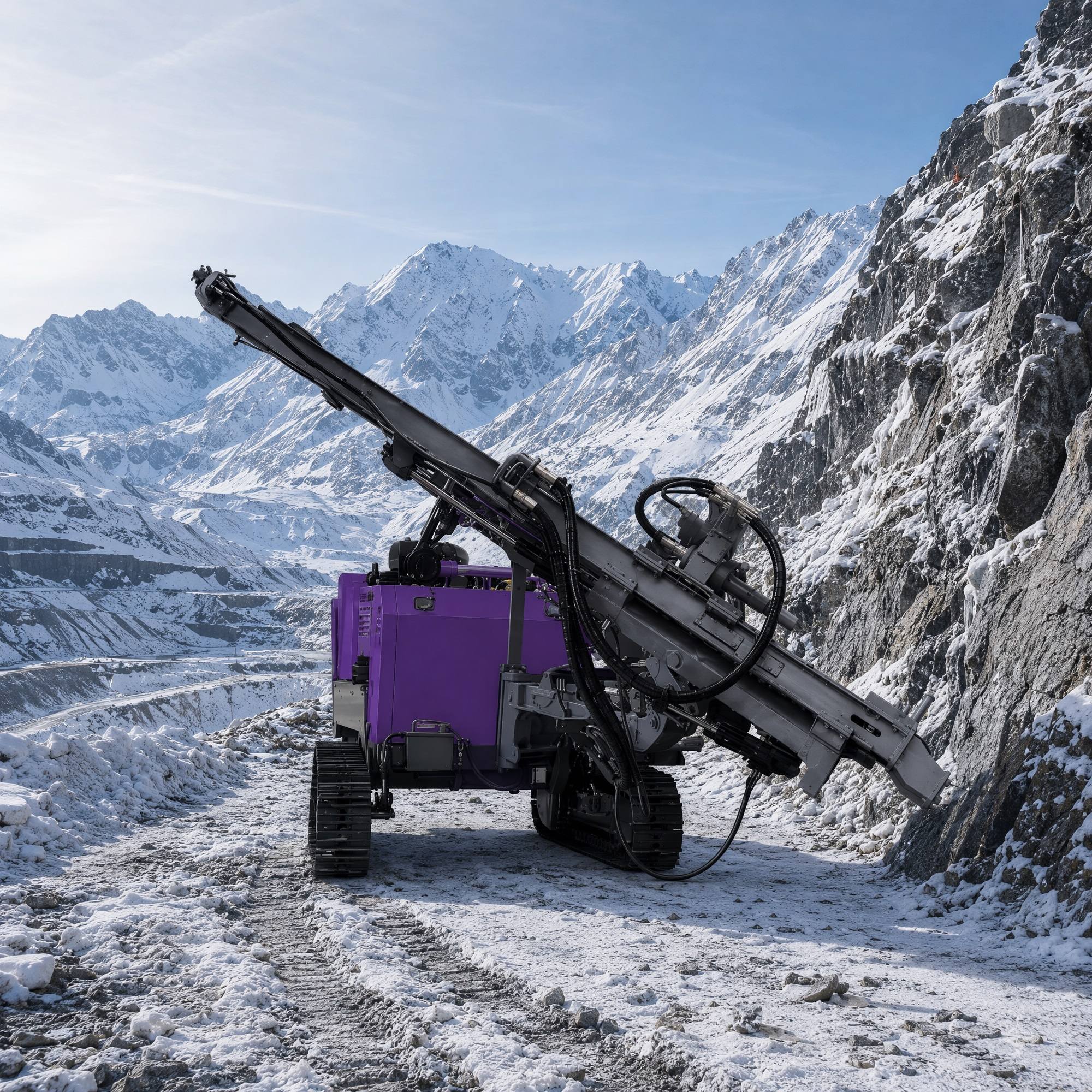

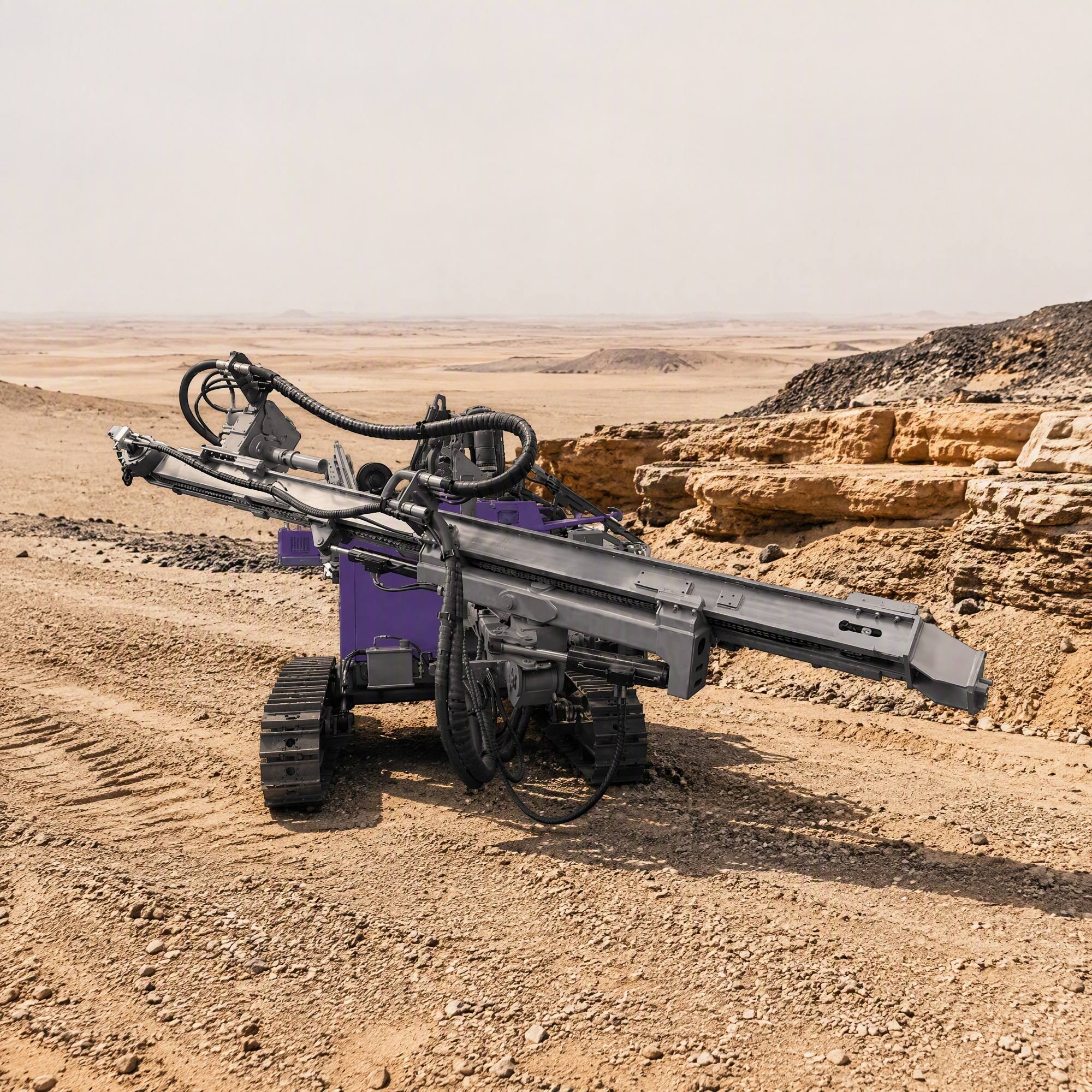

Hydraulic Drilling Rig Mining Drilling Equipment Rock Blast Hole Drilling Machine

Product Description



This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. 4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Products Description


						Product name: drilling rig

						Brand Name:Sanrock

						Name:Separated Crawler Drilling Rig

						Method of Feed:Cylinder+Chain

						Drilling Depth:30-50M

						Drilling Diameter:90-200mm

						Travelling Speed:3km/h

						Climbing Angles:30°

						DTH Hammer:4"/5"/ 6"

						Transportation Dimensions:Customized

						Drill rod diameter76mm

						Drill rod length3.0m

Hydraulic Drilling Rig Mining Drilling Equipment Rock Blast Hole Drilling Machine

Company Profile

Certifications

Hydraulic Drilling Rig Mining Drilling Equipment Rock Blast Hole Drilling Machine

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
