Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Drilling Rig
Name: Top Hammer Drilling Rig
Engine: Cummins
Power(w): 194KW
Lifting Force: 21KN
Drilling Depth: 50-70m
Drilling Diameter: 76-127mm
Motor Speed: 3300rpm
Fuel Tank: 400L
Drill Pipe: T45/T51
Use: Ore Mining,Coal Mining,Rock Drilling
Machine Type: Drilling Equipment
Application: Blasting Hole Drilling,Mining Project,Construction Works
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Type: Rotary Drilling Rig
Dimension(l*w*h): 9200*2350*3100mm
Weight: 12500 KG
High Light:

Hydraulic Top Hammer Drilling Rig

,

Mining Top Hammer Drilling Rig

,

Borehole Top Hammer Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: T86
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

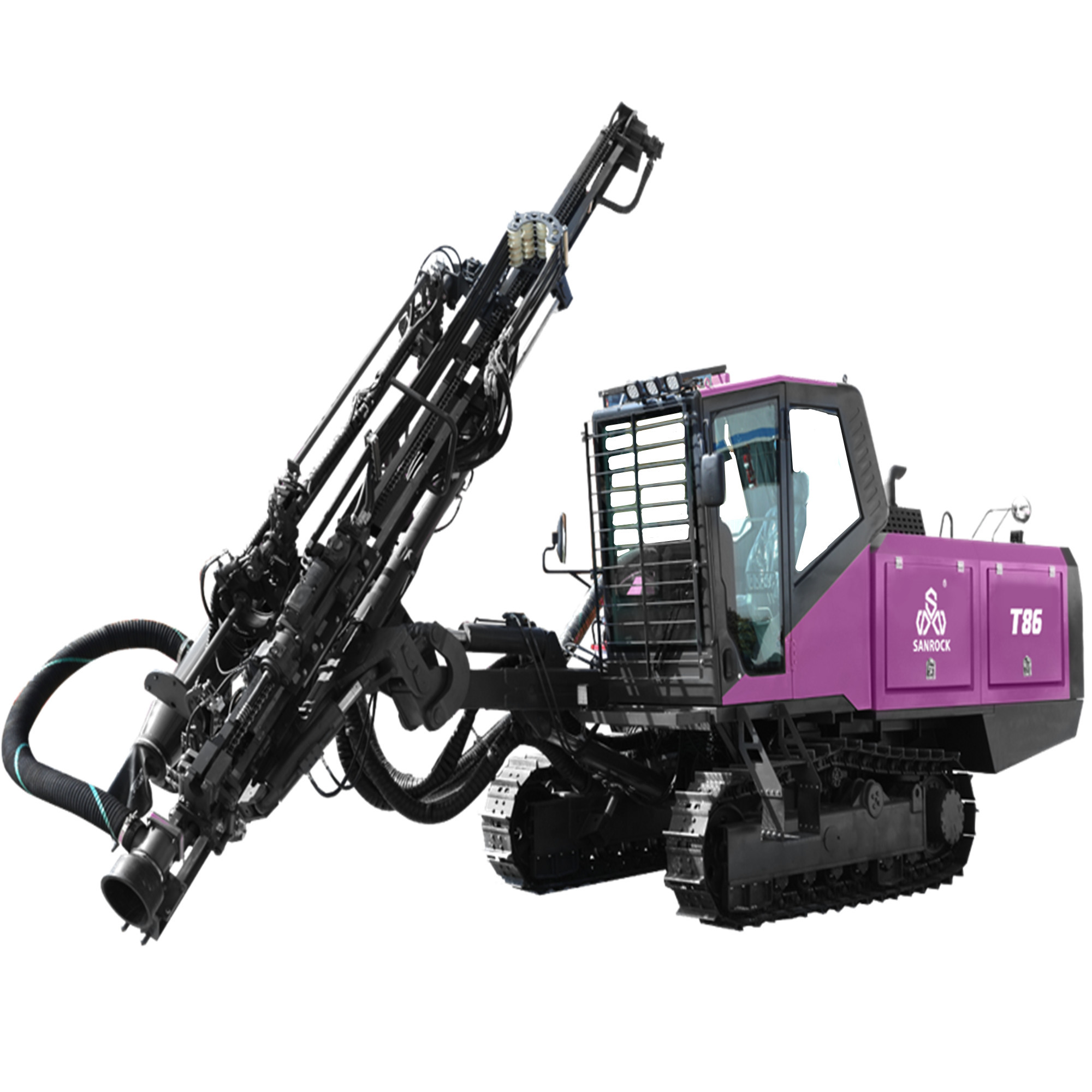

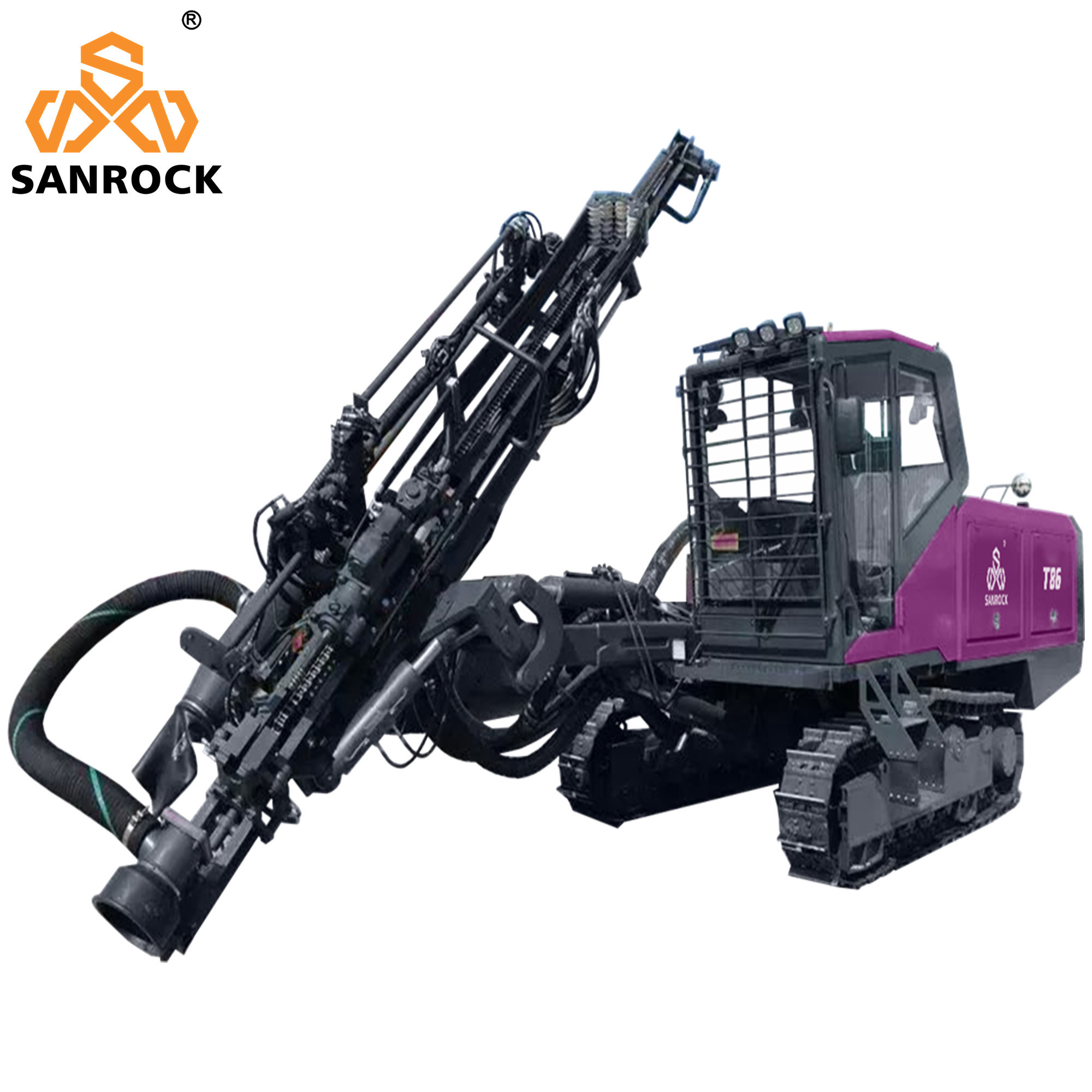

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 0Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 1

Feature:
1. Hydraulic loop structure with low pressure highly improve the eliability of hydraulic system
2. Automatical control system can reduced pressure accordingly, and the drill bit reverse to avoid jamming.
3. Two stage dust collector with filtering area of 15 m²ensure excellent working result for near dust free drilling.
4. The high-power hydraulic rock drill with reverse drilling function minimizes the probability of sticking.
5. The intelligent identification of rock stratum attributes prevents sticking and idle drilling,extending the service life of drilling tools.
6. Folding arm structure with large coverage area in single positioning ,Meeting the drilling requirements of vertical,inclined and horizontal blasting holes.

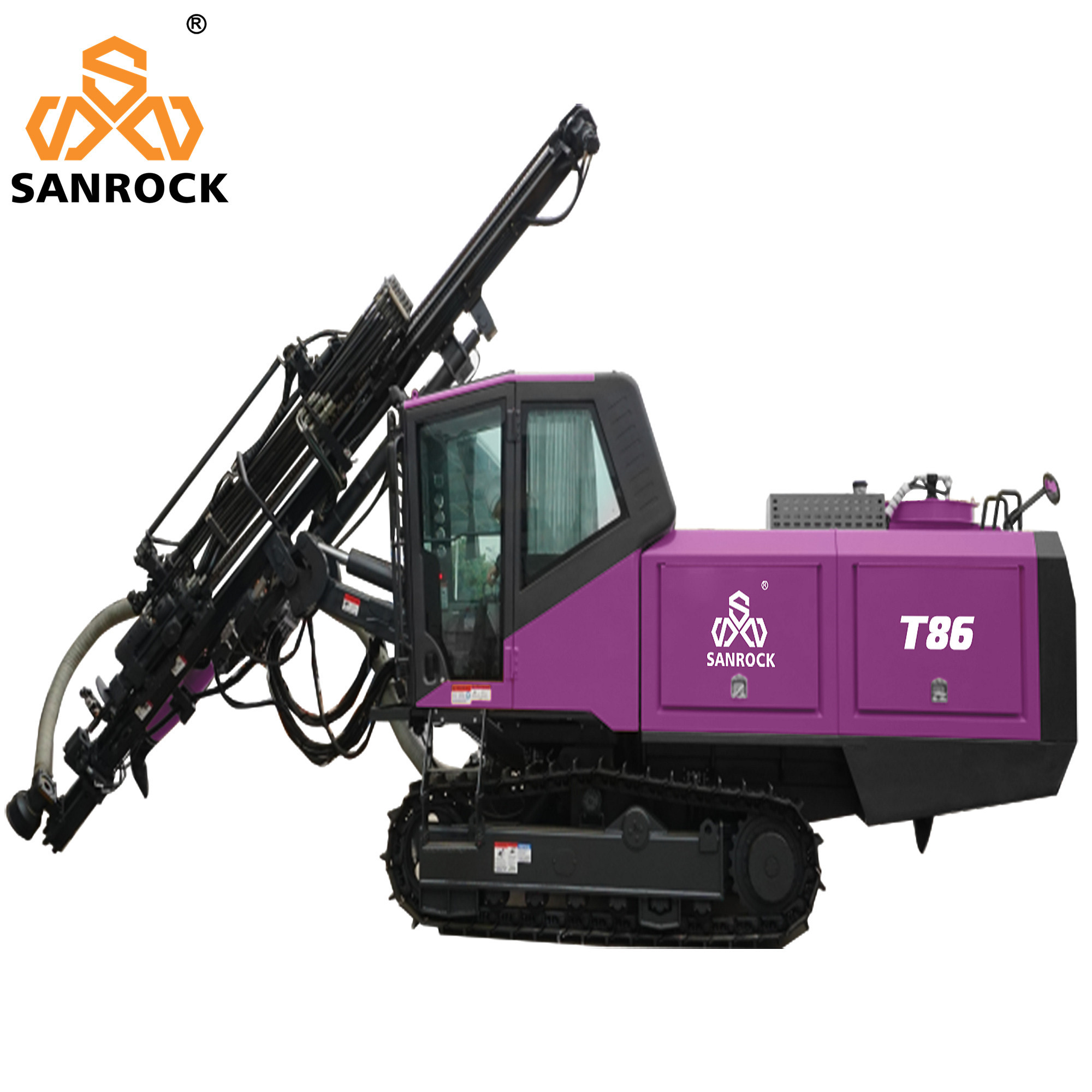

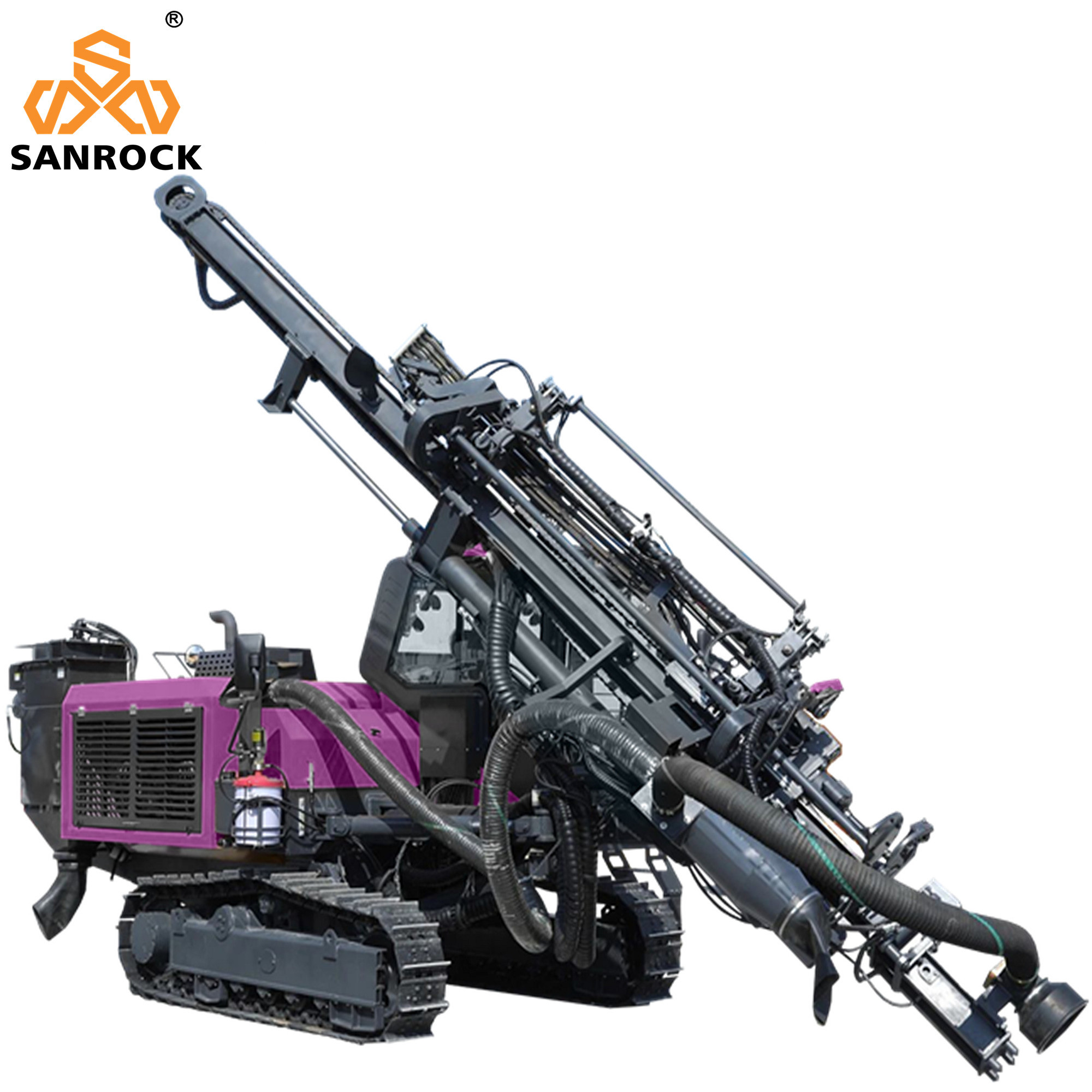

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 2Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 3

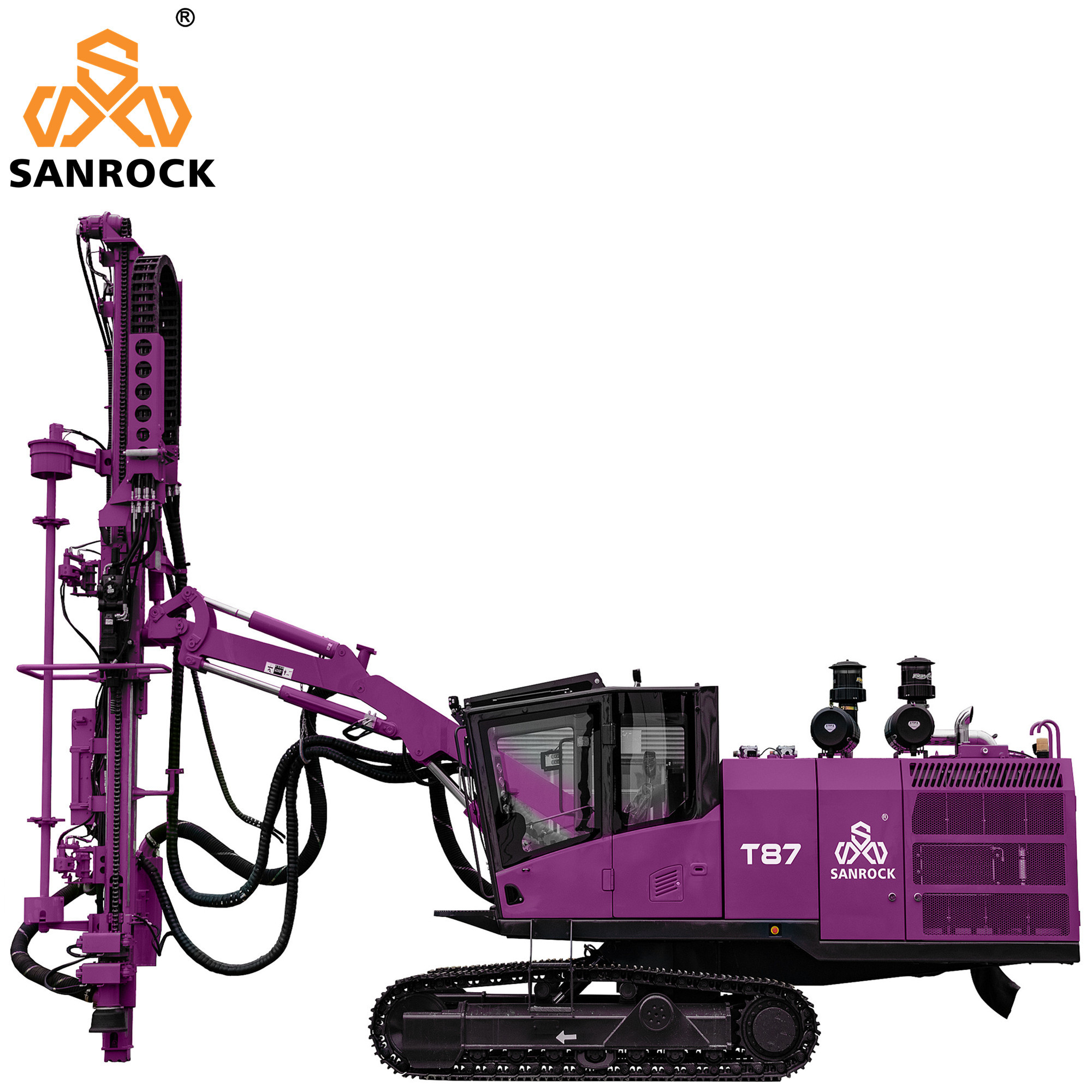

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 4

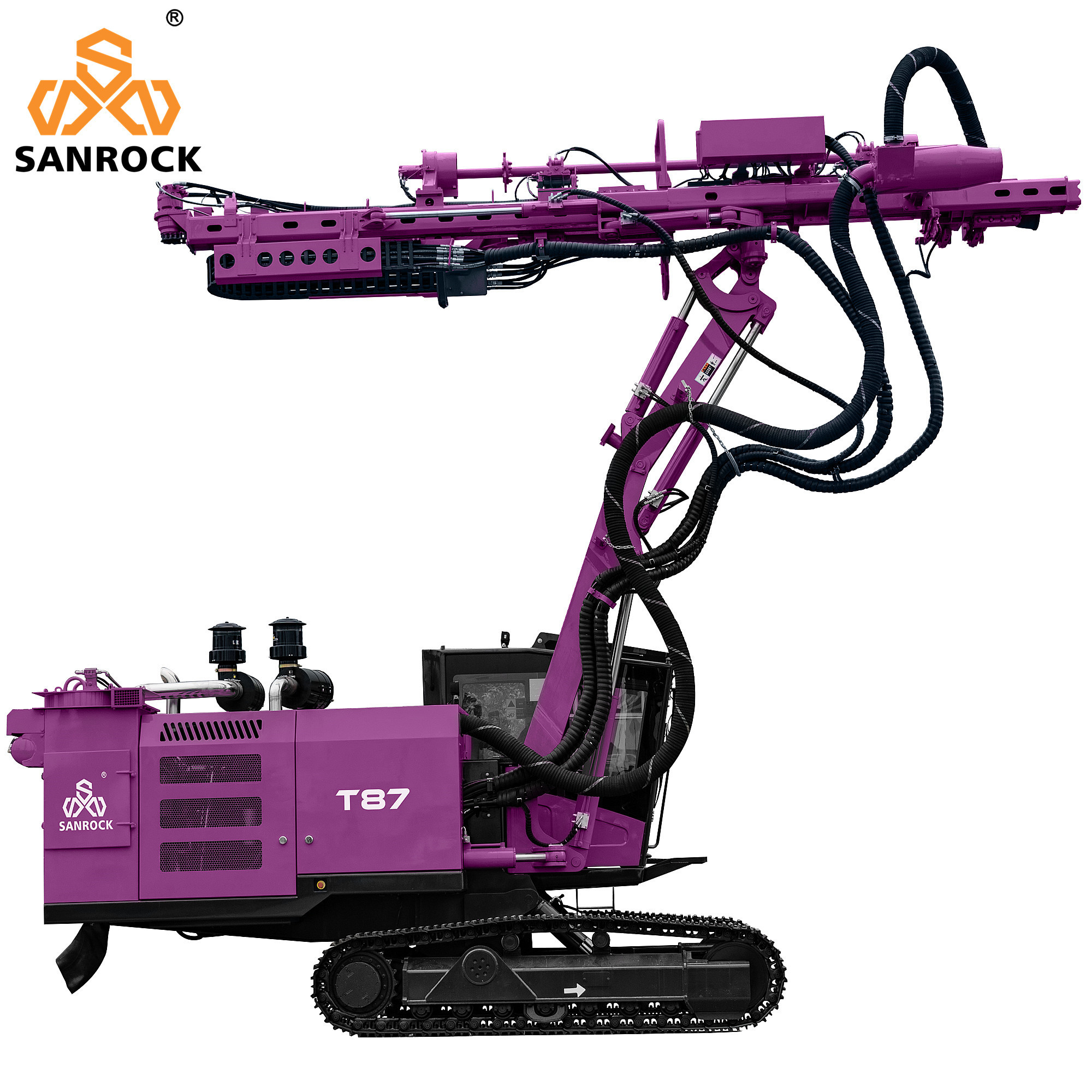

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 5

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 6

Products Description



Product name
Top Hammer Drilling Rig
Drill Bit&Rod
Drilling Depth
50-70m
Hole sizes(mm)
76-127
Drll rod(mm)
T45,T51
Air Compressor
Maker
Sullivan-Palatek
Flow(m³/min)
10.5
Pressure(Bar)
10.5
Engine
Brand
Cummins
Power(kw)
194
Fuel tank(L)
400
Feed
Stroke(mm)
4420
Force down(KN)
16
Force up(KN)
21
Drifter
Model
YH-100
Power(kw)
20.6
Frequency(Bpm)
2500
Rotary speed(rpm)
0-150
Dust Collector
Motor Speed(rpm)
3300
Filter area(m³)
15
Coverage Area
Boom lift(°)
55°up/30°down
Boom swing(°)
60°L/10°R
Feed swing(°)
50°L/40°R
Tramming Parameter
Track width(mm)
330
Gradeability(°)
30
Tramming speed(km/h)
4.3/2.8
Track oscillation(°)
10°
Transport dimention
L*W*H(mm)
9200*2350*3100
Weight(kg)
12500



Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 7

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 8Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 9Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 10

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 11Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 12Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 13Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 14



Company Profile

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 15

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 16

Top Hammer Drilling Rig Mining Borehole Drilling Equipment Hydraulic Drilling Machine 17

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
