This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.
Feature:
1.Cummins Engine.
2.Energy Efficient Twin Screw Rotor Air Ends for Stable and Continuous Air Supply.
3.Highly Flexible Coupling Between Rotors and Engine for Improved Reliability.
4.Air End Manufactured by Sullivan-Palatek Comes With an Exclusive Three Three-year Warranty.
5.Automatic 0% to 100% Capacity Control.
6.Ambient Opretion Tempreture Range:-4°to+122°F(-20°to+50 ℃).
7.Air Oil Separator With Wave Shaping Technology Ensures Highest Quality Discharge.
8.No High Wear Parts, Reducing Cost of Maintenance.
9.Energy Efficient Inlet Valve Mechanism.
10.Sound Deadening Material Ensures Quiet Operation.
11.Large Service Doors for Ease of Maintenance and Repair.
Products Description
|
Product name
|
air compressor
|
|
Compressor Model
|

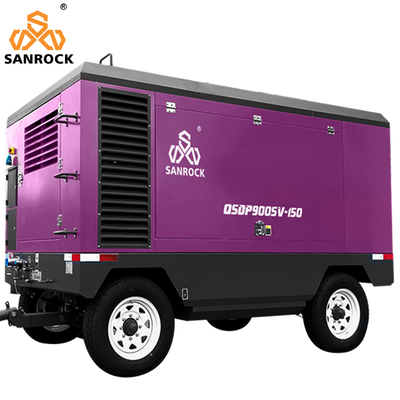

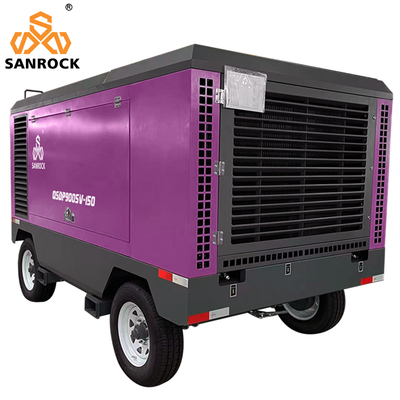

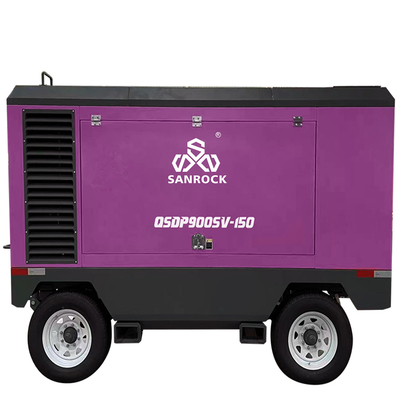

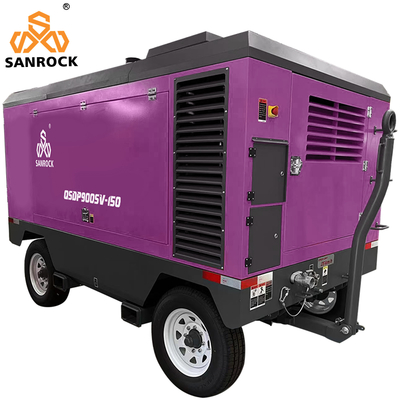

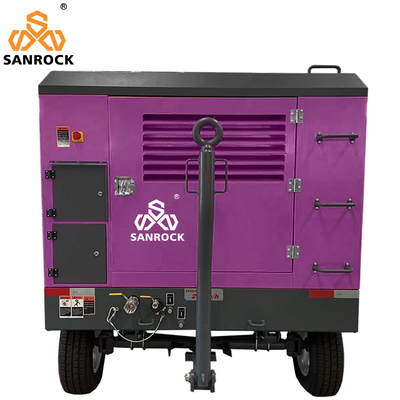

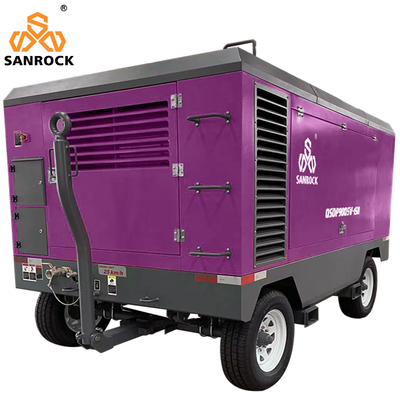

QSDP900SV-150
|
|
Rated Delivery
|
CFM(m3/min)
|
900(25.5)
|
|
Rated Operating Pressure
|
bar(psi)
|
10.3(150)
|
|
Operating Pressure Range
|
bar(psi)
|
3.8-10.3(55-150)
|
|
Stages of Compression
|
|
1
|
|
Dimensions
|
mm
|
3700x1900x2400
|
|
Estimated Weight, Serviced
|
kg
|
4500
|
|
Noise Level
|
db(A)
|
80±3
|
|
Max. WorkingAngle
|
º
|
15
|
|
Lubricant Capacity
|
L(gal)
|
85(22.5)
|
|
Air Discharge Outlet
|
inch
|
1-NPT2,1-NPT3/4
|
|
Maximum working altitude
|
m
|
3048
|
|
ENGINE
|
|
Cummins (DCEC)
|
|
|
|
Model
|
|
6LTAA8.9-C325
|
|
Rated Power
|
kW(Hp)
|
240(325)
|
|
Rated Speed (Load/ldle)
|
rpm
|
1850/1300
|
|
Displacement
|
L(in3)
|
8.9(543)
|
|
Fuel Tank Capacity
|
L(gal)
|
700(185)
|
|
OperatingVoltage for Electrical System
|
DC-V
|
24
|
|
Rated Capactiy of Battery
|
A.H
|
165x2
|
|
