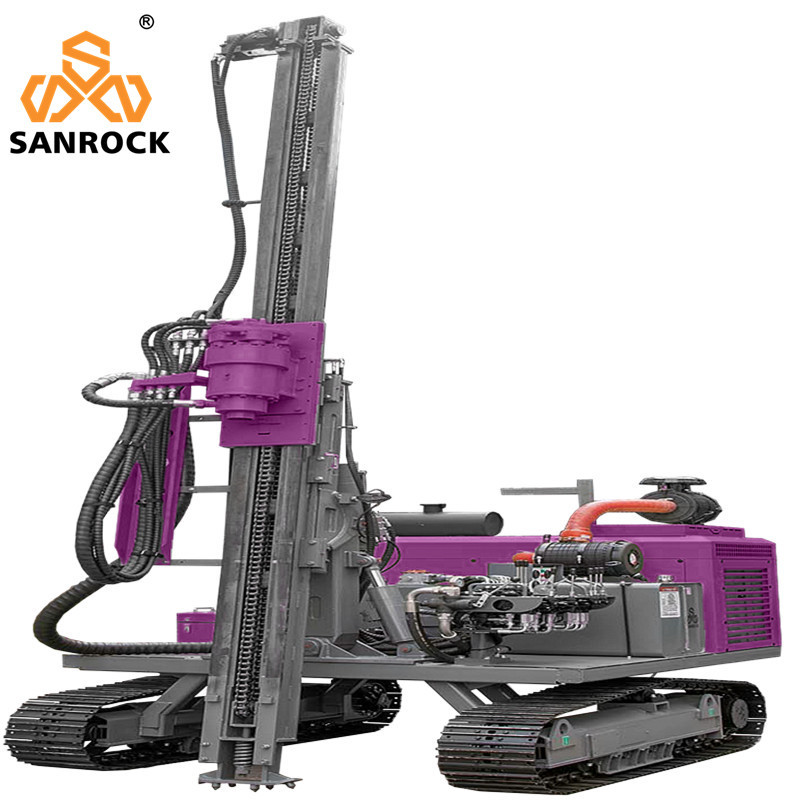

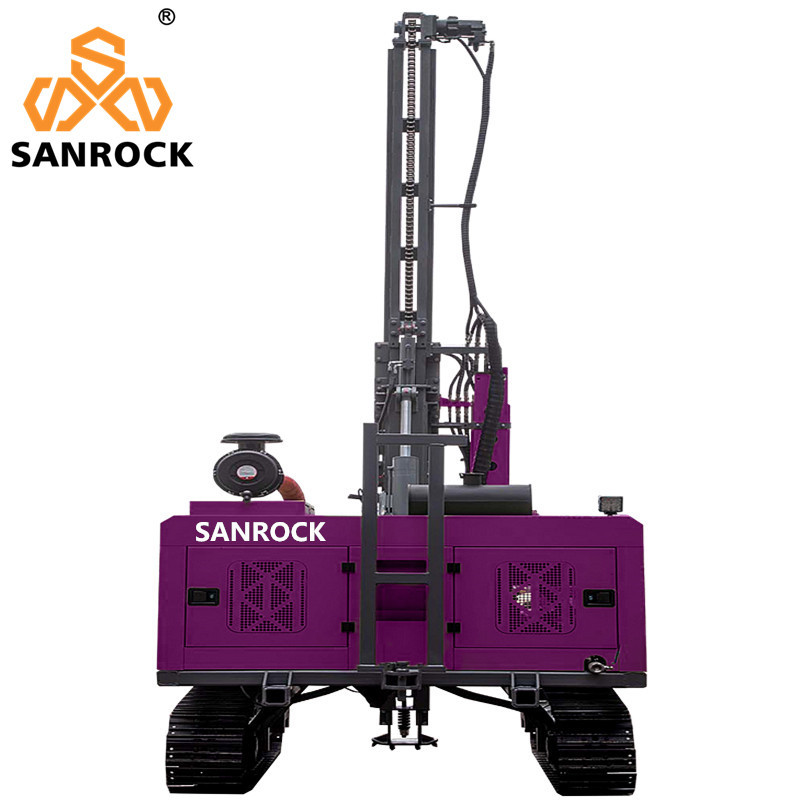

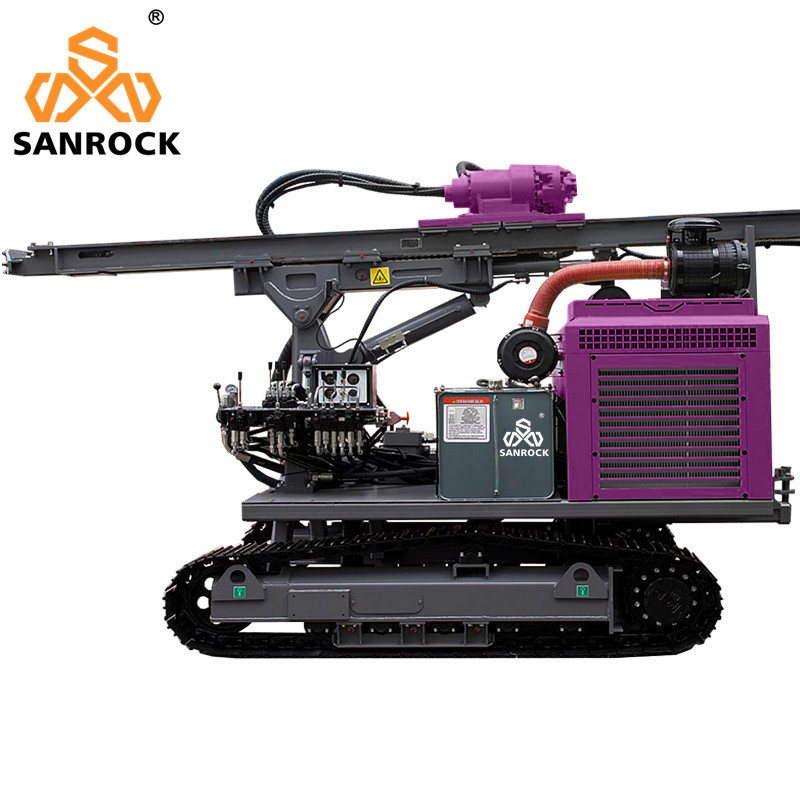

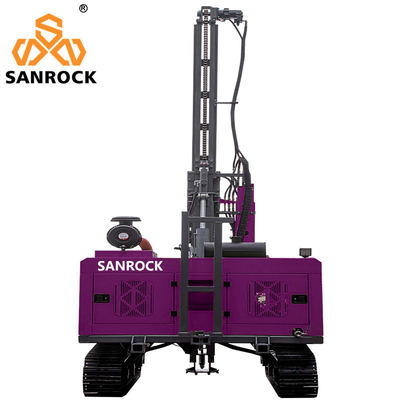

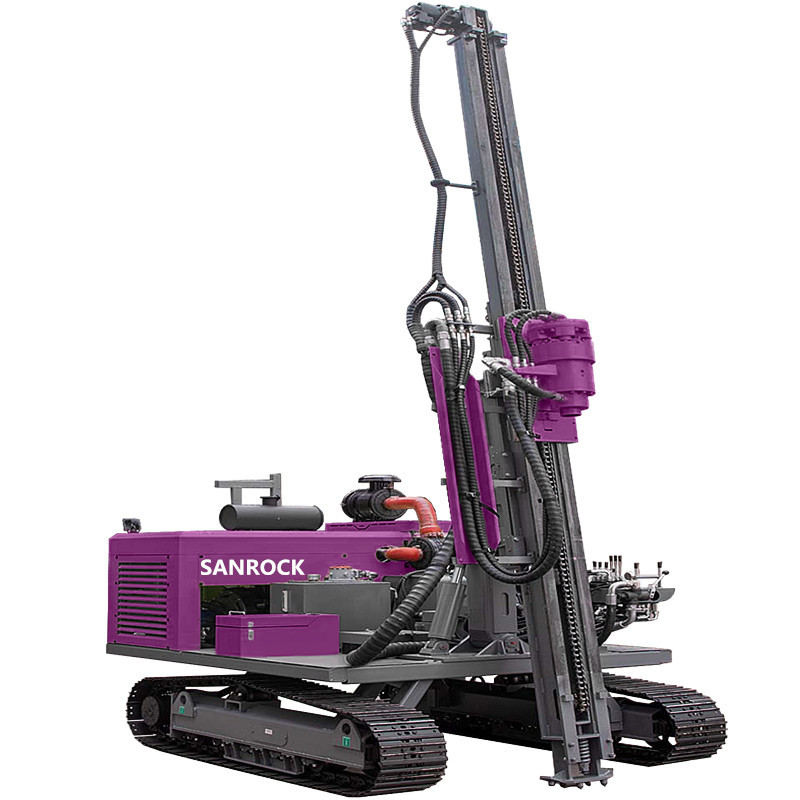

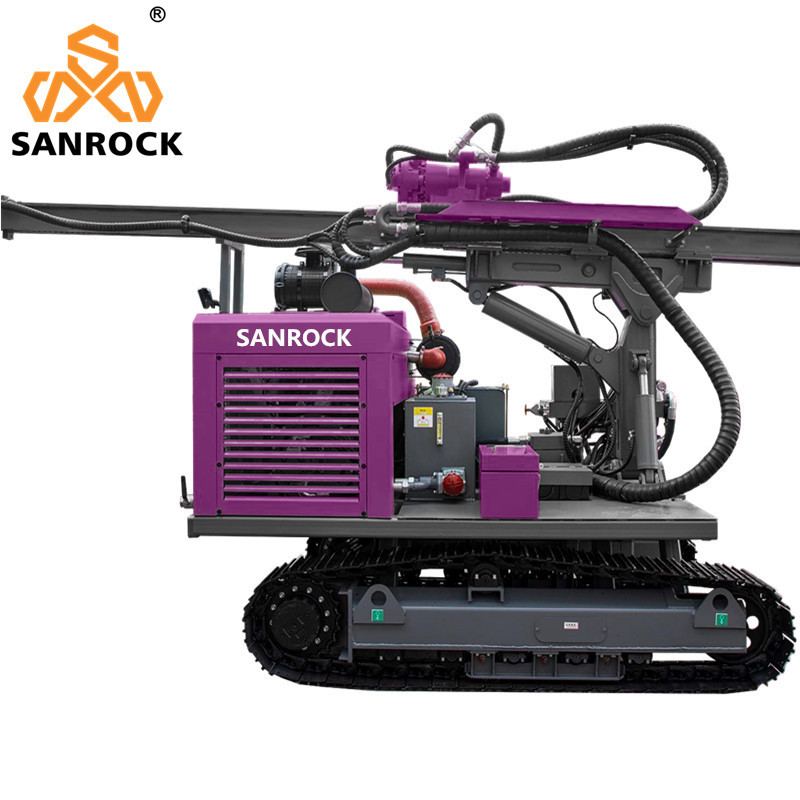

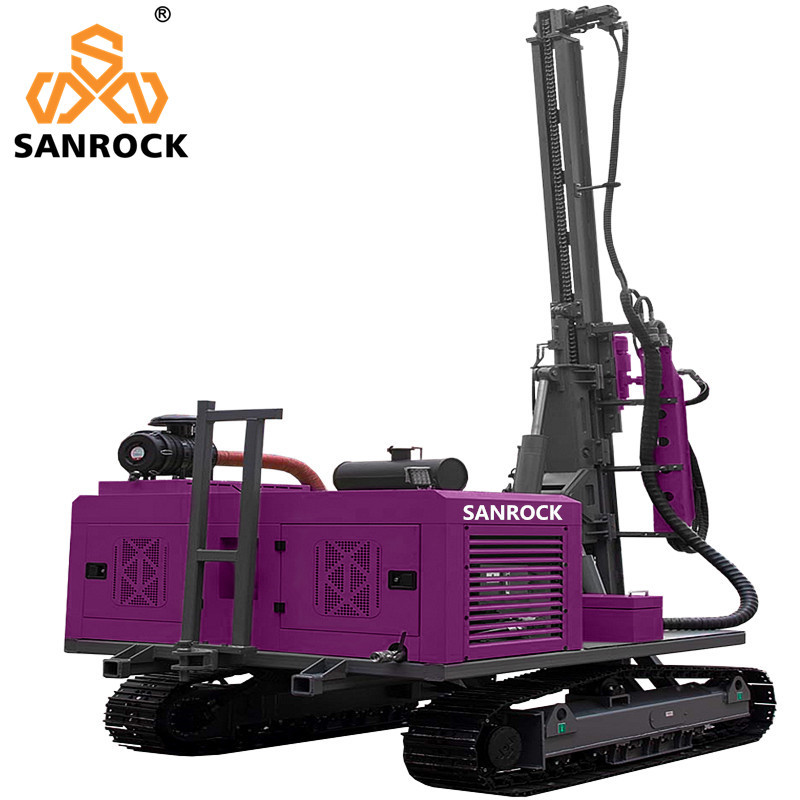

R68P Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.
1.110KW{6 cylinder} Diesel Engine, Powerful rotary head,The engineering steel crawler chassis makes pile driver walking and work more stable and reliable than the rubber crawler.
2. Which can achieve a certain angle of forward inclination, and can accurately positioning the pile without moving the machine, which saves positioning time and improves the piling efficiency.
3. The centralized operation control platform makes the operation more simple and convenient.
4. High-quality hydraulic components, and strict assembly process ensure the performance and durability of the hydraulic system, ensuring the working stability and mechanical durability of the pile driver.
Product Description
|
Product name
|
Drilling Machine
|
|
Application
|
mining ,Solar Photovoltaic ,construction work
|
|
Feature
|
High Drilling Efficiency,Multifunction,Competitive Price
|
|
Supporting power
|
Yuchai YC6B150Z-K20
|
|
Rated Power(KW)
|
110(6 cylinder)
|
|
Drilling diameter(mm)
|
90-400
|
|
Depth of economical drilling(m)
|
30
|
|
Rotary torque(Max.)(N.m)
|
10000
|
|
Rotary speed(r/min)
|
0-80
|
|
Feed stroke(mm)
|
5000
|
|
Compensation length(mm)
|
900
|
|
Method of Feed
|
Danfoss Motor chain
|
|
Travelling speed(km/h)
|
0~2
|
|
Climbing capacity(°)
|
30
|
|
Ground clearance(mm)
|
700
|
|
Weight of complete machine(kg)
|
6000
|
|
Outer dimensions(LxWxH)mm
|
6300X2200X2850
|
|
Drilling hardness
|
f=6~20
|
|
Volume of diesel oil tank(L)
|
250
|
|
Swing angle of skid(°)
|
40 on each side
|
|
Pitch angle of skid(°)
|
120
|
|
