Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig, Water Well Drilling Machine
Name: Truck Mounted Water Well Drilling Rig,Reverse Circulation Drilling Rig
Optional Accessories: Mud Pump,centrifugal Pump,generator, Foam Pump
Power(w): 132KW
Drilling Depth: 400m-1200m
Drilling Diameter: 105-305mm, 105-400mm, 105-550mm, 105-800mm
Lifting Force: 22T, 25T, 47T, 57T
Rotary Torque: 8000/4000N.m , 10000/5000N.m , 18000/9000N.m , 24000/12000N.m
Working Pressure: 1.2-3.5Mpa,1.2-3.5Mpa,1.6-8Mpa,1.6-8Mpa
Air Consumption: 16-55m3/min ,16-55m3/min,16-96m3/min,16-96m3/min
Fast Lifting Speed: 20 M/min ,23m/min, 29 M/min ,30 M/min
Fast Forwarding Speed: 32m/min,33m/min,42m/min,44m/min
Application: Water Well Drilling Rig Mobile Drilling Rig,Hole Hammer Drill Rig,Geological Exploration
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Drill Rod Length: 3.0m 6.0m
Drill Rod Diameter: 89mm/102mm/114mm/127mm/146mm
Type: Rotary Drilling Rig
Warranty: 1 Year
Dimension(l*w*h): 11.5*2.25*3.4m
Weight: 23000 KG
Walking Speed: 2.5-6.4km/h
Highlight:

Geological Exploration Water Well Drilling Rig

,

Reverse Circulation Water Well Drilling Rig

,

Truck Mounted Water Well Drilling Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRTM400RC / SRTM500RC/ SRTM800RC /SRTM1200RC
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30-50days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

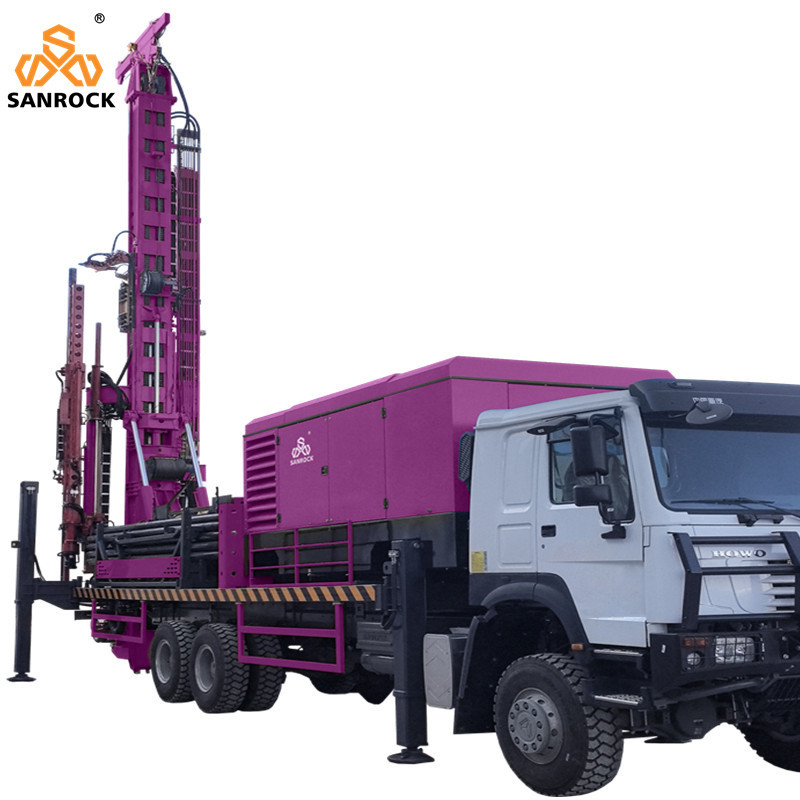

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 0

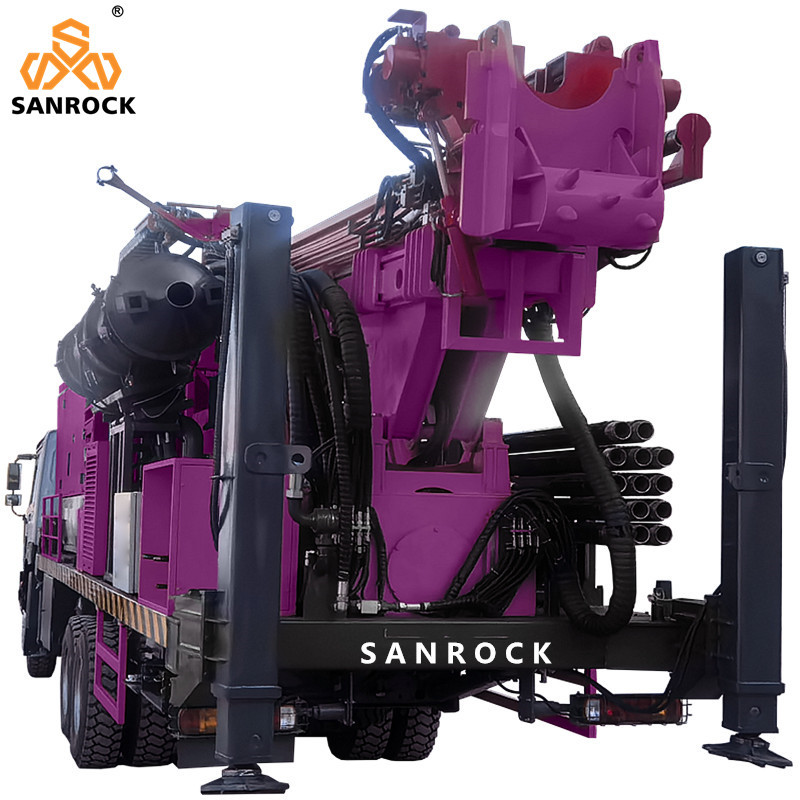

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 1

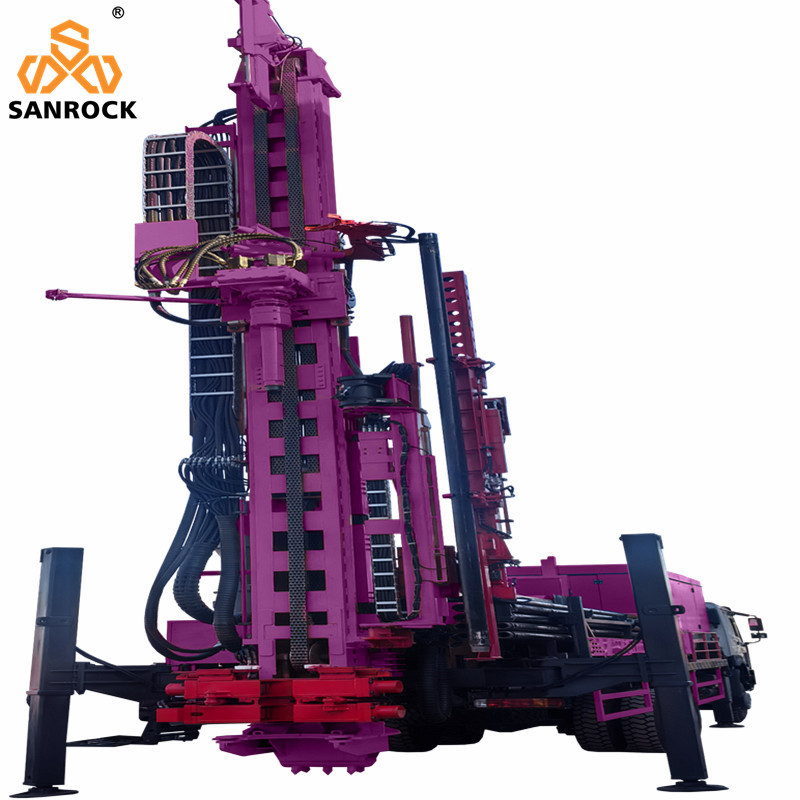

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 2

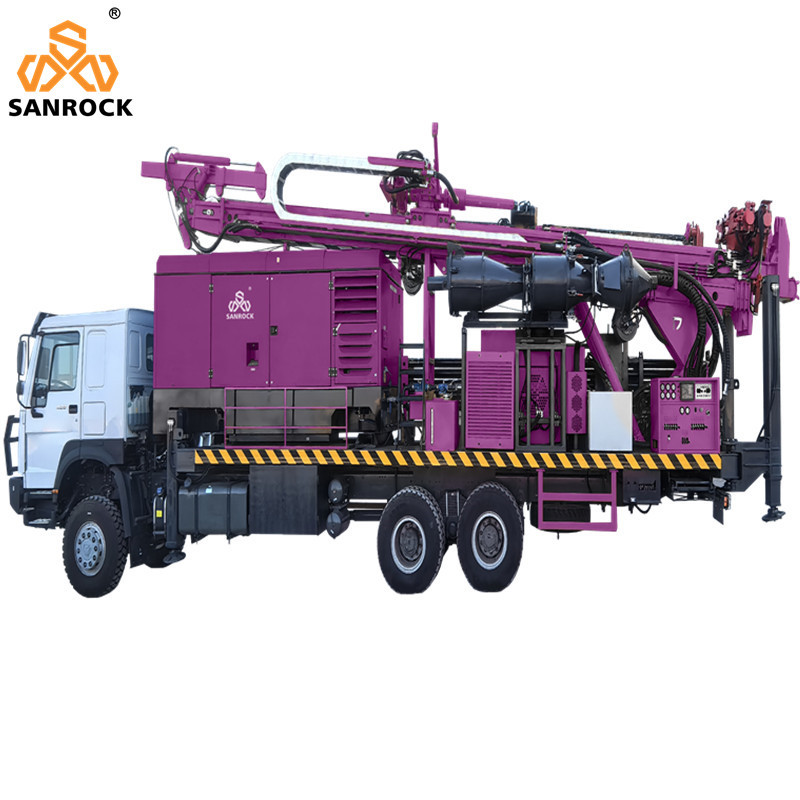

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 3

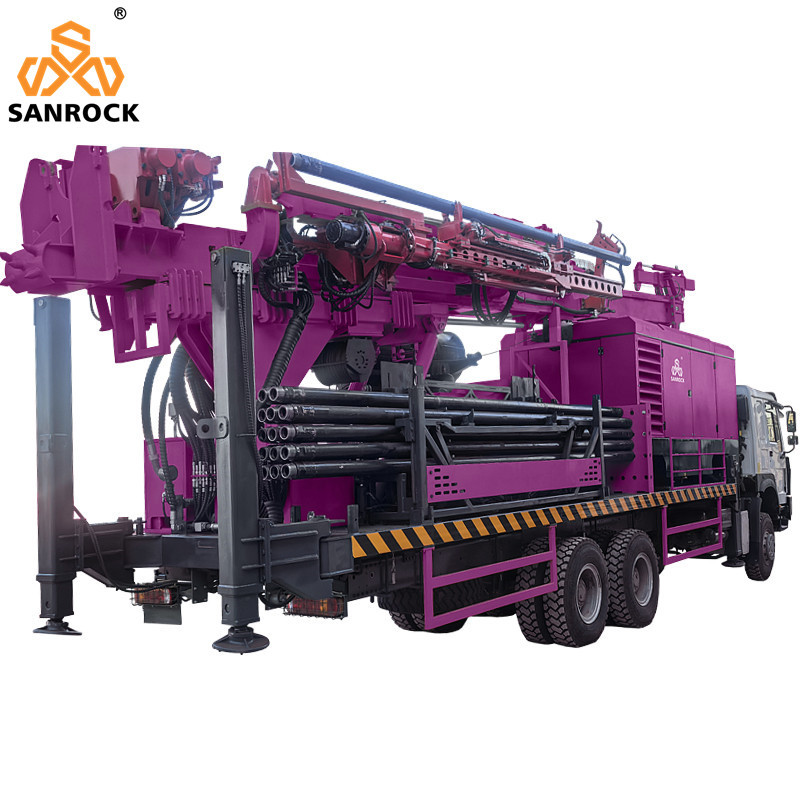

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 4

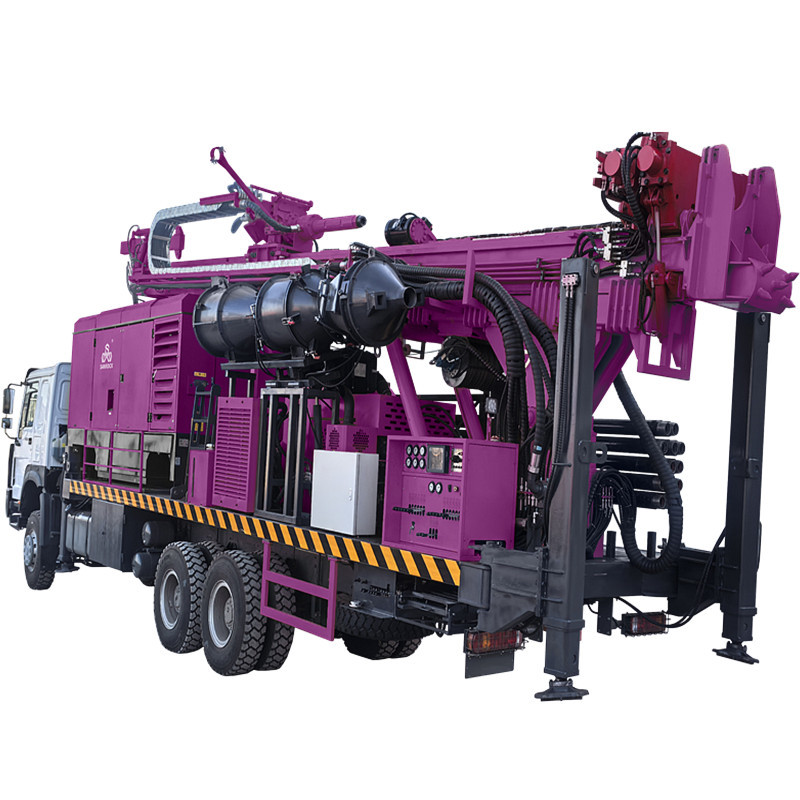

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 5


Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 6


Truck Mounted RC Drilling Rig Product Features:
1.Mobility and Efficiency: Mounted on a robust truck chassis, this RC drilling rig offers exceptional mobility, enabling rapid deployment and relocation between drilling sites.
This translates to increased productivity and reduced downtime.
2.Versatility: Designed to handle a wide range of drilling applications, including exploration, blast hole drilling, water well drilling, and geotechnical investigations.
3.RC Drilling Method: Utilizes the Reverse Circulation (RC) drilling method,RC drilling method provides fast penetration rates and high-quality samples, leading to faster project completion and more accurate results.
4.Powerful Drilling Capacity: Equipped with a high-performance drilling engine and robust mast, enabling drilling to significant depths and in various ground conditions.
5 Operator Comfort and Safety: Features an ergonomic operator cabin with intuitive controls, ensuring operator comfort and safety during extended drilling operations.
6.Durability and Reliability: Built with high-quality components and designed for demanding environments, ensuring long-lasting performance and minimal maintenance requirements.
7.Cost-Effectiveness: Reduces overall drilling costs through efficient operation, and versatility across multiple applications.
Please note: This is a general description, and specific features may vary depending on the manufacturer and model of the truck-mounted RC drilling rig

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 7



Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 8

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 9

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 10


Products Description

Sanrock RC drilling rig
Model
SRTM400RC
SRTM500RC
SRTM800RC
SRTM1200RC
truck brand
Howo, Dongfeng, FAW, Benz
truck chassis
4*2, 4*4, 6*4, 6*6, 8*4
max drilling depth(m)
300
400
600
1000
drilling diameter(mm)
105-305
105-400
105-550
105-800
air pressure(mpa)
1.2-3.5
1.2-3.5
1.6-8
1.6-8
air consumption(m³/min)
16-55
16-55
16-96
16-96
rod length(m)
3
3.5
6
6
rod diameter(mm)
89/102
102/114
114/127
127/146
RC dual wall rod diameter(mm)
89/102
102/114
114/127
127/146
main shaft pressure(T)
6
7
11
13
lifting force(T)
22
25
47
57
fast lifting speed(m/min)
20
23
29
30
fast forwarding speed(m/min)
32
33
42
44
rotary torque(Nm)
8000/4000
10000/5000
18000/9000
24000/12000
rotary speed(r/min)
75/150
75/150
70/140
86/172
small secondary winch lifting force(T)
1.5
1.5
2.5
2.5
jacks stroke(m)
1.6
1.6
1.7
1.7
drilling efficiency(m/h)
10-35
10-35
10-35
10-35
moving speed(km/h)
2.5
2.5
5
6.4
uphill angle(slope)
21
21
21
21
rig weight(T)
11
12
17
23
dimension(m)
6.2*1.85*2.3
7*2.1*2.8
10.5*2.25*3.3
11.5*2.25*3.4
working condition
unconsolidated formation and stone head
drilling method
top drive hydraulic rotary and push hammer or mud drilling
suitable hammer
medium and high air pressure series
optional accessories
mud pump,centrifugal pump,generator, foam pump


Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 11


Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 12

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 13

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 14

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 15

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 16

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 17

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 18Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 19

Company Profile

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 20

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 21

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 22

Truck Mounted Water Well Drilling Rig Geological Exploration Reverse Circulation Drilling Machine 23


Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.


How can I place the order?

Sign the PI,pay deposit,we will arrange the production.  After finished production pay balance.  Finally we will  ship the goods.


How is the shipment?   How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.


How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
