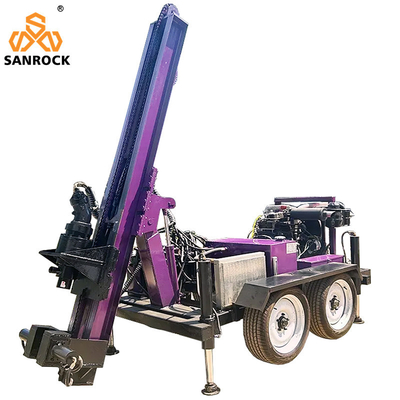

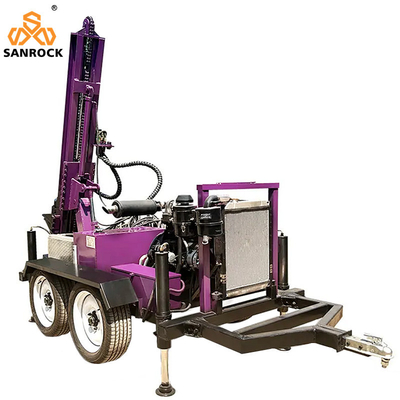

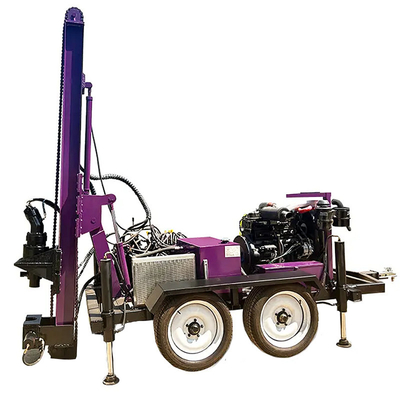

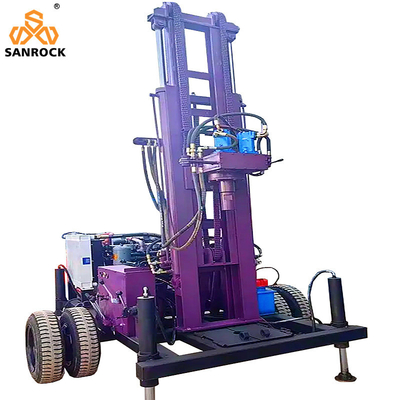

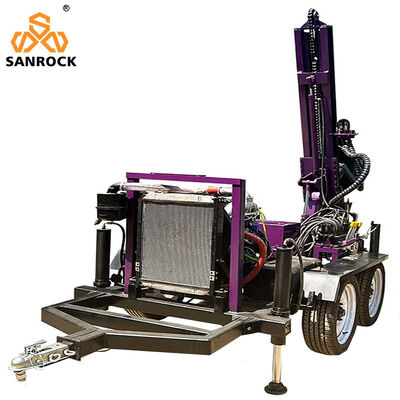

Water Well Drilling Rig is especially suitable for water intake in mountainous and rocky strata. Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.
Feature:
1. Using the principle of pneumatic impact, the drilling footage is fast and efficient. The automobile chassis is adopted,the layout is reasonable and compact, and the operation is simple.
2. Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
3. Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.
4. Centralized control console is suitable for each manipulation and control. 5. Rapid pulling and enhance the work efficiency.
Product Description
|
Product name
|
Water Well Drilling Rig
|
|
Diesel power
|
78KW
|
|
Max drilling depth
|
300m
|
|
Torque
|
5500-6500NM
|
|
Speed
|
200 r/min
|
|
Drilling Hole diameter
|
103-450mm
|
|
One time advance length
|
2m / 3m
|
|
Drilling pipe diameter
|
60,76,89mm
|
|
Rig Lifting force
|
14T
|
|
Whole machine weight
|
2.7T
|
|
Dimension(L*W*H)
|
3800*1900*2000MM
|
|
Single gross weight
|
2700kg
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
