In remote African villages, mechanized well drilling provides sustainable water access, reducing dependence on contaminated surface sources,supplying entire towns with reliable water.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
Feature:
1.SR180 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device,convenient use, reliability and durability.
3.Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
4.Lifting force: composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
5.Hydraulic oil pump: It uses parallel gearbox to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
6.Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs.
Products Description
|

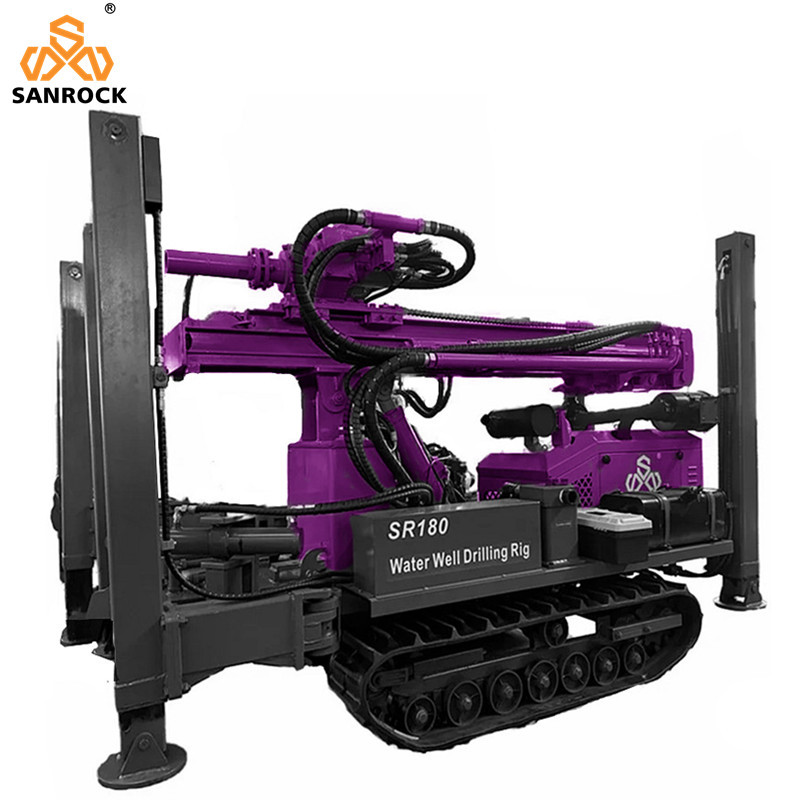

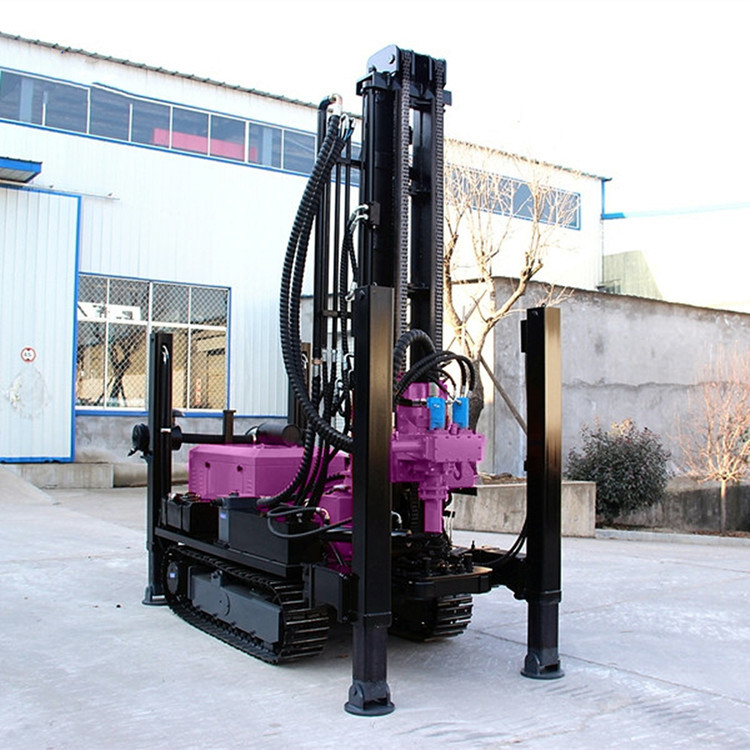

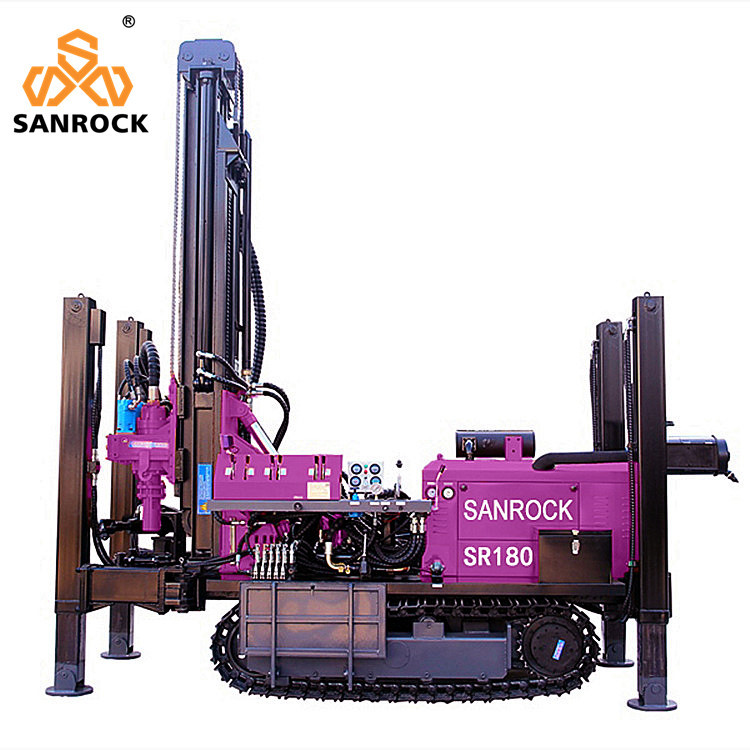

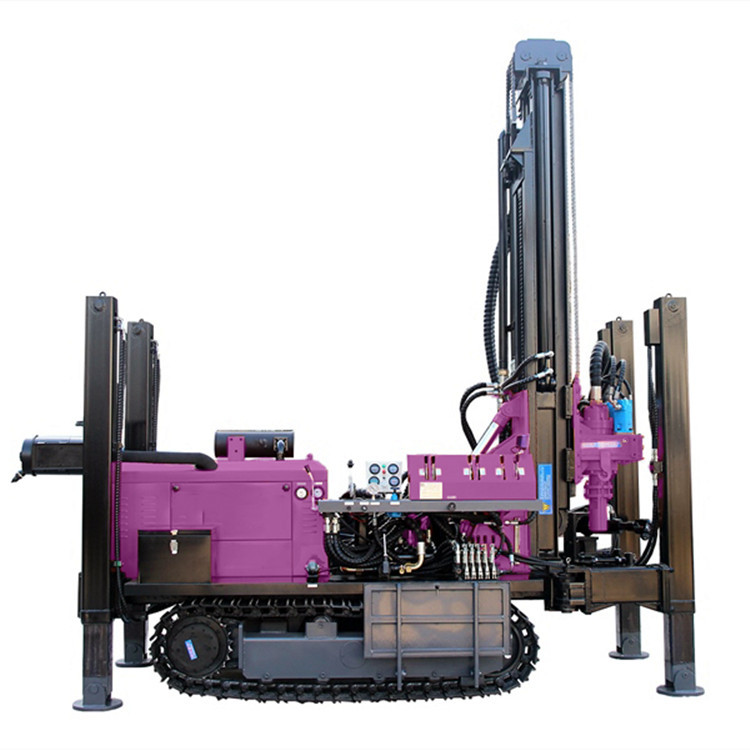

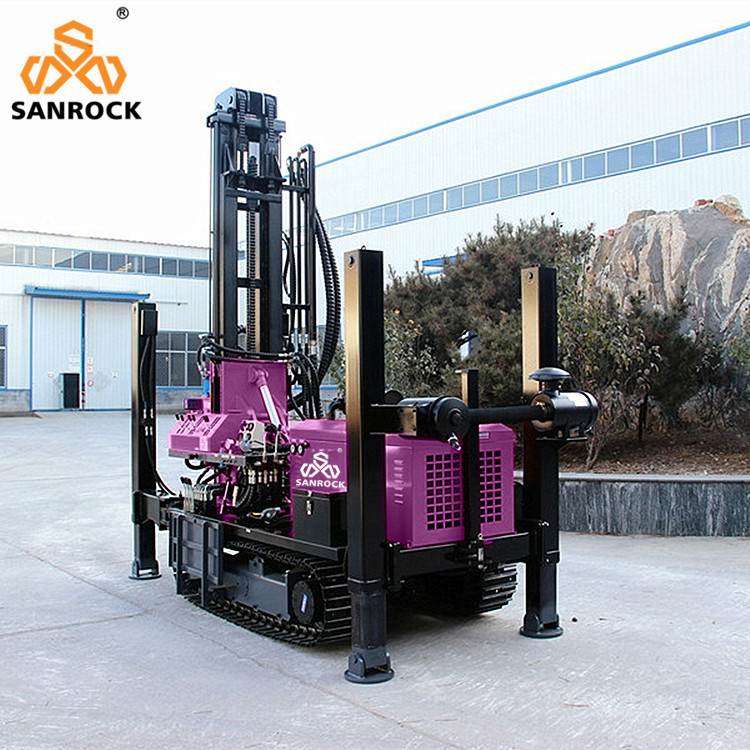

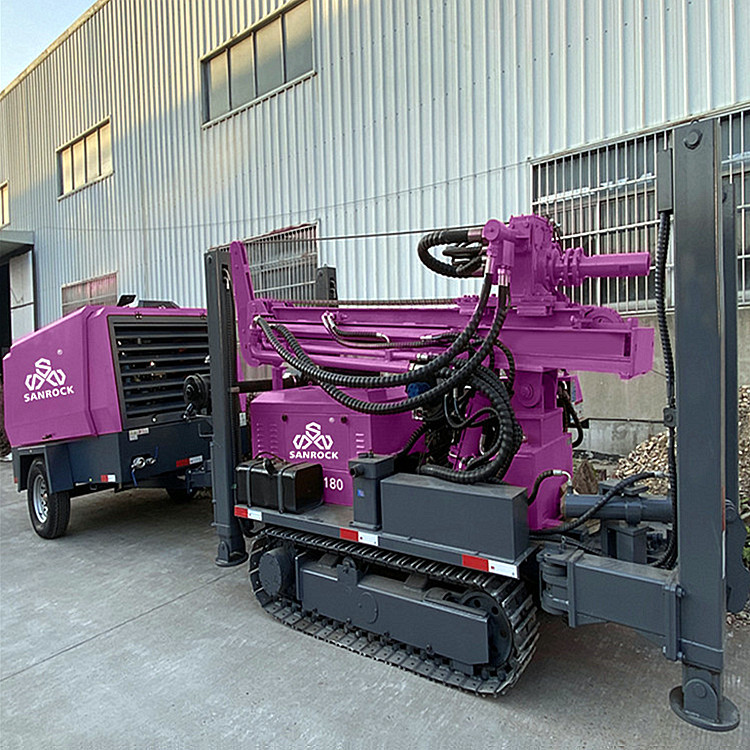

Product Name:SR180 hydraulic water well drilling rig
|
|
Drilling Depth:180m
|
|
The hole diameter:140-254mm
|
|
Equipped capacitor:60KW
|
|
Using air pressure:1.7-2.5MPA
|
|
Air consumption:17-31m3/min
|
|
Swing speed:45-70rpm
|
|
Climbing angles:30Max
|
|
Walking speed:2.5km/h
|
|
Swing torque:3200-4600N.m
|
|
The engine brand:Yuchai engine
|
|
Equipped with hammer:Medium and high wind pressure series
|
|
The penetration efficiency:10-35m/h
|
|
Drill pipe diameter:76mm / 89mm
|
|
Drill pipe length:1.5m / 2.0m / 3.0m
|
|
Dimension:4000×1630×2250mm
|
|
The weight:5200KG
|
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
