Features

Specifications

Product Name: Dth Drilling Rig,Crawler Drilling Rig

Drilling Diameter: 90-300mm

Drilling Depth: 50m

Engine: Yuchai/Weichai/Cummins

Power Type: Diesel

Power(w): 70kw(Stage II)/74(stage III)/93(stage II)

Lifting Force: 28KN

Rotational Torque(Max): 3300N.m

Rotate Speed: 0-160r/min

Application: Mining,quarry,drilling Blast Hole,mining And Construction

Usage: Ore

Type: Rotary Drilling Rig,DTH Drilling Or Mud Rotary Drilling

Feature: High Drilling Efficiency,Competitive Price

Drill Rod Diameter: 76mm

Drill Rod Length: 3m

Walking Speed: 0-2.5km/h

Dimension(l*w*h): 7000*2350*2100mm

Weight: 6800 KG

Warranty: 1 Year

Highlight:

Mining DTH Hammer Drill Rig

Portable DTH Hammer Drill Rig

Surface DTH Hammer Drill Rig

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: Sanrock

Certification: CE ISO 9001:2015

Model Number: R70

Payment & Shipping Terms

Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Delivery Time: 18-25 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 Set/Sets per Month

Gallery

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig

Product Description

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 0

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 1

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 2

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 4

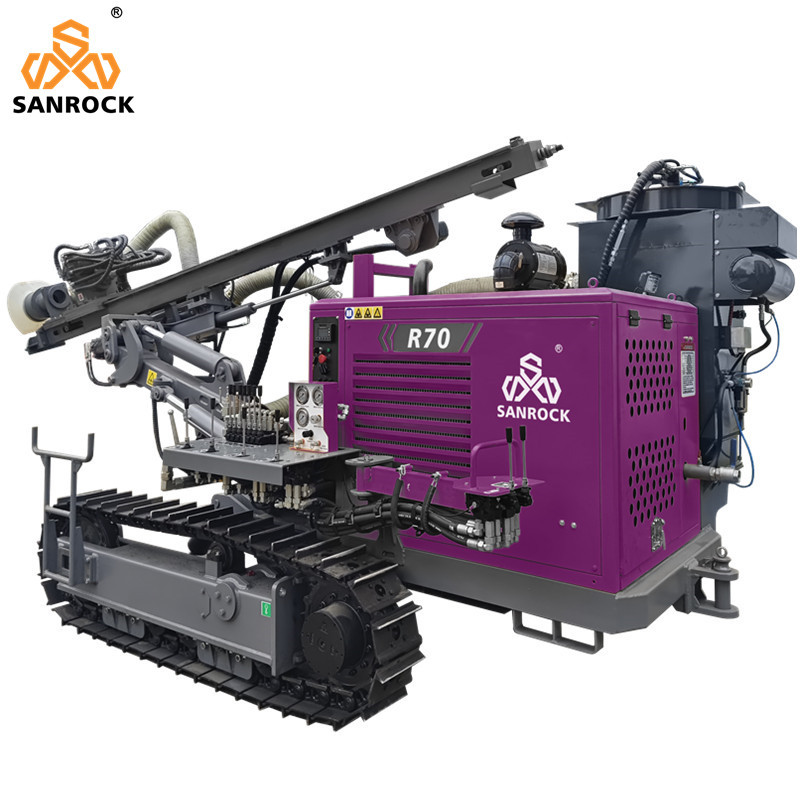

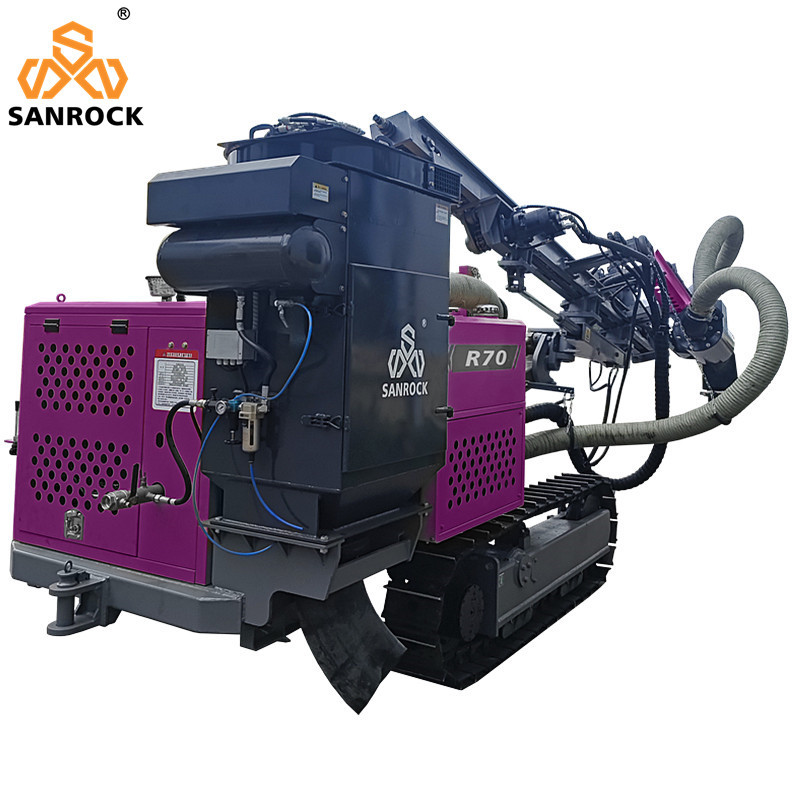

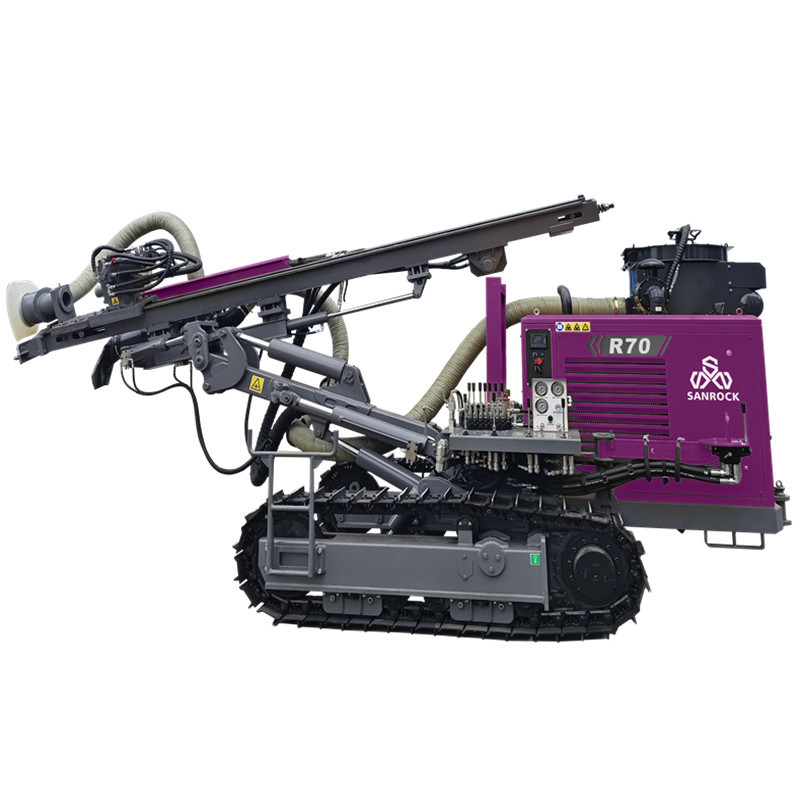

R70 blasting photovoltaic dual-purpose drilling rig has comprehensively optimizedstructure, lower footage cost and more humanized design. The diesel engine hydraulic oil pump group is used as the power unit, and the hydraulic motor is used to realize the auxiliary actions such as the rotation, propulsion, lifting, walking of the drill and the swing angle positioningof the hydraulic cylinder.

R70crawler hydraulic down the hole drill is mainly used for drilling blasting holes in photovoltaic and hydropower projects, open-pit mining, road construction, and national defense projects.

Crawler DTH drilling rig are essential equipment in modern mining operations, specifically designed for high-efficiency rock penetration in challenging terrains. These robust machines excel in open-pit mines, quarries, and surface exploration sites where they perform precision drilling for blast hole preparation, geological sampling, and anchoring applications.

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 5

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 6

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 7

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 8

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 10

Products Description

Product name	DTH Drilling Rig
Drilling Diameter	90-300mm
Drilling Depth	50m
Drill Pipe Size	76X3000mm
The Impactor Configuration Is Recommended	3"-6"
Rotation Rate	0-160rpm
Max.Rotation Torque	3300N.m
Lifting Force	28KN
Feed Stroke	4138mm
Drill Arm Pitching	Left and Right35 °
Walking Speed	2.5km/h
Grade Ability	30 °
Hook Height	450mm
Dusting Method	Option
Engine	Yuchai/Weichai/Cummins
Rated Power	70kw(Stage II)/74(stage III)/93(stage II)
Fuel Tank Capacity	120L
Dimension (LWH)	7000×2350×2100
Weight	6800kg

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 11

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 12

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 14

Diesel Mining Drilling Rig Surface Drilling Machine Portable DTH Hammer Drill Rig 15
