DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine

1 Set/Sets
MOQ
negotiable
Price
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dth Drilling Rig,Crawler Drilling Rig
Drilling Diameter: 90-300mm
Drilling Depth: 50m
Engine: Yuchai/Weichai/Cummins
Power Type: Diesel
Power(w): 70kw(Stage II)/74(stage III)/93(stage II)
Lifting Force: 28KN
Rotational Torque(Max): 3300N.m
Rotate Speed: 0-160r/min
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Usage: Ore
Type: Rotary Drilling Rig,DTH Drilling Or Mud Rotary Drilling
Feature: High Drilling Efficiency,Competitive Price
Drill Rod Diameter: 76mm
Drill Rod Length: 3m
Walking Speed: 0-2.5km/h
Dimension(l*w*h): 7000*2350*2100mm
Weight: 6800 KG
Warranty: 1 Year
Highlight:

Crawler DTH Hammer Drilling Rig

,

Borehole DTH Hammer Drilling Rig

,

High Efficiency DTH Hammer Drilling Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: R70
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 18-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

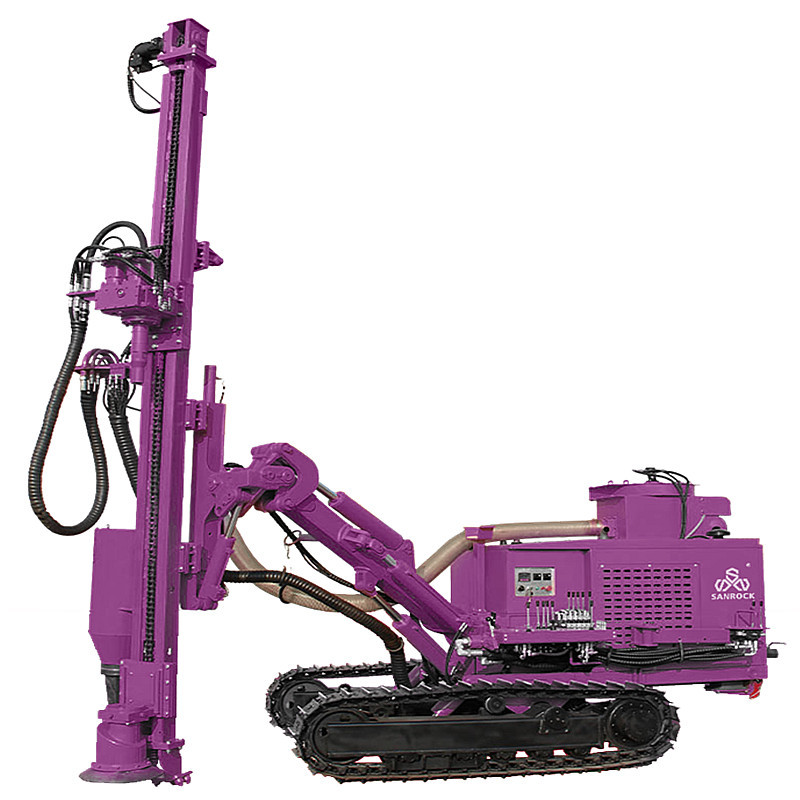

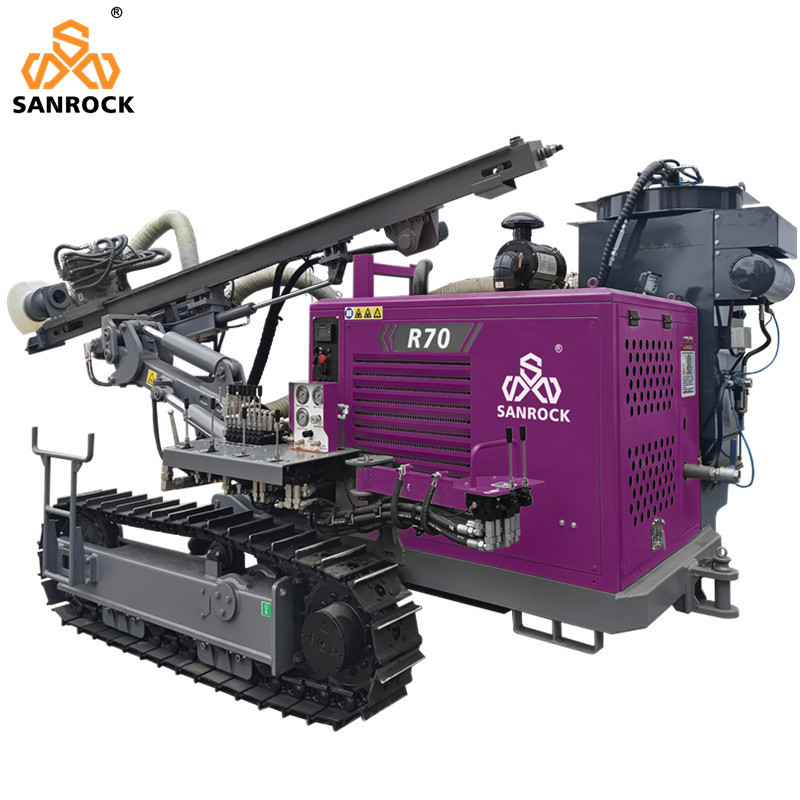

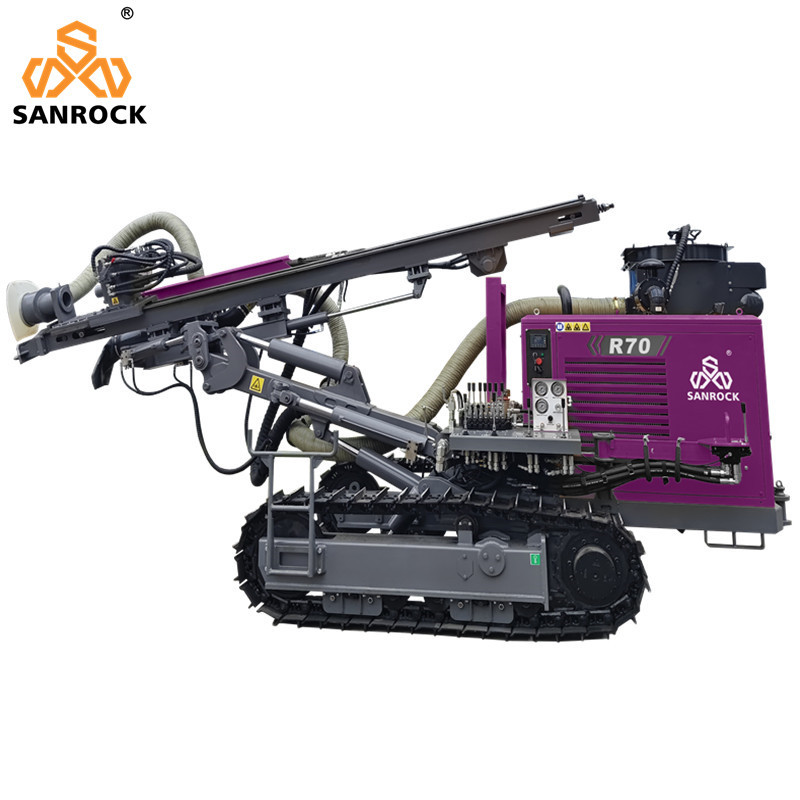

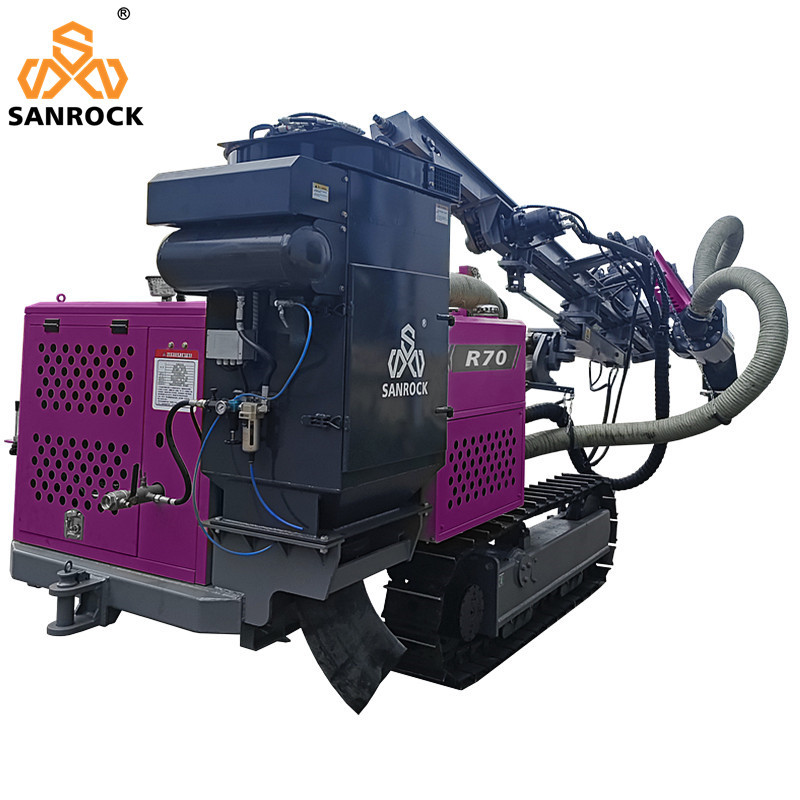

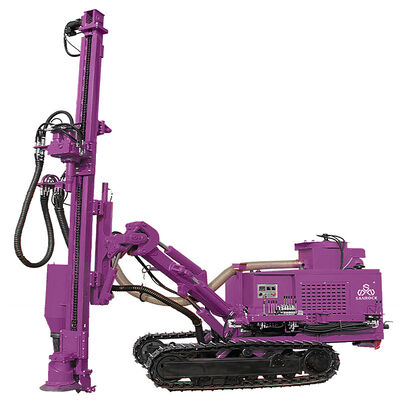

R70 blasting photovoltaic dual-purpose drilling rig has comprehensively optimizedstructure, lower footage cost and more humanized design. The diesel engine hydraulic oil pump group is used as the power unit, and the hydraulic motor is used to realize the auxiliary actions such as the rotation, propulsion, lifting, walking of the drill and the swing angle positioningof the hydraulic cylinder.

R70crawler hydraulic down the hole drill is mainly used for drilling blasting holes in photovoltaic and hydropower projects, open-pit mining, road construction, and national defense projects.
Clouds of mineral dust erupt from the borehole as the bit grinds through stratified rock layers, its downward thrust meticulously calibrated by the computerized feed control system. The operator monitors real-time telemetry - torque pressure, RPM, and penetration rate blinking on LED displays - occasionally adjusting parameters through the joystick console. Drill cuttings propelled by the air flush system spray rhythmically into the collection trough, creating a growing pile of pulverized rock fragments.



DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 0

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 1





DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 2

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 3

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 4

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 5DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 6DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 7

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 8

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 9

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 10




Products Description
Product name
DTH Drilling Rig
Drilling Diameter
90-300mm
Drilling Depth
50m
Drill Pipe Size
76X3000mm
The Impactor Configuration Is
Recommended
3"-6"
Rotation Rate
0-160rpm
Max.Rotation Torque
3300N.m
Lifting Force
28KN
Feed Stroke
4138mm
Drill Arm Pitching
Left and Right35 °
Walking Speed
2.5km/h
Grade Ability
30 °
Hook Height
450mm
Dusting Method
Option
Engine
Yuchai/Weichai/Cummins
Rated Power
70kw(Stage II)/74(stage III)/93(stage II)
Fuel Tank Capacity
120L
Dimension (L*W*H)
7000×2350×2100
Weight
6800kg


DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 11

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 12

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 13

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 14
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 15
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 16
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 17DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 18

DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 19DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 20
Company Profile
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 21
DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 22


DTH Hammer Drilling Rig Borehole Drilling Equipment High Efficiency Crawler Drilling Machine 23
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
