Features

Specifications

Product Name: Dth Drilling Rig,Crawler Drilling Rig

Drilling Diameter: 203-500mm

Drilling Depth: 50m

Engine: Yuchai

Power Type: Diesel

Power(w): 92KW

Application: Mining,quarry,drilling Blast Hole,mining And Construction

Lifting Force: 27KN

Rotational Torque(Max): 13000N.m

Air Consumption: 12-25m3/min

Usage: Ore

Type: Rotary Drilling Rig,DTH Drilling Or Mud Rotary Drilling

Feature: High Drilling Efficiency,Competitive Price

Dimension(l*w*h): 6000*2380*2600mm

Weight: 6800 KG

Warranty: 1 Year

Highlight:

Blast Hole Crawler Drilling Rig

Mining Equipment Crawler Drilling Rig

92KW Crawler Drilling Rig

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: Sanrock

Certification: CE ISO 9001:2015

Model Number: R69

Payment & Shipping Terms

Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Delivery Time: 18-25 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 Set/Sets per Month

Gallery

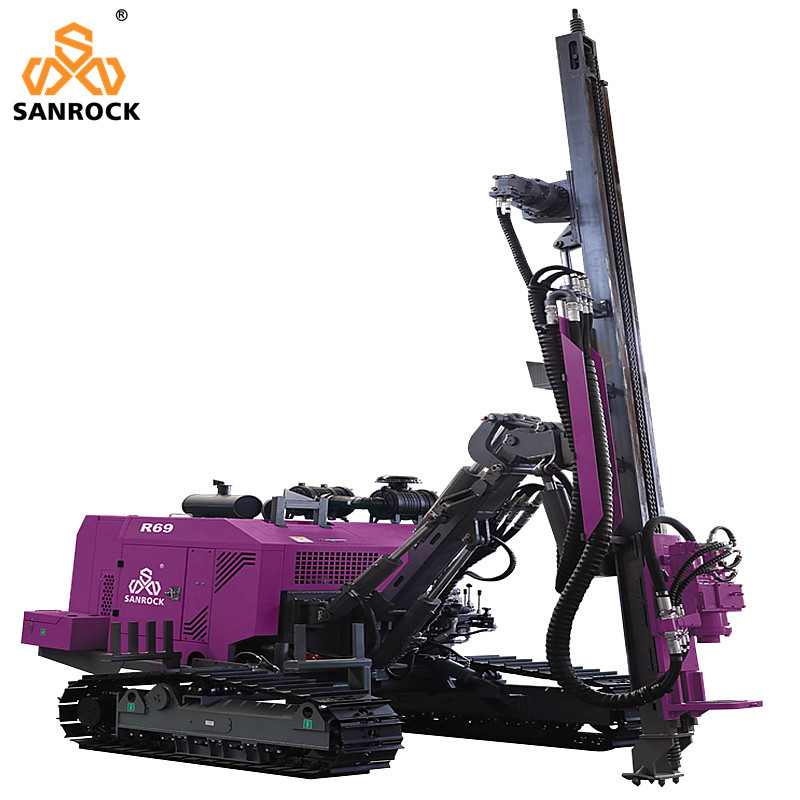

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine

Product Description

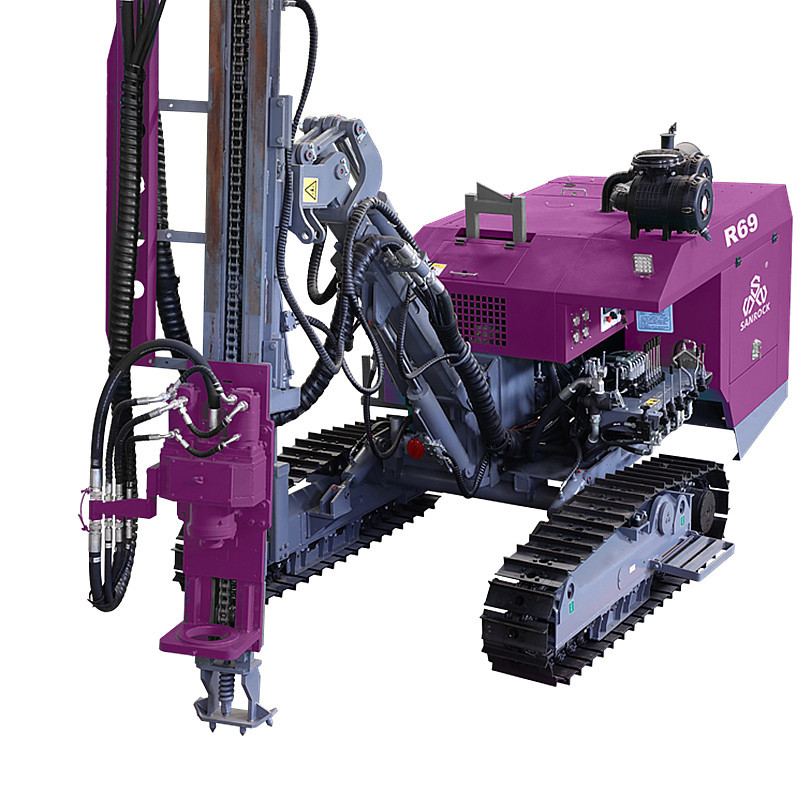

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 0

A split-type down-the-hole drilling rig is a versatile rock drilling system composed of independently operated components including a high-pressure air compressor, hydraulic power unit, drilling mast, and DTH hammer. Its modular design allows easy transportation and quick reassembly in challenging terrains, making it ideal for remote mining, quarrying, and construction applications. The rig delivers powerful percussive energy through pneumatic or hydraulic mechanisms to achieve efficient hole drilling in hard rock formations.

1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.

4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation. 5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

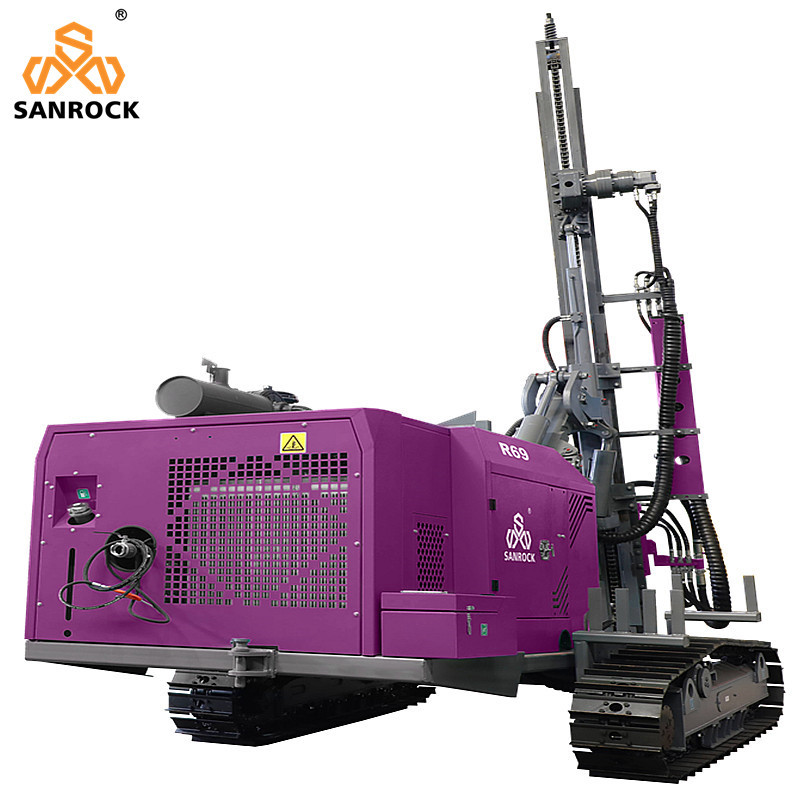

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 2

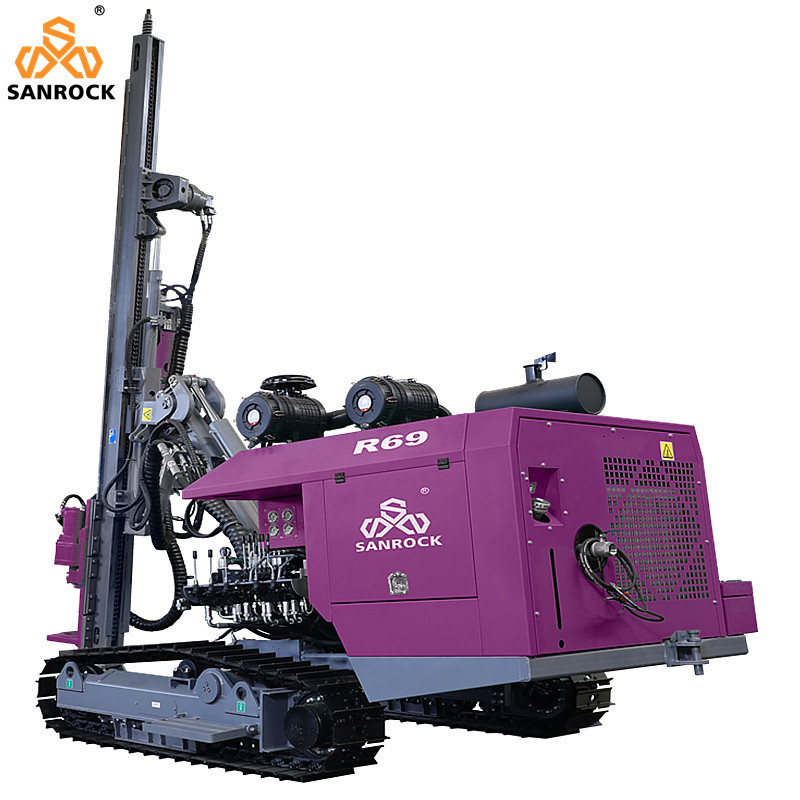

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 4

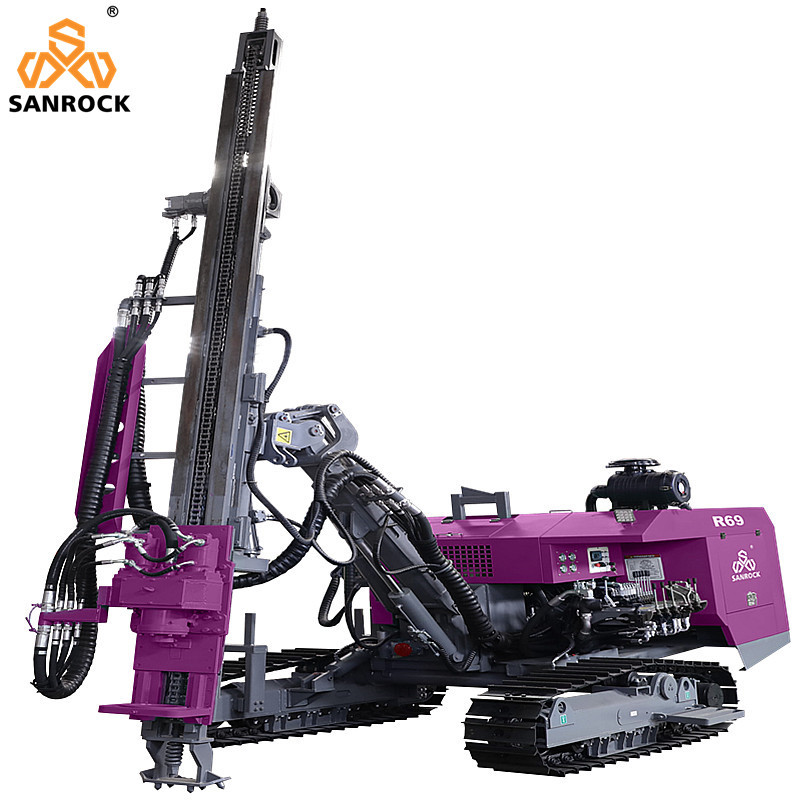

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 5

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 6

Products Description

Product name	DTH drilling rig
Engine	Yuchai
Rated Power	92kw
Hole Diameter	203-500mm
Hole Depth	50m
Drill Pipe Size	Φ89/102*3000mm
DTH Hammer	3-8"
Working Pressure	1.0-2.4Mpa
Air Consumption	12-25m³/min
Rotary Torque	13000N.m
Rotary Speed	0-80rpm
Lifting Force	27KN
Traveling Speed	3km/h
Gradeability	30°
Ground Clearance	450mm
Feed Stroke	3150mm
Transportation Dimension	600023802600mm
Weight	6800kg
Fuel Tank Capacity	100L
Dust Collector Method	Option

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 7

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 9

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 10

Crawler Drilling Rig Mining Equipment 92KW Diesel Separated Blast Hole Drilling Machine 11

Company Profile

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?

A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?

A: Our machinery is CE certified.
