This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.
Feature:
1.The drilling footage is fast and efficient. The automobile chassis is adopted,the layout is reasonable and compact, and the operation is simple.
2.Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
3.Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
4.The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
5.Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
6.Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.
7.Centralized control console is suitable for each manipulation and control.
8.Rapid pulling and enhance the work efficiency.
Products Description
|
Product name
|

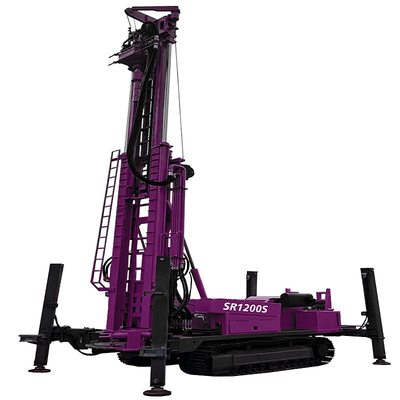

Water Well Drilling Rig
|
|
Model
|
Unit
|
SR1200S
|
|
Max drilling depth
|
M
|
1200
|
|
Drilling diameter
|
mm
|
105-900
|
|
Engine brand
|
/
|
Weichai
|
|
Power
|
kw
|
263
|
|
Rotary motor brand
|
/
|
Danfoss
|
|
Pump brand
|
/
|
Permco
|
|
Air pressure
|
Mpa
|
1.65-8
|
|
Air consumption
|
m³/min
|
16-120
|
|
Drill pipe length
|
m
|
6
|
|
Drill pipe diameter
|
mm
|
127
|
|
Axial pressure
|
T
|
10
|
|
Lifting force
|
T
|
60
|
|
Fast lifting speed
|
m/min
|
29
|
|
Fast feeding speed
|
m/min
|
51
|
|
Max rotary torque
|
Nm
|
24000/12000
|
|
Max rotary speed
|
r/min
|
75/150
|
|
Big auxiliary winch lifting force
|
T
|
4
|
|
Small auxiliary winch lifting force
|
T
|
1.5
|
|
Jacks stroke
|
m
|
1.7
|
|
Drilling efficiency
|
m/h
|
10-35
|
|
Moving speed
|
Km/h
|
6
|
|
Uphill angle
|
/
|
21°
|
|
Weight
|
T
|
23
|
|
Dimension
|
mm
|
7000*2250*3000
|
|
Working condition
|
/
|
Unconsolidated formation and stone head
|
|
Drilling method
|
/
|
Top drive hydraul ic rotary and pushing, hammer or mud drilling
|
|
Matched DTH hammer
|
/
|
Medium and high air pressure series
|
|
Optional accessories
|
/
|
Mud pump, Centrifugal pump, Generator, Foam pump
|
|
|
