It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
The rig's enhanced fluid circulation design and 360° rotating drill head enable efficient sediment evacuation, contributing to both exceptional water volume output and extended equipment durability in demanding field applications.
It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

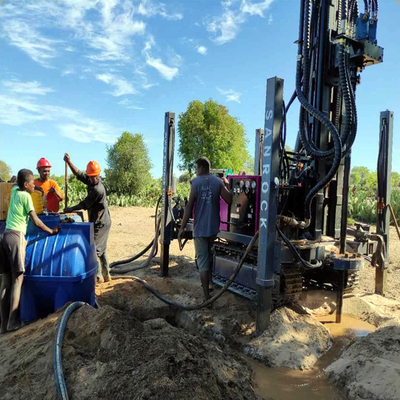

In remote African villages, mechanized well drilling provides sustainable water access, reducing dependence on contaminated surface sources,supplying entire towns with reliable water.
Feature:
This machine can drill in different stratum, The maximum bore diameter can be 800mm.
This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system.
Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
This machine adopts excavator crawler chassis and make the machine a high off-road performance.

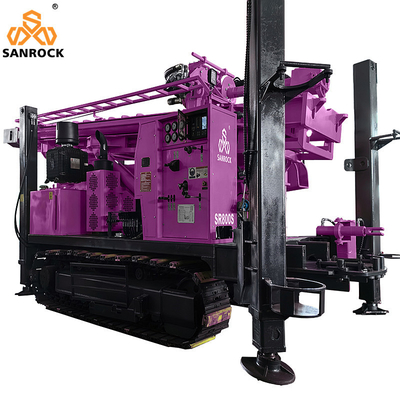

Products Description
|
Product name
|
Water Well Drilling Rig
|
|
Model
|
Unit
|
SR800S
|
|
Max drilling depth
|
M
|
750
|
|
Drilling diameter
|
mm
|
105-450
|
|
Engine brand
|
/
|
Weichai
|
|
Power
|
kw
|
176
|
|
Rotary motor brand
|
/
|
Danfoss
|
|
Pump brand
|
/
|
/
|
|
Air pressure
|
Mpa
|
1.6-6
|
|
Air consumption
|
m³/min
|
16-75
|
|
Drill pipe length
|
m
|
6
|
|
Drill pipe diameter
|
mm
|
102
|
|
Axial pressure
|
T
|
6
|
|
Lifting force
|
T
|
40
|
|
Fast lifting speed
|
m/min
|
31
|
|
Fast feeding speed
|
m/min
|
65
|
|
Max rotary torque
|
Nm
|
12600/6300
or15000/7500
|
|
Max rotary speed
|
r/min
|
95/190
|
|
Big auxiliary winch lifting force
|
T
|
/
|
|
Small auxiliary winch lifting force
|
T
|
2.5
|
|
Jacks stroke
|
m
|
1.6
|
|
Drilling efficiency
|
m/h
|
10-35
|
|
Moving speed
|
Km/h
|
3
|
|
Uphill angle
|
/
|
21°
|
|
Weight
|
T
|
14
|
|
Dimension
|
mm
|
6300*2250*2650
|
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
