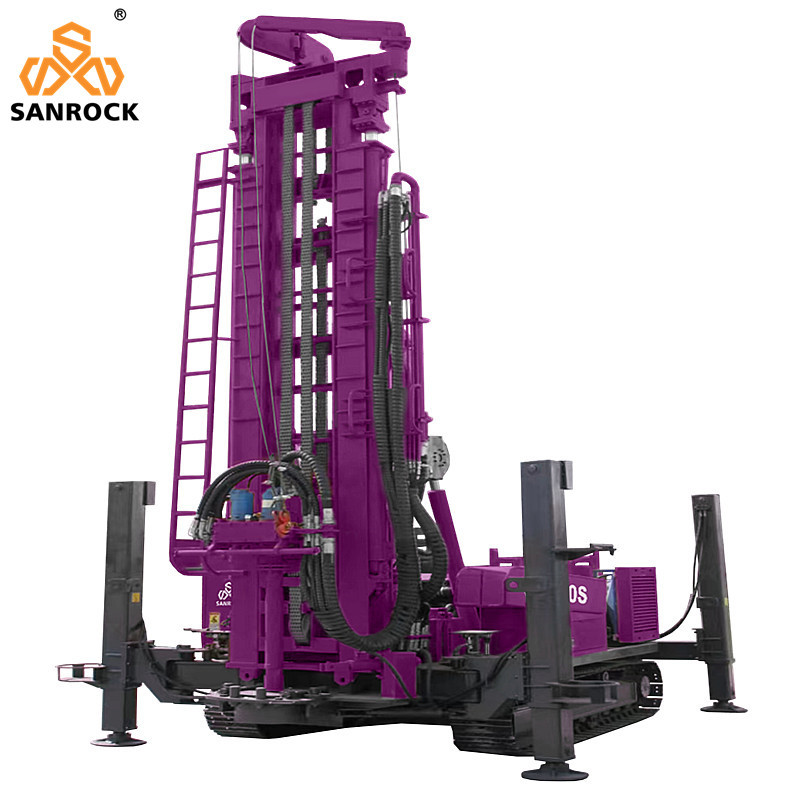

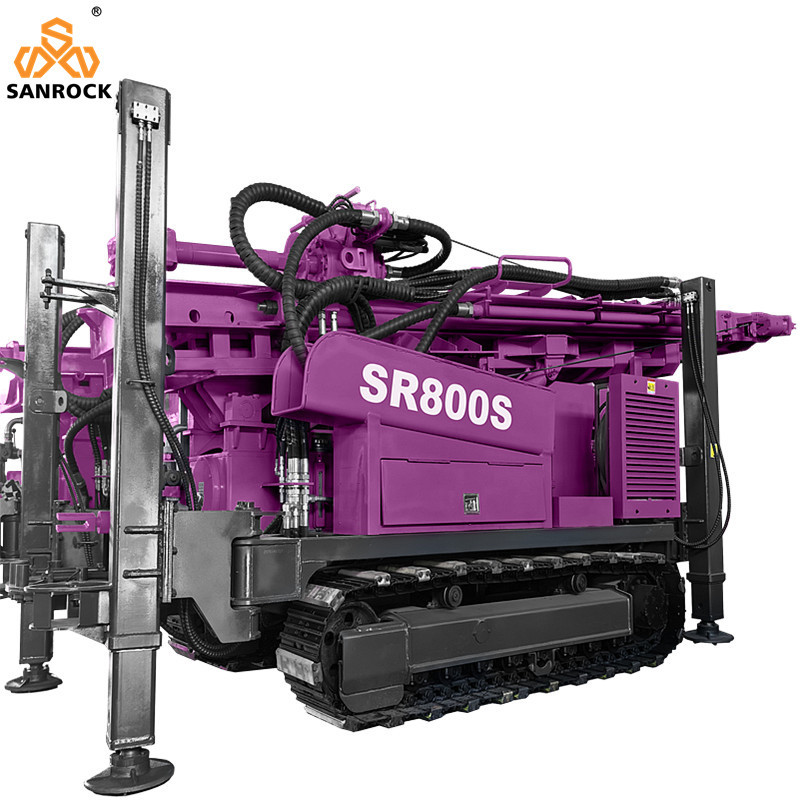

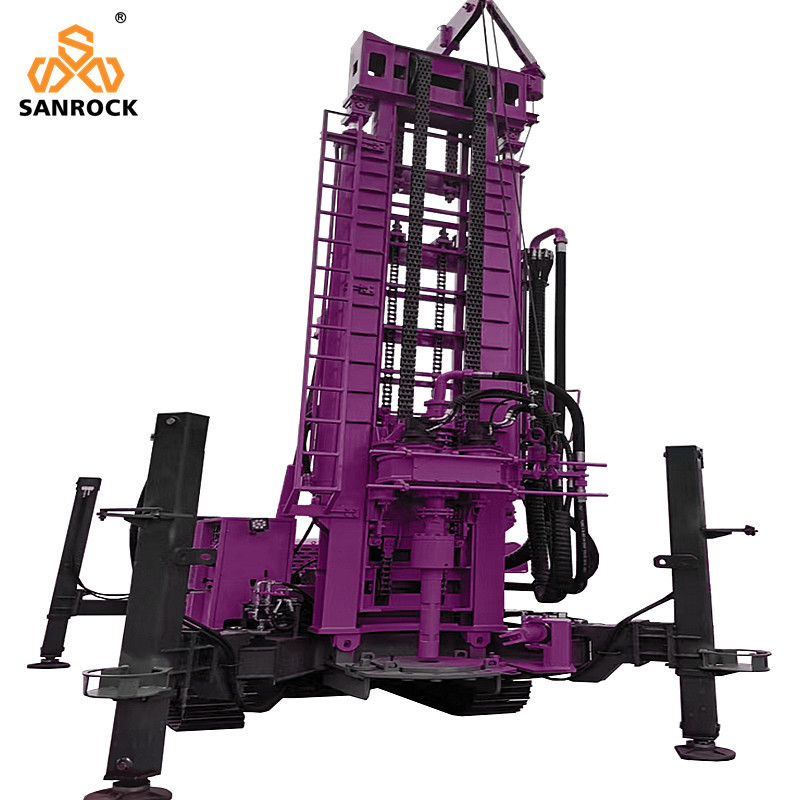

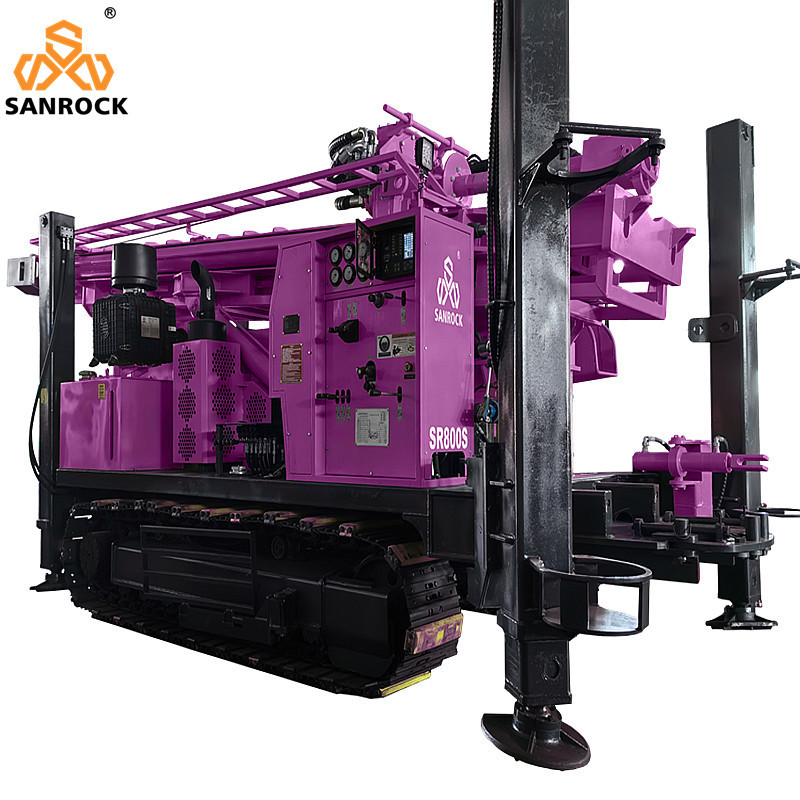

This heavy-duty drilling rig is designed for high-efficiency borehole creation in rugged outdoor environments. Powered by a robust hydraulic system, the rig utilizes rotary drilling technology with diamond-tipped bits to penetrate dense geological layers, including rock, clay, and sand. Operators demonstrate real-time precision using automated depth control and pressure monitoring systems, achieving boreholes up to 750 meters deep .
Equipped with rugged crawler tracks, it ensures stable operation and easy maneuverability across challenging environments such as rocky, muddy, or uneven surfaces.
It is mainly suitable for drilling water wells, agricultural irrigation wells,geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations.
The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable.
Feature:
This machine can drill in different stratum, The maximum bore diameter can be 800mm.
This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system.
Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
This machine adopts excavator crawler chassis and make the machine a high off-road performance.
Products Description
|
Product name
|
Water Well Drilling Rig
|
|
Model
|
Unit
|
SR800S
|
|
Max drilling depth
|
M
|
750
|
|
Drilling diameter
|
mm
|
105-450
|
|
Engine brand
|
/
|
Weichai
|
|
Power
|
kw
|
176
|
|
Rotary motor brand
|
/
|
Danfoss
|
|
Pump brand
|
/
|
/
|
|
Air pressure
|
Mpa
|
1.6-6
|
|
Air consumption
|
m³/min
|
16-75
|
|
Drill pipe length
|
m
|
6
|
|
Drill pipe diameter
|
mm
|
102
|
|
Axial pressure
|
T
|
6
|
|
Lifting force
|
T
|
40
|
|
Fast lifting speed
|
m/min
|
31
|
|
Fast feeding speed
|
m/min
|
65
|
|
Max rotary torque
|
Nm
|
12600/6300
or15000/7500
|
|
Max rotary speed
|
r/min
|
95/190
|
|
Big auxiliary winch lifting force
|
T
|
/
|
|
Small auxiliary winch lifting force
|
T
|
2.5
|
|
Jacks stroke
|
m
|
1.6
|
|
Drilling efficiency
|
m/h
|
10-35
|
|
Moving speed
|
Km/h
|
3
|
|
Uphill angle
|
/
|
21°
|
|
Weight
|
T
|
14
|
|
Dimension
|
mm
|
6300*2250*2650
|
|
|
