Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Crawler Drilling Rig
Power(w): 3.7KW
Power Type: Diesel
Drilling Depth: 30m
Drilling Diameter: 90-254mm
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Air Consumption: 15-25m3/min
Working Pressure: 2.5Mpa
Rotary Speed: 70rpm
Traveling Speed: 3.5km/h
Feature: High Drilling Efficiency,Competitive Price
Dimension(l*w*h): 6100*2200*2105mm
Weight: 5400 KG
Type: Rotary Drilling Rig
Highlight:

DTH Mining Drilling Rig

,

DTH Drilling Rig Surface Blast hole

,

Pneumatic Mining DTH Drilling Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: SPC300D Customized
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 18-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Set/Sets per Month
Product Description

Through disruptive operation experiments and field tests under various geological conditions, multiple mechanical flaws have been refined and resolved, overcoming three critical technical challenges ("high failure rates, excessive air consumption, and elevated operational costs") of split-type pneumatic drilling rigs. This resulted in an easily operable split-type pneumatic drilling rig characterized by "two lows and one high": low maintenance costs, low air-pressure requirements, and high drilling efficiency.

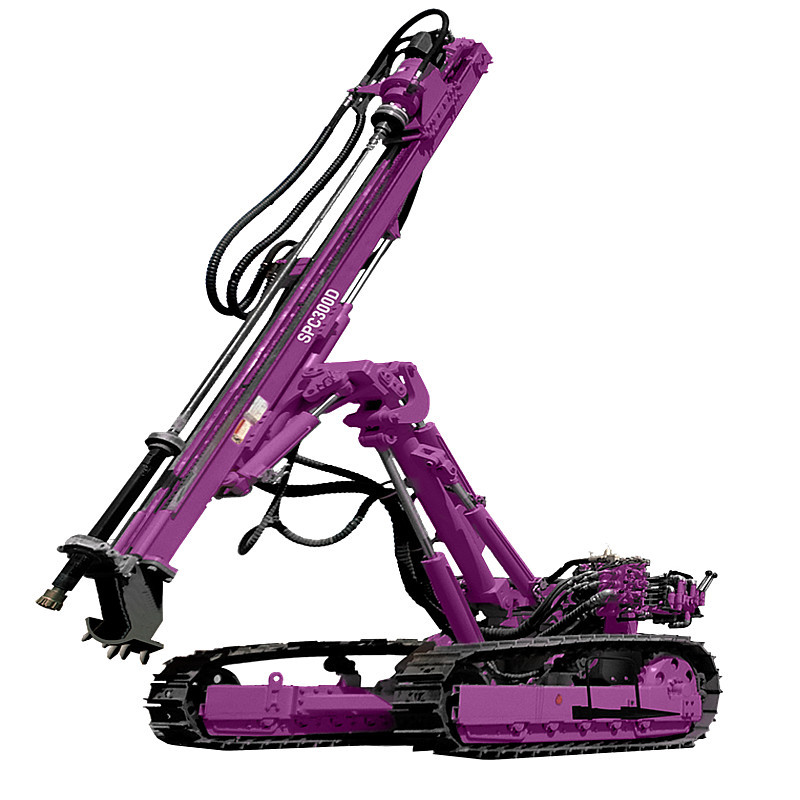

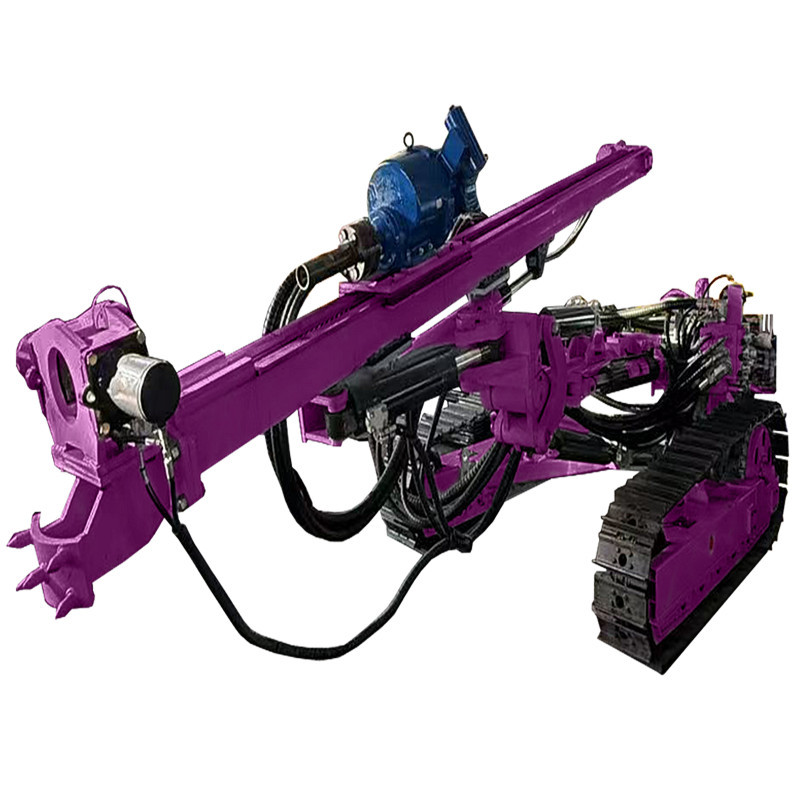

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 0

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 1

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 2

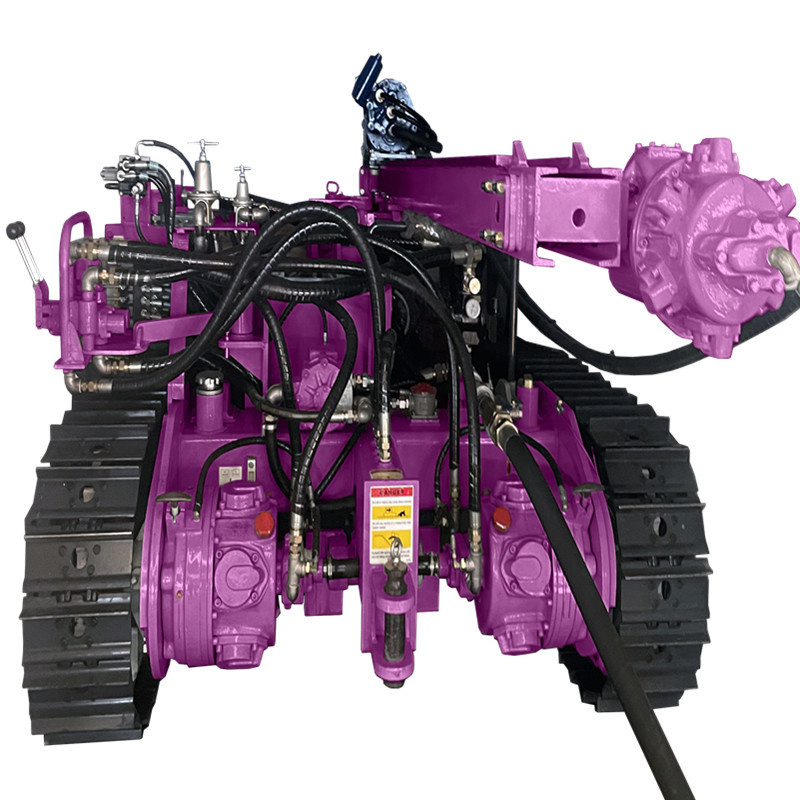

Rotation Reducer:Optimized internal structure for simplified maintenance. Enhanced shock absorbers for reduced drilling impact reaction forces. Gear-type rotary motor with rapid speed, high starting torque, quick start/stop response, and overload protection. Minimal temperature rise during prolonged operation.

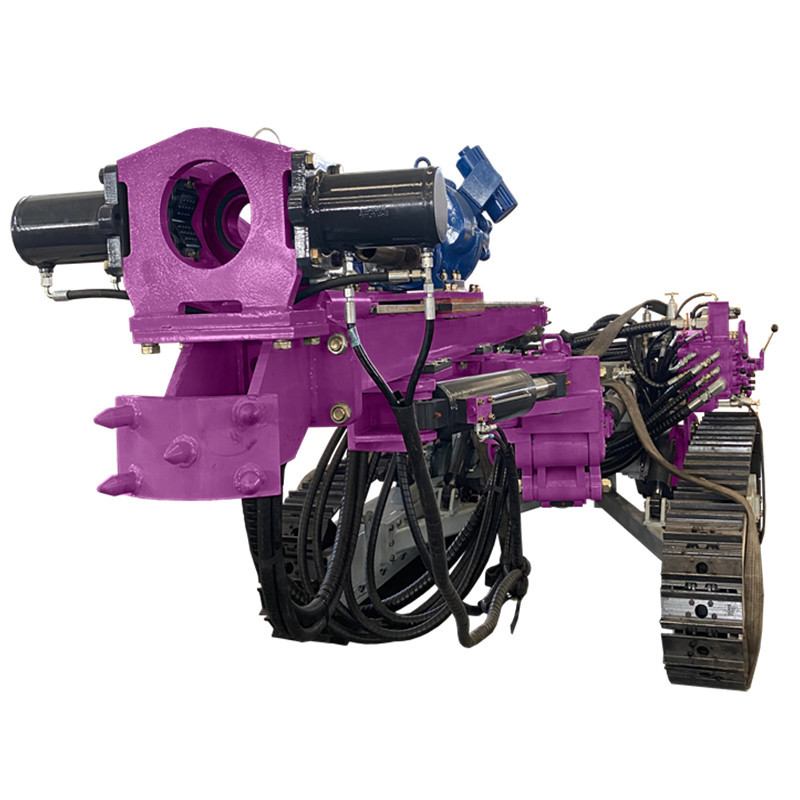

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 3Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 4



Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 5Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 6

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 7

Products Description
Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°




Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 8Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 9

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 10

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 11Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 12



Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 13Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 14
Company Profile
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 15
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 16


Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 17
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
