DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Crawler Drilling Rig
Power(w): 3.8KW
Power Type: Diesel
Drilling Depth: 20-30m
Drilling Diameter: 50-115mm
Gradeability: 35°
Swing Angle: 13°
Air Quantity: 15-25m3/min
Rotary Torque: 365N.m
Air Consumption: 16m³/min
Working Pressure: 1.0Mpa
Hydraulic Tank Capacity: 55L
Rotary Speed: 380rpm
Maximum Forward Thrust: 11KN
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Traveling Speed: 3.5km/h
Feature: High Drilling Efficiency,Competitive Price
Dimension(l*w*h): 5777*2210*1942mm
Weight: 5400 KG
Type: Rotary Drilling Rig
Highlight:

Pneumatic DTH Drill Machine

,

365N.m DTH Drilling Equipment

,

Portable DTH Drilling Equipment
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: SPC300T Customized
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 18-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Set/Sets per Month
Product Description

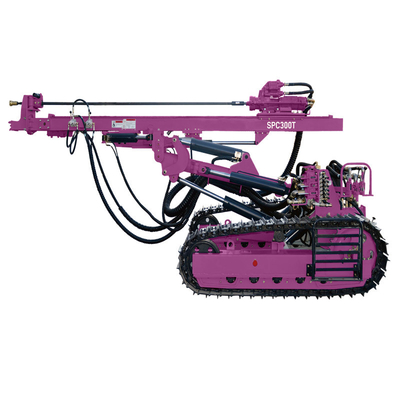

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 0

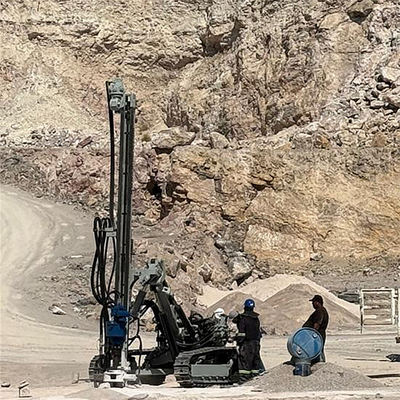

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 1

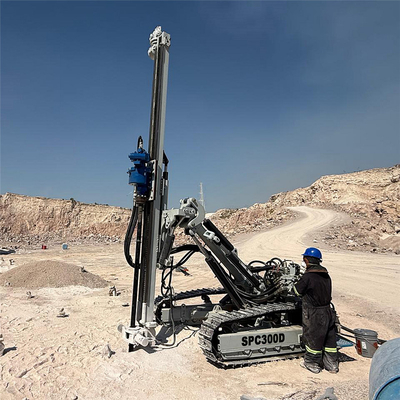

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 2

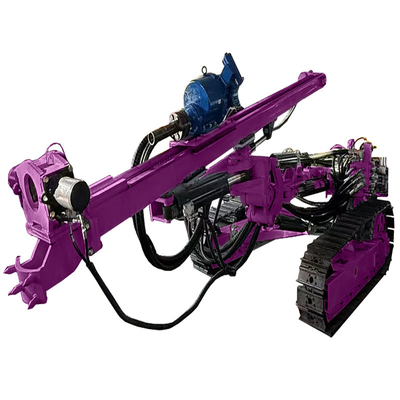

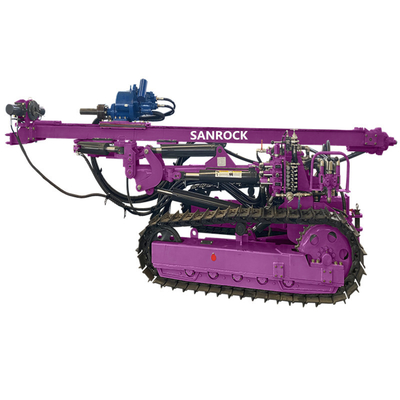

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 3DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 4



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 5

The crawler-mounted fully pneumatic DTH drill rig is a robust and versatile drilling machine designed for efficient rock penetration in challenging terrains. Powered entirely by compressed air, this track-mounted equipment integrates a high-performance pneumatic hammer system with a crawler chassis for enhanced mobility across uneven surfaces. Featuring a durable DTH hammer assembly and rotary mechanism, it excels in deep-hole drilling applications such as mining exploration, quarrying, and construction blasting.
Mining drilling rig delivers powerful percussive force for precise vertical or angled drilling in hard rock formations, improved operational safety and productivity.



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 6DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 7

Products Description

Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°


DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 8

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 9



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 10DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 11DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 12



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 13DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 14
Company Profile
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 15
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 16


DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 17
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
