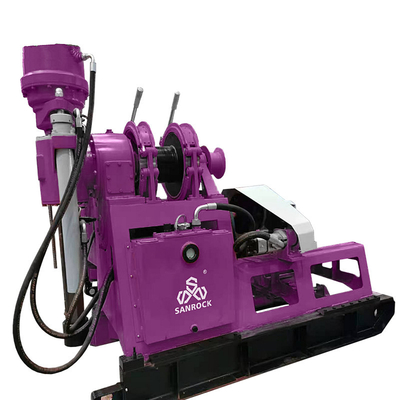

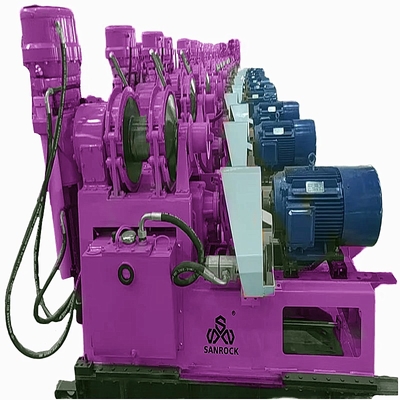

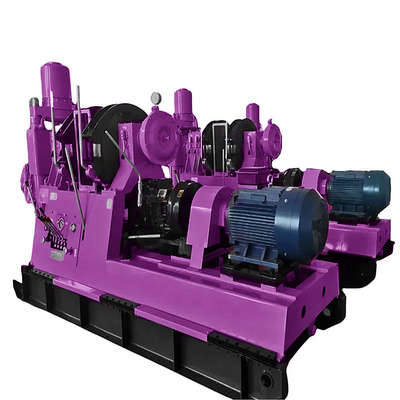

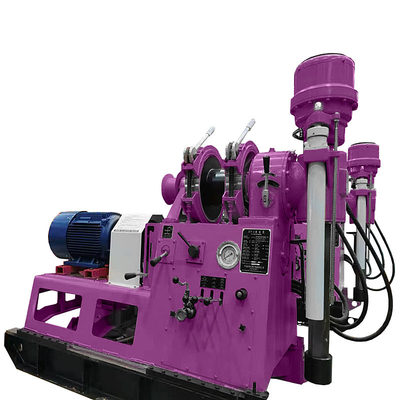

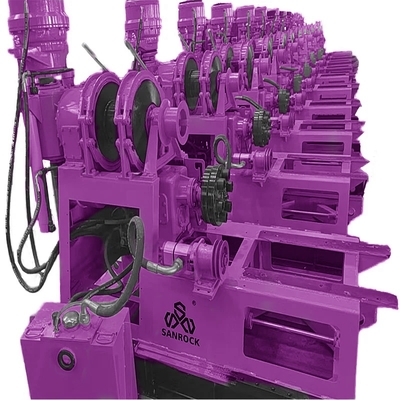

XY-2 hydraulic core drilling rig
The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range.
With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient.
The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents.
With a normally closed hydraulic chuck, it is convenient and flexible to operate.
The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod.
XY-2 Core Drilling Rig model this drilling rig mainly used in the water well drilling, water well and pile grouting hole drilling,and core sample drilling work, the engineering geological survey, the pile hole sneaks in the construction etc project. It’s having big rang of the drilling rotary speed. The drilling machine powerful diesel engine power, dimension body weight is light. Easy transportation .
Products Description
|
Drilling Capacity
|
Drill Rod AQ
|
560m
|
|
Drill Rod BQ
|
460m
|
|
Drill Rod NQ
|
350m
|
|
Rotation Angle of Spindle
|
0-90°
|
|
Spindle Speed
|
Positive
|
65, 114, 180, 248, 310, 538, 849, 1172 rpm
|
|
Negative
|
51, 242 rpm
|
|
Max. Rotary Tarque of Spindle
|
2760N·m
|
|
Spindle Stroke
|
600mm
|
|
I.D of Spindle
|
76mm
|
|
Oil Pump
|
SCB32/12 Double Gear Oil Pump
|
|
Power
|
Electric Motor
|
(22KW/1470rpm)
|
|

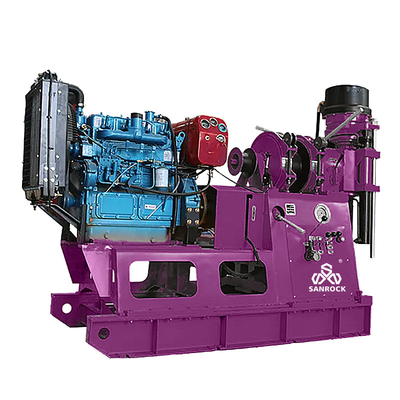

Diesel Engine
|
(30KW/1500rpm)
|
|
Max. Lifiting Capacity of Spindle
|
60KN
|
|
Max. Pressuring Force of Spindle
|
45KN
|
|
Dimensions
|
2150×900×1690mm
|
|
Steel Wire Diameter
|
14mm
|
|
Content of Winding Drum
|
45m
|
|
Max. Hoisting Forcce
|
30KN
|
|
Weight(Without Power Unit)
|
950kg
|
|
|
