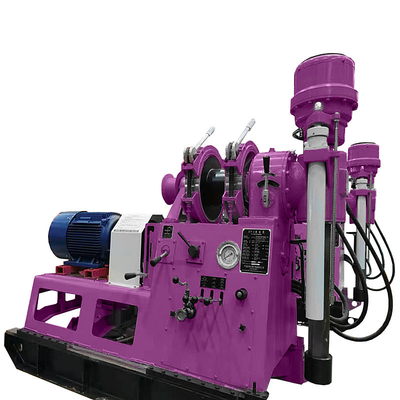

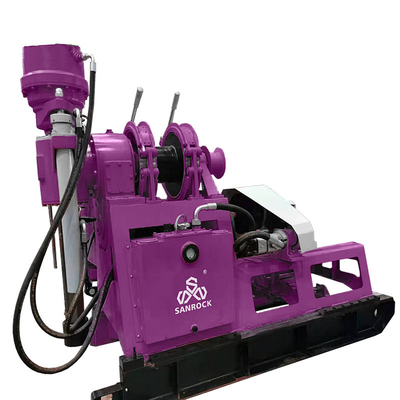

The XY-2 Core Drilling Rig is a versatile and robust geological exploration equipment designed for coring operations in mineral prospecting, geotechnical investigations, and geological surveys. Featuring a modular structure with hydraulic feed system and variable speed control, this rig offers operational flexibility across various geological formations.
The rig's enhanced vibration-damping design and compatibility with diamond/wireline core bits ensure high core recovery rates while maintaining operational stability.
Product Features:
The drilling rig uses a double oil pump to supply oil, which consumes less power and has a lower oil temperature in the hydraulic system.
The weight-on-bit gauge and the hydraulic system pressure gauge are combined into one, and adopt an oil-filled shock-proof structure.
The value scale is simple, the indication is accurate, and the instrument has a long service life.
The drilling rig has fewer control handles, a reasonable layout, and flexible and reliable operation.
In addition to high-speed drilling, the drilling rig can also perform low-speed and large-diameter drilling.
In addition to the normally closed hydraulic upper chuck, the drilling rig is also equipped with a mechanical manual lower chuck.
Products Description
|
Drilling Capacity
|
Drill Rod AQ
|
560m
|
|
Drill Rod BQ
|
460m
|
|
Drill Rod NQ
|
350m
|
|
Rotation Angle of Spindle
|
0-90°
|
|
Spindle Speed
|
Positive
|
65, 114, 180, 248, 310, 538, 849, 1172 rpm
|
|
Negative
|
51, 242 rpm
|
|
Max. Rotary Tarque of Spindle
|
2760N·m
|
|
Spindle Stroke
|
600mm
|
|
I.D of Spindle
|
76mm
|
|
Oil Pump
|
SCB32/12 Double Gear Oil Pump
|
|
Power
|
Electric Motor
|
(22KW/1470rpm)
|
|
Diesel Engine
|
(30KW/1500rpm)
|
|
Max. Lifiting Capacity of Spindle
|
60KN
|
|
Max. Pressuring Force of Spindle
|
45KN
|
|
Dimensions
|
2150×900×1690mm
|
|
Steel Wire Diameter
|
14mm
|
|
Content of Winding Drum
|
45m
|
|
Max. Hoisting Forcce
|
30KN
|
|
Weight(Without Power Unit)
|
950kg
|
|
|
