The XY-3 Portable Exploration Core Drilling Rig is a lightweight, high-efficiency drilling system designed for geological exploration, mineral prospecting, and subsurface sampling. Engineered for rugged field conditions, this compact rig delivers exceptional performance in extracting core samples from depths of up to 300 meters (adjustable based on configuration). Featuring a modular design, it combines portability with robust construction, enabling rapid deployment in remote or challenging terrains. Equipped with a reliable hydraulic or electric drive system (depending on model), the XY-3 ensures precise drilling control and adaptability to diverse geological formations, including hard rock, soft sediment, and mixed strata. Its user-friendly interface, energy-efficient operation, and low maintenance requirements make it an ideal choice for geological surveys, mining exploration, foundation testing, and environmental research.

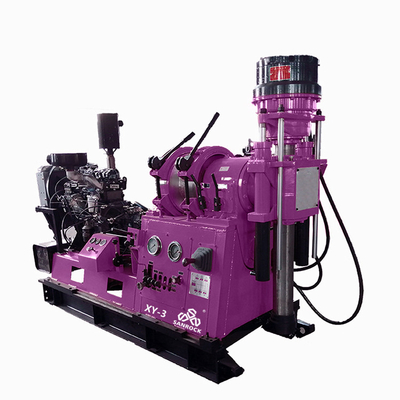

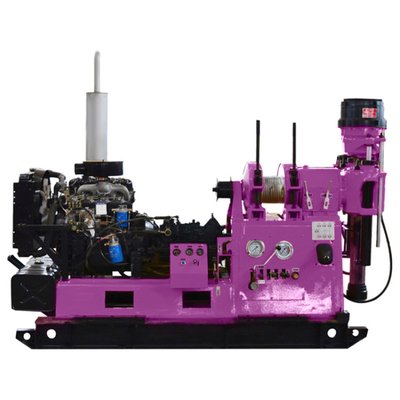

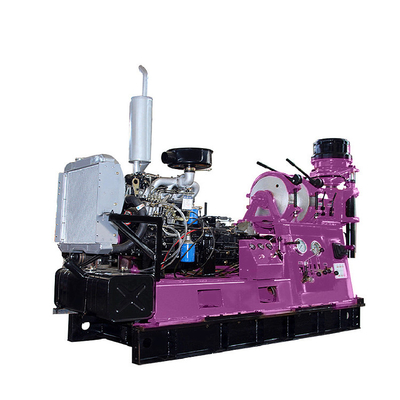

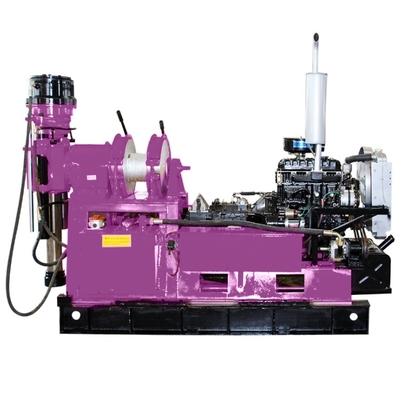

XY-3 hydraulic core drilling rig:
Multi-Speed Gearbox: Equipped with an automobile gearbox assembly, offering multiple speed stages and a reasonable speed adjustment range.
High Torque and Strength: Features large torque and strong bearing capacity, allowing for remote control and convenient, centralized operation.
Powerful Engine with Reverse Speeds: Provides high power and two reverse speeds, making it easier to handle drilling accidents.
Flexible Hydraulic Chuck: Comes with a normally closed hydraulic chuck, ensuring flexible and convenient operation.
Large Diameter Vertical Shaft: The vertical shaft has a large diameter and can be fitted with a large hexagonal active drill rod for enhanced versatility.
Products Description
|
Model
|
XY-3
|
|
Drilling depth
|
600m
|
|
Borehole diameter
|
300-75mm
|
|
Max open hole caliber
|
300mm
|
|
End hole caliber
|
75mm
|
|
Drilling rod diameter
|
60
|
|
Drilling angle
|
90°-65°
|
|
Spindle
|
|
spindle speed
|
30-1050r/min
|
|
Spindle stroke
|
29-137r/min
|
|
Spindle stroke
|
60mm
|
|
Spindle inner diameter
|
96mm
|
|
Lifting capacity
|
6000kg
|
|
Hoist
|
|
Max.single line lifting speed
|
0.5-1.9m/s
|
|
Wire rope caliber
|
12.5mm
|
|
Max.single line lifting capacity
|
4000kg
|
|
Reel diameter
|
300mm
|
|
Wire rope length
|
50m
|
|
Maximum lifting capacity of single rope
|
3000kg
|
|
Mud pump
|
|
Type
|
Horizontal three cylinder BW-250
|
|
Displacement
|
250l/min
|
|
Work pressure
|
80kg/cm²
|
|
Water inlet pipe diameter
|
75mm
|
|
Water outlet pipe diameter
|
50mm
|
|
Gear oil pump
|
|
Duplex gear oil pump
|
CBF-F63/25
|
|
Front displacement, pressure
|
63l/min 20mpa
|
|
Water outlet pipe diameter
|
25l/min 20mpa
|
|
Power
|
|
Diesel engine
|
39kw
|
|

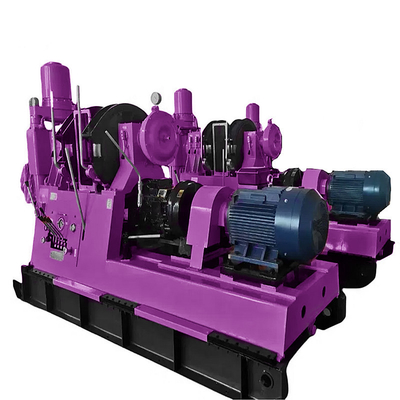

Electric machinery
|
22kw
|
|
Weight size
|
|
Drill weight
|
1800kg
|
|
Shape size
|
2500*900*1800mm
|
|
|
