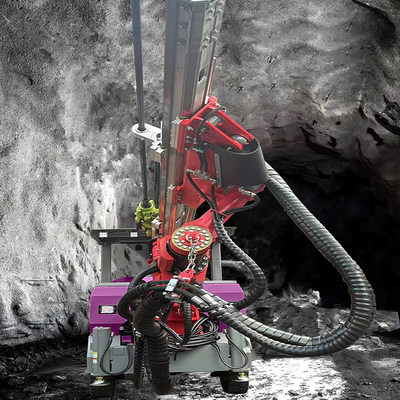

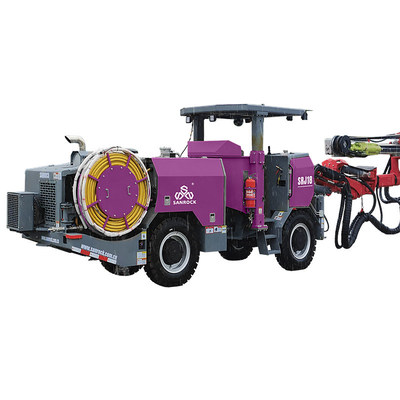

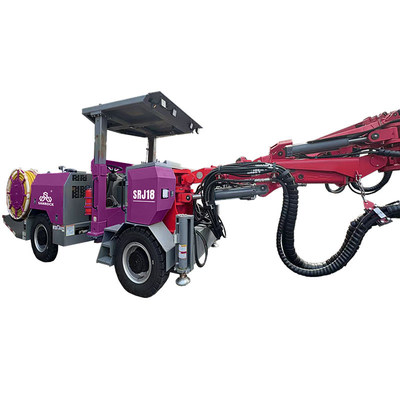

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.

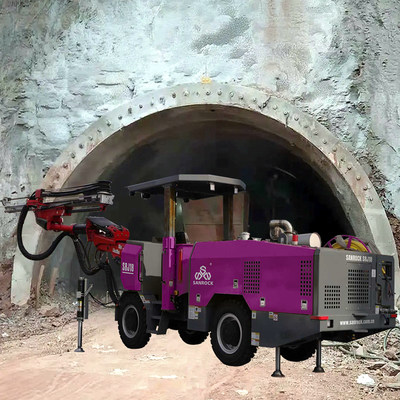

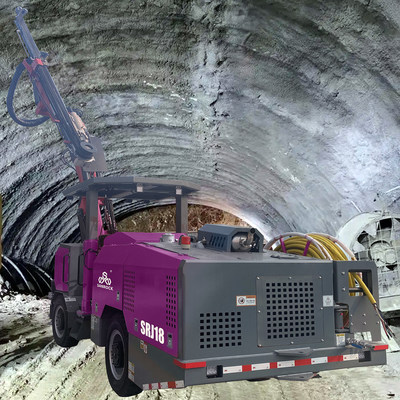

Underground Tunnel Jumbo Drilling Construction
Tunnel jumbo drilling involves the use of a specialized drill rig, to bore blast holes or support anchor holes in underground tunneling projects. The jumbo, equipped with multiple hydraulic booms and high-precision drilling mechanisms, advances along the tunnel face, positioning drill bits to create a pre-designed pattern of holes. During operation, operators coordinate the rig’s movement, aligning drills with laser guidance systems or digital blueprints to ensure accuracy in hole depth, angle, and spacing. The process maximizes efficiency while adhering to safety protocols, with dust suppression systems mitigating airborne particulates. Once drilling is complete, explosives or rock bolts are inserted into the holes to facilitate controlled rock fragmentation or stabilize the tunnel structure. This method is critical for optimizing excavation speed and maintaining structural integrity in hard rock tunneling.
Adaptability to Complex Conditions
Effective in diverse terrains (soft soil, fractured rock, high-pressure groundwater).
Adjustable drilling angles and depths to suit varying geological requirements.
Products Description
|
Product name:jumbo drilling rig
|
|
|
Model
|
SRJ18
|
|
Maximum Coverage Area(H*W)
|
2.9*2.4m
|
|
Minimum Coverage Area(H*W)
|
6.3*6.5m
|
|
Overall Dimension(L*W*H)
|
11700*1800*2100/2900mm
|
|
Weight
|
13.6T
|
|
Turning Radio Outer/Inner
|
5600/3150mm
|
|
Rock Drill Range
|
Ф41-76mm
|
|
Rock Drill Power
|
18kw
|
|
Rock Drill Rate
|
60Hz
|
|
Drill Rod
|
T38-H35-R32-4305mm
|
|
Hole Depth
|
4000mm
|
|
Diesel Engine
|
Yuchai 66kw
|
|
Main Electric Motor
|
55kw
|
|
Total Installed Power
|
62kw
|
|
|
|
Rock drill
|
|
|
Shank
|
T38
|
|
Drill range
|
41mm-76mm
|
|
Reaming range
|
76mm-4127mm
|
|
Height over drill centre
|
95mm
|
|
Length without shank
|
1008mm
|
|
Impact power
|
18kW
|
|
Impact rate
|
60Hz
|
|
Rated hydraulic pressure
|
210bar
|
|
Maximum hydraulic pressure
|
230bar
|
|
Rotation system
|
Separate rotation
|
|
Rotation speed
|
0~215rpm
|
|
Rotation torque
|
max 1000Nm
|
|
|
