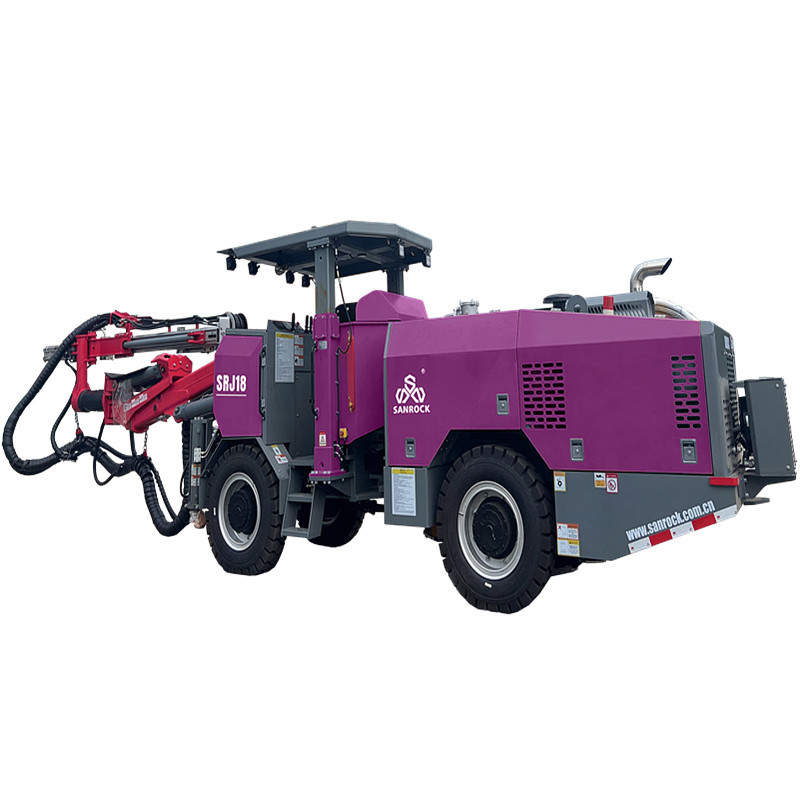

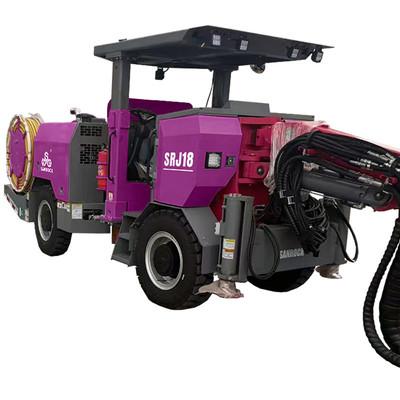

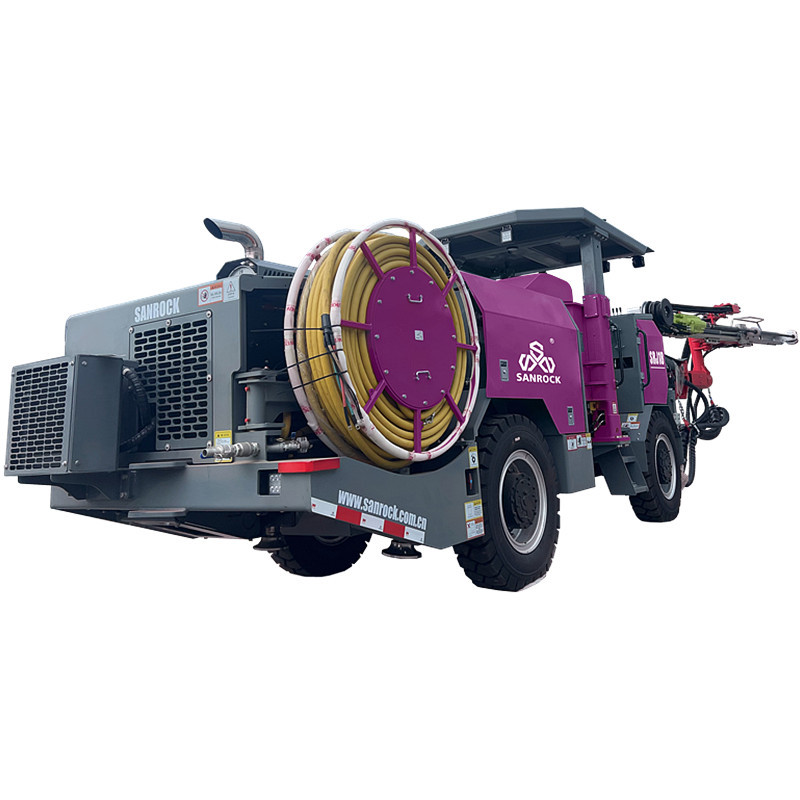

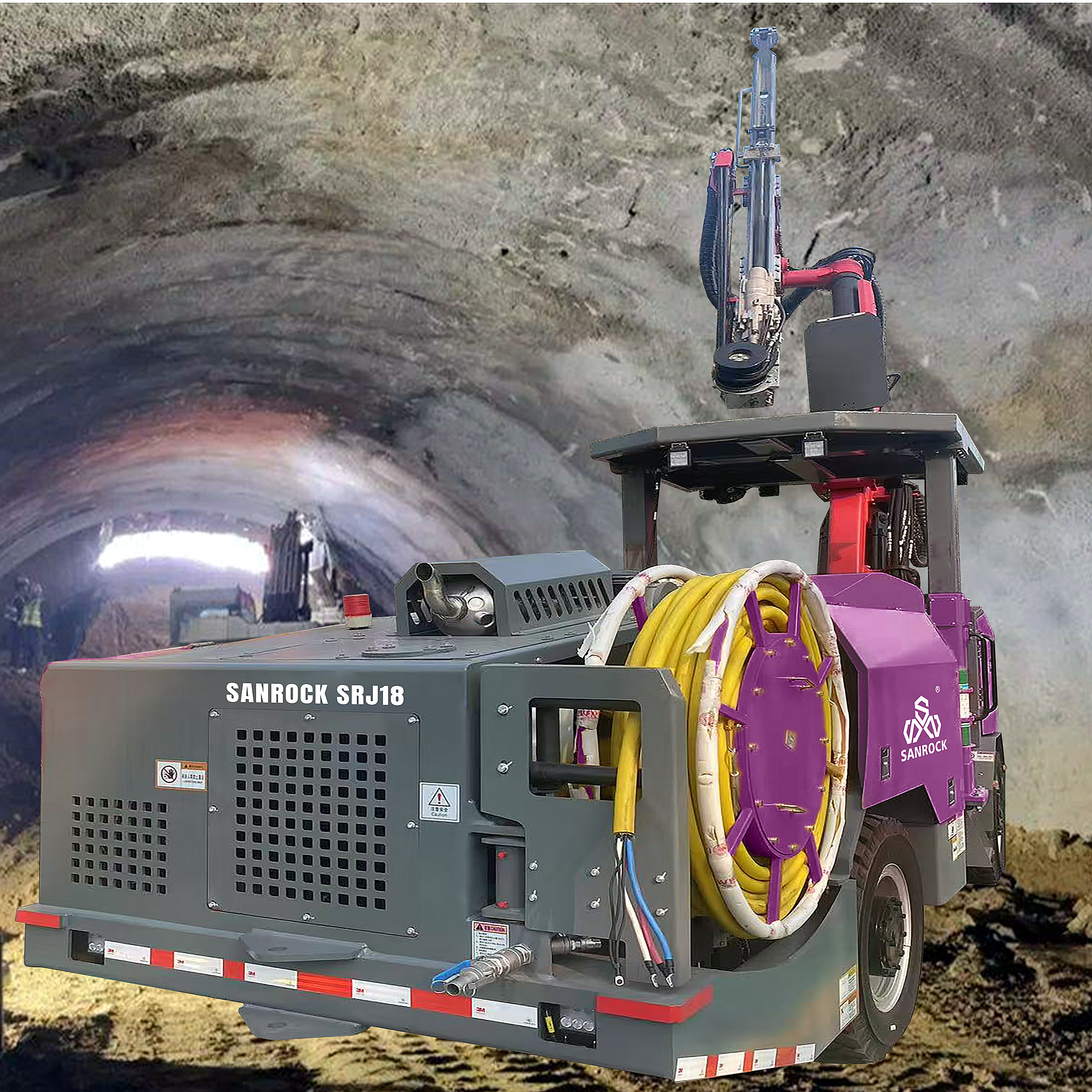

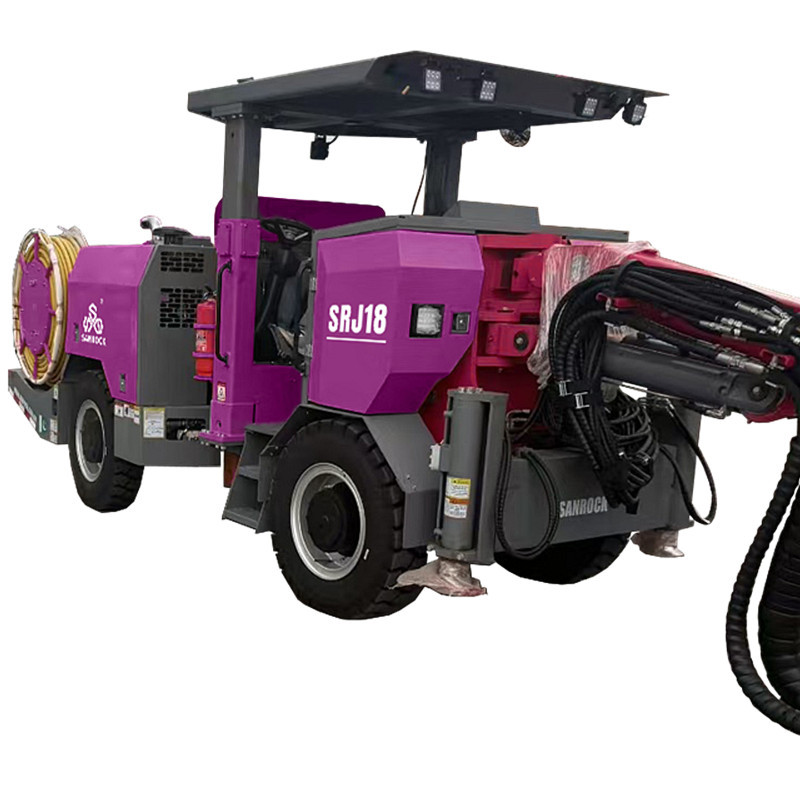

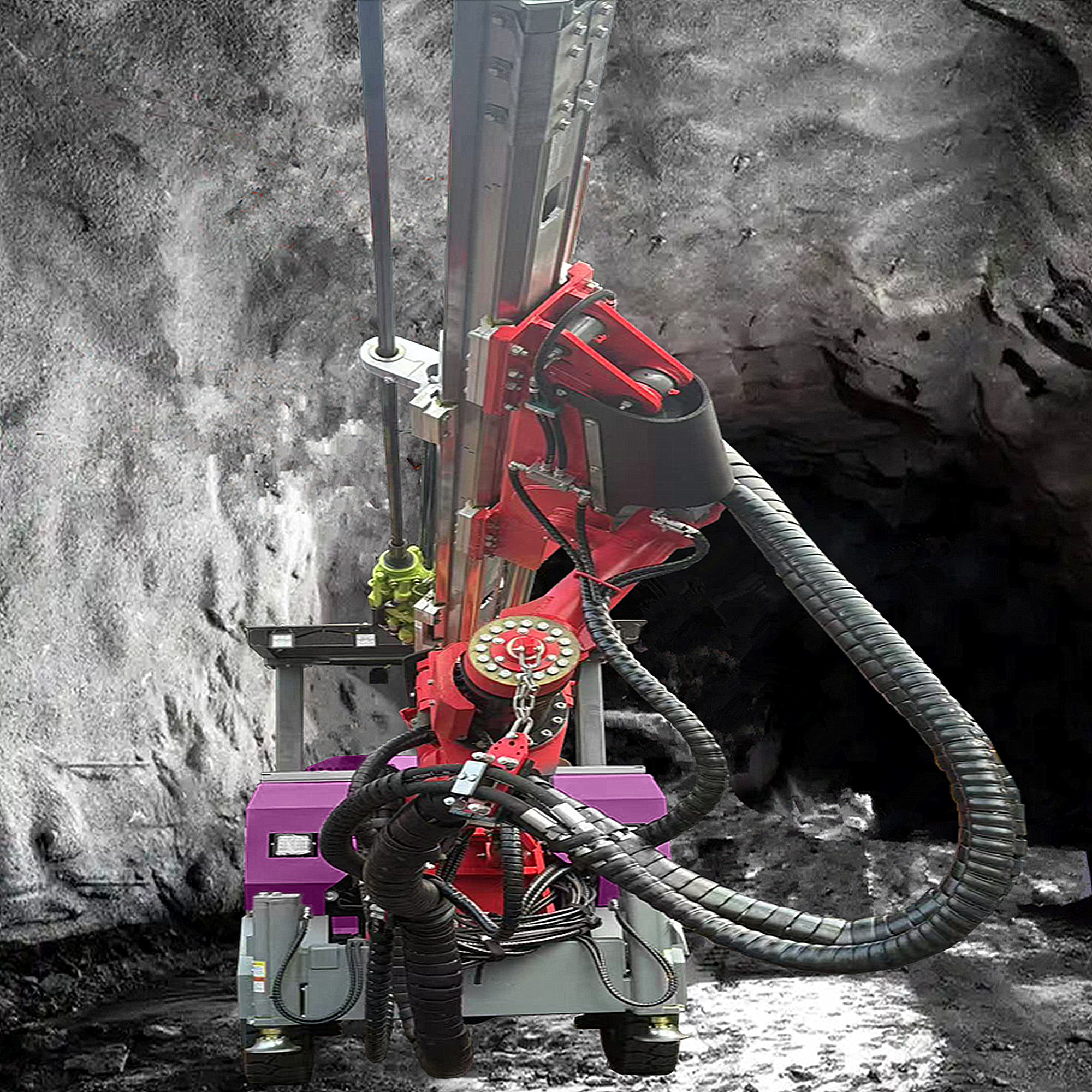

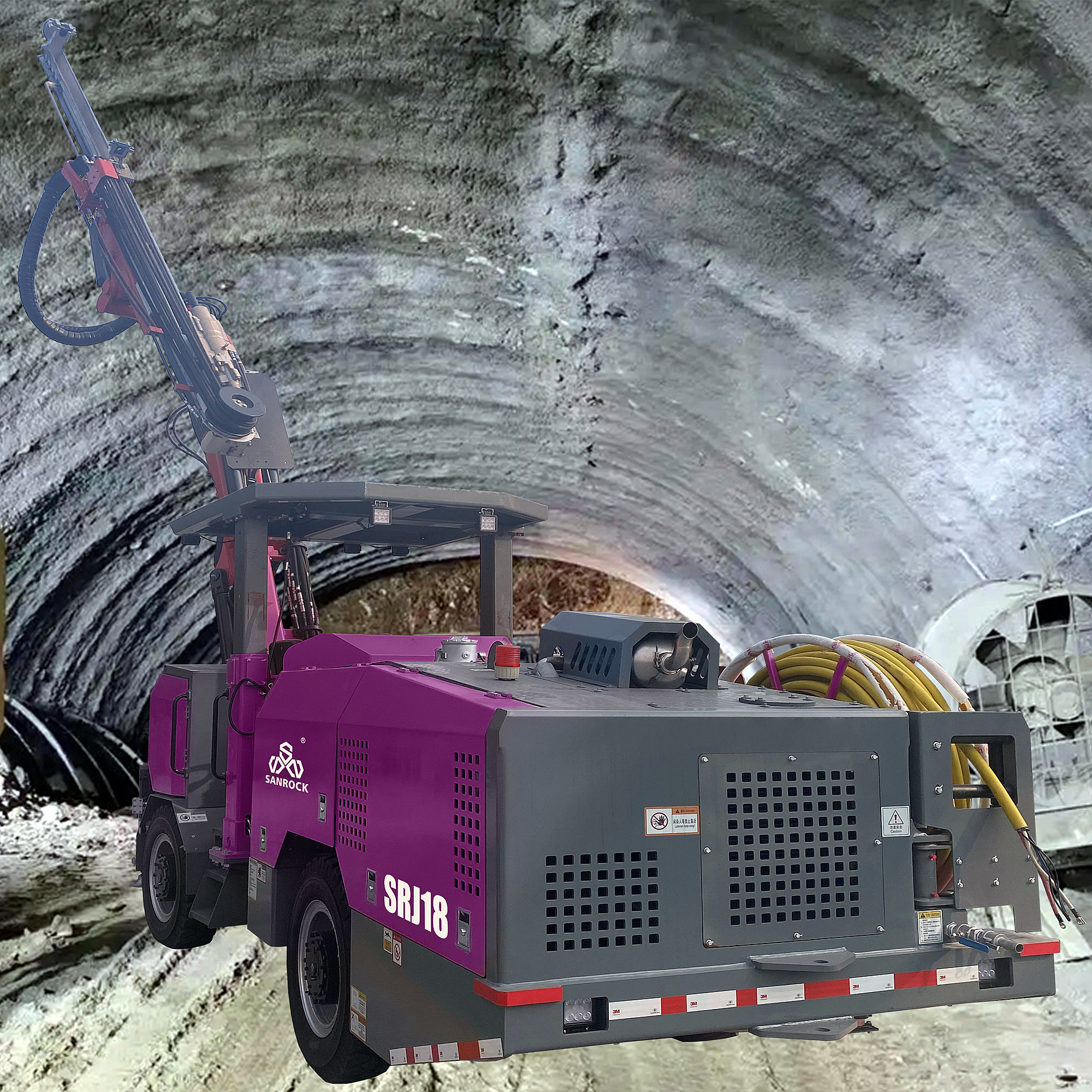

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.
Jumbo underground tunnel boring drilling rig machine a sophisticated rotary drilling mechanism to excavate tunnels through various geological formations. The system utilizes a massive rotating cutter head equipped with disc cutters or roller bits, powered by high-torque hydraulic motors.
As the cutter head rotates at high efficiency drilling speed , its array of hardened steel or tungsten-carbide teeth systematically fracture the rock strata while synchronized thrust cylinders maintain forward propulsion.
During operation, the full-face drilling apparatus simultaneously performs cutting, material removal, and temporary ground support installation. An integrated slurry circulation system or earth pressure balance mechanism manages debris removal while maintaining face stability. Computer-guided laser alignment ensures precision boring within ±10mm tolerance, with real-time monitoring of torque, thrust pressure, and advance rate adapting to changing ground conditions. Continuous conveyor systems or muck cars transport excavated material to the surface, while precast concrete segments are automatically erected to form the tunnel lining immediately behind the cutting shield. significantly reducing surface disruption compared to conventional drill-and-blast methods.
Products Description
|
Product name:jumbo drilling rig
|
|
|
Model
|
SRJ18
|
|
Maximum Coverage Area(H*W)
|
2.9*2.4m
|
|
Minimum Coverage Area(H*W)
|
6.3*6.5m
|
|
Overall Dimension(L*W*H)
|
11700*1800*2100/2900mm
|
|
Weight
|
13.6T
|
|
Turning Radio Outer/Inner
|
5600/3150mm
|
|
Rock Drill Range
|
Ф41-76mm
|
|
Rock Drill Power
|
18kw
|
|
Rock Drill Rate
|
60Hz
|
|
Drill Rod
|
T38-H35-R32-4305mm
|
|
Hole Depth
|
4000mm
|
|
Diesel Engine
|
Yuchai 66kw
|
|
Main Electric Motor
|
55kw
|
|
Total Installed Power
|
62kw
|
|
|
|
Rock drill
|
|
|
Shank
|
T38
|
|
Drill range
|
41mm-76mm
|
|
Reaming range
|
76mm-4127mm
|
|
Height over drill centre
|
95mm
|
|
Length without shank
|
1008mm
|
|
Impact power
|
18kW
|
|
Impact rate
|
60Hz
|
|
Rated hydraulic pressure
|
210bar
|
|
Maximum hydraulic pressure
|
230bar
|
|
Rotation system
|
Separate rotation
|
|
Rotation speed
|
0~215rpm
|
|
Rotation torque
|
max 1000Nm
|
|
|
