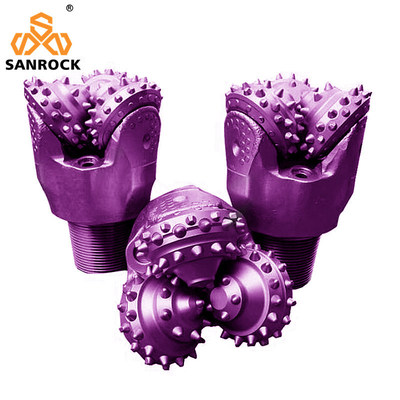

12 1/4 Inch 15 1/2 Inch Three Roller Cone Bit Rock Drill Tools Oilfield Tricone Drilling Bit

Tricone drill bits offer exceptional durability and versatility in challenging drilling

environments, making them a cornerstone of modern drilling technology.

Their triple-cone design ensures balanced load distribution and reduced friction,

significantly extending service life while maintaining consistent drilling speed.

Equipped with hardened steel teeth or tungsten carbide inserts, these bits effortlessly

tackle formations ranging from soft shale to hard limestone.

The rolling cones minimize heat buildup and mechanical stress, enhancing performance

in high-temperature, high-pressure deep-well applications. Customizable features, such

as sealed bearings for contaminant resistance or specialized tooth layouts for optimized

cuttings removal, allow precise adaptation to specific geological conditions.Additionally, their ability to maintain borehole stability and directional control reduces

operational downtime, delivering cost-effective reliability across oil and gas, mining, and

geothermal projects.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
