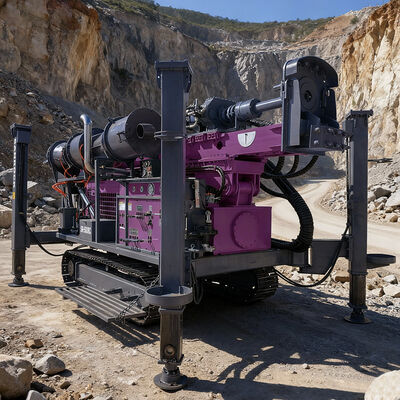

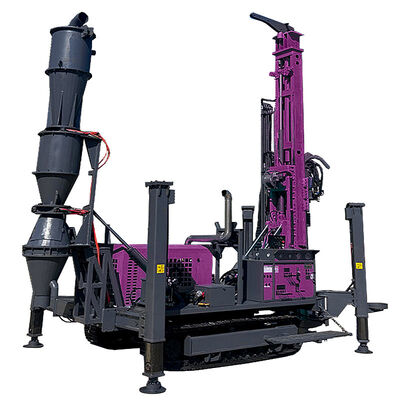

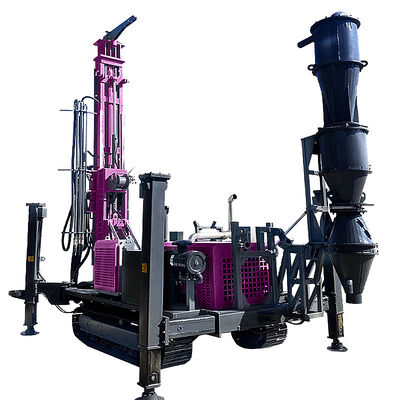

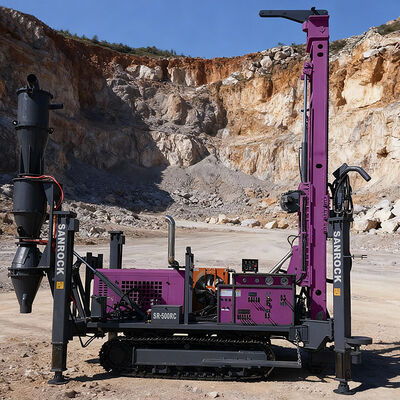

Reverse Circulation Core Drill Rig for Soil Investigation
This specialized Reverse Circulation (RC) core drill rig is engineered for high-efficiencysoil and subsurface investigation, providing reliable sampling for geotechnical studies,environmental assessments, and construction planning. Designed to deliver undisturbed,
contamination-free core samples from various soil layers, it ensures accurate data collection
for analyzing soil composition, stability, and stratification.The rig employs a reverse circulation system using dual-wall drill rods, where air or fluid is
pumped downward through the outer annulus, enabling rapid penetration while soil and
core samples are cleanly retrieved through the inner tube. This sealed process minimizes
external contamination and preserves the original structure of soft, loose, or layered
soils—critical for precise laboratory testing and engineering evaluations.
Built with a modular and compact structure, the rig offers easy transport and quick setup
in constrained or remote areas.
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.
Product Description
|
Drilling capacity
|
Drilling depth(m)
|
500
|
|
The hole diameter(mm)
|
140-400
|
|
Drill pipe diameter(mm)
|
76/89/102/114
|
|
Drill pipe length(m)
|
1.5/2/3
|
|
Axial pressure(kN)
|
100
|
|
Drive head
|
Rotation torque(N.m)
|
8000-12000
|
|
Rotation speed(rpm)
|
40-160
|
|
Stroke(m)
|
1.7-3.5
|
|
Rig lifting force(kN)
|
300
|
|
Feeding capacity(kN)
|
150
|
|
Rapid rise speed(m/min)
|
20
|
|
Fast feeding speed(m/min)
|
40
|
|
Power Unit
|
Rated power/speed(kW/rpm)
|
132/2400
|
|
Tool winch capacity
|
Lifting force(kN)
|
20
|
|
Air compressor
|
Air pressure(MPA)
|
1.7-3.5
|
|
Air consumption(m³/min)
|
17-42
|
|
Equipped with hammer(Reverse circulation)
|
Medium and high pressure series
|
|
Crawler chassis
|
Walking speed(km/h)
|
2.5
|
|
Climbing angle(°)
|
30
|
|
Dimension
|
Transport(mm)
|
6450*2100*2700
|
|
Working(mm)
|
4500*4000*7000
|
|
Weight
|
Weight(t)
|
12
|
|
