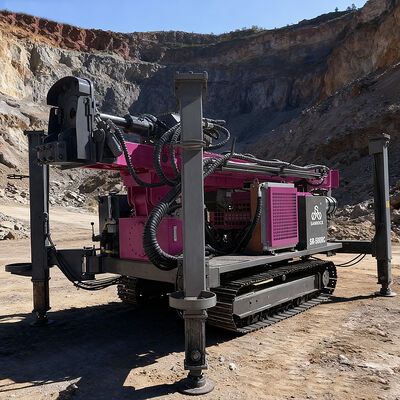

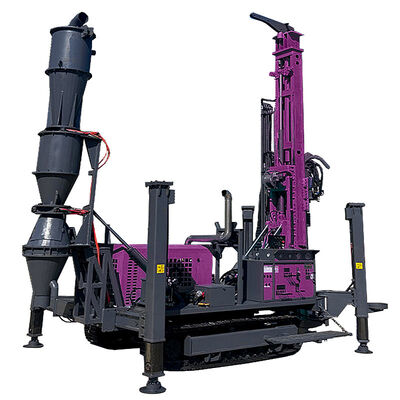

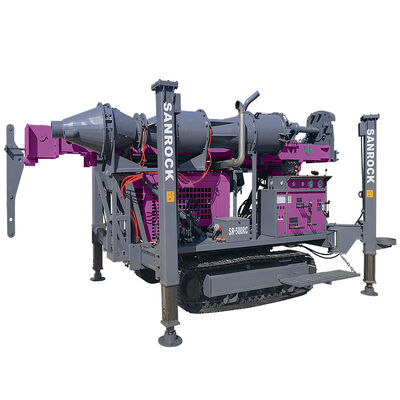

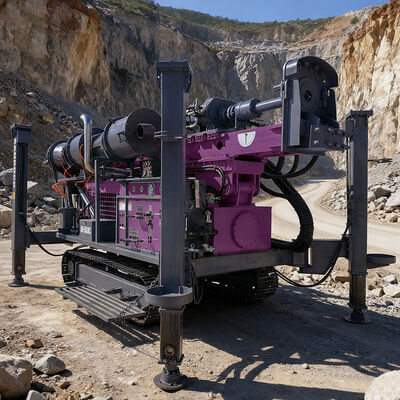

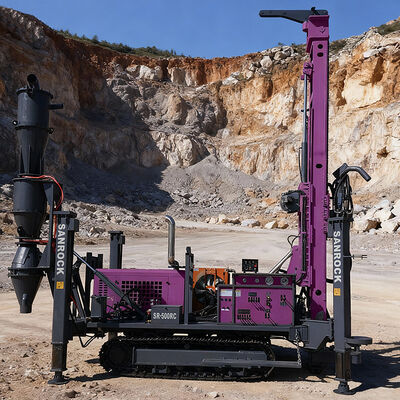

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Core Drilling Rig ,core Drilling Machine
Name: Borehole Drilling Rig,water Well Drilling Machine,core Drilling Rig
Type: Core Drilling Rig
Keyword: Reverse Circulation Drilling Rig
Power Type: Diesel
Power(w): 132KW
Drilling Depth: 500m
Drilling Diameter: 140-400mm
Lifting Force: 12KN
Rotary Torque: 8000-12000 N.m
Rotate Speed: 40-160rpm
Working Pressure: 1.7-3.5Mpa
Drill Pipe Diameter: 76/89/102/114mm
Drill Pipe Length: 1.5/2.0/3.0m
Application: Coring Machine,coal,Geological Exploration
Usage: Coal,water Well.core Sample
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
After-sales Service Provided: Online Support
Weight: 12000KG
Highlight:

portable core drilling rig

,

reverse circulation drill rig

,

mining core drilling machine 12KN

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR-500RC
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-26 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description


Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 0

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 1Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 2Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 3

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 4

Reverse circulation drilling rig with hydraulic height adjustment capabilities, the rig

offers remarkable adaptability to diverse terrain conditions. The integrated hydraulic

system provides precise control over drilling parameters, including rotation speed,

feed pressure, and fluid circulation rates. This allows operators to maintain optimal

drilling performance while achieving high-quality core samples with minimal contamination.

The rig's hydraulic power pack is engineered for fuel efficiency and reduced emissions, makingit suitable for environmentally sensitive exploration sites.

Designed for both remote greenfield exploration and established mining operations, this hydraulicRC core drilling rig sets new standards in drilling efficiency and sample quality assurance. Its robust

construction and intelligent hydraulic management system ensure reliable performance in the most

demanding geological conditions while maintaining operational safety and environmental compliancestandards.

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 5Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 6Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 7
Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 8

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 9

This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 10

Product Description


Drilling capacity
Drilling depth(m)
500
The hole diameter(mm)
140-400
Drill pipe diameter(mm)
76/89/102/114
Drill pipe length(m)
1.5/2/3
Axial pressure(kN)
100
Drive head
Rotation torque(N.m)
8000-12000
Rotation speed(rpm)
40-160
Stroke(m)
1.7-3.5
Rig lifting force(kN)
300
Feeding capacity(kN)
150
Rapid rise speed(m/min)
20
Fast feeding speed(m/min)
40
Power Unit
Rated power/speed(kW/rpm)
132/2400
Tool winch capacity
Lifting force(kN)
20
Air compressor
Air pressure(MPA)
1.7-3.5
Air consumption(m³/min)
17-42
Equipped with hammer(Reverse circulation)
Medium and high pressure series
Crawler chassis
Walking speed(km/h)
2.5
Climbing angle(°)
30
Dimension
Transport(mm)
6450*2100*2700
Working(mm)
4500*4000*7000
Weight
Weight(t)
12


Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 11

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 12

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 13Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 14Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 15

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 16Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 17

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 18Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 19

Company Profile

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 20

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 21

Mining Core Drilling Machine Lifting Force12KN Reverse Circulation Drill Rig Portable Drilling Rig 22

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.


3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


4.How is your quality control? A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
