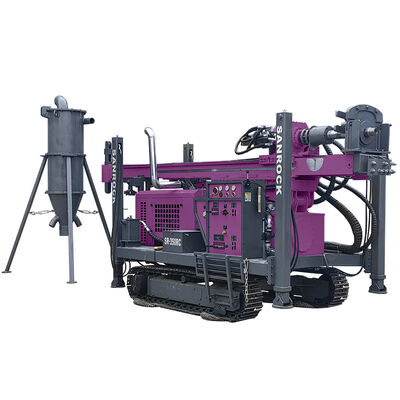

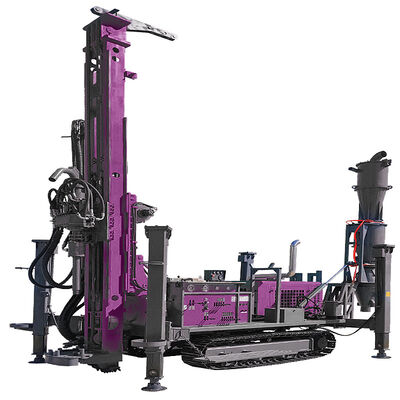

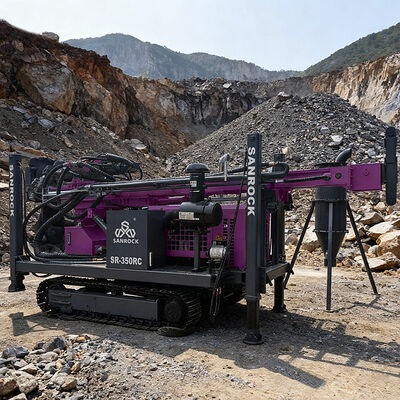

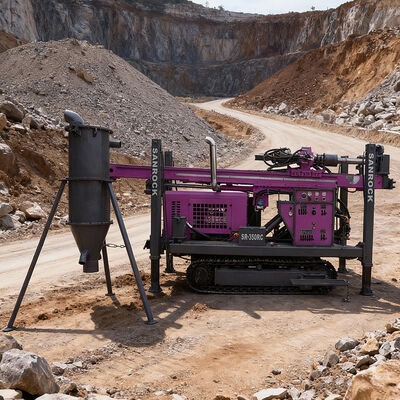

Diamond Core Reverse Circulation (RC) Drill Rig
The Diamond Core Reverse Circulation (RC) Drill Rig represents a premium solution for obtaining high-integrity core samples in the most demanding geological formations. This advanced system integrates the superior cutting power of diamond-impregnated drill bits with the efficient, contamination-free sampling of reverse circulation technology.
Its operation utilizes dual-wall drill rods. The drilling fluid (typically air or mud) is circulated down through the annular space between the inner and outer tubes. The diamond-impregnated bit pulverizes hard rock at the bottom of the hole, and the resulting cuttings are immediately carried up to the surface through the inner tube in a continuous, sealed stream.
This combination offers distinct advantages:
Exceptional Penetration: The diamond bit allows for effective drilling through extremely hard and abrasive rock strata where conventional bits are ineffective.
Superior Sample Quality: The reverse circulation system ensures rapid retrieval of uncontaminated, representative core samples, crucial for accurate grade control and geological analysis.
High Efficiency: Provides faster penetration rates in hard rock compared to conventional diamond core drilling, leading to increased productivity.
This rig is the preferred choice for detailed mineral exploration, geotechnical investigations, and resource definition drilling in hard rock environments, particularly for valuable commodities like gold, copper, and diamonds.
This reverse circulation process effectively isolates the sample from contamination as it travels to the surface, ensuring that the collected cores are pristine and representative of the in-situ formation. This rig is particularly valued for its:
High-Quality Sampling: Delivers uncontaminated, reliable samples for accurate assay results.
Efficiency: Enables rapid penetration and continuous coring, reducing project time.
Versatility: Effective in various ground conditions, from soft soils to hard rock formations.
It is an essential tool for applications such as mineral resource evaluation, geotechnical site investigations, and environmental sampling.
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.
Product Description
|
Product name
|
Reverse Circulation Drilling Rig
|
|
Model
|
SR-350RC
|
|
Drilling capacity
|
Drilling depth(m)
|
350
|
|
The hole diameter(mm)
|
105-400
|
|
Drill pipe diameter(mm)
|
76/89/102/114
|
|
Drill pipe length(m)
|
1.5/2/3
|
|
Axial pressure(kN)
|
100
|
|
Drive head
|
Rotation torque(N.m)
|
10000
|
|
Rotation speed(rpm)
|
40-160
|
|
Stroke(m)
|
3.3
|
|
Rig lifting force(kN)
|
260
|
|
Feeding capacity(kN)
|
130
|
|
Power Unit
|
Rated power/speed(kW/rpm)
|
129/2200
|
|
Tool winch capacity
|
Lifting force(kN)
|
15
|
|
Air compressor
|
Air pressure(MPA)
|
1.7-3.5
|
|
Air consumption(m³/min)
|
17-42
|
|
Equipped with hammer(Reverse circulation)
|
Medium and high pressure series
|
|
Crawler chassis
|
Walking speed(km/h)
|
2.5
|
|
Climbing angle(°)
|
30
|
|
Dimension
|
Transport(mm)
|
5900*2100*2500
|
|
Working(mm)
|
4200*3000*6100
|
|
Weight(t)
|
Weight(t)
|
8
|
|
