Home /Products/Piston Air Compressor/Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure

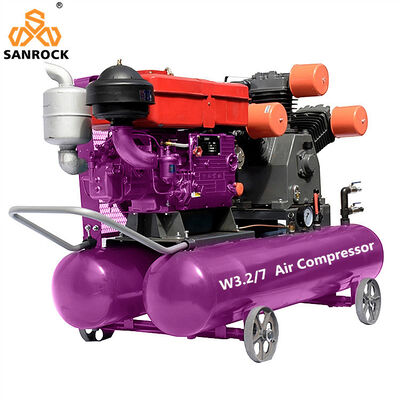

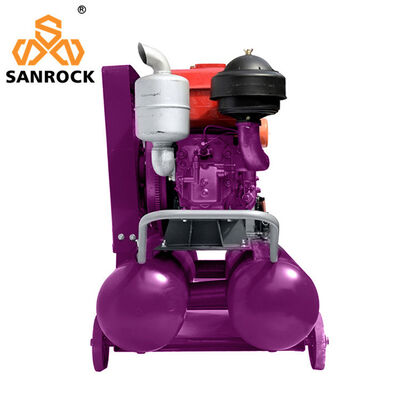

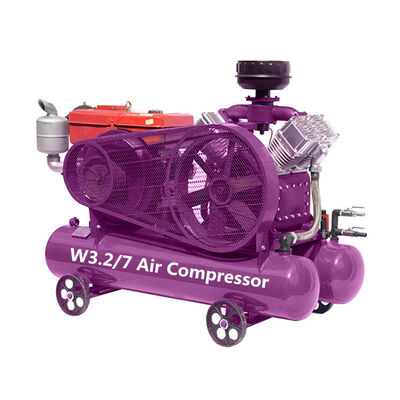

Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure

1Set/Sets per Month
MOQ
negotiable
Price
Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Air Compressor
Name: Piston Air Compressor
Power Source: Diesel
Motor Power:: 18.5kw/25hp
Air Delivery: 3.2m3/min
Working Pressure: 7bar
Volume Of Gas Storage Tank: 230L
Application: Airbrush Spray Paint,blow Molding Machine/sand Blasting,bus,Medical
Feature: Easy Operation,High Efficiency,Portable
Cooling Method: Air Cooled
Transmission Way: Belt Driven
Voltage: 220V/380V
Mute: Low Noise
Configuration: Portable
Type: Piston
After-sales Service Provided: Online Support
Dimension(l*w*h): 1960*900*1250mm
Weight: 680kg
Highlight:

18.5kw/25hp Piston Air Compressor

,

3.2m3/min Air Delivery Industrial Air Compressor

,

7bar Working Pressure Belt Driven Air Compressor
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: W3.2-7
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 12-20days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description
Piston Air Compressors Machine - Belt Driven Commercial & Industrial Air Compressors
Commercial & Industrial Piston-Type, Belt-Driven Air Compressor
This heavy-duty air compressor is engineered for demanding commercial and industrial applications. It utilizes a reliable piston (reciprocating) design, where an electric motor drives twin cylinders via a robust belt and pulley system.
Key Features & Benefits
  • Belt-Driven Mechanism: The belt drive acts as a shock absorber, reducing strain on the motor and allowing for optimal compressor speed adjustment. This results in quieter operation, enhanced energy efficiency, and extended component life.
  • Durability & High Performance: Built with cast iron cylinders and heavy-duty components for continuous operation in workshop, automotive, and manufacturing environments. It delivers high pressure and consistent airflow to power multiple tools simultaneously.
  • Efficient Cooling: The low RPM operation facilitated by the belt drive generates less heat, ensuring better cooling and improved longevity.
  • Enhanced Reliability: Features such as thermal overload protection and pressure release valves are standard for safe and dependable performance.
  • Versatile Application: Ideal for powering pneumatic tools, spray painting, inflation, and various industrial processes requiring a stable and reliable source of compressed air.
This compressor is a durable and efficient workhorse, designed for productivity and long-term service in professional settings.
Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 0 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 1 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 2
Mining Piston Portable Mini Air Compressor Features
  • Valve plate and spring strip: Made of special steel from Sweden and after special treatment
  • Piston ring: Special design; integral casting; excellent flexibility; lowest lubricating oil consumption
  • Cylinder: Made of boron cast iron; wear resistant; specially suitable for dust conditions
  • Cylinder cover: Extrusion process adopted; streamlined external appearance; good heat emission performance
  • Crankshaft: Made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching
  • Simple structure, light weight, easy to move
  • Easy operating and maintenance
Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 3 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 4 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 5 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 6 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 7
Product Specifications
Product NamePiston Air Compressor
ModelW3.2/7
Motor Power18.5kw / 25hp
Volume of Gas Storage Tank230L
Exhaust Pressure0.7Mpa
Air Delivery3.2m³/min
Power SourceDiesel
Cylinder Quantity3 × Φ125mm
Dimensions (L×W×H)1960×900×1250mm
Weight680kg
ApplicationsGeneral Industry, Mining, airbrush spray paint, blow molding machine/sand blasting, food, bus, Medical
Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 8 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 9 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 10 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 11 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 12 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 13 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 14 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 15 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 16
Company Profile
Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 17 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 18 Industrial Piston Air Compressor with 18.5kw/25hp Power, 3.2m3/min Air Delivery, and 7bar Working Pressure 19
Frequently Asked Questions
What products can you buy from us?
DTH drilling rig, core drilling rig, highway pile driver, solar pile driver, anchor pile driver, rotary drill rig, Top Hammer drill rig, underground jumbo drill rig, hydraulic scaling rig, DTH hammer, drill rod, screw air compressor, water well drilling rig, truck mounted water well drilling rig, reverse circulation drilling rig, environmental drilling rig, screw air compressor, piston air compressor, pneumatic rock drill, drill bit, tricone bit, spare parts.
How can I make payment?
You can pay by credit card, TT, Western Union, LC etc.
How is the shipment? How long does it take?
For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
