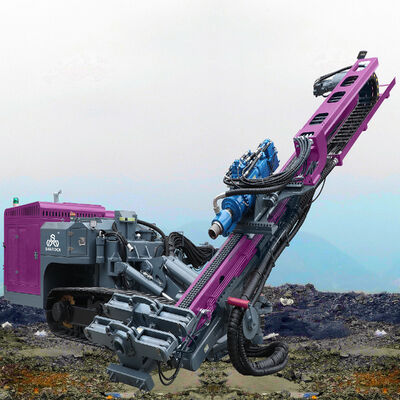

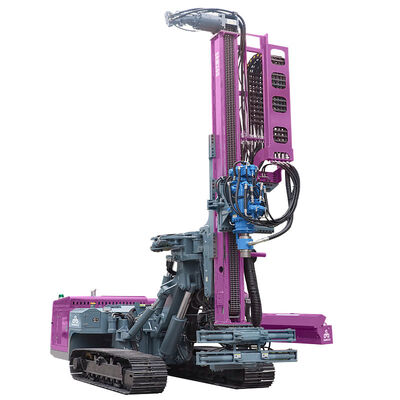

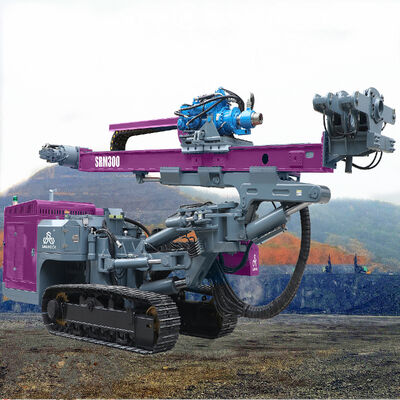

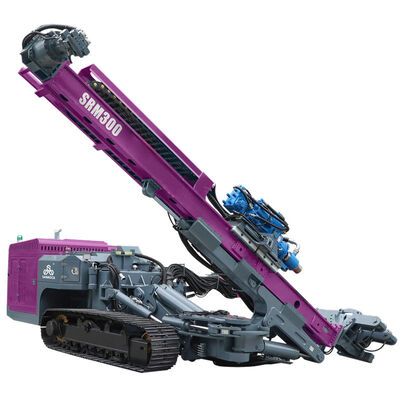

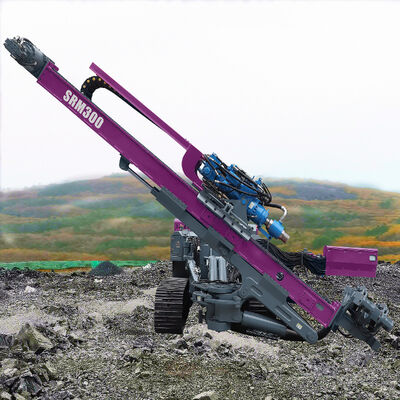

Crawler Mining DTH Drilling Rig with Multi-Angle Rotation
This robust, self-propelled drill rig is specifically engineered for high-productivity drilling in the most demanding mining and quarrying environments. Mounted on a heavy-duty crawler track system, it offers exceptional mobility and stability on rough, uneven terrain. The rig features a advanced drilling system capable of multi-angle rotation, allowing for precise and flexible hole placement.
Key Features & Advantages:
Mobility & Stability: The powerful crawler undercarriage provides excellent ground clearance and traction, enabling the rig to easily navigate steep grades and unstable ground. Hydraulic outriggers ensure maximum stability during drilling operations.
Multi-Angle Drilling Capability: The boom and feed beam offer significant articulation, enabling drilling at various angles—from vertical to horizontal. This versatility is crucial for precision bench drilling, slope trimming, and installing ground support anchors without needing to reposition the entire machine.
High-Impact DTH (Down-The-Hole) Hammer: Designed for efficiency in hard rock formations, the DTH hammer transmits percussive energy directly to the drill bit, resulting in faster penetration rates, straighter holes, and reduced wear on the drill string.
Enhanced Productivity & Automation: Features like automated rod handling, centralized hydraulic controls, and dust suppression systems minimize manual labor, increase safety, and ensure continuous, efficient operation.
Durability for Mining Conditions: Constructed with high-strength steel and components built to withstand harsh conditions, including dust, vibration, and continuous use, ensuring high uptime and a long service life.
Ideal for large-scale mining operations, this crawler-mounted DTH drill rig combines unparalleled mobility with precise, multi-angle drilling power to maximize efficiency and safety on site.
Product Description
| |
|
Fuel tank capacity |
L |
260 |
| Rotary head(HB-520) |
low operation |
Max.Torque |
N.m |
16000 |
| |
|
Rotate speed |
r/min |
42 |
| |
fast operation |
Max.Torque |
N.m |
8000 |
| |
|
Rotate speed |
r/min |
84 |
| |
|
Max.speed |
r/min |
136 |
| |
lmpactfrequency |
bpm |
1800-2400 |
| |
lmpact force |
N.m |
800-900 |
| Hydraulicsystem |
Main pump Max.pull-down piston push |
|
Mpa |
28 |
| |
Main pump |
|
L/min |
180+180 |
| |
Auxiliary pum |
|
L/min |
20+16 |
| |
Hydraulic oil tank capacity |
|
L |
400 |
| Hoist & Feedsystem |
Feed type |
|
|
Motor+Chain |
| |
Feed stroke |
|
mm |
4800/6800 |
| |
Maximum hoist pull |
|
KN |
115 |
| |
Maximumfeed force |
|
KN |
115 |
| |
Maximum hoist pull speed |
|
m/min |
40 |
| |
Maximum feed speed |
|
m/min |
40 |
| Winch |
Line pull (1st layer) |
|
KN |
10 |
| |
Maximum rope speed |
|
m/min |
30 |
| |
Rope diameter |
|
mm |
12 |
| |
Rope capacity |
|
m |
40 |
| Undercarriage |
Travelling speed |
|
km/h |
3 |
| |
Max.climbable gradient of the overall unit |
|
∘ |
26.5 |
| |
Track shoe width |
|
mm |
500 |
| |
Over all width |
|
mm |
2400 |
| |
Overall length |
|
mm |
3450 |
| |
Averageground pressure |
|
kPa |
66 |
| Clamps |
Nominal size |
|
mm |
60-300 |
| |
Maximum Clamping force |
|
kN |
300 |
| |
Maximum breaking torque |
|
kN.m |
45 |
| Constructionparameters |
Max.parallel height |
|
mm |
4000 |
| |
Max.borehole diameter |
|
mm |
300 |
| |
Max.drillingdepth |
|
m |
150 |
| |
Dimension in transport condition(LxWxH) |
|
mm |
9500*2400*2900 |
| |
Weight |
|
Kg |
18800 |
