360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes

1Set/Sets per Month
MOQ
negotiable
Price
360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Type: Rotary Drilling Rig
Power Type: Diesel
Power: 168kw(2200r/min)
Drilling Depth: Max.150m
Drilling Diameter: 300mm
Max.Torque: 1092Nm (1400r/min)
Hydraulic Oil Tank Capacity: 400L
Feature: High Drilling Efficiency,Hydraulic Controlling
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Dimension(L*W*H): 9500*2400*2900mm
Weight: 18800Kg
Maximumfeed Force: 115KN
Maximum Hoist Pull: 115KN
Feed Stroke: 4800/6800mm
Main Pump Max.pull-down Piston Push: 28Mpa
Travelling Speed: 3km/h
Highlight:

360° Rotary DTH Drilling Rig

,

Max. 150m Drilling Depth Crawler Drilling Rig

,

Hydraulic Controlling Blast Hole Drill Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRM300
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

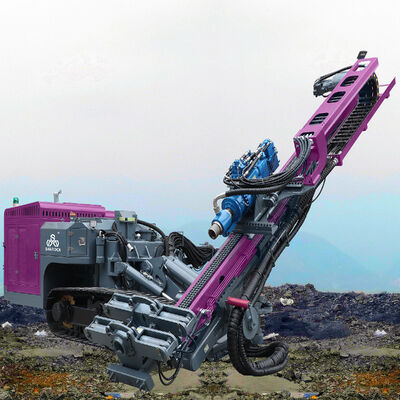

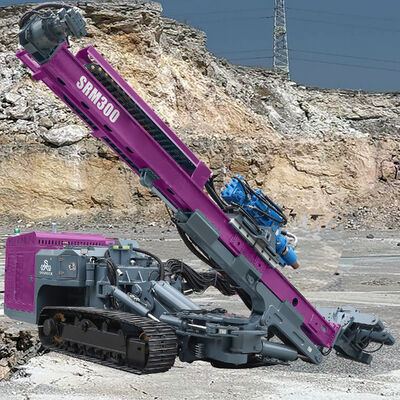

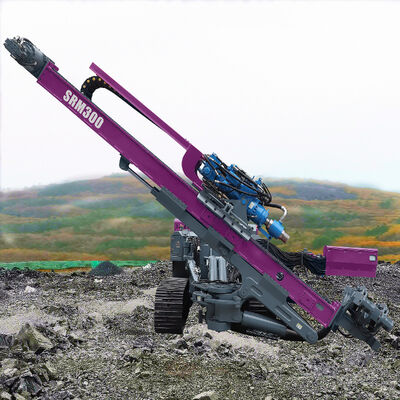

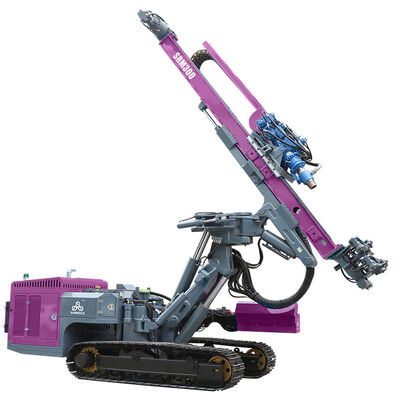

Mining DTH Drilling Equipment 360° Rotary Hard Rock Blast Hole Drill Rig Crawler Drilling Rig
The 360° rotating hard rock blast hole down-the-hole (DTH) drill rig is a highly efficient and versatile machine engineered for precision drilling in demanding mining and quarrying operations. Its core function is to create deep, vertical, or inclined blast holes in exceptionally hard rock formations.
The defining feature of this rig is its fully rotational carousel or drill platform, which allows for a complete 360° positioning of the drill string. This capability enables the operator to drill multiple holes in a precise pre-planned pattern from a single setup position, significantly enhancing operational efficiency by minimizing the need for frequent and time-consuming repositioning of the entire machine.
The drilling process utilizes the Down-the-Hole hammer method, where a high-impact pneumatic hammer is located directly behind the drill bit at the bottom of the hole. As the drill pipe rotates slowly, the DTH hammer delivers powerful, repetitive blows to crush the rock, while compressed air simultaneously powers the hammer and flushes the rock cuttings to the surface. This combination of rotation, percussion, and efficient debris removal makes it exceptionally effective for penetrating granite, basalt, and other abrasive formations.
These rigs are essential for open-pit mining, ensuring the accurate placement of blast holes for controlled fragmentation, which is critical for the safety and productivity of subsequent excavation and hauling processes.
360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 0360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 1360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 2360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 3360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 4360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 5360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 6360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 7360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 8
Technical Specifications
Fuel System Fuel tank capacity L 260
Rotary Head (HB-520) Low operation Max. Torque N.m 16000

Rotate speed r/min 42
Fast operation Max. Torque N.m 8000

Rotate speed r/min 84

Max. speed r/min 136

Impact frequency bpm 1800-2400


Impact force N.m 800-900
Hydraulic System Main pump Max. pull-down piston push
Mpa 28
Main pump
L/min 180+180
Auxiliary pump
L/min 20+16
Hydraulic oil tank capacity
L 400
Hoist & Feed System Feed type

Motor+Chain
Feed stroke
mm 4800/6800
Maximum hoist pull
KN 115
Maximum feed force
KN 115
Maximum hoist pull speed
m/min 40

Maximum feed speed
m/min 40
Winch Line pull (1st layer)
KN 10
Maximum rope speed
m/min 30
Rope diameter
mm 12
Rope capacity
m 40
Undercarriage Travelling speed
km/h 3
Max. climbable gradient of the overall unit
° 26.5
Track shoe width
mm 500
Overall width
mm 2400
Overall length
mm 3450
Average ground pressure
kPa 66
Clamps Nominal size
mm 60-300
Maximum Clamping force
kN 300
Maximum breaking torque
kN.m 45
Construction Parameters Max. parallel height
mm 4000
Max. borehole diameter
mm 300
Max. drilling depth
m 150

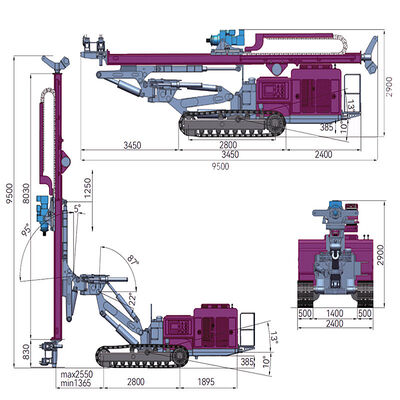

Dimension in transport condition (LxWxH)
mm 9500*2400*2900
Weight
Kg 18800
360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 9360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 10360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 11360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 12360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 13360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 14360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 15
Company Information
360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 17360° Rotary DTH Drilling Rig with Max. 150m Drilling Depth and Hydraulic Controlling for Hard Rock Blast Holes 18
What can you buy from us?
DTH drilling rig, core drilling rig, highway pile driver, solar pile driver, anchor pile driver, rotary drill rig, Top Hammer drill rig, underground jumbo drill rig, DTH hammer, drill rod, screw air compressor, water well drilling rig, truck mounted water well drilling rig, screw air compressor, piston air compressor, pneumatic rock drill, drill bit, tricone bit, spare parts.
How can I make payment?
You can pay by credit card, TT, Western Union, LC etc.
How is the shipment? How long does it take?
For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
