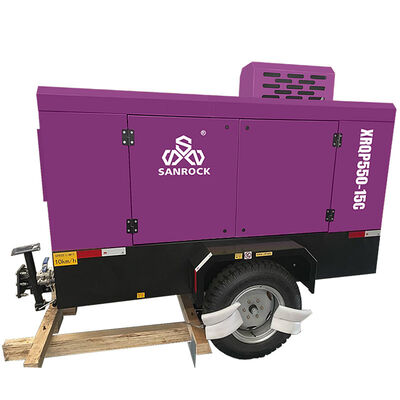

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine

1 Set/Sets
MOQ
negotiable
Price
High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Screw Air Compressor,Air Compressor Machine
Name: Screw Air Compressor Machine
Rated Power: 153kw
Rated Speed: 2000/1400rpm
Oil-gas Tank Capacity: 30L
Fuel Tank Capacity: 190L
Pressure: 15/220 Bar/PSI 15/220
F.A.D: 15/550m³/min/CFM
Feature: High Drilling Efficiency,Competitive Price
Application: Mining Quarry, Water Well,constructure,etc
Configuration: Portable
Dimension(l*w*h): 3000*1990*2200mm
Weight: 1880kg
Type: 2 Wheels
ConditionCooling Method: Air Cooled
Warranty: 1 Year
After-sales Service Provided: Online Support
Highlight:

15bar mining screw air compressor

,

high efficiency rotary screw compressor

,

industrial screw air compressor machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: XRQP550-15C
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 12-20days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

The mining-purpose portable rotary screw air compressor is a robust and mobile power source designed to deliver a continuous,

high-volume supply of compressed air in demanding underground and surface mining environments. Its core function is to provide

 reliable energy for pneumatic tools, most notably Down-the-Hole (DTH) hammers on drill rigs, as well as for ventilation and other

auxiliary operations.

The heart of the unit is its rotary screw compression element. This system operates by trapping air between two intermeshing helical

screws (rotors). As the rotors turn, the volume of the air pockets is progressively reduced, efficiently compressing the air.

This mechanism is renowned for its durability, energy efficiency, and ability to provide a steady, pulsation-free airflow, which is critical

 for the consistent performance of drilling equipment.

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 0

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 1

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 2

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 3

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 4

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 5

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 6

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 7

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 8


Products Description

ModelXRQP555-15C
F.A.D m³/min/CFM15/550
Pressure Bar/PSI15/220
Fuel Tank Capacity(L)190
Oil-gas Tank Capacity(L)30
Outlet Valve1*G3/4'' 1*G1 1/2''
Air Endsingle stage compression
Model Number6BTAA5.9-C205
Rated Power(kw)153
Rated  Speed(rpm)2000/1400
Dimension (mm)3000*1990*2200
Shipping Dimension (mm)2750*1500*1900
Weight(kg)1880
Type2 wheels


High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 9


High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 10

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 11

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 12

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 13

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 14

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 15

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 16

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 17

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 18

Company Profile

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 19

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 20

High Efficiency Screw Air Compressor 15bar Mining Rotary Screw Air Compressor Machine 21

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.


3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.


4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
