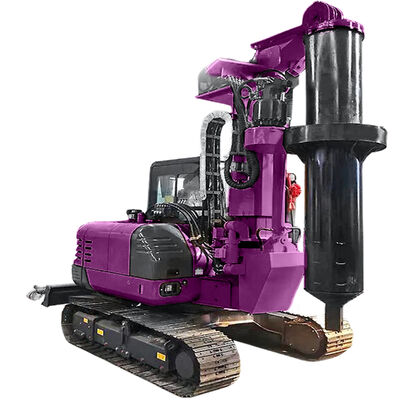

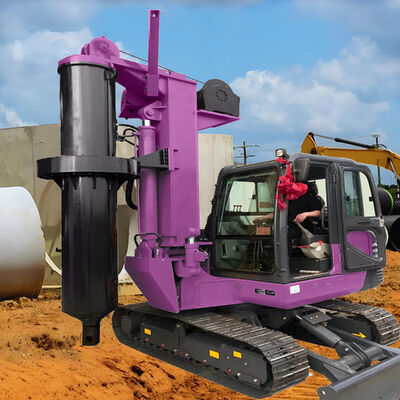

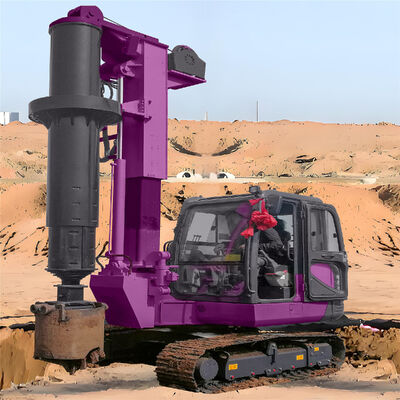

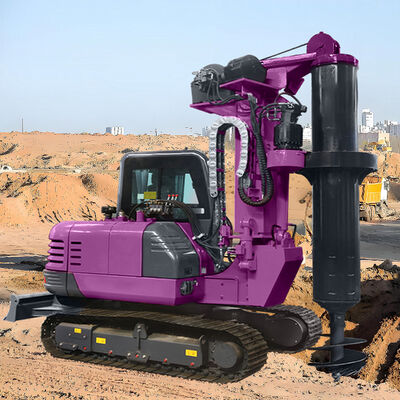

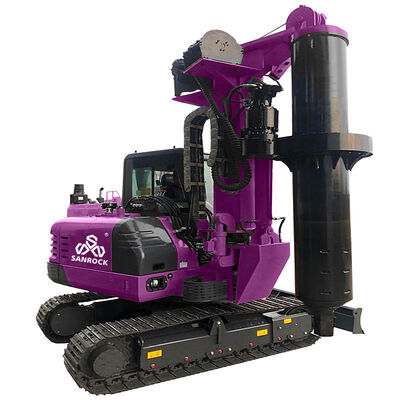

The Compact Crawler-Mounted Rotary Drilling Rig is an essential piece of equipment tailored for the unique demands of urban construction engineering.
Its design prioritizes maneuverability, minimal environmental impact, and operational efficiency in confined city spaces.
Engineered to excel on dense construction sites, this rig's key advantages include:
Superior Maneuverability: The crawler track system provides excellent mobility and stability, allowing it to navigate tightly packed sites, uneven ground,
and areas with limited access that are inaccessible to larger, truck-mounted rigs.
Minimized Site Impact: With a compact footprint and low ground pressure, it operates effectively with minimal disruption to existing infrastructure or adjacent structures, which is critical in urban settings.
Reduced Vibration and Noise: Advanced engineering ensures low-noise and low-vibration operation, essential for complying with strict urban noise regulations
and minimizing disturbance to surrounding businesses and residences.
Precision and Versatility: The hydraulic system delivers precise control for drilling foundation piles, diaphragm walls, and micro-piles with high accuracy, adapting
to various soil conditions commonly encountered in city projects.
Ideal for tasks such as high-rise foundation piling, metro station construction, and bridge abutment work, this compact rig is the cornerstone of efficient, safe, and neighbor-friendly foundational engineering in the urban landscape.
Products Description
|
Product name
|
Rotary Drilling Machine
|
|
|
Type
|
Rotary Drilling Rig
|
|
|
Model Number
|
SRP13
|
|
|
|
1.Installed On XCMG Excavator
|
XE55DA
|
2.Installed On SUNWARD Excavator
|
SWE60E
|
|
Engine
|
KUBOTA
|
Engine
|
YANMAR
|
|
Max.Drilling Diameter(mm)
|
1000
|
Max.Drilling Diameter(mm)
|
1000
|
|
Max.Drilling Depth(m)
|
13
|
Max.Drilling Depth(m)
|
13
|
|
Rotary Head
|
Rotary Head
|
|
Rated Torque(KN.m)
|
50
|
Rated Torque(KN.m)
|
50
|
|
Feed Strock(m)
|
1.1
|
Feed Strock(m)
|
1.1
|
|
Rotary Speed(rpm)
|
10-45
|
Rotary Speed(rpm)
|
10-45
|
|
Max.Pullling force(KN)
|
27
|
Max.Pullling force(KN)
|
27
|
|
Max.Pushing force(KN)
|
25
|
Max.Pushing force(KN)
|
25
|
|
Winch
|
Winch
|
|
Main Winch Rated Tension(KN)
|
38
|
Main Winch Rated Tension(KN)
|
38
|
|
Auxiliary Winch Rated Tension(KN)
|
14
|
Auxiliary Winch Rated Tension(KN)
|
14
|
|
Crawler Chassis
|
Crawler Chassis
|
|
Chassis Width(mm)
|
1880
|
Crawler Length(mm)
|
2495
|
|
Chassis Width(mm)
|
1880
|
|
Overall Drilling Weight(T)
|
8.6
|
Overall Drilling Weight(T)
|
9.3
|
|
Dimension (transportation condition)
|
3100*1920*3500mm
|
Dimension (transportation condition)
|
3100*1900*3500mm
|
|
Company Profile
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
What can you buy from us?
DTH drilling rig Integrated DTH DTH drilling rig water well drilling rig truck mounted water well drilling rig core drilling rig reverse circulation drilling rig highway pile driver solar pile driver anchor pile driver rotary drill rig Top Hammer drill rig Underground jumbo drill rig DTH hammer screw air compressor piston air compressor pneumatic rock drill drill rod drill bit PDC drill bit top hammer drill bit tricone bit spare parts
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
