Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale

1 Set/Sets
MOQ
negotiable
Price
Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Truck Mounted Water Well Drilling Rig
Power Type: Diesel
Power(w): 70KW /90KW /132KW
Drilling Depth: 300m
Drilling Diameter: 260mm, 350mm, 505mm
Rotary Torque: 9500-15500N.m
Rotate Speed: 0-90 Rpm
MUD PUMP: BW450/30 BW600/30 BW850/30
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Drill Rod Diameter: 102/108/114mm
Drill Rod Length: 2.0m 3.0m 6.0m
Type: Rotary Drilling Rig
Warranty: 1 Year
Usage: Water Well
Dimension(l*w*h): 11500*2500*4150MM
Weight: 29000 KG
Highlight:

hydraulic water well drilling machine

,

truck mounted water well rig

,

environmental monitoring drilling rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: SRTM300
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Set/Sets per Month
Product Description

Truck-mounted water well drilling rigs are extensively utilized for the specialized task of environmental monitoring well drilling, which is crucial for groundwater assessment and protection. These mobile units are designed to install monitoring wells that track groundwater quality, levels, and contamination levels in various ecosystems. Equipped with precision drilling systems, they can navigate diverse terrains—such as industrial sites, agricultural areas, or protected zones—to reach targeted aquifers without causing significant disturbance to the environment. Key features include advanced drilling techniques like sonic or hollow-stem auger methods, which minimize soil disruption and prevent cross-contamination between aquifers. Integrated sensors and data loggers allow real-time collection of geological and hydrogeological parameters during drilling, ensuring accurate well placement for long-term monitoring. This process supports environmental compliance, pollution control efforts, and sustainable resource management by providing reliable data for regulatory agencies and research institutions. The mobility and efficiency of truck-mounted rigs make them ideal for rapid deployment in remote or sensitive locations, underscoring their vital role in safeguarding water resources through scientific monitoring.

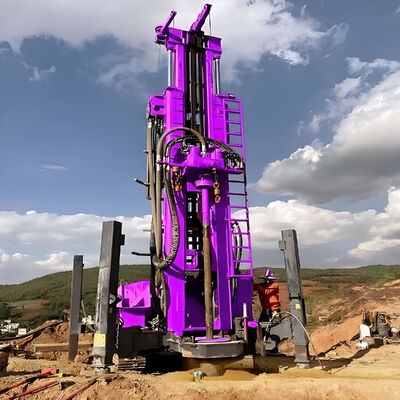

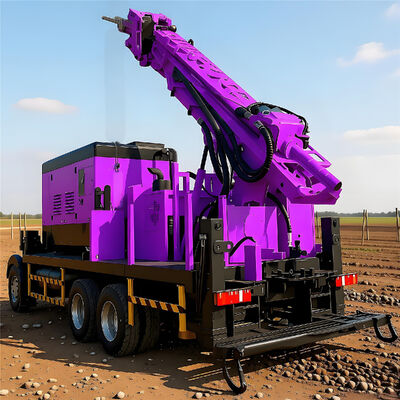

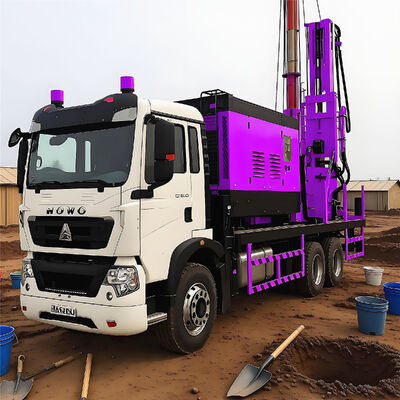

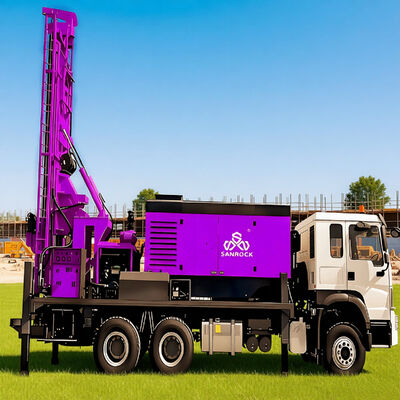

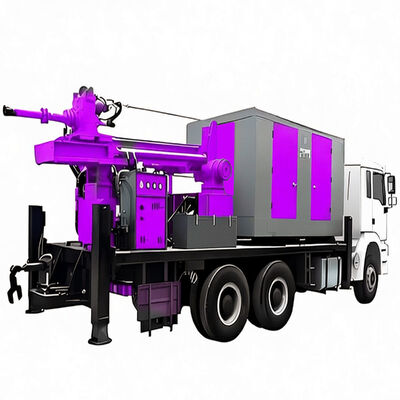

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 0

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 1

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 2

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 3

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 4

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 5

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 6



Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 7

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 8


Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 9

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 10

Products Description

SANROCK TRUCK-MOUNTED DRILLING RIG SRTM300C COMPREHENSIVE OVERVIEW
DEPTH
300-400M
300-400M
300-400M
DRILLING DIAMETER
260MM
350MM
505MM
DIMENSIONS
9500*2500*3350MM
10500*2500*3600MM
11500*2500*4150MM
TOTAL WEIGHT
22000KG
25000KG
29000KG
TRUCK CHASSIS
POWER
400HP
400HP
400HP
DRIVING FORM
6*4
6*4
6*4
DRILLING TOWER,SECOND FLOOR CHASSIS
DRILLING TOWER
RETRACTABLE
RETRACTABLE
FIXED PIPE RACK TYPE
DRILL TOWER LOAD
28T
45T
50T
DRILL TOWER HEIGHT
6M
8M
8M
PULL DOWN
10T
15T
15T
PULL UP
20T
25T
30T
DRILLING RIG POWER
DIESEL ENGINE
OPTIONAL
Customization
Customization
RATED POWER
70KW
90KW
132KW
TOOL HOIST
MODEL
ZYJ2B
SINGLE ROPE PULL UP
2T
HYDRAULIC POWER HEAD
TORQUE
9500NM
11500NM
15500NM
REVOLUTIONS
0-70RPM
0-90RPM
0-90RPM
OTHER PARTS AND COMPONENTS
FOAM PUMP
B-36EX1
FLOW
42L/MIN
PRESSURE
4MPA
REVOLUTIONS
660R/MIN
MUD PUMP
BW450/30
BW600/30
BW850/30
FLOW
450L/MIN
600L/MIN
850L/MIN
PRESSURE
3MPA

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 11

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 12

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 13

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 14

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 15

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 16



 Company Profile

Quzhou Sanrock Heavy Industry Machinery Co.,Ltd is founded in 2017, fastly develop as a key enterprise in the industry of mine field, geological exploration, water well field and engineering construction field, with the ability to research, manufacture and market.
Sanrock products now cover more than 10 species such as:
Mining Drilling Rig                           Engineering Drilling Rig
Underground Drilling Rig                          Solar Pile Drilling Rig
Water Well Drilling Rig                            Rotary Drilling Rig
Core Drilling Rig                        Air Compressor
We have many year experience in these fields to offer various solutions, with ISO 9001 and CE certificate to guarantee our quality control.  We also have excellent engineer and sale teams to serve different customers' demand.
We also offer comprehensive after-sales service support, including on-site installation guidance, operation training and regular maintenance services, to ensure that customers have no worries during the use of the equipment.
We Sanrock here wish to hand in hand with our customers,create better future!
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 17

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 18

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 19

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 20

Hydraulic Water Well Drilling Machine Environmental Monitoring Ground Water Well Drilling Rig for Sale 21

Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.


How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


How is your quality control?
We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
