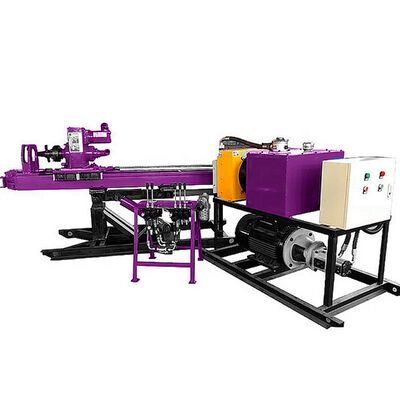

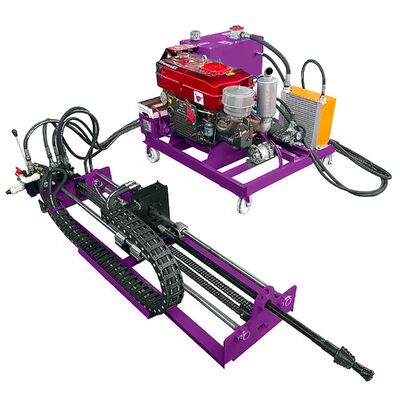

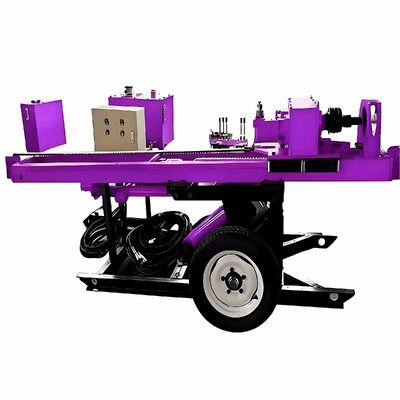

Portable DTH Drilling Rig Compact Horizontal Directional Drilling Machine Hydraulic Drilling Rig

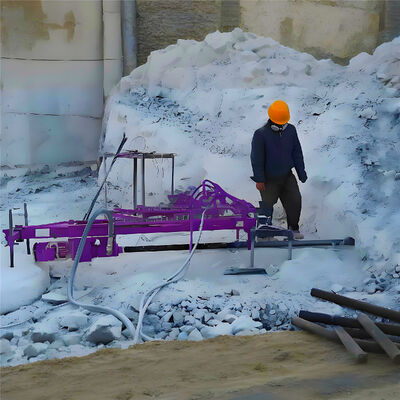

A small horizontal directional drilling rig for mining is a compact, highly maneuverable, and robust drilling system engineered for specialized underground operations within mines. Designed to operate in confined spaces such as narrow tunnels, shafts, and stopes, it enables precise, trenchless installation of utility lines, dewatering pipes, grouting tubes, ventilation ducts, and sensor conduits without disrupting mining activities.
Key features of this mining-specific HDD rig include:
Compact & Modular Design: Its reduced footprint and often modular components allow for easy transport, assembly, and operation in restricted underground environments.
Robust Construction: Built with heavy-duty materials to withstand harsh mining conditions, including moisture, dust, vibration, and potential rock impacts.
Precise Guidance: Equipped with a downhole survey system (e.g., wireline or gyroscopic steering tools) to navigate accurately through complex geology and around existing mine infrastructure.
High Torque, Low Profile: Delivers substantial rotational torque and pull/push force for drilling through various rock strata, while maintaining a low height for working under limited headroom.
Enhanced Safety: Often incorporates features like explosion-proof ratings for use in gassy environments, integrated dust suppression, and remote operation capabilities to protect personnel.
This type of rig is invaluable for mine infrastructure development, drainage and dewatering projects, ground stabilization (e.g., injecting grout behind tunnel walls), exploratory drilling from within existing drifts, and installing monitoring systems for stability or gas detection. By eliminating the need for extensive excavation, it significantly improves operational safety, reduces downtime, and minimizes interference with ongoing production, making it a critical tool for modern, efficient mine management.

Products Description

Company Profile

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
