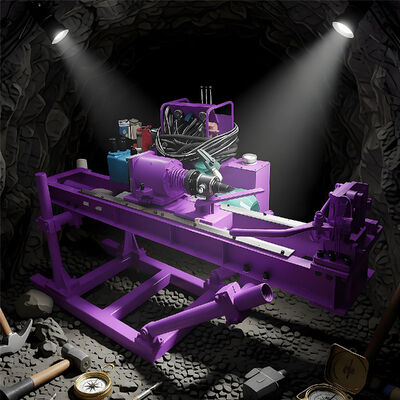

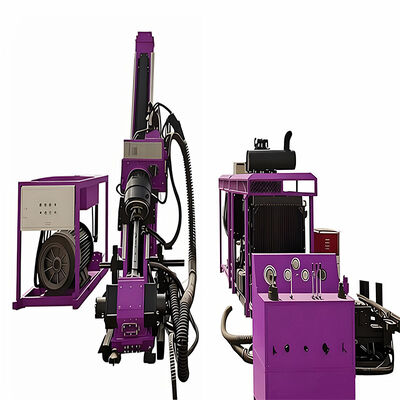

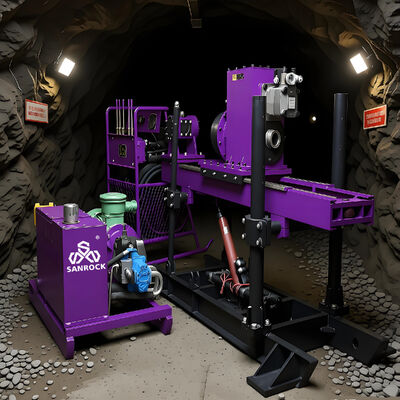

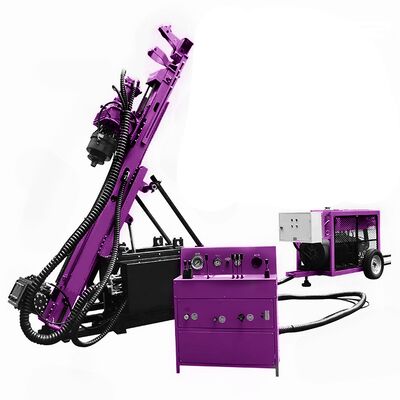

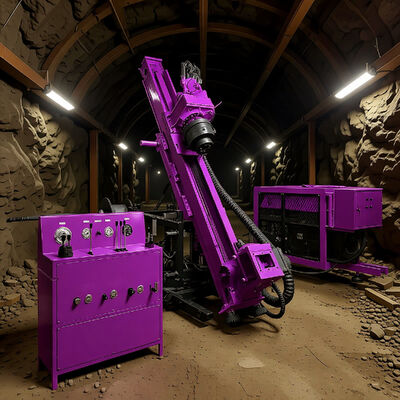

Portable 360-Degree Rotating Core Drill for Tunnel Exploration
This portable hydraulic core drilling rig is a highly versatile and compact subsurface investigation system designed specifically for agile, multi-directional geological sampling in confined tunnel environments. It combines full rotational drilling capability with exceptional portability, enabling comprehensive exploration from a single, easily positioned setup.
Enhanced Portability & Rapid Deployment: Engineered for maximum mobility, the rig features a lightweight, modular design. It can be quickly disassembled into man-portable components for easy transport through narrow tunnels and shafts, or it may be mounted on a compact, steerable trolley. Setup is fast and straightforward, requiring minimal anchoring, which drastically reduces non-productive time between drilling locations.
Integrated Operational Support:
Multi-Angle Flushing System: Maintains effective borehole cleaning and cooling across all drilling orientations.
Stable, Adaptive Base: A low-profile, stable chassis or anchoring system counteracts drilling forces during overhead or sideways operations.
User-Friendly Controls: A centralized, intuitive control panel allows for precise adjustment of drilling parameters and provides real-time monitoring of depth, pressure, and rotation.
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.
Products Description
|
SRC400UG HYDRAULIC UNDERGROUND TUNNEL DRILLING RIG Technical Parameter
|
|
Spindle rotational speed
|
280-1200r/min
|
Spindle torque
|
910Nm
|
|
Axial feeding force
|
≥70KN
|
Axial pulling force
|
≥120KN
|
|
Hydraulic system working pressure
|
20MPa
|
Max pressure
|
25MPa
|
|
Main pump max pressure
|
31.5MPa
|
Auxiliary pump max pressure
|
21MPa
|
|
Power head stroke
|
1600mm
|
Surface drilling angle
|
0-90
|
|
Underground drilling angle
|
0-360
|
Azimuth angle
|
0-360
|
|
Motor Power
|
55Kw
|
Motor rotational speed
|
1480rpm
|
|
Machine body/outer size
|
2800㎜×1020㎜×1550㎜
|
Weight
|
1335Kg
|
|
Power car/size
|
1720㎜×690㎜×1420㎜
|
Weight
|
765Kg
|
|
Console/size
|
500㎜×405㎜×1080㎜
|
Weight
|
80Kg
|
|
Drilling depth of various diameters
|
|
|
Bit
|
Drill Rod
|
Material
|
Drill Depth/m
|
|
Outer Dia. mm
|
Outer Dia. mm
|
Rod Material
|
Down
|
Horizontal
|
UP
|
|
Φ59(BQ)
|
Φ55.6×4.8
|
XJY850
|
550m
|
500m
|
300m
|
|
Φ75(NQ)
|
Φ69.9×4.8
|
XJY850
|
450m
|
400m
|
250m
|
|
Φ95(HQ)
|
Φ88.9×5.5
|
XJY850
|
350m
|
300m
|
200m
|
|
|
