Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,core Drilling Rig
Type: Core Drilling Rig
Usage: Water Well.core Sample
Feature: High Drilling Efficiency,portable，Light Weight
Application: Geological Exploration
Power: 16.2KW
Rated Speed: 2200r/min
Drilling Diameter: 75-325mm
Drilling Depth: 200m
Drill Rod Diameter: 42-60mm
Dimension(l*w*h): 2700*900*1500mm
After-sales Service Provided: Online Support
Maximum Lifting Weight Of Vertical Shaft: 25KN
Maximum Feed Pressure Of Vertical Shaft:: 15KN
Maximum Output Torque Of Vertical Shaft: 15KN
Vertical Shaft Speed(4th Gear): 71,142,310,620 R/min
Vertical Shaft Travel: 450mm
Hole Dip Angle: 90-75°
Final Hole Diameter: 75mm
Single Package Size: 2150×880×1560 Mm
Single Gross Weight: 760 Kg
Highlight:

Portable hydraulic core drilling rig

,

Flexible geotechnical drilling equipment

,

Core drilling rig with warranty
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC200
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

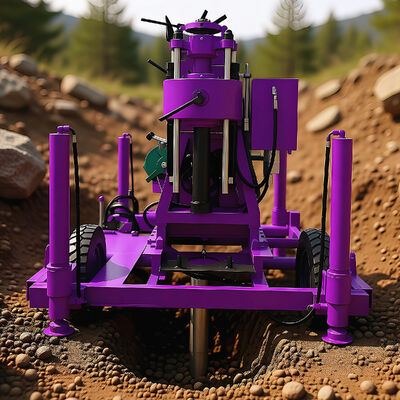

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 0

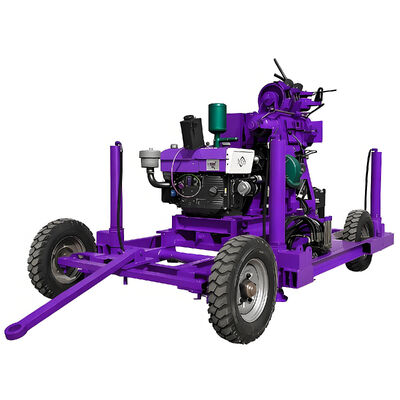

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 1

200m Trailer Mounted Core Drilling Rig for Geological Exploration
This compact, trailer-mounted core drilling rig is specifically designed for geological drilling to depths of up to 200 meters. Its small footprint and towable configuration enable rapid deployment across varied terrain, making it an excellent choice for mineral prospecting, geological mapping, and geotechnical sampling in remote or challenging locations.
The hydraulic core drilling rig  features a powerful rotary head with variable speed and torque control, capable of penetrating a wide spectrum of rock formations. A precision hydraulic feed system ensures smooth, consistent core recovery while minimizing sample disturbance. The integrated trailer chassis is equipped with screw-type outriggers and a self-leveling mechanism for stable operation on uneven ground. Essential components such as a wireline winch, rod holder, and optional water/mud pump are included for efficient drilling operations.
Core sample drilling rig delivers reliable performance at 200-meter depths, offering an ideal balance of portability and professional-grade coring capability for geological survey projects that require frequent site changes and quick setup.

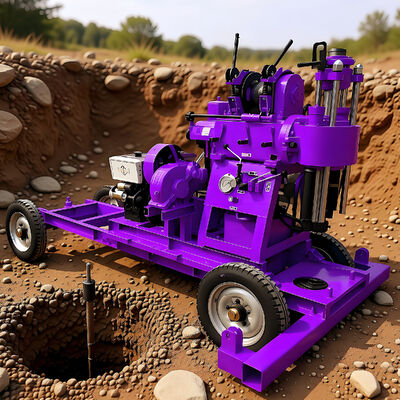

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 2

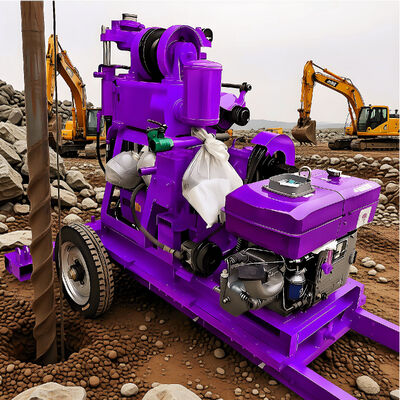

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 3

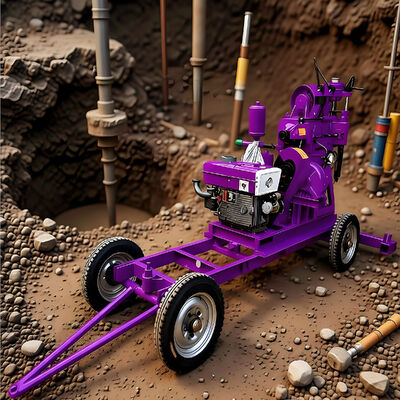

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 4

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 5

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 6

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 7


Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 8

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 9

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 10

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 11

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 12

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 13

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 14


Company Profile

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 15

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 16

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 17


Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 18

Portable Core Drilling Rig Flexible Movement Geotechnical Drilling Equipment Hydraulic Core Drilling Rig 19
