Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,core Drilling Rig
Type: Core Drilling Rig
Usage: Water Well.core Sample
Feature: High Drilling Efficiency,portable，Light Weight
Application: Geological Exploration
Power: 16.2KW
Rated Speed: 2200r/min
Drilling Diameter: 75-325mm
Drilling Depth: 200m
Drill Rod Diameter: 42-60mm
Dimension(l*w*h): 2700*900*1500mm
After-sales Service Provided: Online Support
Maximum Lifting Weight Of Vertical Shaft: 25KN
Maximum Feed Pressure Of Vertical Shaft:: 15KN
Maximum Output Torque Of Vertical Shaft: 15KN
Vertical Shaft Speed(4th Gear): 71,142,310,620 R/min
Vertical Shaft Travel: 450mm
Hole Dip Angle: 90-75°
Final Hole Diameter: 75mm
Single Package Size: 2150×880×1560 Mm
Single Gross Weight: 760 Kg
Highlight:

small core drilling rig

,

high performance geotechnical drilling machine

,

rock core drilling rig with warranty
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC200
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

The 200-meter deep exploration core drilling rig is a highly efficient and reliable piece of equipment specifically designed for obtaining high-quality rock and soil core samples at depths of up to 200 meters.

It is widely used in geological surveys, mineral exploration, geotechnical engineering, and environmental investigations. The rig features a robust hydraulic system, variable rotation speed, and precise feeding control, ensuring smooth and consistent coring operations in various terrains. Equipped with a wireline coring system and diamond-impregnated drill bits, it delivers excellent core recovery rates with minimal disturbance to the sample structure.

Compact and portable in design, this rig is suitable for both indoor and outdoor operations, offering easy transportation and quick setup. Its advanced control panel and safety mechanisms make it user-friendly and safe for operators. With stable performance and low maintenance requirements, the 200-meter deep exploration core drilling rig is an ideal choice for efficient core sampling and subsurface investigation.

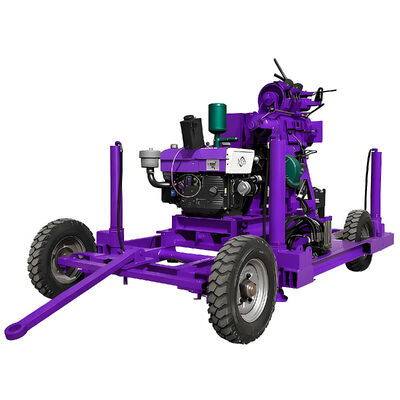

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 0

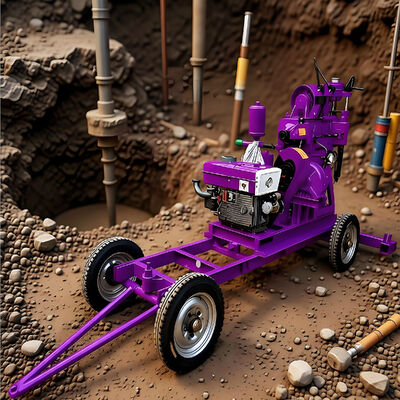

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 1

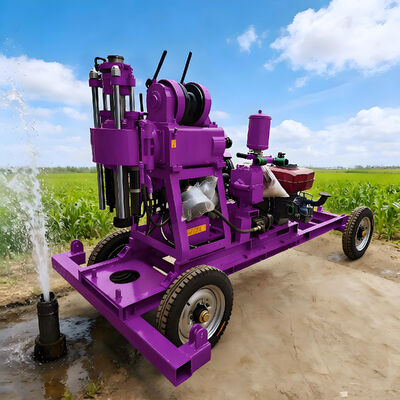

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 2

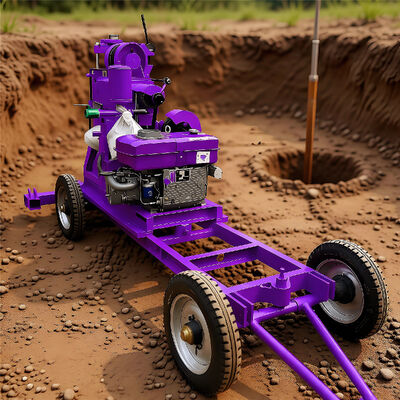

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 3

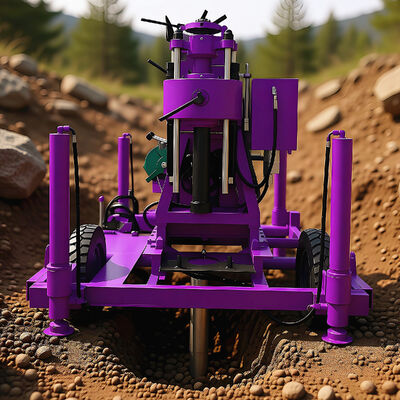

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 4

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 5

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 6

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 7

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 8


Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 9

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 10


Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg



Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 11

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 12

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 13

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 14

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 15

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 16

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 17

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 18

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 19


Company Profile

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 20

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 21

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 22


Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 23

Small Core Drilling Rig High Performance Geotechnical Drilling Machine Rock Core Drilling Rig 24
