Home /Products/Core Drilling Rig/Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Core Drilling Rig
Name: Borehole Drilling Rig,core Drilling Rig
Type: Core Drilling Rig
Usage: Water Well.core Sample
Feature: High Drilling Efficiency,portable，Light Weight
Application: Geological Exploration
Power: 16.2KW
Rated Speed: 2200r/min
Drilling Diameter: 75-325mm
Drilling Depth: 200m
Drill Rod Diameter: 42-60mm
Dimension(l*w*h): 2700*900*1500mm
After-sales Service Provided: Online Support
Maximum Lifting Weight Of Vertical Shaft: 25KN
Maximum Feed Pressure Of Vertical Shaft:: 15KN
Maximum Output Torque Of Vertical Shaft: 15KN
Vertical Shaft Speed(4th Gear): 71,142,310,620 R/min
Vertical Shaft Travel: 450mm
Hole Dip Angle: 90-75°
Final Hole Diameter: 75mm
Single Package Size: 2150×880×1560 Mm
Single Gross Weight: 760 Kg
Highlight:

portable diamond core drilling machine

,

geotechnical core drilling rig

,

portable core drilling rig with warranty
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC200
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

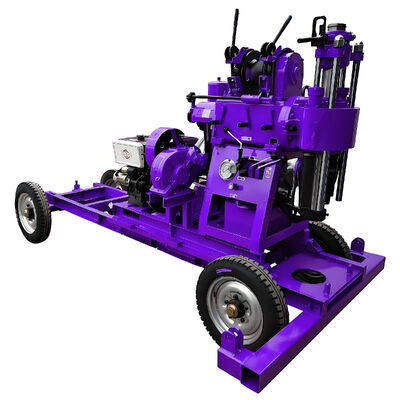

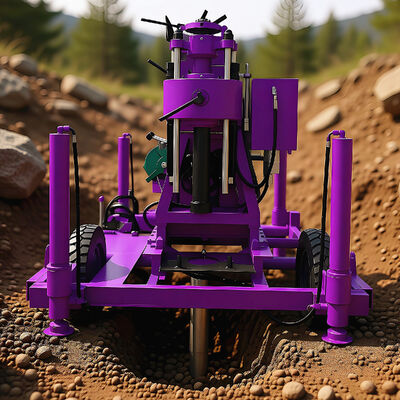

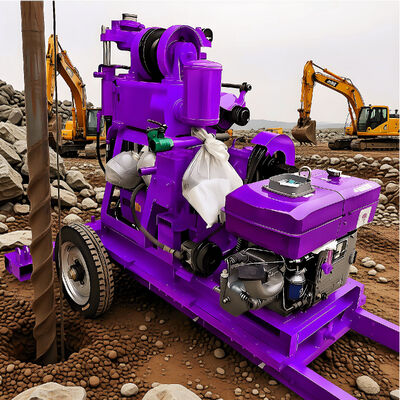

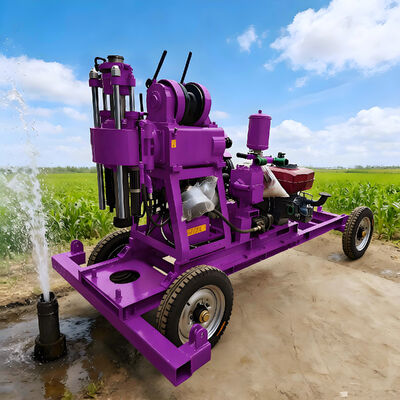

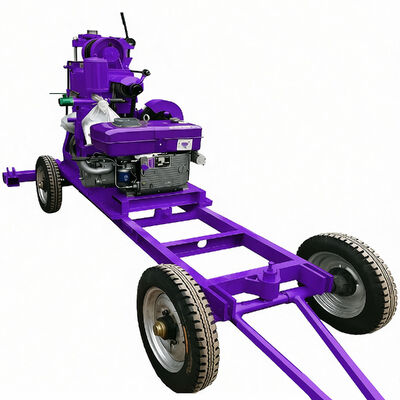

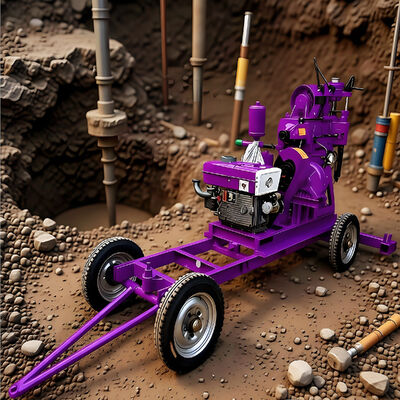

200-Meter Deep Exploration Portable Core Drilling Rig
The 200-meter deep exploration portable core drilling rig is a compact and lightweight solution designed for efficient subsurface coring in remote and challenging environments. Despite its small footprint, this rig is capable of reaching depths of up to 200 meters, making it ideal for mineral exploration, geological surveys, geotechnical investigations, and groundwater studies. Its modular design allows for easy disassembly and transportation, enabling rapid deployment in areas with limited access. Equipped with a powerful yet fuel-efficient engine and a hydraulic feed system, the rig delivers precise rotation speed and pressure control for high core recovery rates. Compatible with wireline coring systems and various diamond drill bits, it ensures intact and high-quality core samples with minimal disturbance. The rig also features a user-friendly control panel, built-in safety mechanisms, and low maintenance requirements, making it suitable for both experienced drillers and field technicians. Compact, durable, and highly versatile, this portable core drilling rig is the ideal choice for efficient deep exploration in rugged terrain or confined spaces.

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 0

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 1

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 2

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 3

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 4

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 5

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 6

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 7

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 8

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 9

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 10


Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 11

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 12

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 13

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 14

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 15

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 16

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 17

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 18

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 19

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 20






Company Profile

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 21

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 22

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 23


Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 24

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig 25
