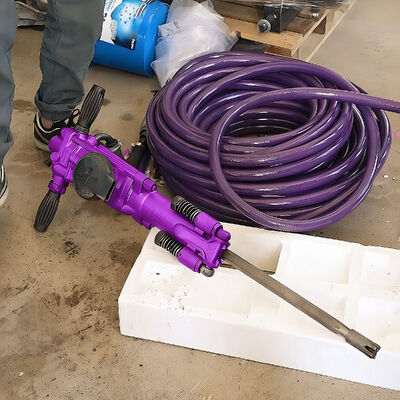

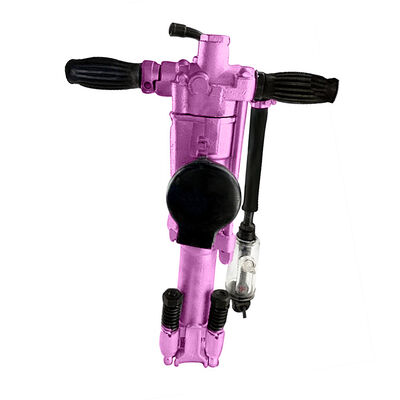

Our Y20 handheld pneumatic rock drill is a lightweight industrial perforator weighing 20.5 kg. It delivers ≥26 J impact energy for blasting‑hole drilling on medium‑hard and hard rock. With compact 561‑mm body length and anti‑slip dual handles, this air‑powered jackhammer adapts to downward, horizontal and inclined borehole work. Widely deployed in mine excavation, quarrying, roadworks, water‑conservancy and stone‑blasting projects, it features low air consumption, easy maintenance and dependable performance for long‑time harsh‑site operation
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Products Description
| Brand Name:Sanrock Product name: Rock Drilling Machine Model:YO20 Drilling Diameter:34-42mm Drilling Depth:5m Rock Hardness:F=6-20 Piston Stroke:52mm Cylinder Diameter:64mm Working Pressure:0.4-0.63 Mpa Impact frequency:≥33Hz Impact energy:≥26J Air Consumption:1.7m3/min Drill Pipe Size:B22*108mm Weight:21kg Package Size:590*280*180mm air leg:FT100 |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Company Information
![]()
![]()
![]()
![]()
![]()
![]()
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
