Name: Mining DTH Drilling Rig Fully Enclosed Operator Cab Hydraulic Drilling Machine Crawler Drilling Rig Equipment
Brand: Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
SKU: S76+
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Drilling Diameter: Φ140-Φ190 Mm

Lifting Force: 25kN

Name: Borehole Drilling Rig

Drilling Depth: 35 / 30m

Weight: 21500kg

Engine: Yuchai

Rotary Speed: 0-130rpm

Air Displacement: 10-24m³/min

Feed Force: 15kN

Power Type: Diesel

Walking Speed: 2.5km/h, 3km/h

Max. Output Torque: 3500N.m

Climbing Capacity: 30degree

Dimension(l*w*h): 5800×2180×2340mm

Product Name: Drilling Rig

Application: Ore Mining Project,Drilling Rock Mining Quarry,Drilling Blast Hole

Min. Ground Clearance: 460mm

Discharge Pressure: 0.8-2.0MPa

Feature: High Drilling Efficiency,Competitive Price,High Performance

Method Of Feed: Cylinder+Chain

Feed Stroke:: 3200mm

Rated Power: 316 / 1900 KW/rpm

Working Pressure: 24bar

Max. FAD: 24m³/min

Fuel Tank Capacity: 800L

Pipe Diameter: Φ89/Φ102 / Φ114mm

Pipe Length: 5m

Pipe Capacity: 6+1 / 5+1Piece

Rotation Rate: 130rpm

Max. Rotation Torque: 3600Nm

Feeding Force: 30kN

Lifting Force: 30kN

Feed Extension: 1400mm

Feeding Stroke: 5895mm

Feed Swing Angle: 36/95°

Product Size: Length 12000mm *Width 2708mm*Height 3500mm

Feeding Method: Hydraulic Motor + Chain

Highlight:

fully enclosed DTH drilling rig

hydraulic crawler drilling machine

mining drilling rig equipment

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: SANROCK

Certification: IOS9001 CCC

Model Number: S76+

Document: Mining Drilling Rig .pdf

Payment & Shipping Terms

Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Delivery Time: 15-25days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 5000Set/Sets per Month

Gallery

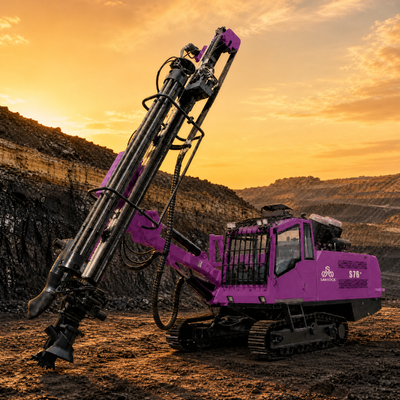

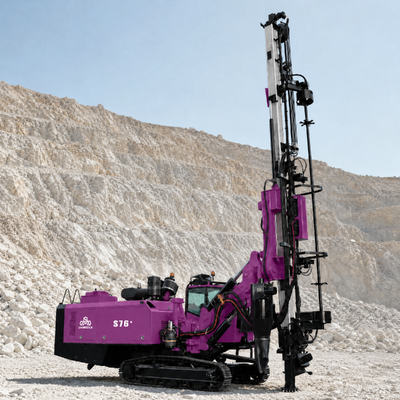

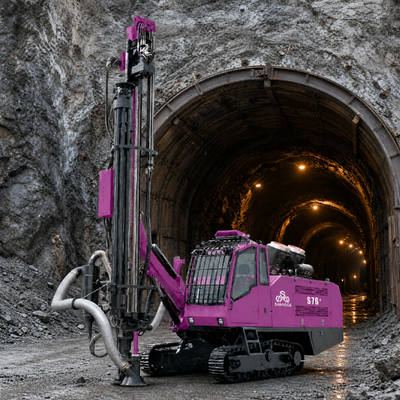

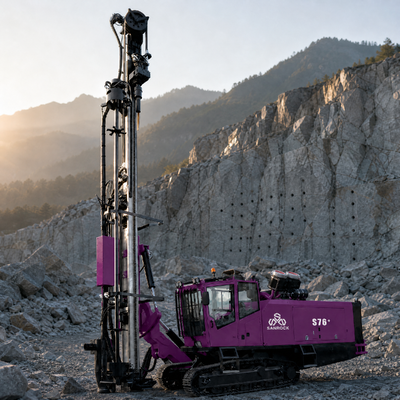

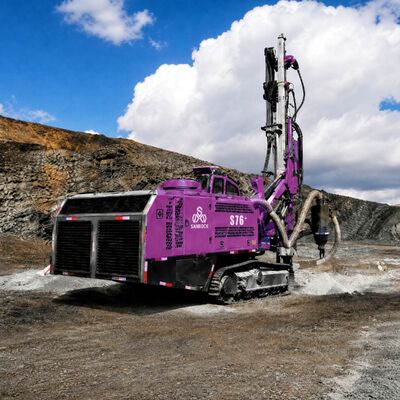

Mining DTH Drilling Rig Fully Enclosed Operator Cab Hydraulic Drilling Machine Crawler Drilling Rig Equipment

Product Description

Open-Pit Mining & Quarrying
Equipped with a high-output famous brand screw air compressor delivering 24 bar working pressure and 24 m³/min FAD, the rig efficiently handles blast hole drilling ranging from Φ140 mm to Φ190 mm in diameter, with drilling depths up to 35 meters. Whether operating in soft sedimentary rock or hard granite formations, the dual-stage compression system ensures powerful, reliable penetration rates that keep production on schedule.
Versatile Rock Formation Adaptability
The double cycloid motor rotation unit generates massive torque output of up to 3600 Nm with continuously adjustable rotation speed (up to 130 rpm), allowing operators to optimize drilling parameters for varying rock hardness on the fly. This adaptability significantly reduces pipe-stuck incidents and ensures consistent hole quality across heterogeneous terrain.
Effective Dust Suppression
The hydraulic dust collection system is integrated seamlessly into the rig's overall design philosophy of easy maintenance. With conveniently accessible inspection points and easily opened shed doors, servicing the dust collector is quick and straightforward, ensuring the system continues to perform at peak efficiency without adding unnecessary downtime to the workflow.
Extended Component Lifespan
By removing airborne dust at the source, the dust collector drastically reduces the amount of abrasive particles entering the engine's air intake system. When paired with the rig's two-stage air filtration system—including a primary pre-filter and a high-efficiency secondary filter—the engine intake remains consistently clean, substantially reducing wear on critical components and extending service life.
Maintenance:Convenient maintenance, maintenance and inspection points are easily reached. Reasonable position of engine, Maintenance is very convenient because the doors on shed are easy to open and close.
With a robust undercarriage featuring, the rig navigates rough, uneven mining sites with ease.  minimizing downtime and maximizing productivity.

Products Description

Collecting method :Hydraulic dust collection
Engine
Model :QSZ13-C425-30
Type:Water-cooled six-cylinder EFI diesel engine
Rated power:316 / 1900 kW/rpm
Fuel tank capacity :800L
Air compressor
Working pressure:24bar
Max. FAD :24m³/min
Drill pipe changer
Drilling diameter Φ140-Φ190 mm
Drilling depth :35 / 30m
Pipe diameter :Φ89/Φ102 / Φ114mm
Pipe length :5m
Pipe capacity :6+1 / 5+1Piece
Hammer specs :5 - 6 - 7”
Rotary motor
Rotation rate: 130rpm
Max. rotation torque:3600Nm
Feeding method :Hydraulic motor + Chain
Feeding force :30kN
Lifting force :30kN
Feed
Feed extension :1400mm
Feeding stroke:5895mm
Feed swing angle :36/95°
Undercarriage
Track width :350mm
Ground clearance:≥400 mm
Track oscillation:±10°
Walking speed :2.3 / 3.5km/h
Grade ability :20°
Weight:21500kg
Product size:Length 12000mm *Width 2708mm*Height 3500mm

Mining DTH Drilling Rig Fully Enclosed Operator Cab Hydraulic Drilling Machine Crawler Drilling Rig Equipment

Company Profile

Mining DTH Drilling Rig Fully Enclosed Operator Cab Hydraulic Drilling Machine Crawler Drilling Rig Equipment

Certifications

Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

Competitive Pricing, Premium Value
At SANROCK , we believe great products should come with a price that makes sense for your business. Transparent quotes with no hidden fees, flexible payment terms, and volume discounts. Send us your specs and get a free quotation within 24 hours — quality you can trust at a price that works for you.

2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
